Cinnamon and his friends in the cottage
Programming level 1
Puppet theatre
P1
How to build
The robot
- Building the characters in the scene
- Their head, arms and mouth can move axially
- All the characters are movable
P1
Static figures
P1
Programming level 2
Arrival at Hannamama's house
P2
How to build
The robots

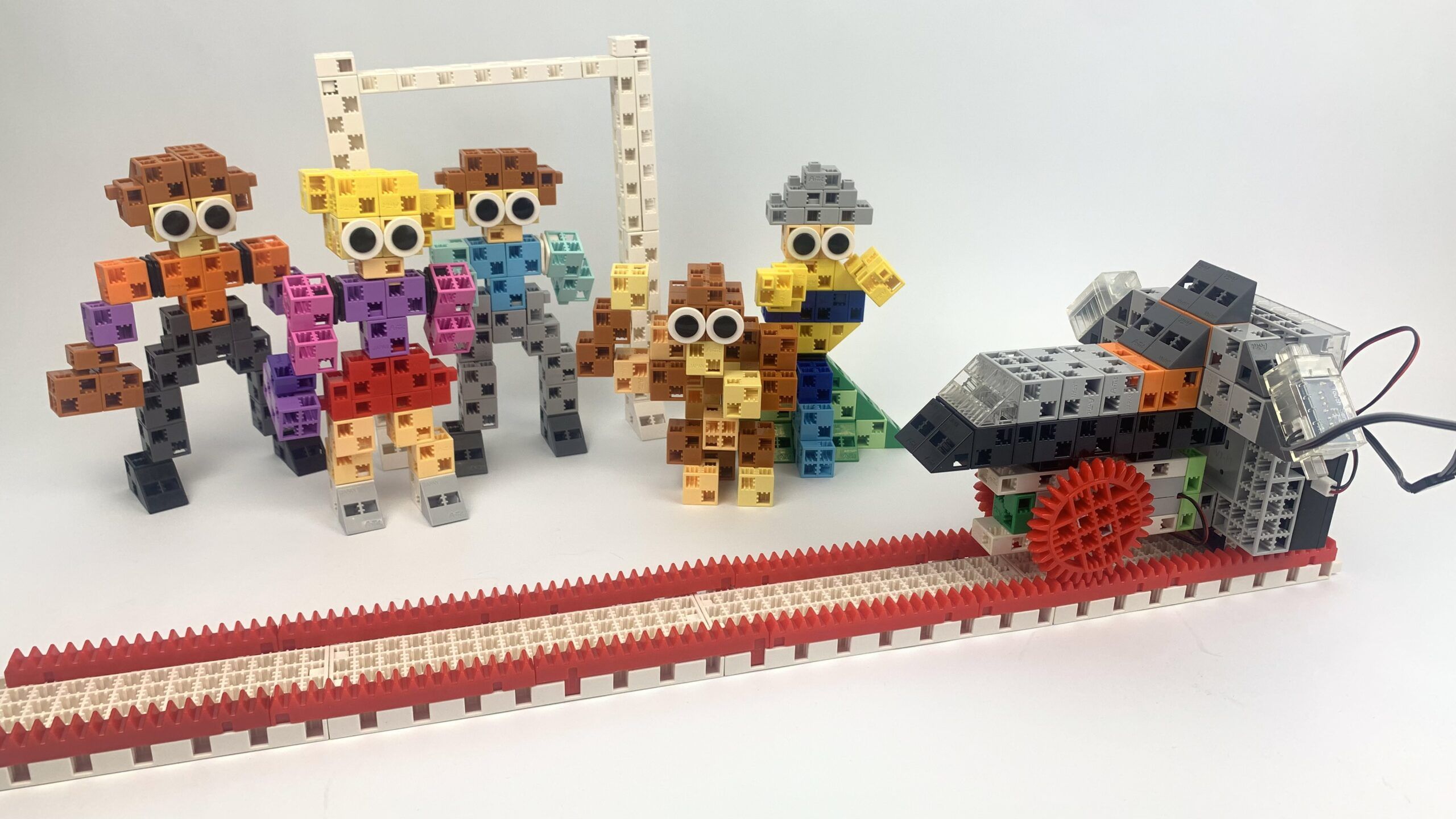

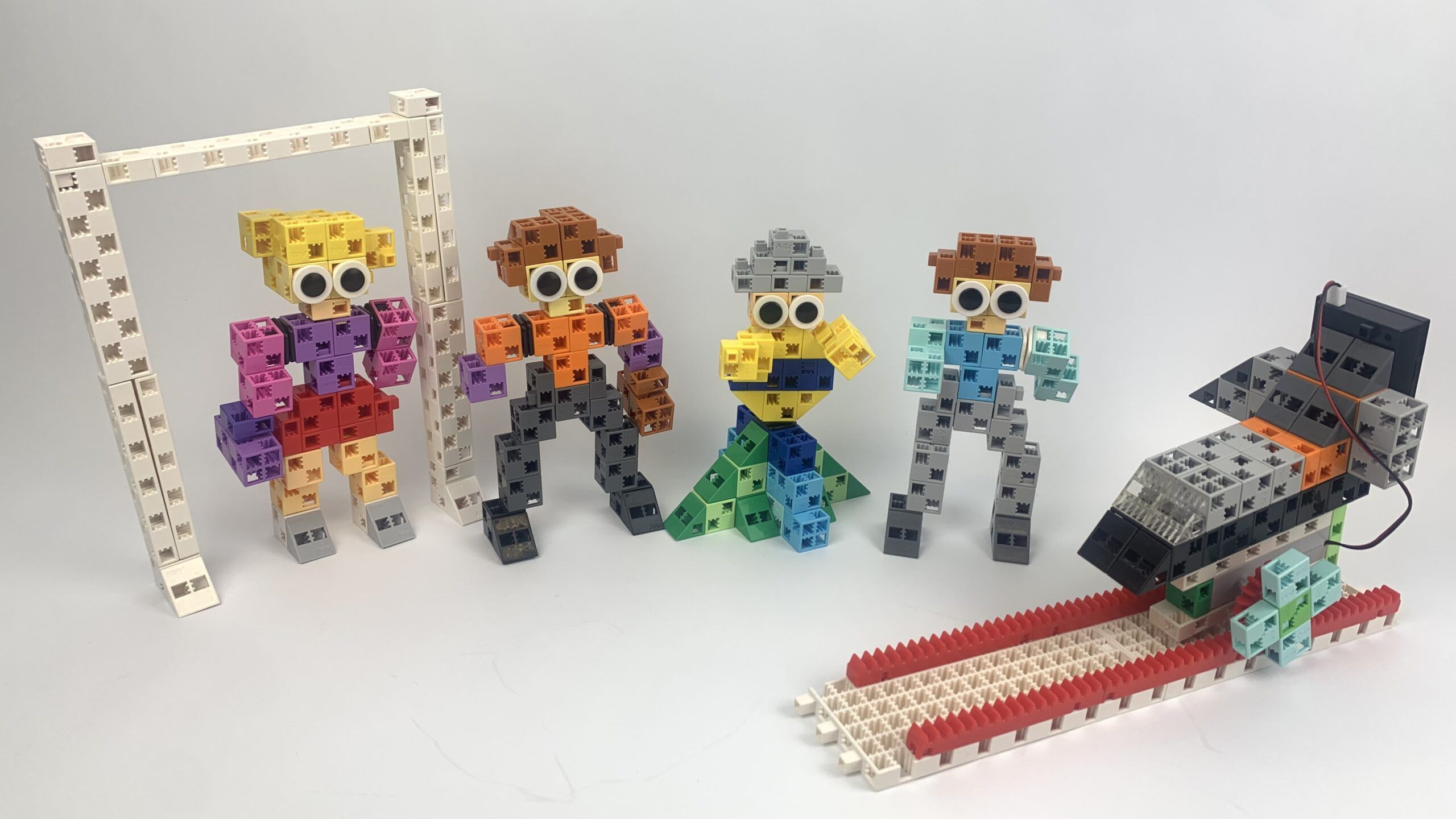

a.) The plane lands
- building a slope-moving aircraft
- movable by gears
b.) The car is heading towards the cabin
- Moves forward with DC motors
- passengers can move their hands, feet and head on it
P2
The robots
P2
P2
Programming level 3
Wonderful cabin
P3
How to build
The robots

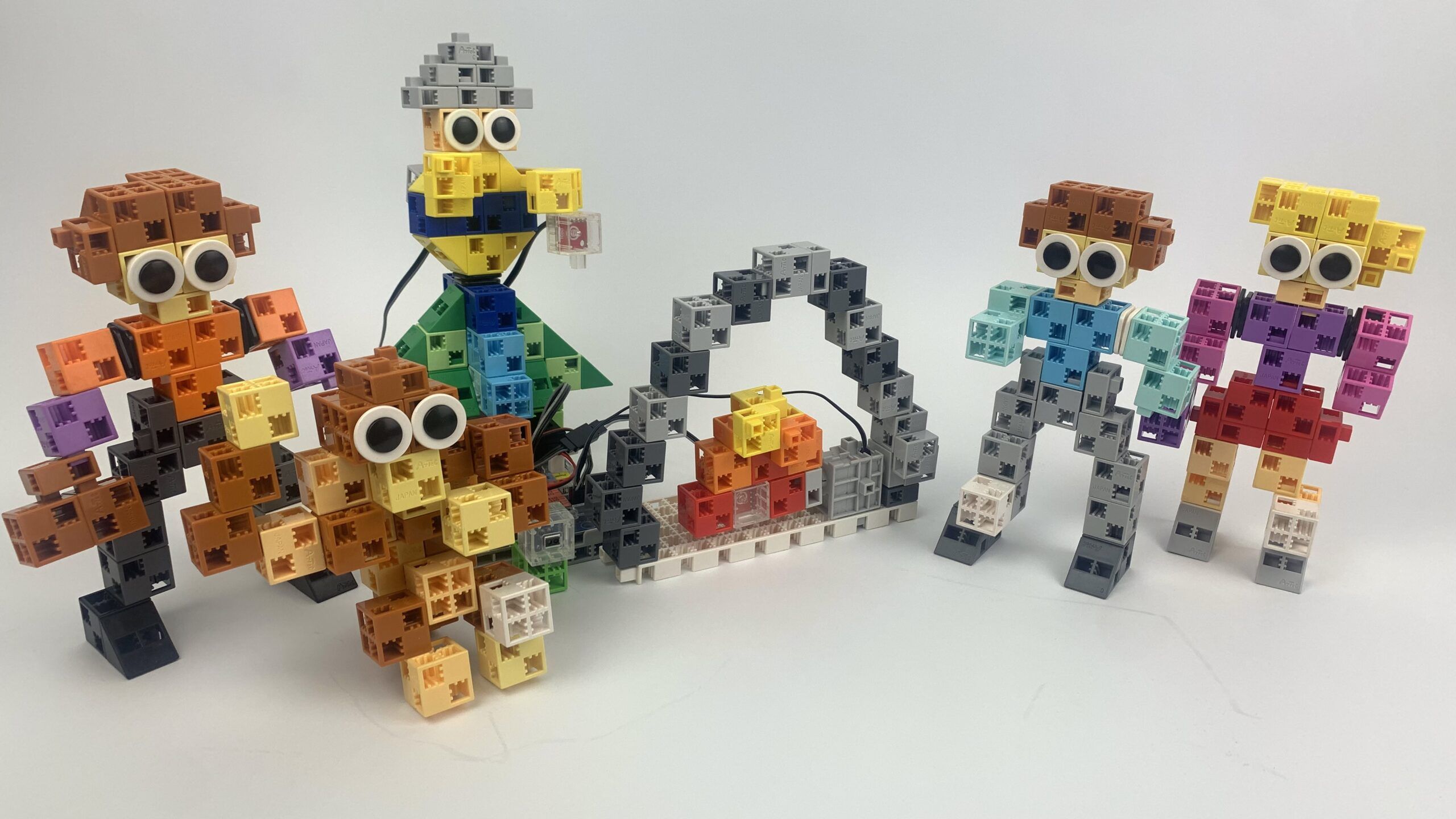

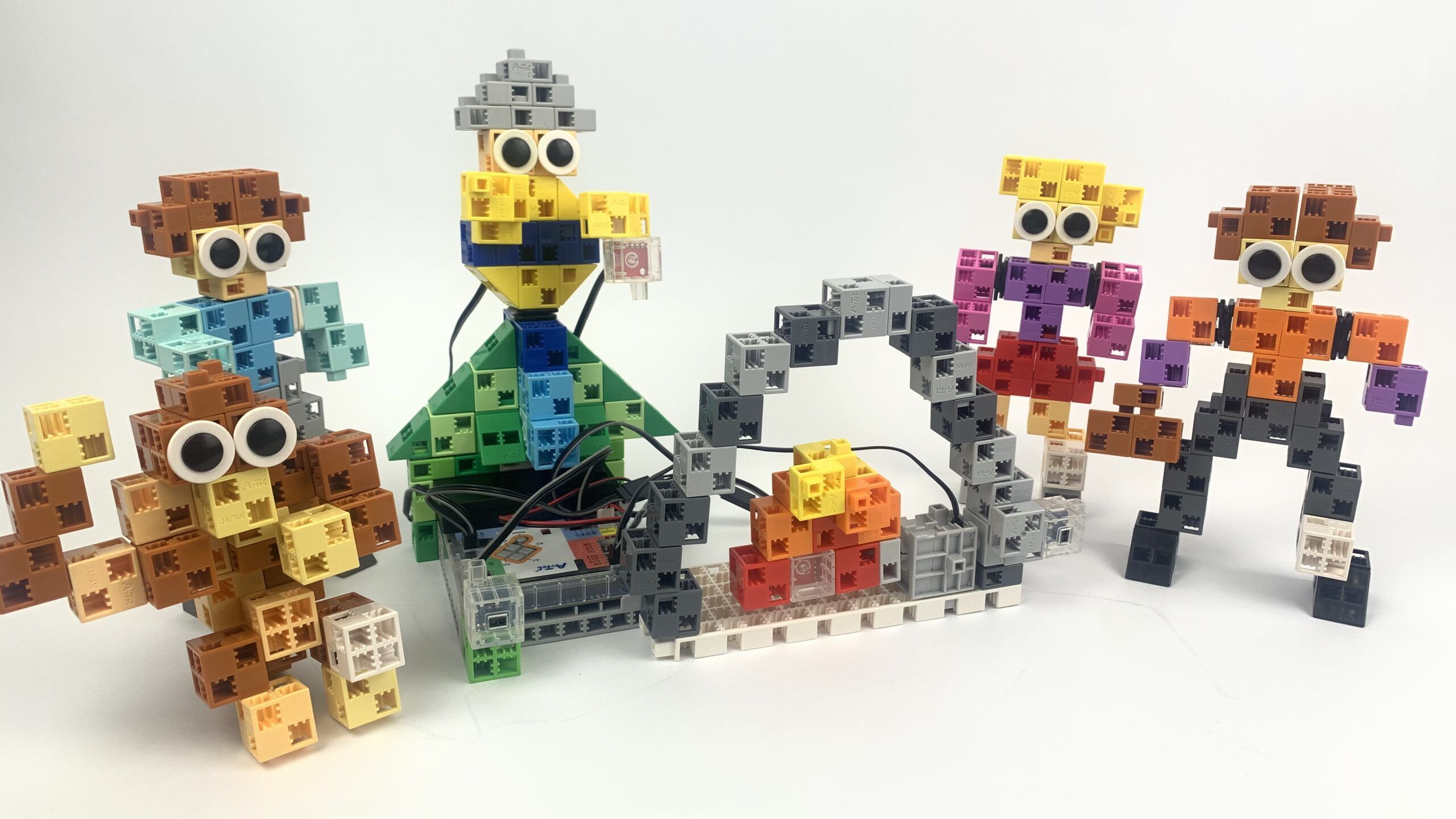

a.) Hannamama shows the petroleum lamp
- the lamp lights up (flashes) when Hannamama presses the touch sensor
b.) Children built on a robot base walk around the house
- 3 IRs to help avoid obstacles
P3
The robots
P3
P3
Programming level 4
Firefighting
P4
How to build
The robots
a.) We put a buzzer on the burning house
- the Buzzer sounds
- if the robot used in P2 c.) makes a sound (they were travelling in a car), it goes to the burning house (children run out of the house)
b.) The monkey makes magic on a robot base
- monkey’s mooves his two arms using 2 servo motors,
- when it raises its arm, its eye lights up (2 LEDs in place of the eye)
c.) The tractor arrives
- 4 touch sensor to control the tractor (forward, left, backward, right)
- 2 LEDs to indicate if you are turning left or right
d.) Cinnamon scares the tractor driver
- Tractor driver with movable mouth
- The forward facing IR on the tractor detects Cinnamon and the tractor driver opens his mouth (scared)
- if a buzzer is installed, it can also emit sound
P4
The robots
