Cinnamon, Ropi and their friends, the plane and its pilot
Programming level 1
Puppet theatre
P1
How to build
The robot

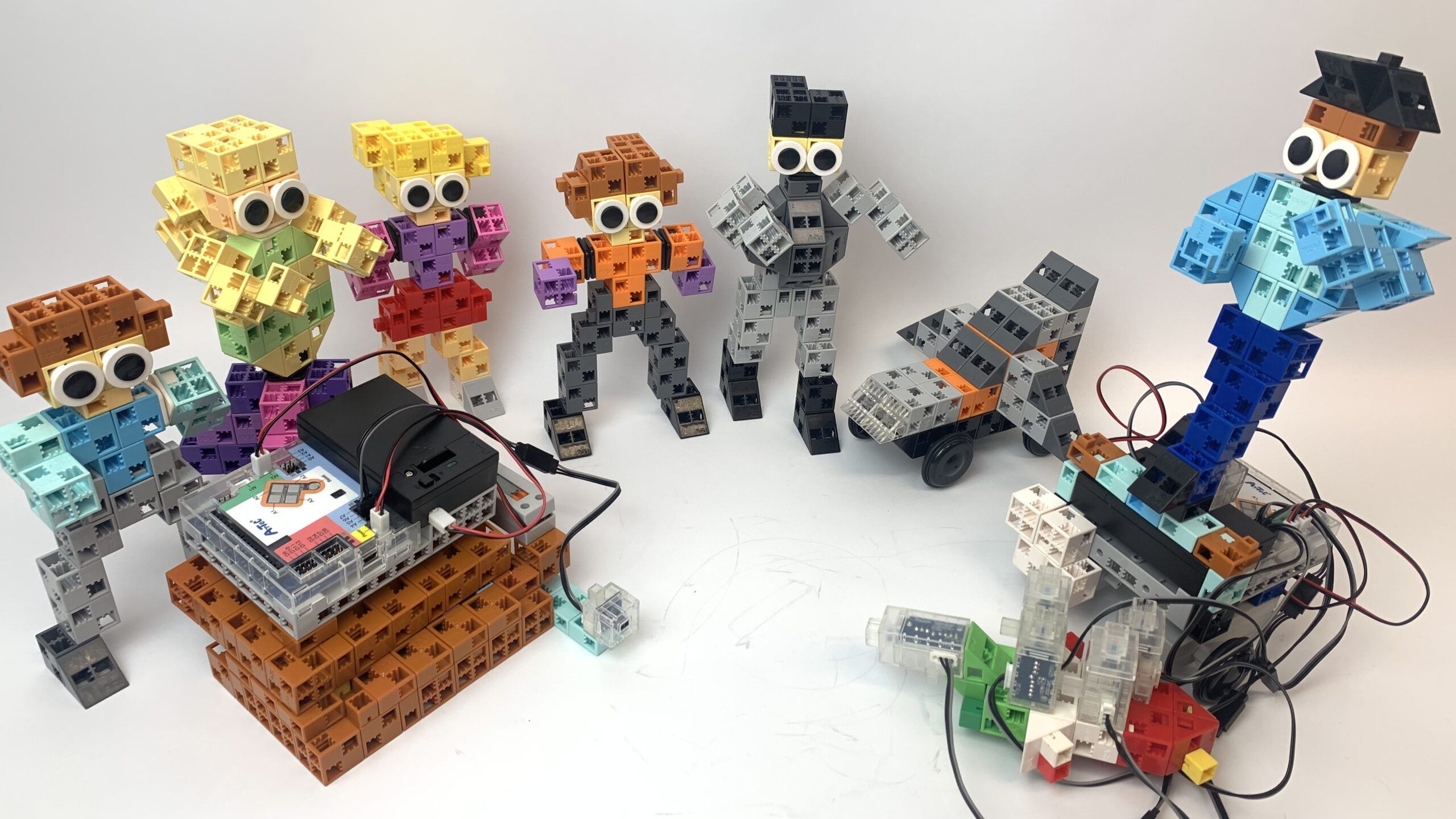

Building the characters from the scene
- Head, arm, suitcase top can be moved axially, wardrobe door opens
- All the characters are movable
P1

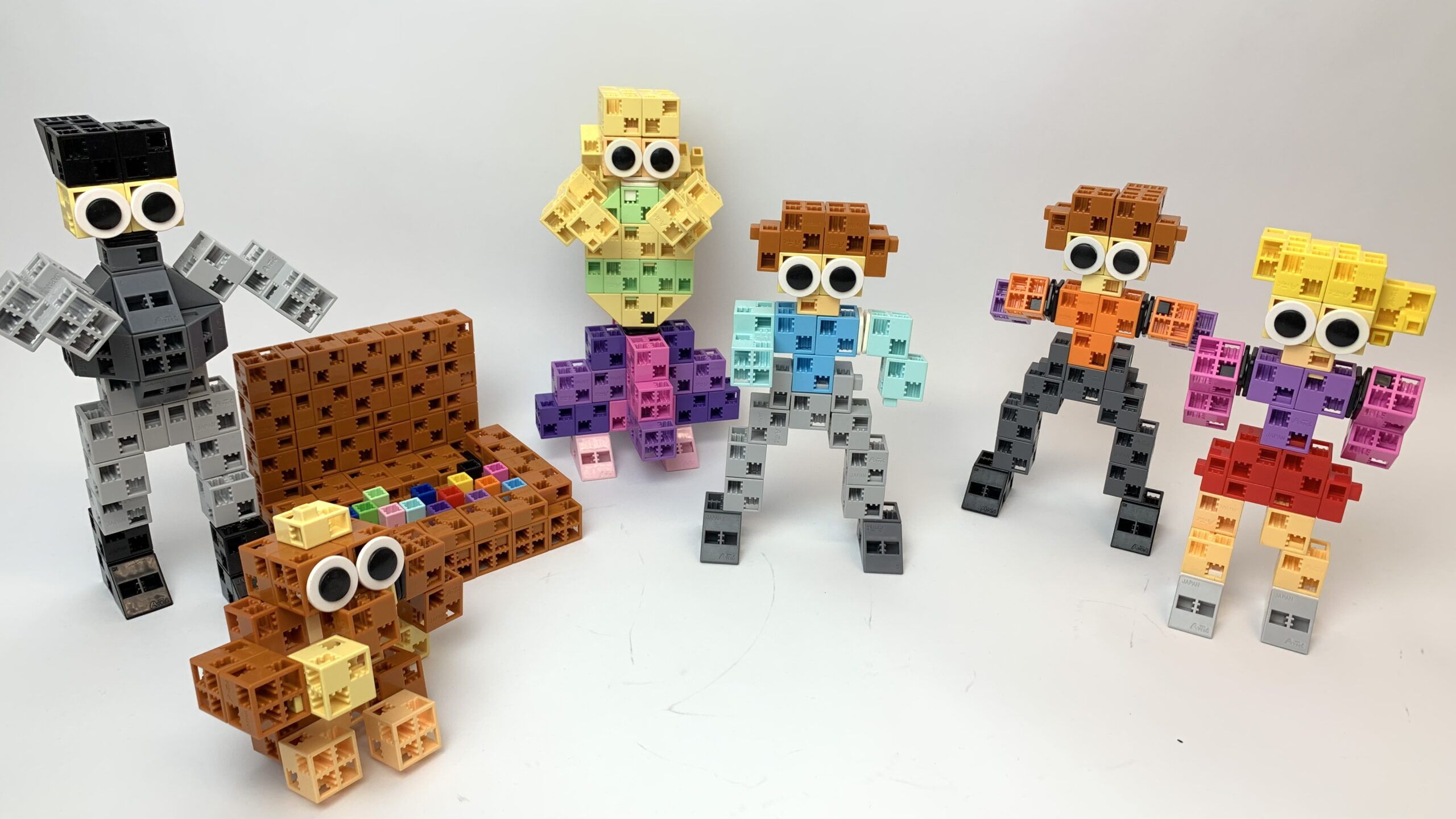

Static figures
P1
Programming level 2
Monkey makes magic
P2
How to build
The robots
a.) Building the characters in the scene as in P1

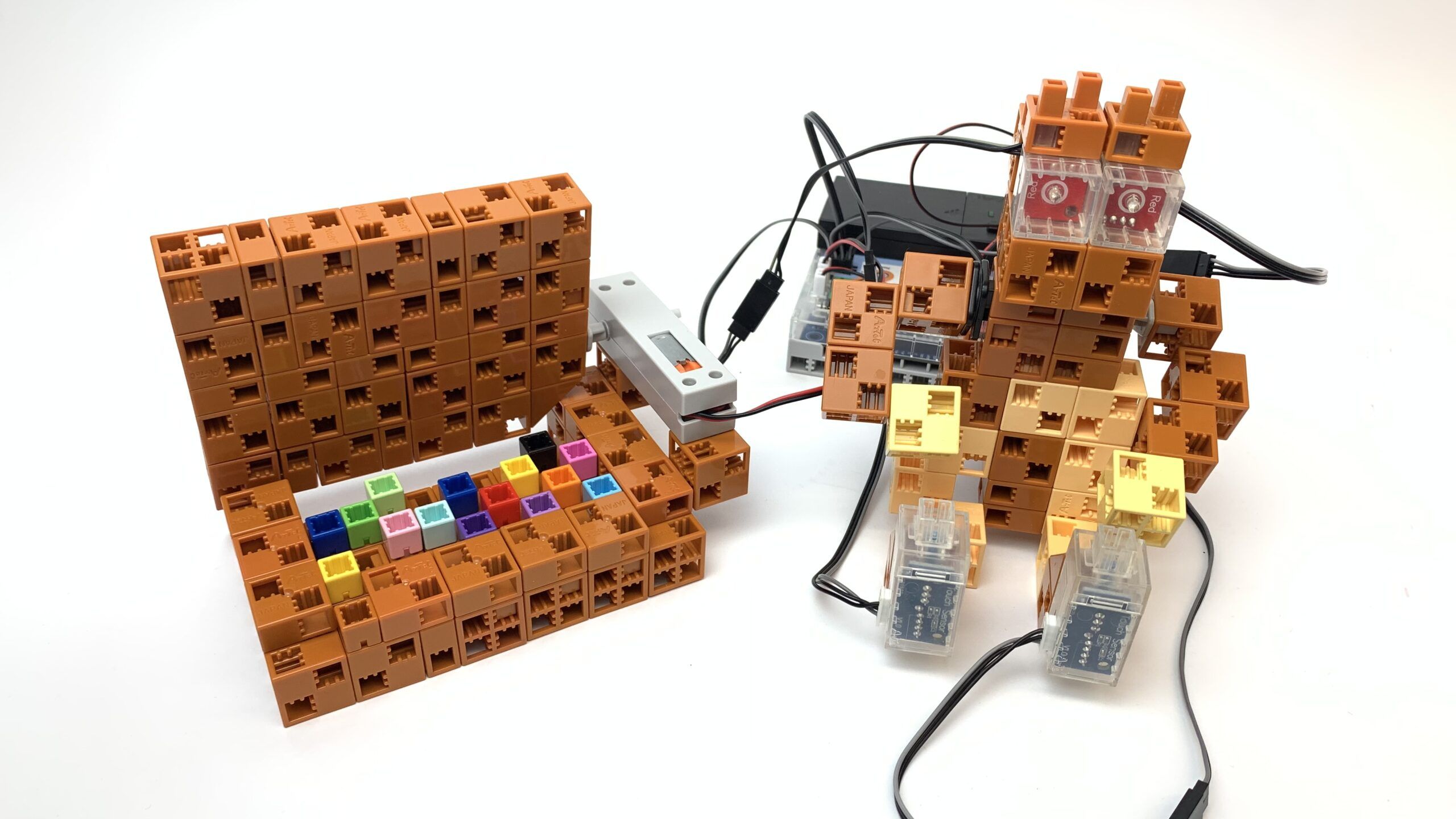

- The suitcase opens, closes
- Red LED instead of monkey’s eye

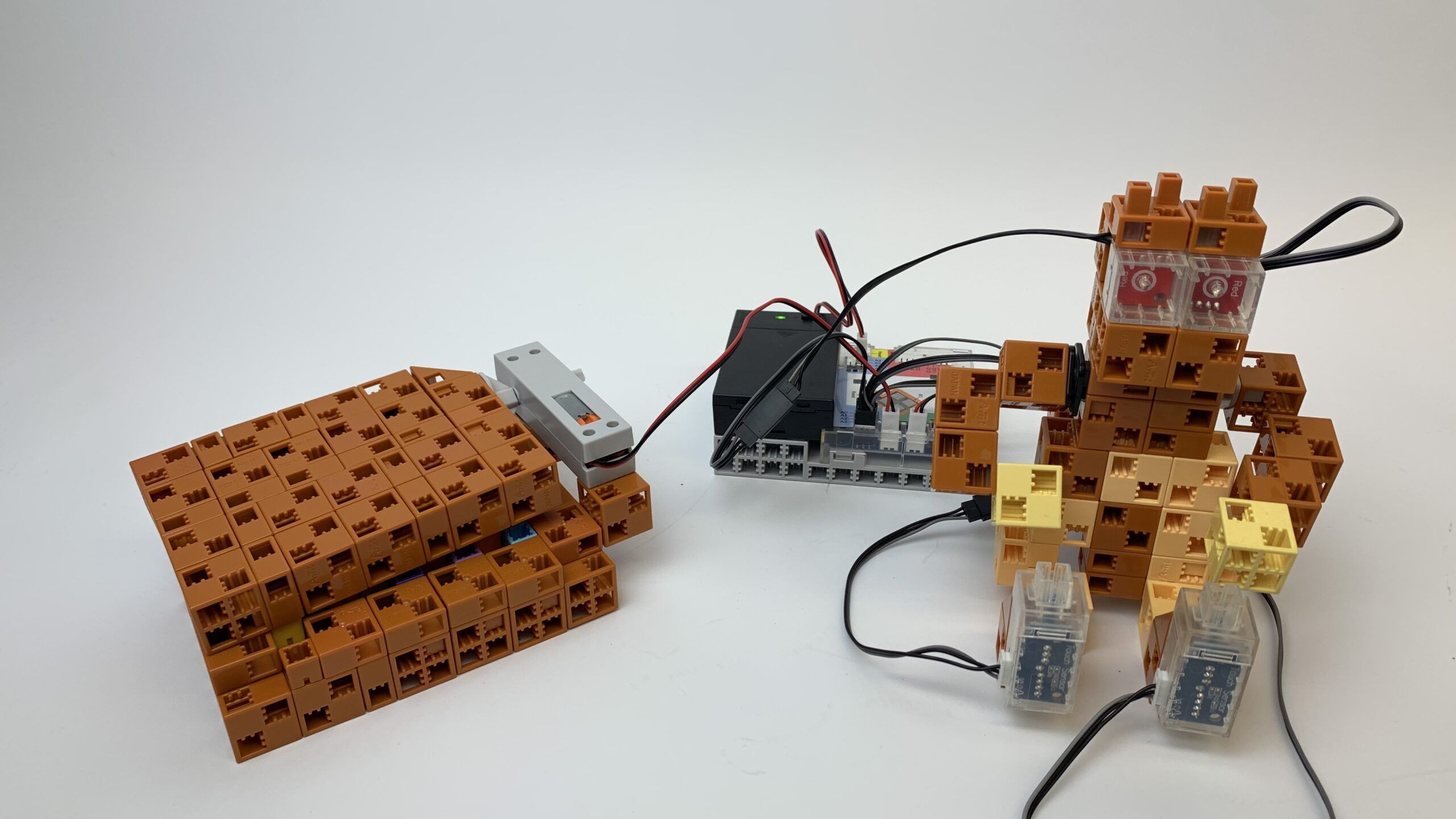

b.) Rised hand, lighting LED
- The monkey raises his hand, then his eyes light up (he casts a spell)
P2
The robots a)
The robots b)
P2
P2
Programming level 3
Monkey in a packing
P3
How to build
The robots
a.) Building the room and its furnishings, the monkey and the suitcase like in P2 a.)

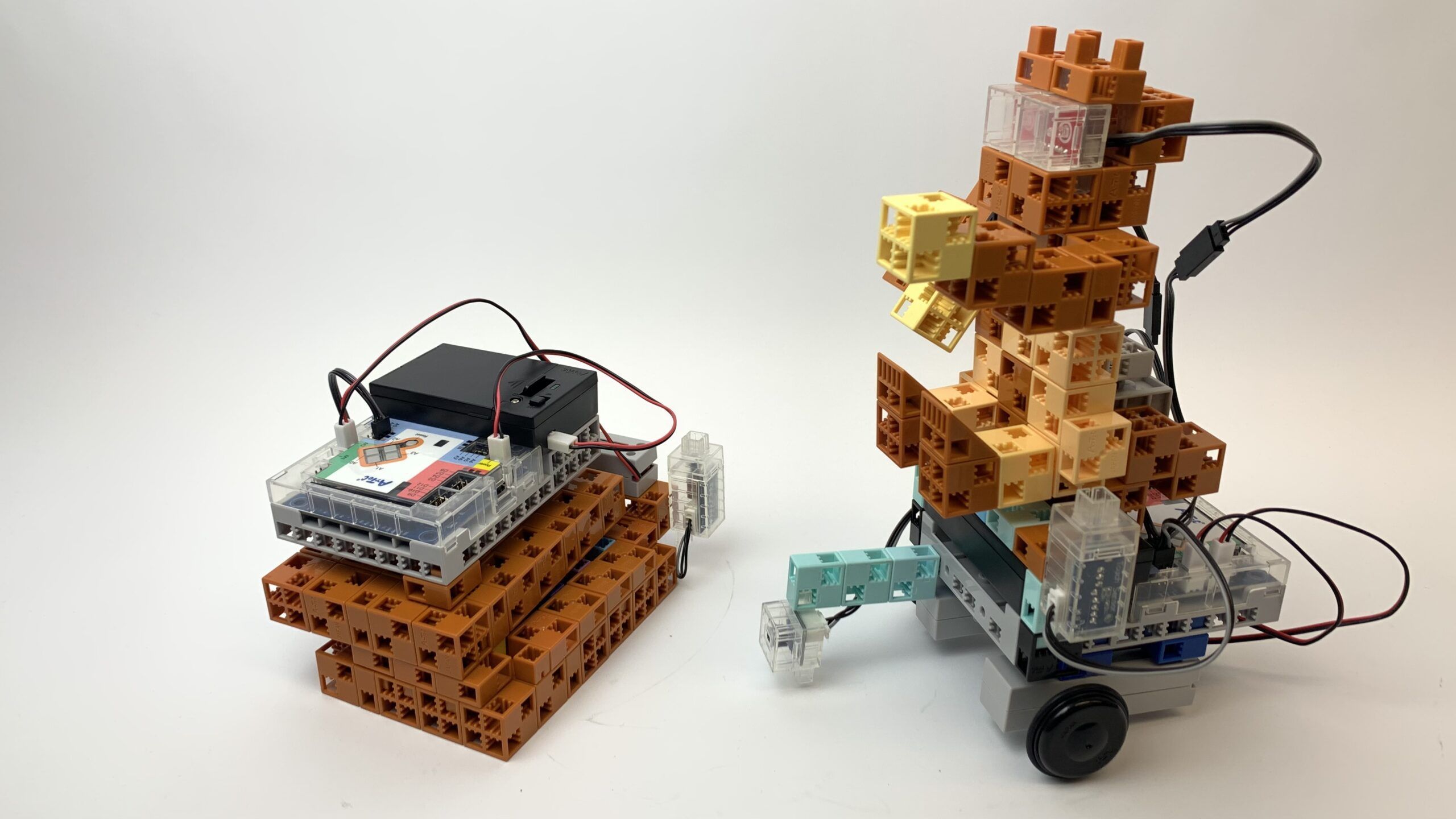

- Place the monkey on the robot base so that it can turn with the help of a servo motor, 1 IR Photoreflector is placed on the front of the robot
- When the pre-installed IR Photoreflector detects the suitcase Cinnamon stops and turns

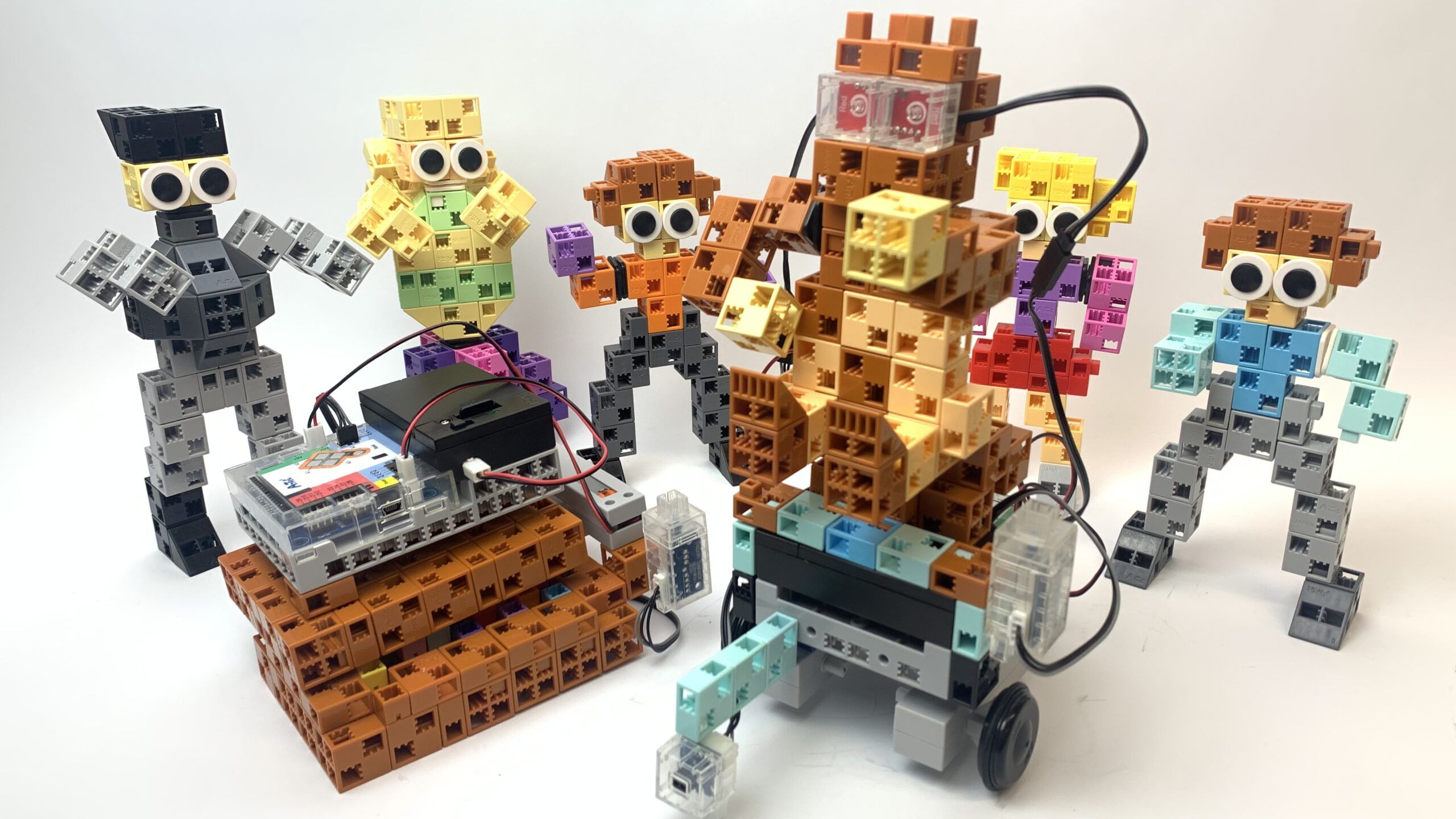

b.) Building a monkey that goes back and forth
- The structure is the same as in P3 a), except that it has an IR at the back and a touch sensor
- The robot starts at the push of the touch sensor, stops at the suitcase, the monkey turns and the robot moves backwards. If IR 2 detects the suitcase, it stops.
- You can turn the head by adding a servo
P3
The robots a)
The robots b)
P3
P3
Programming level 4
The pilot is walking cluelessly
P4
How to build
The robots
a.) The pilot is placed on a robotic platform. It continues to function as a remote controlled robot.
Controlled by 5 touch sensor
- the robot moves forward
- the robot moves backwards
- the robot turns right
- the robot turns left
- the robot stops
b.) The robot makes desperate noises to signal its dislike
- We have mounted a buzzer on the pilot
c.) Building a robot arm with 4 push buttons 3 servo motors
P4
The robots
