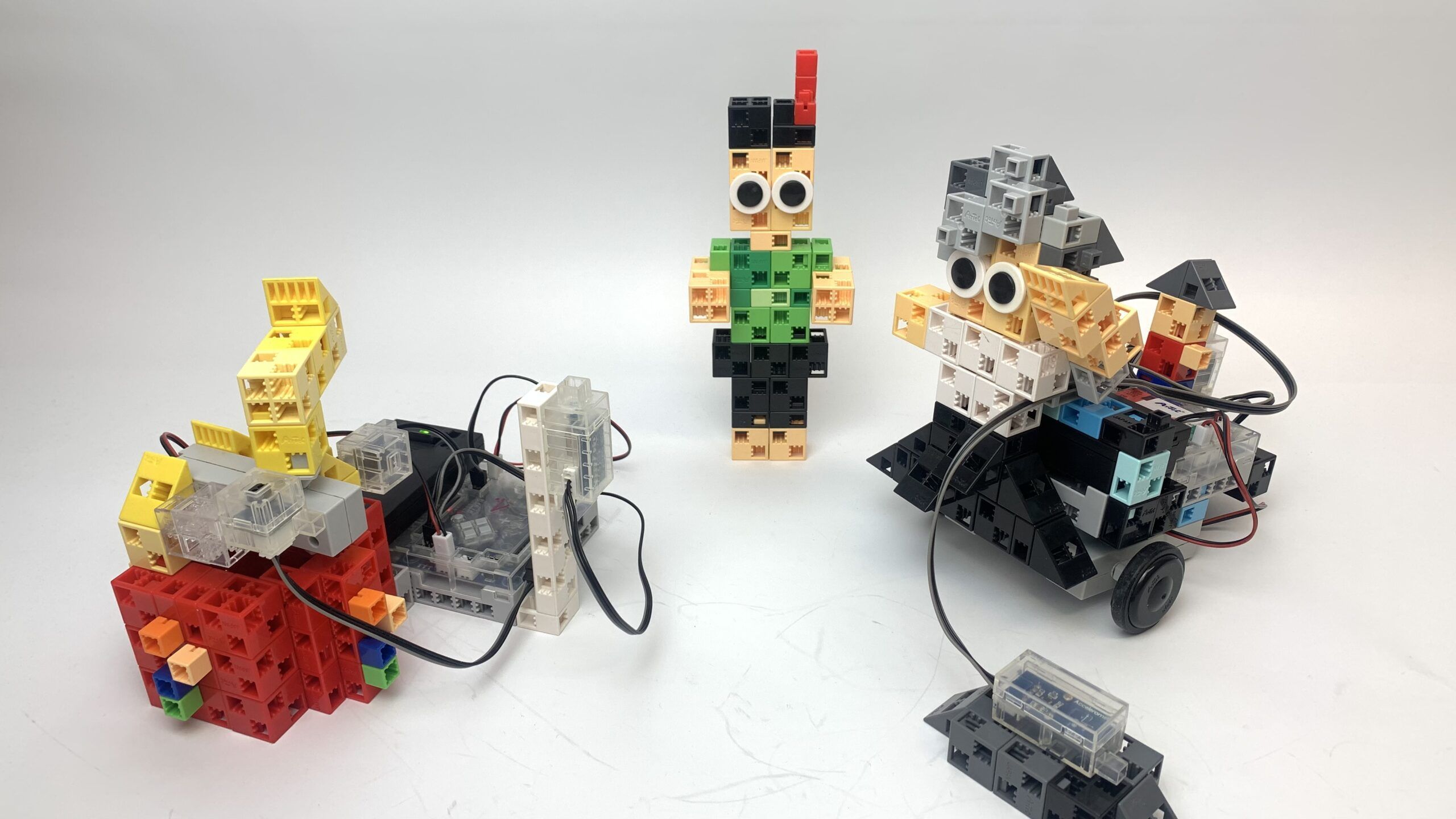

Grandma, Hotzenplotz and the coffee grinder
Programming level 1
Grandma, Torzonborz
P1
How to build

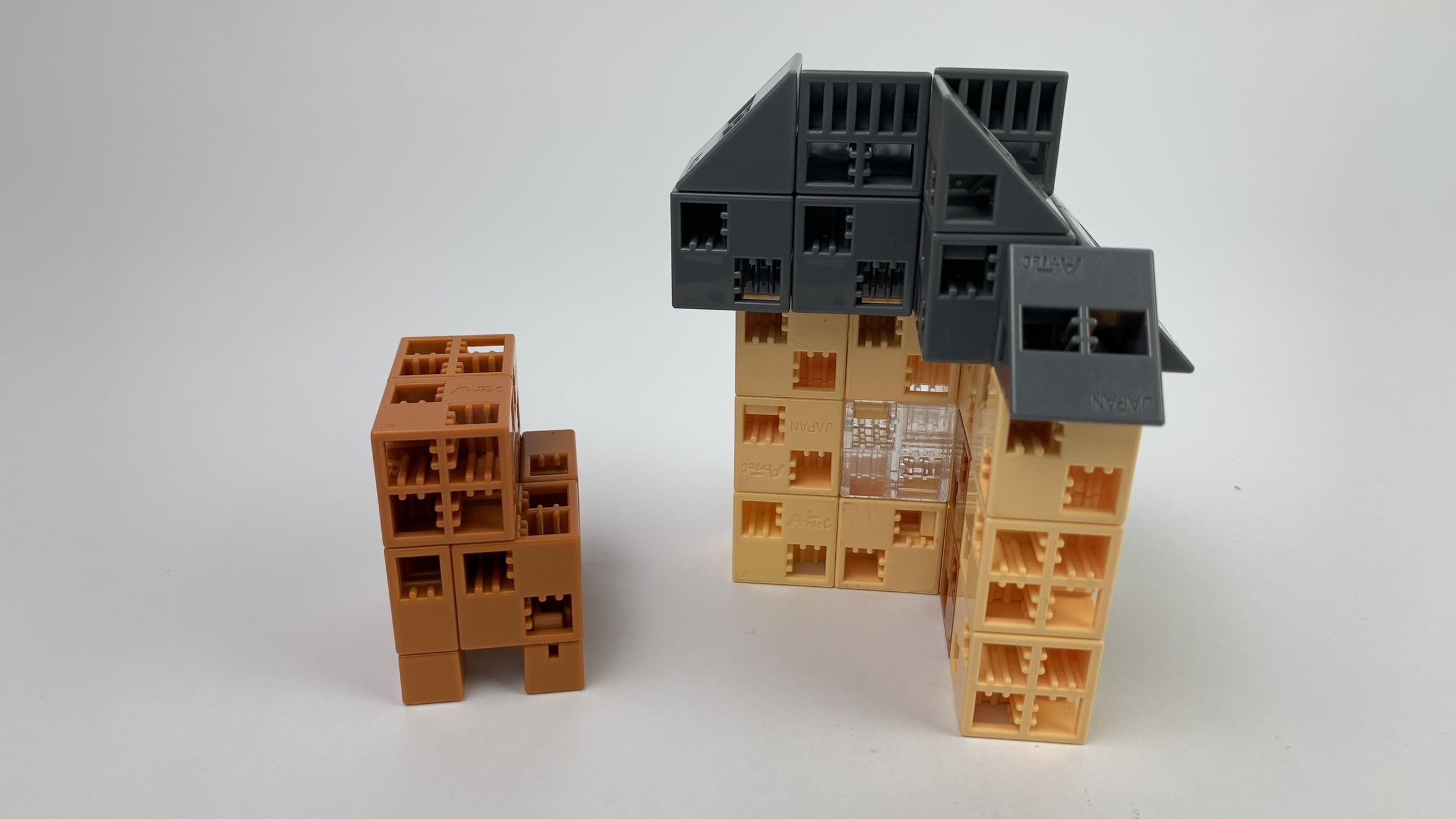

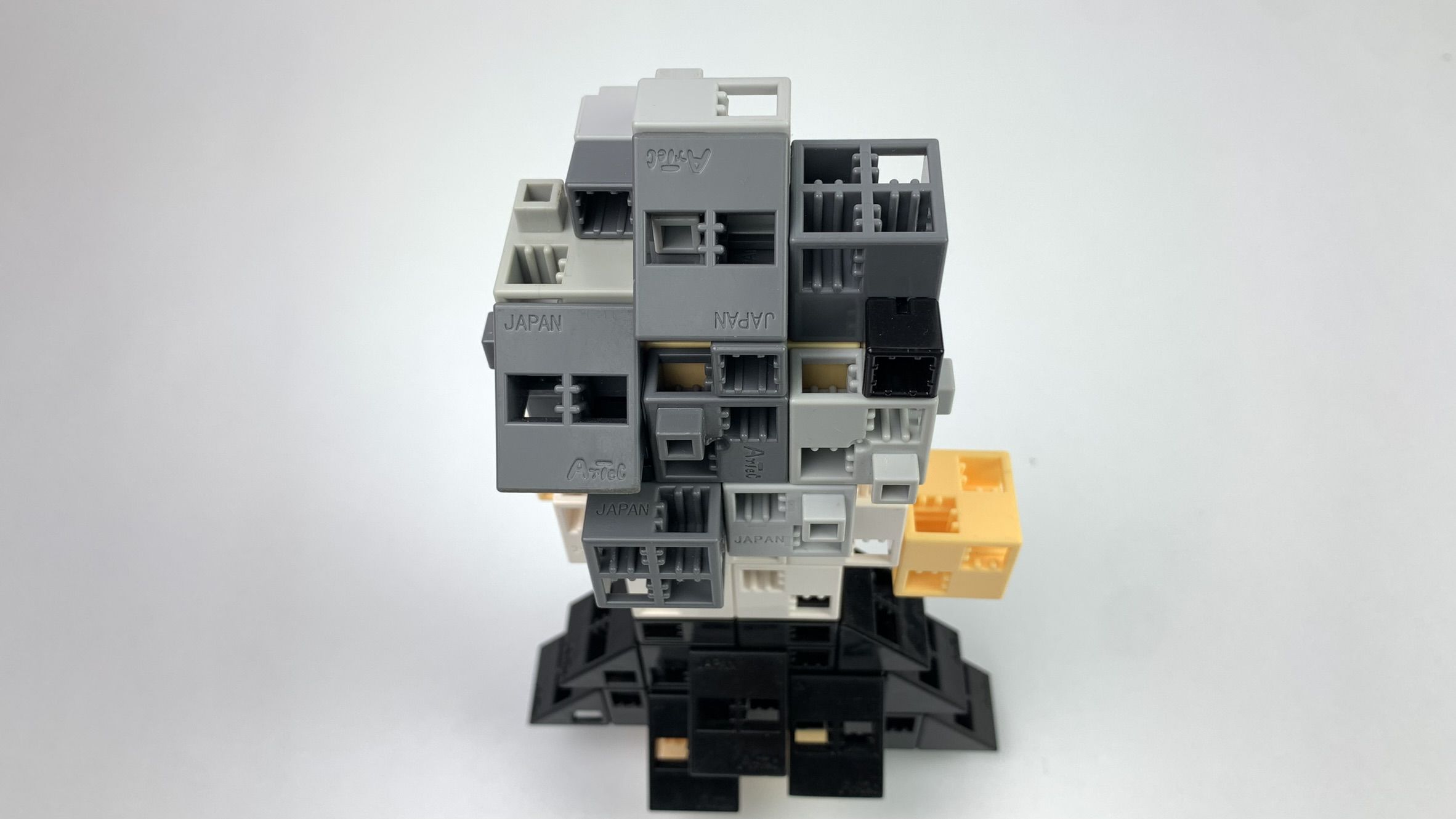

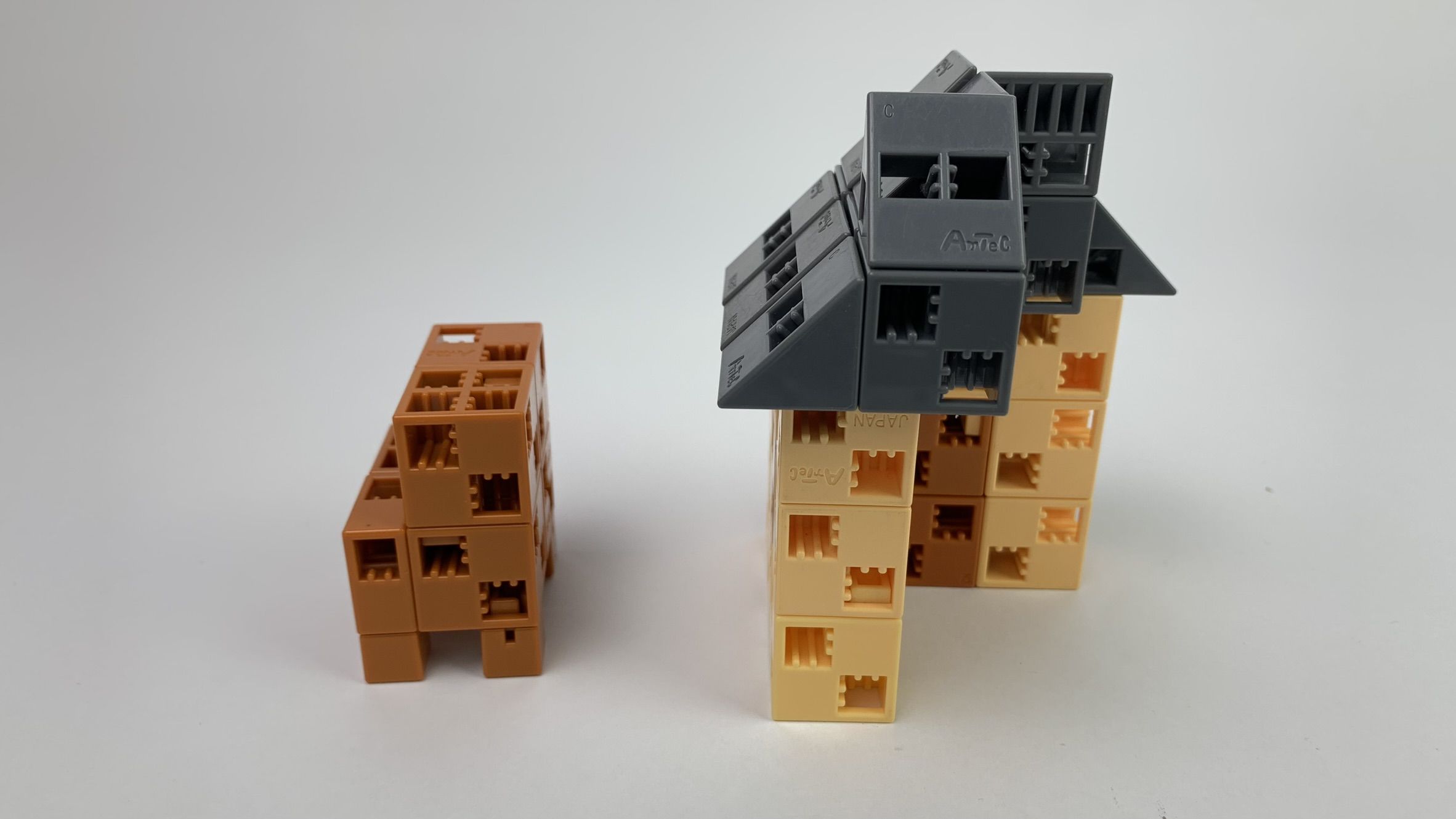

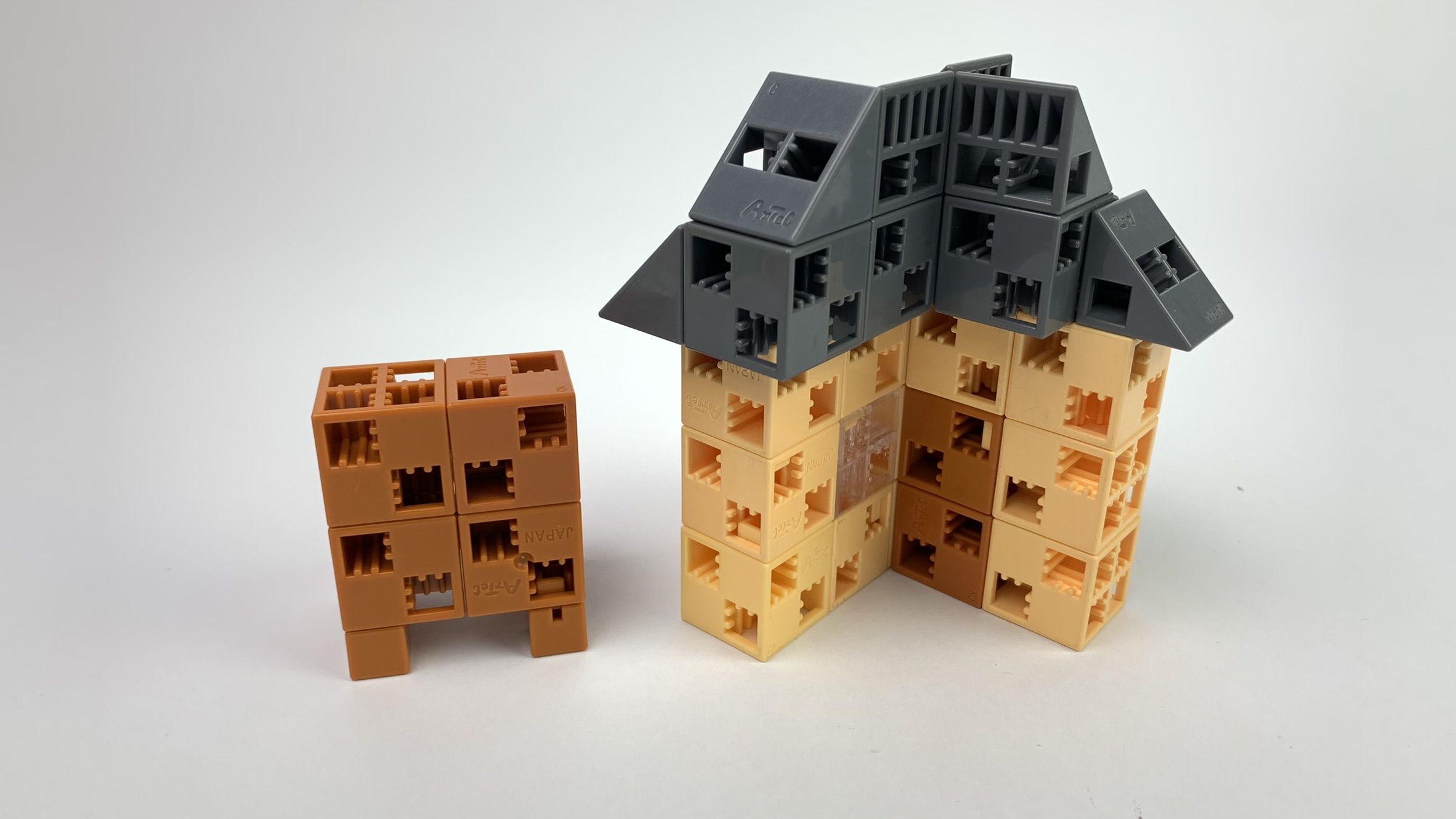

Build static figures

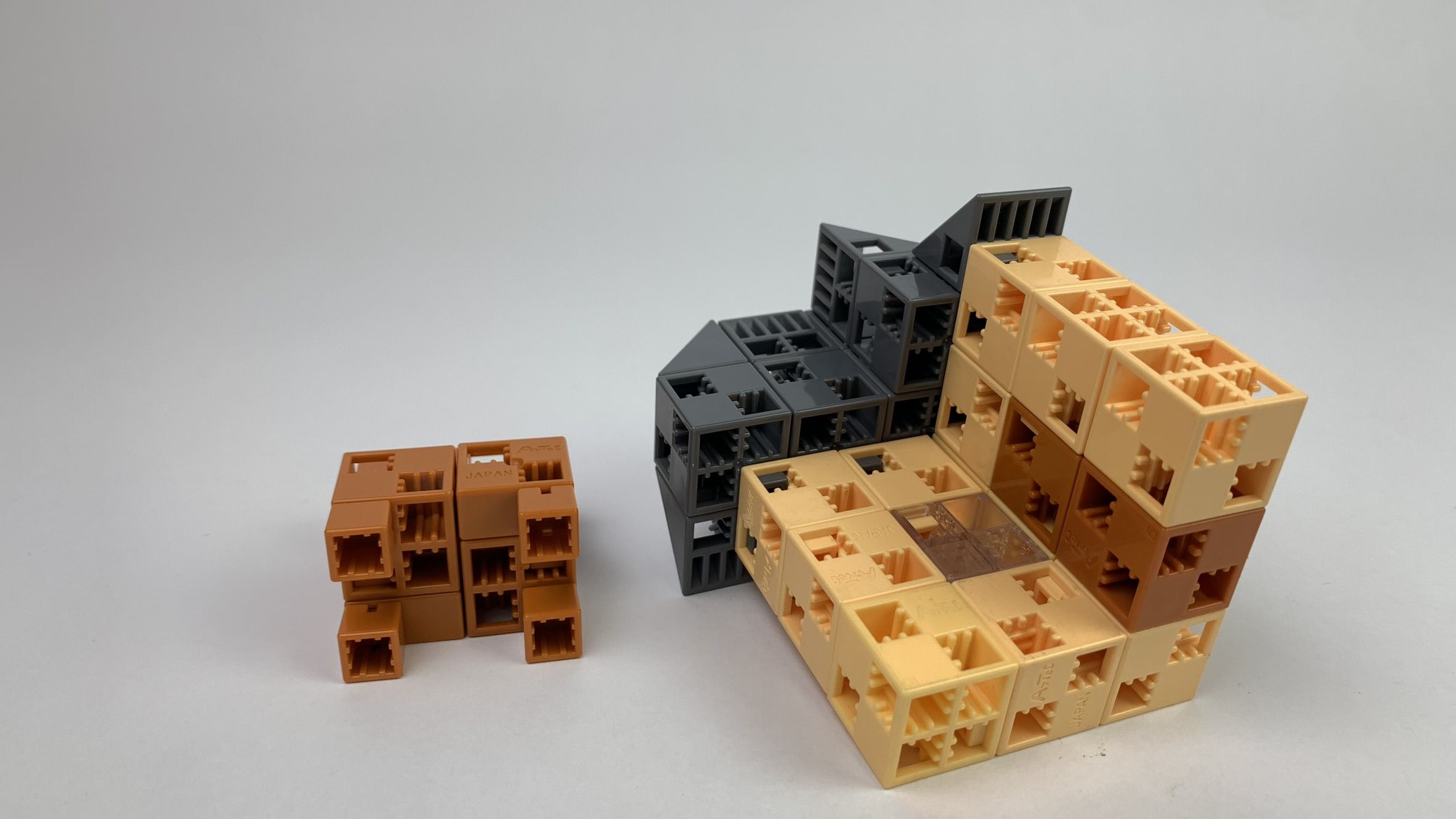

- Static figures

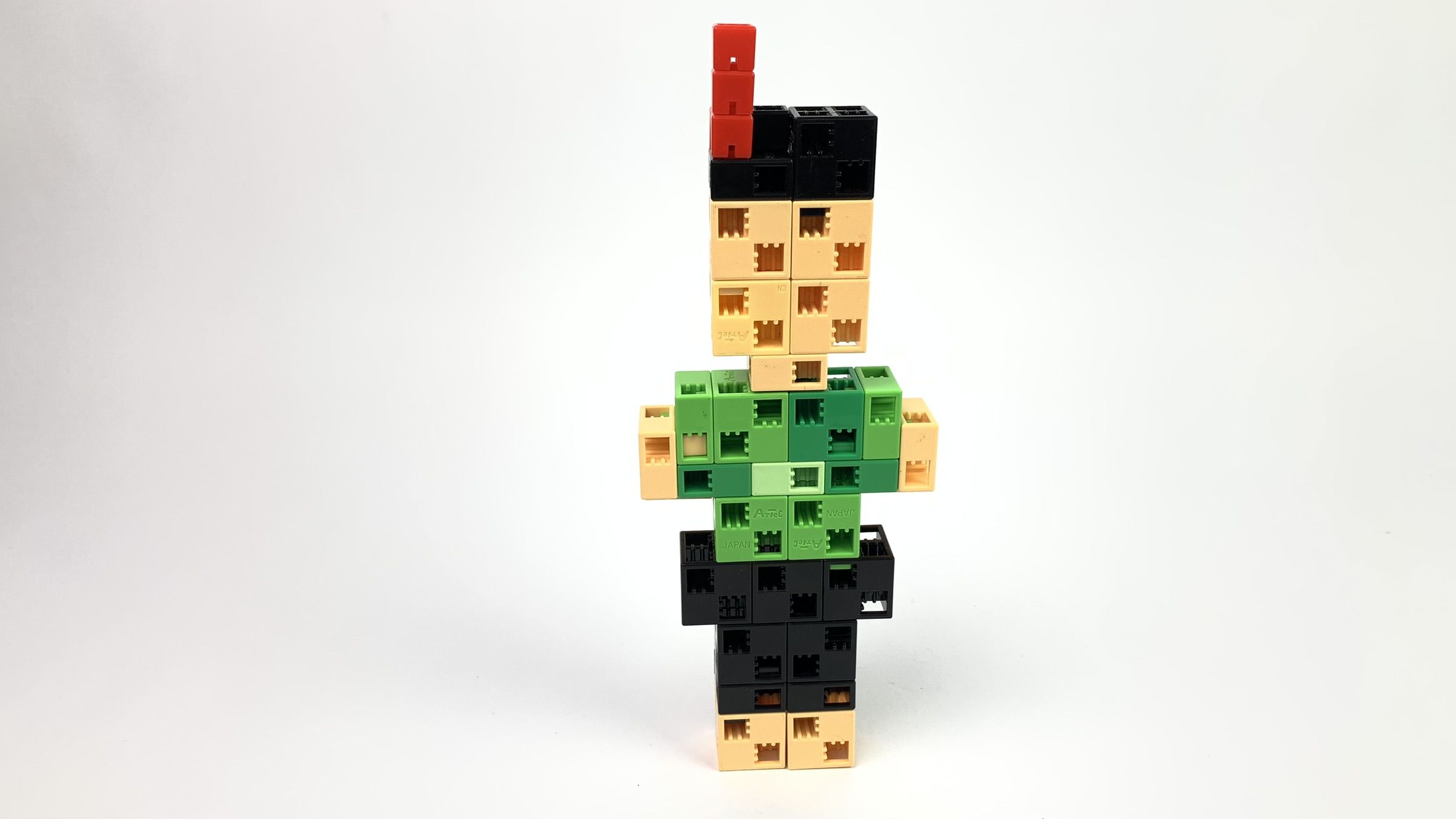

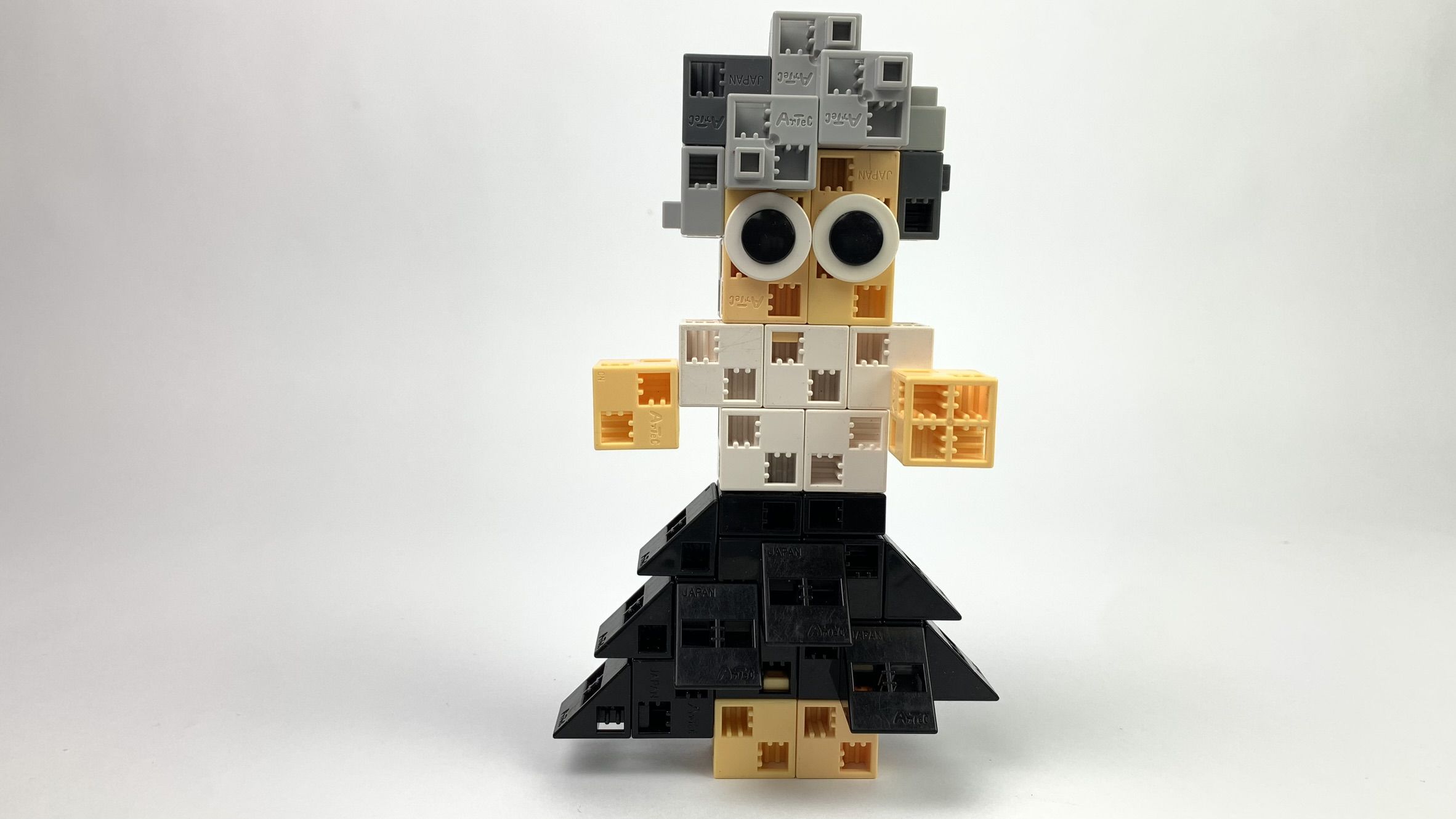

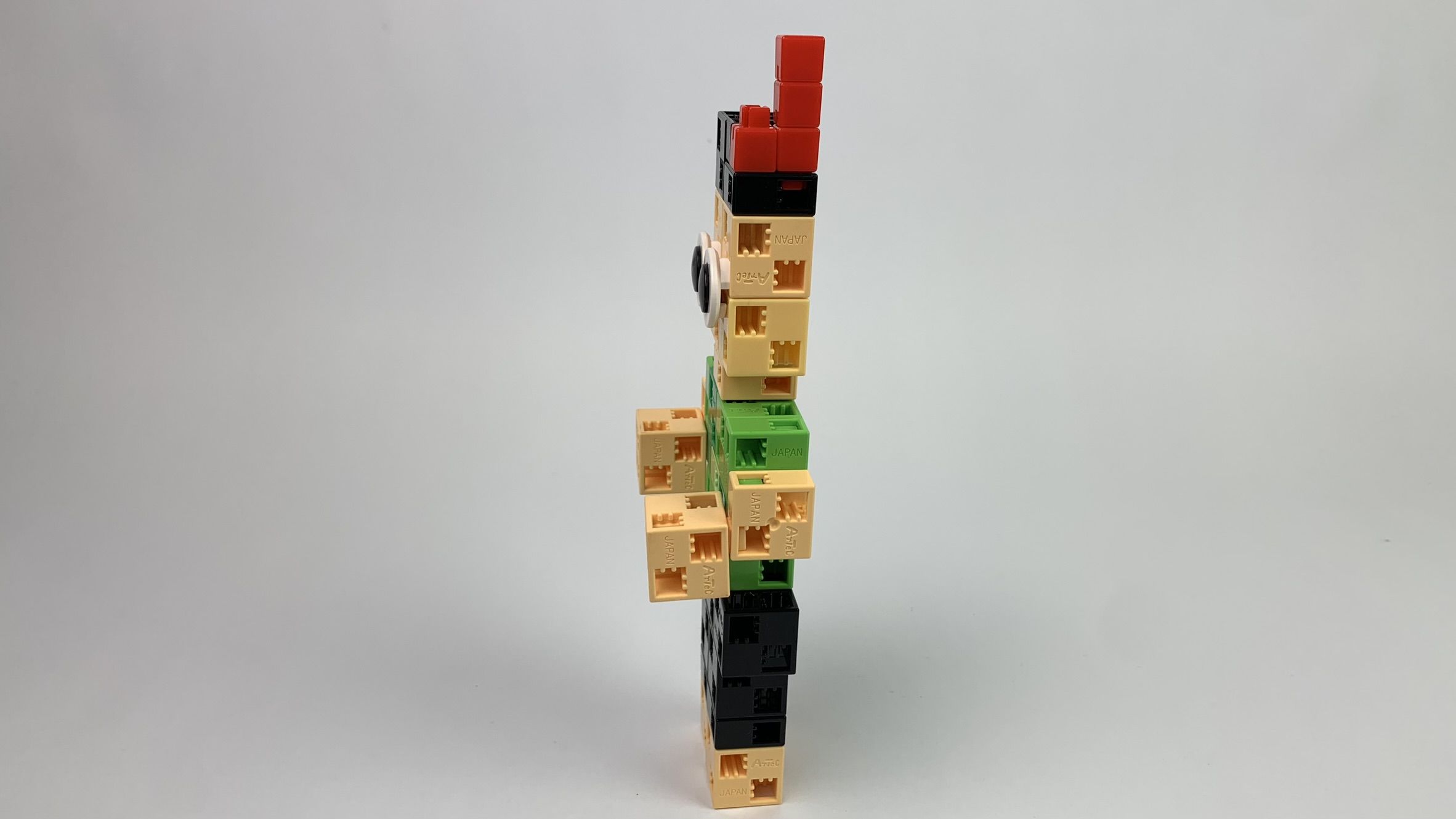

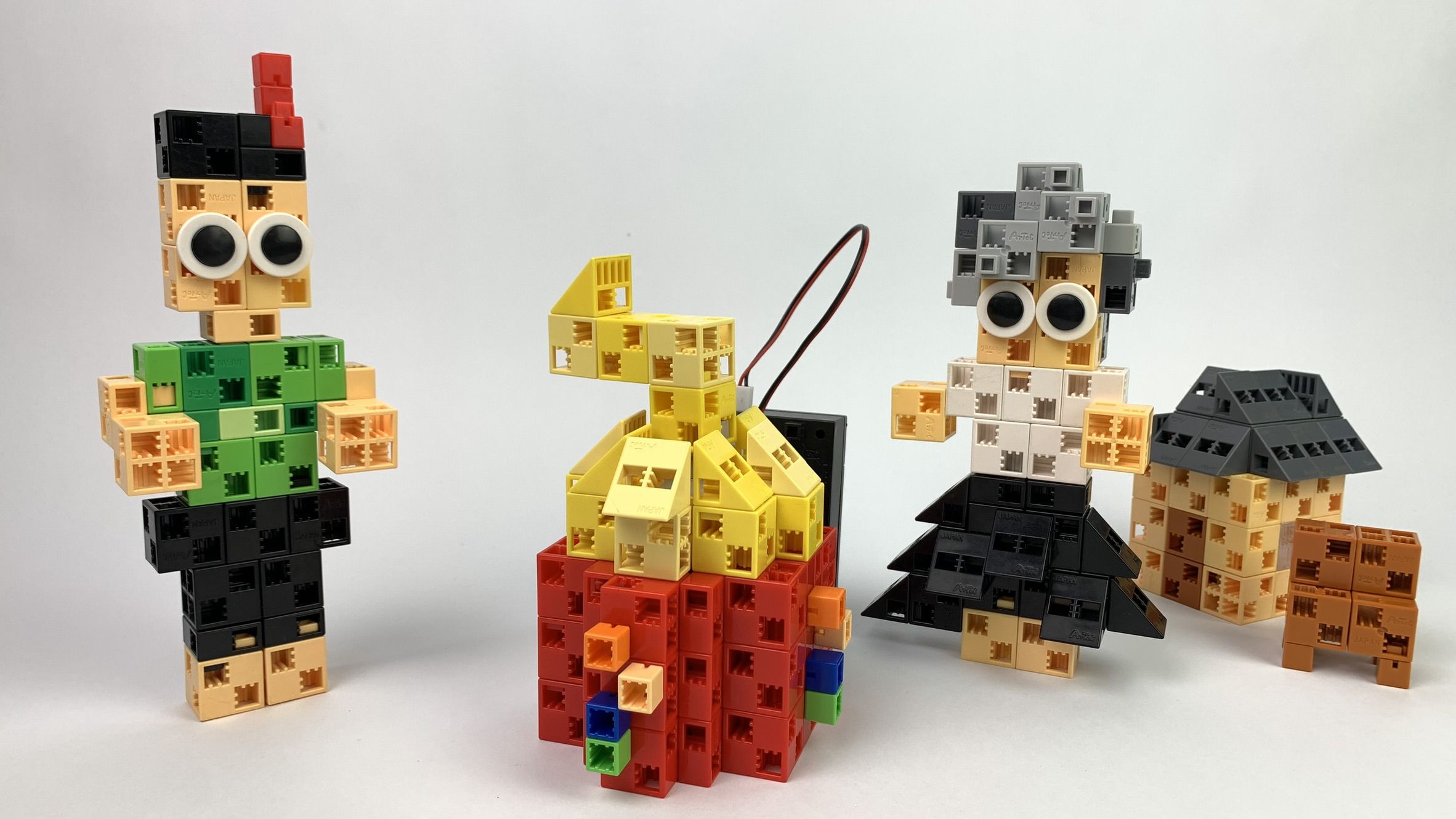

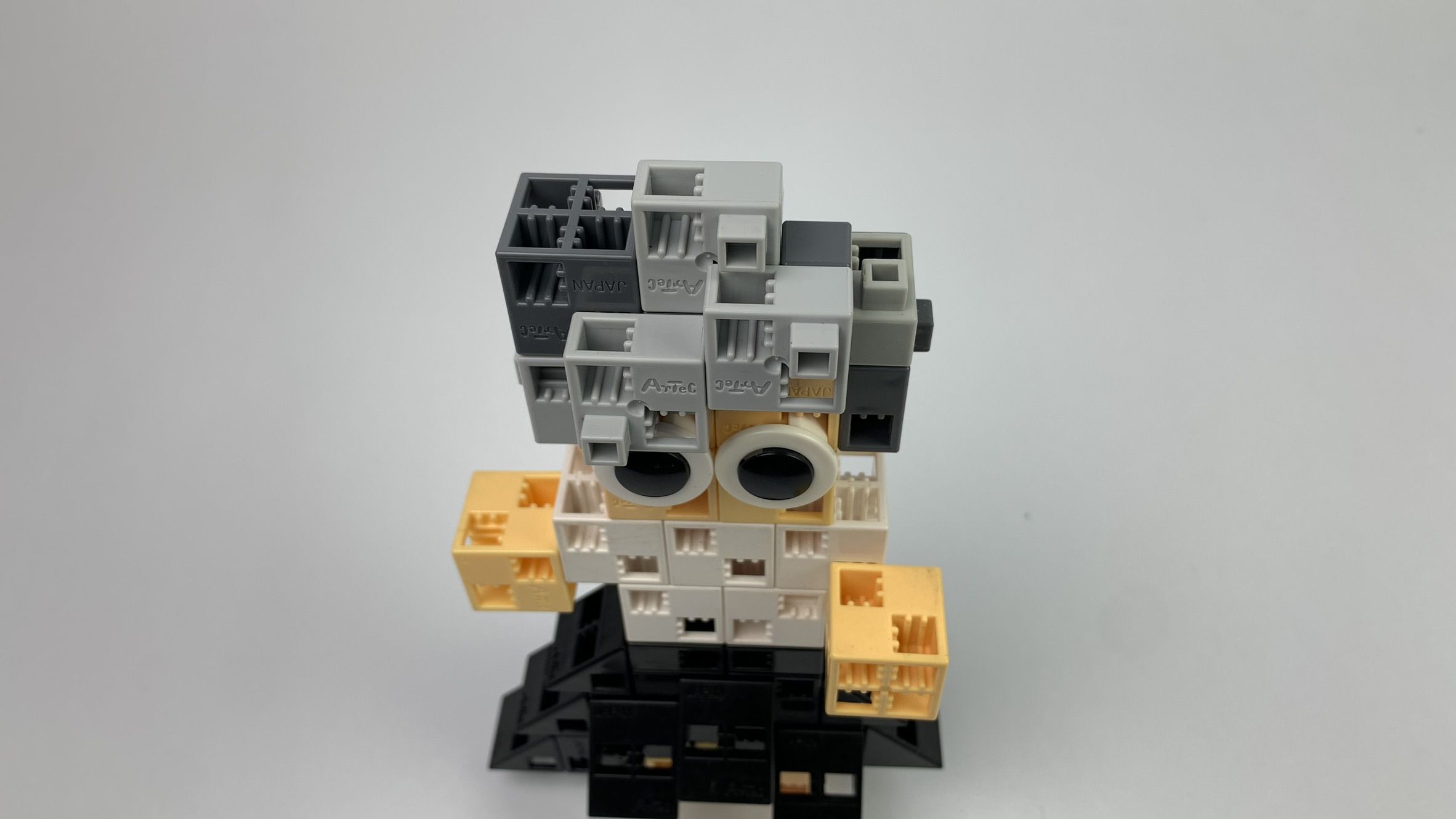

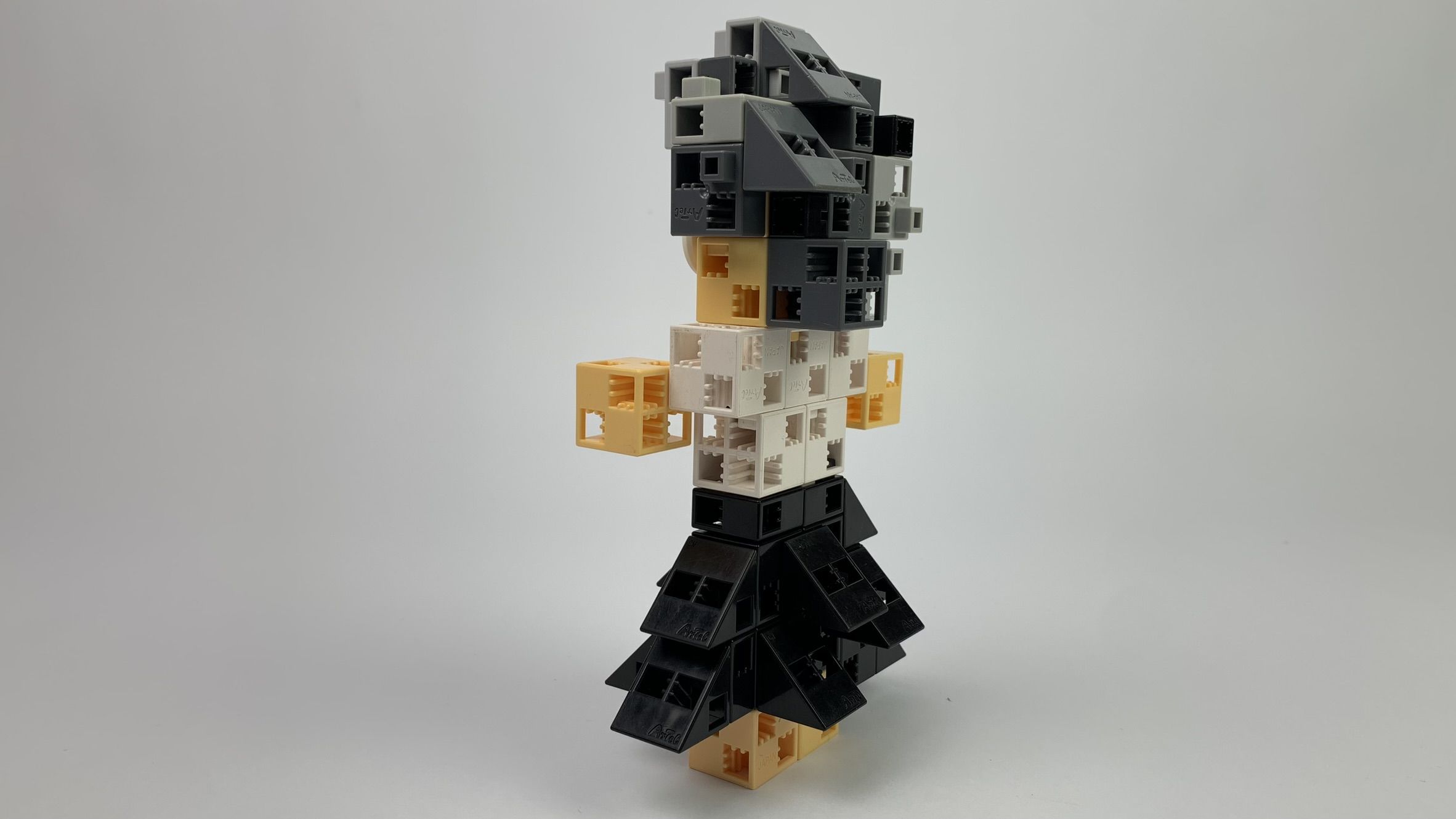

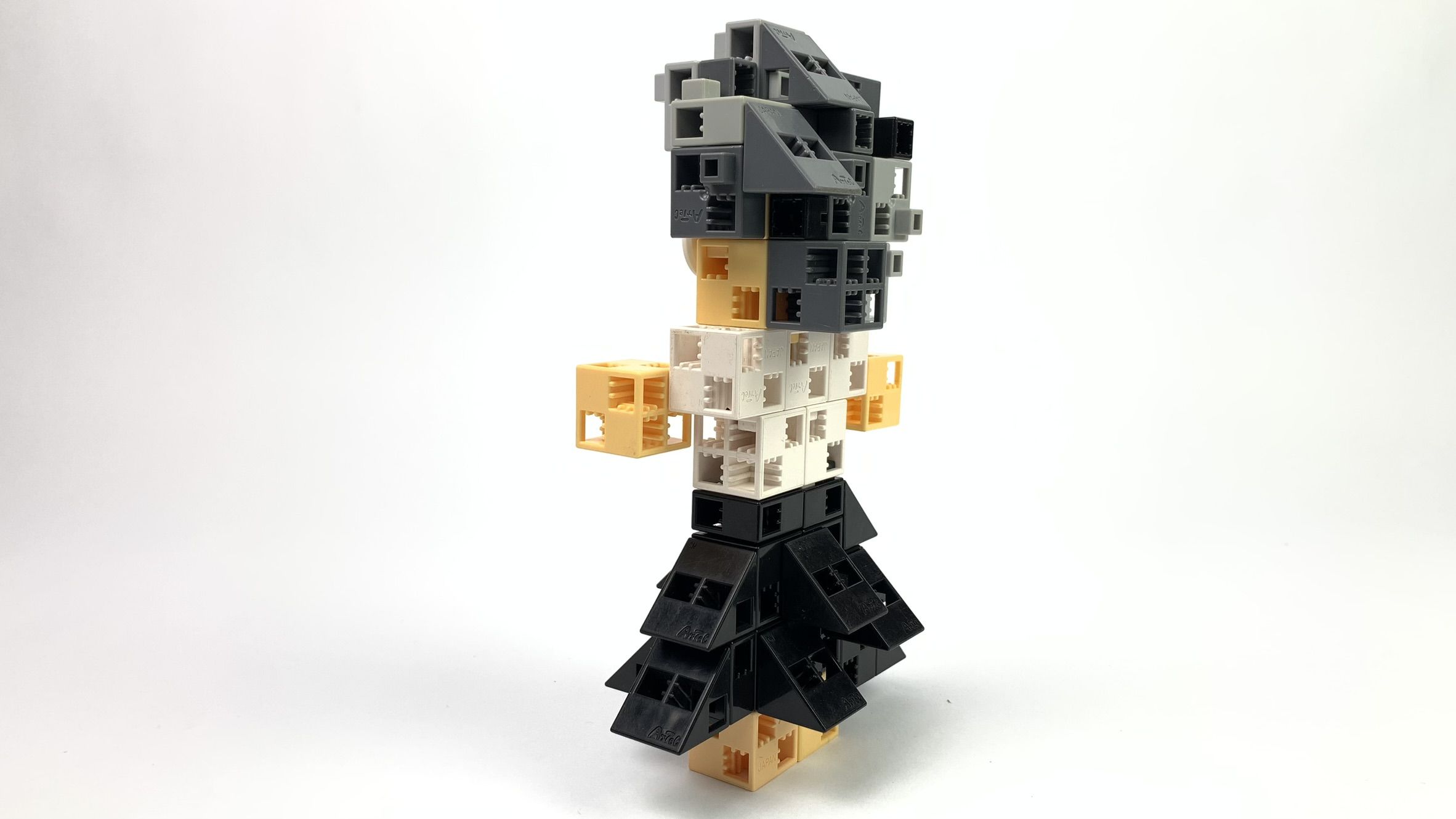

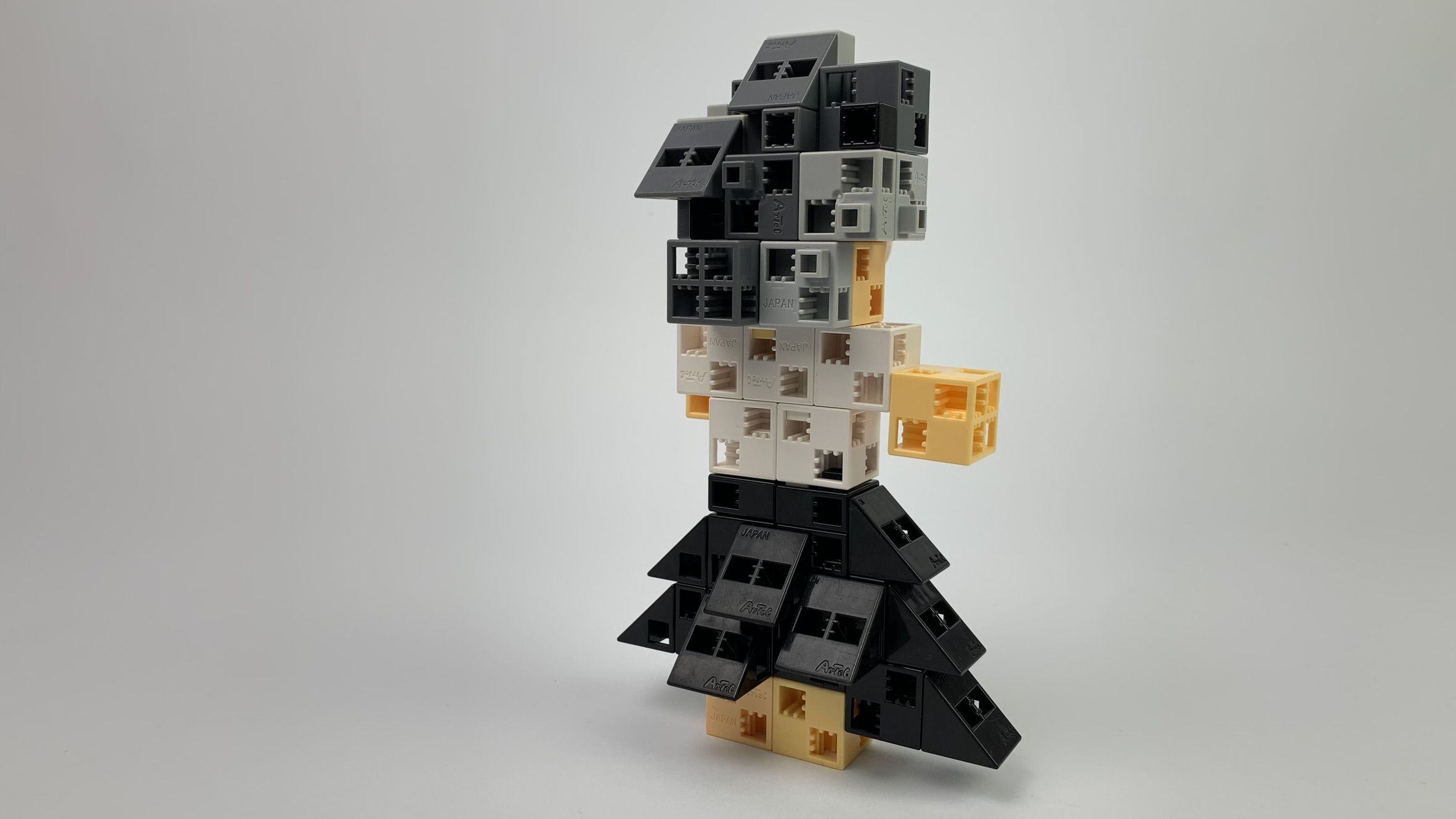

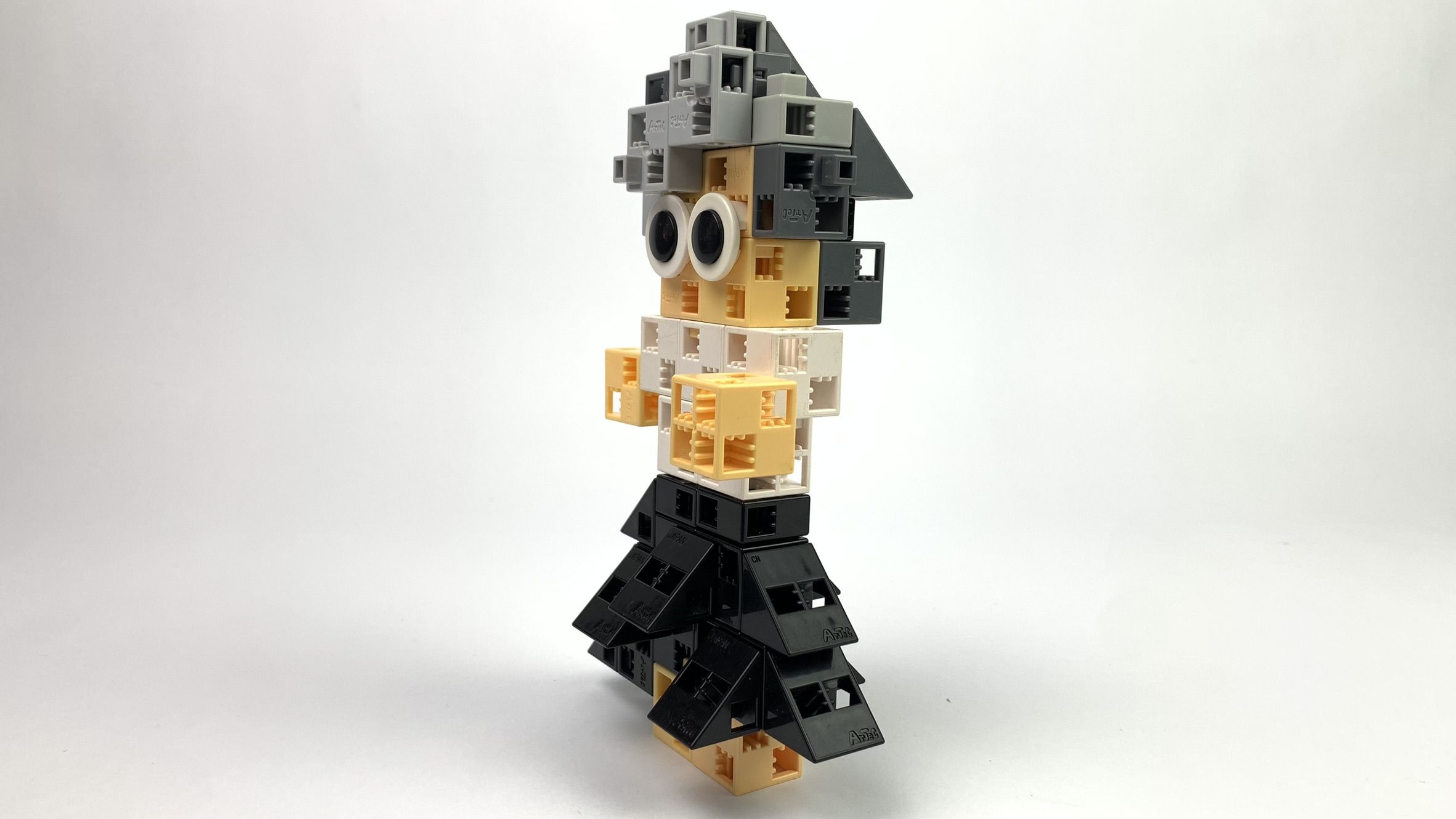

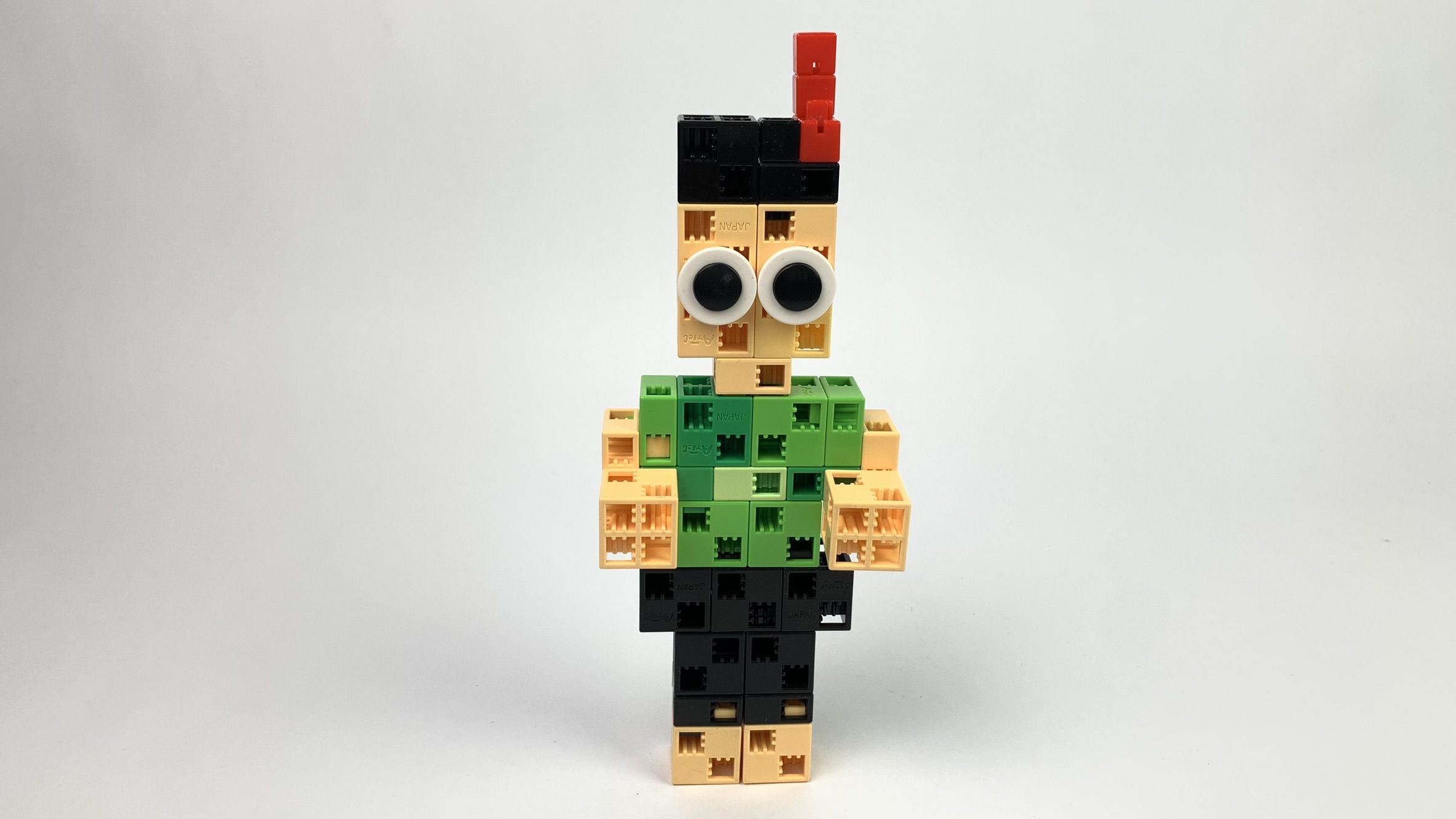

- Let’s build Grandma, Hotzenplotz, Kasperl and Seppel! Their arms can be moved on axes
OR

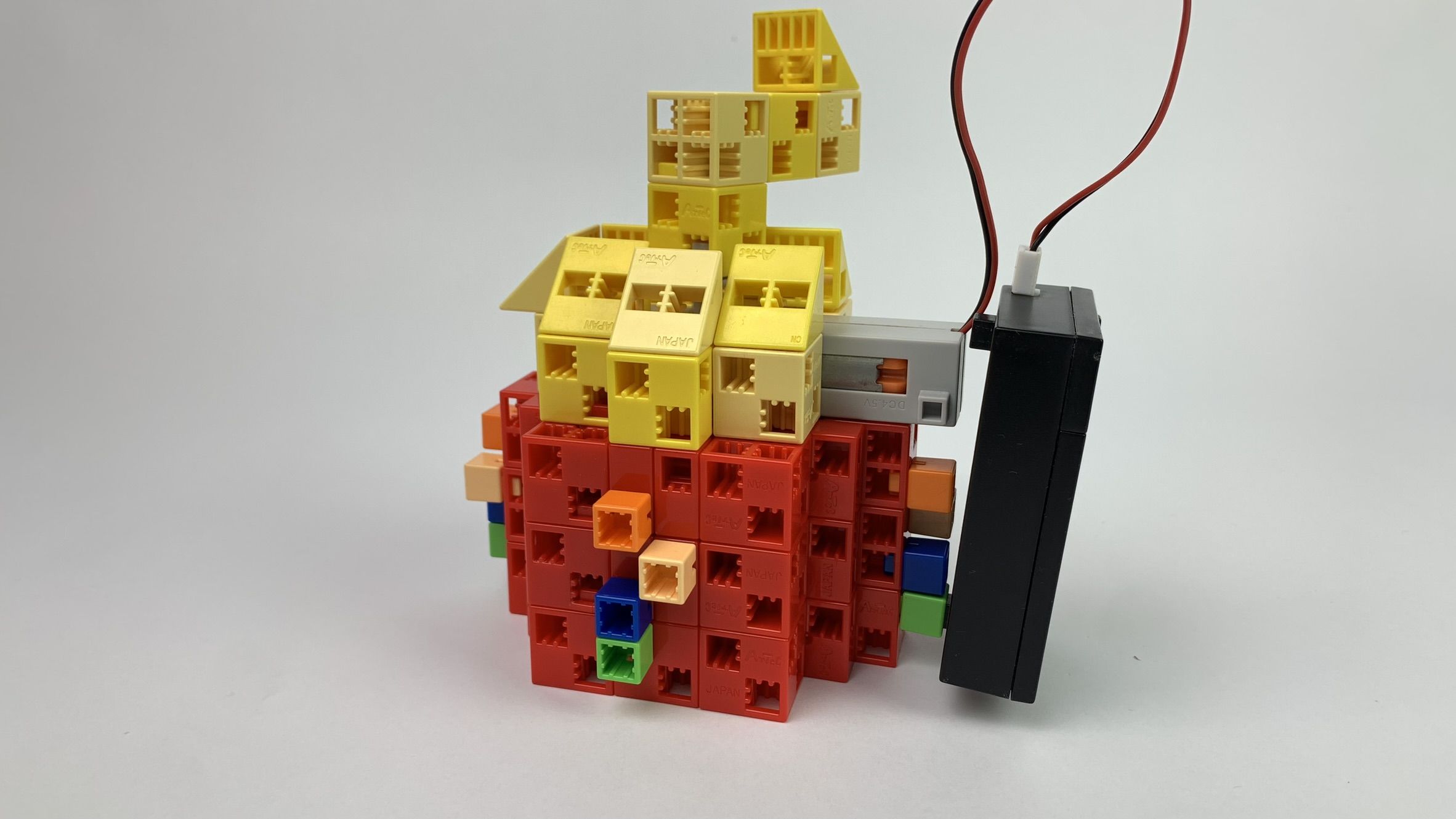

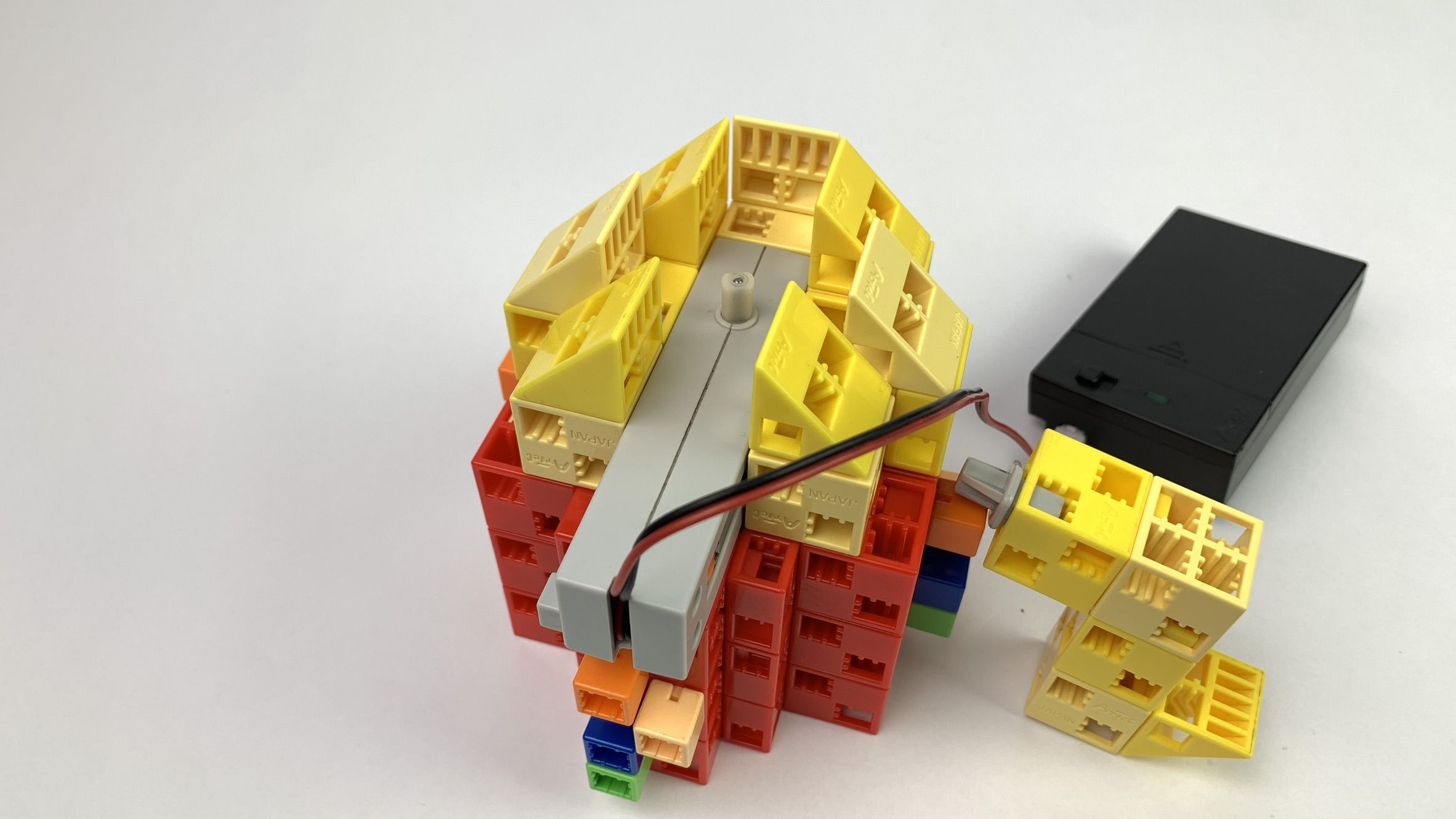

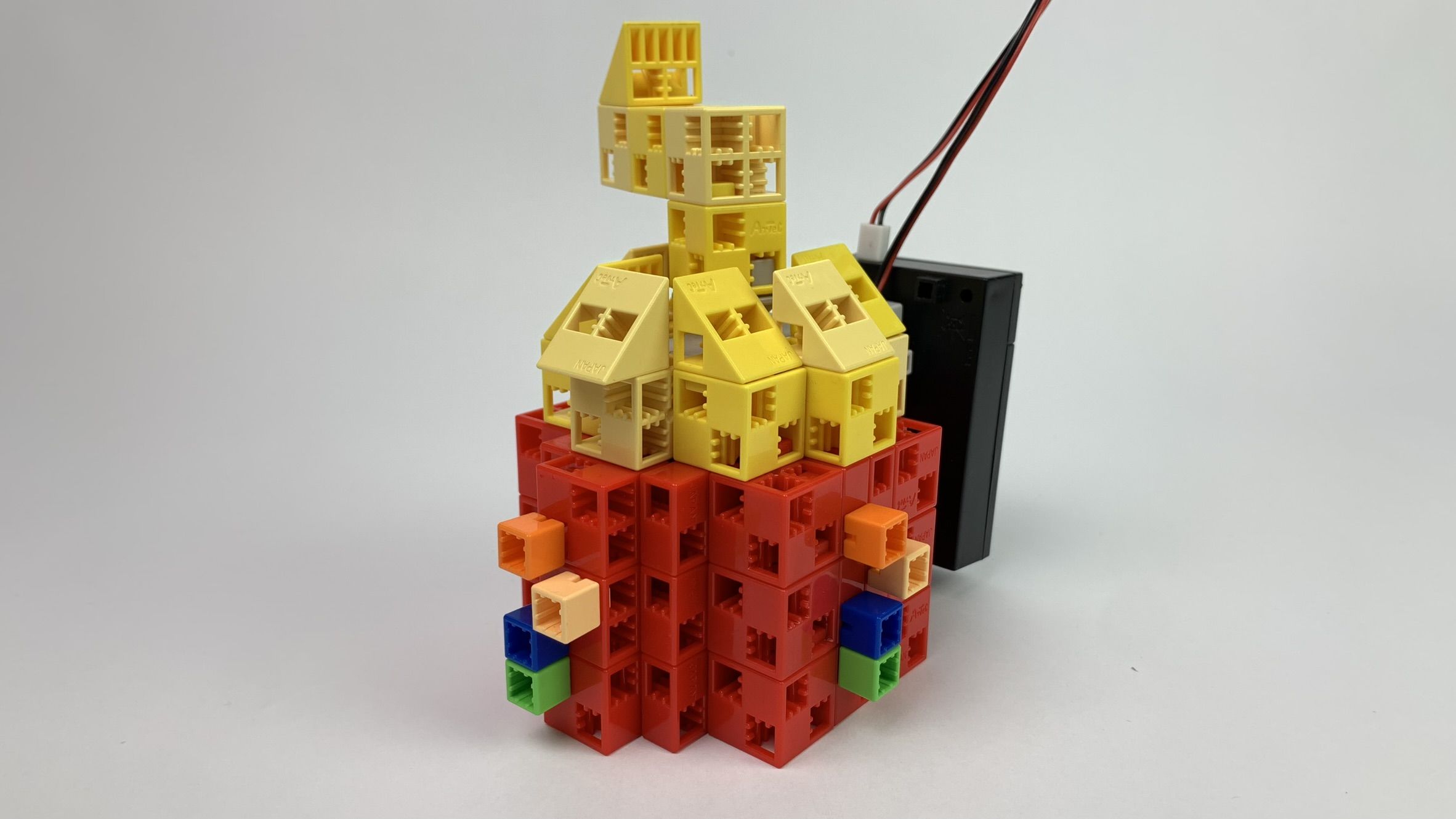

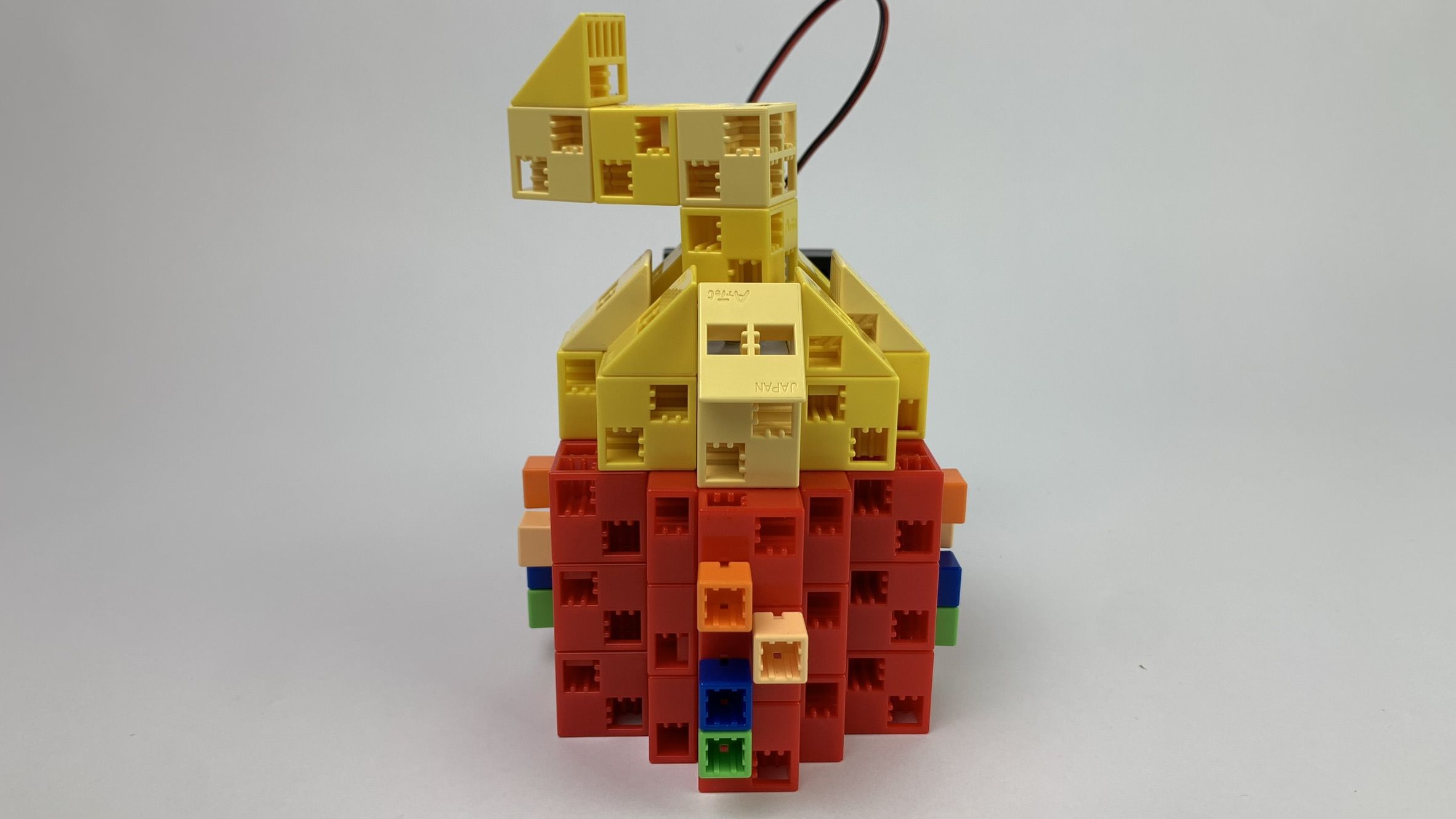

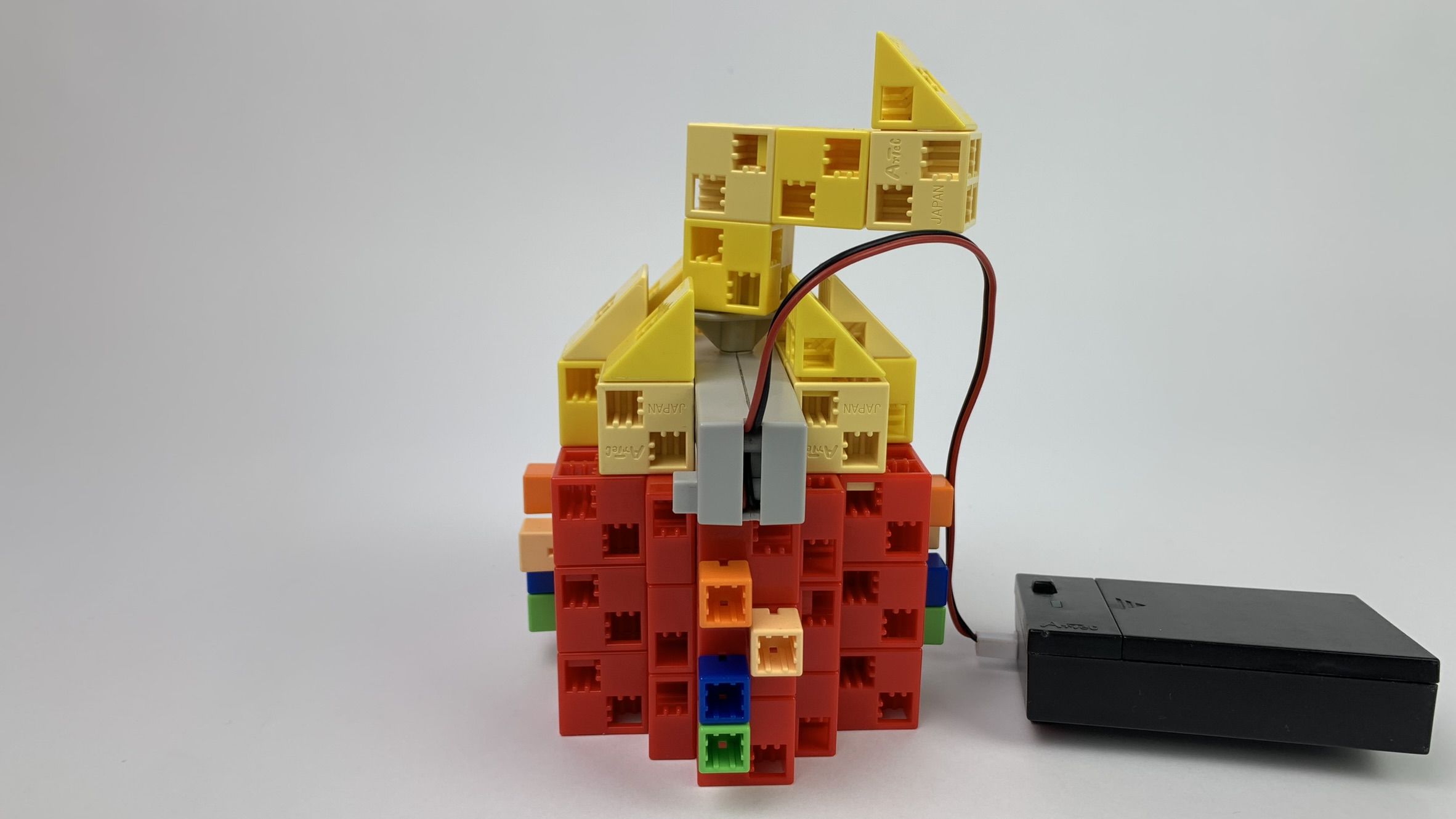

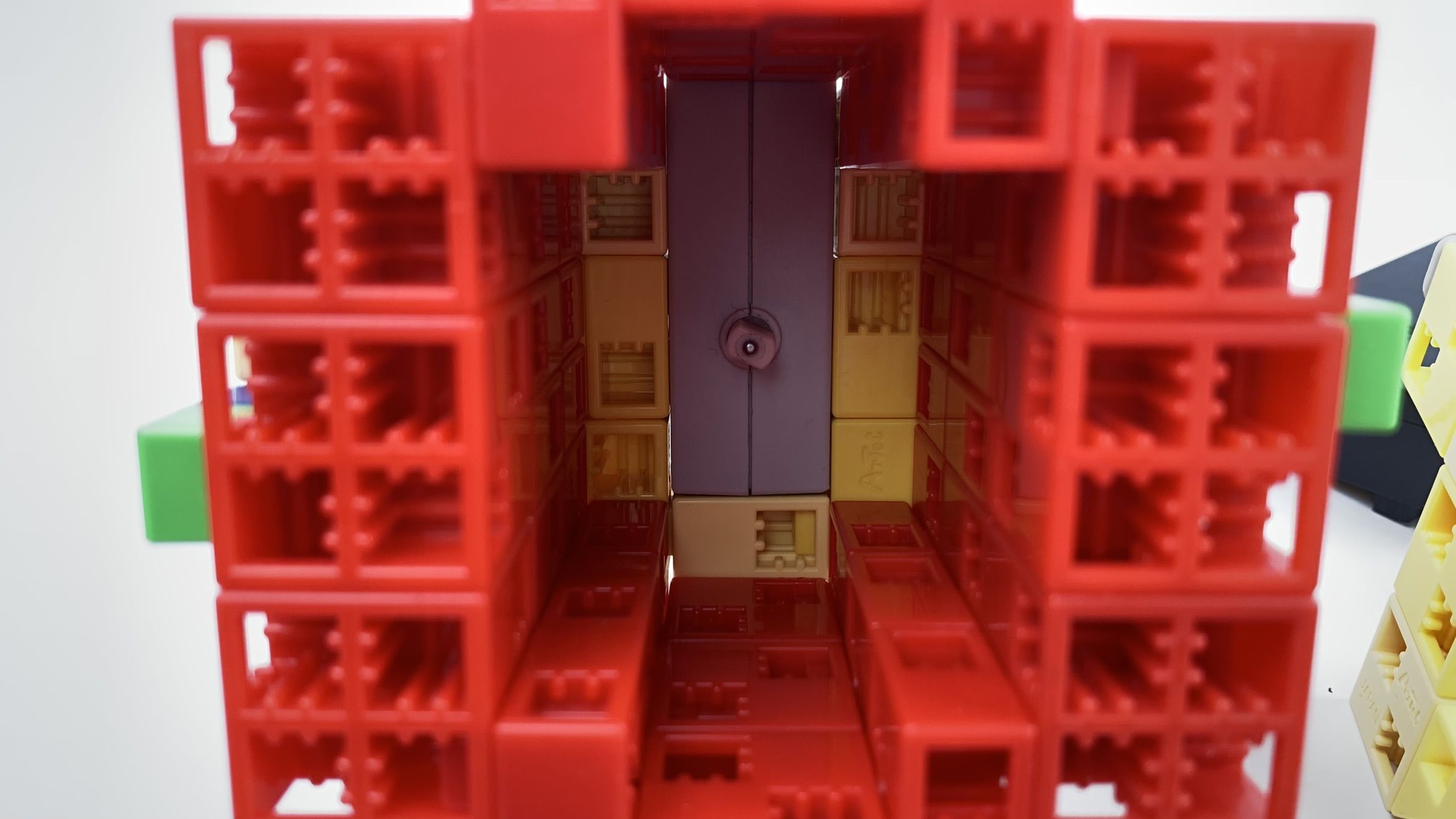

- Build the coffee grinder, driven by a DC motor connected to a battery holder
P1
Static figures
P1
Programming level 2
The musical coffee grinder
P2
How to build

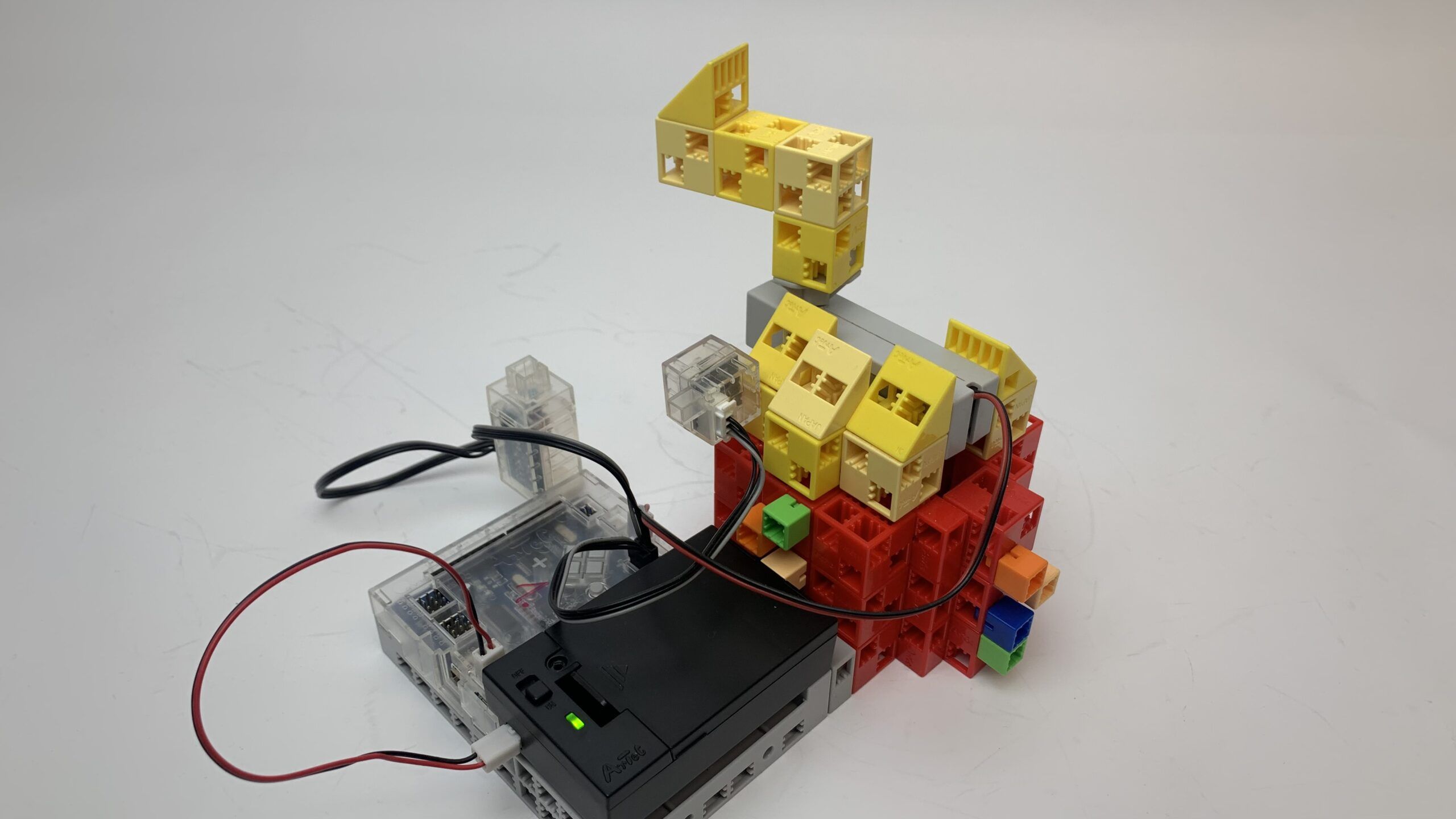

Coffee Grinder
- Build the coffee grinder in the same way as P1

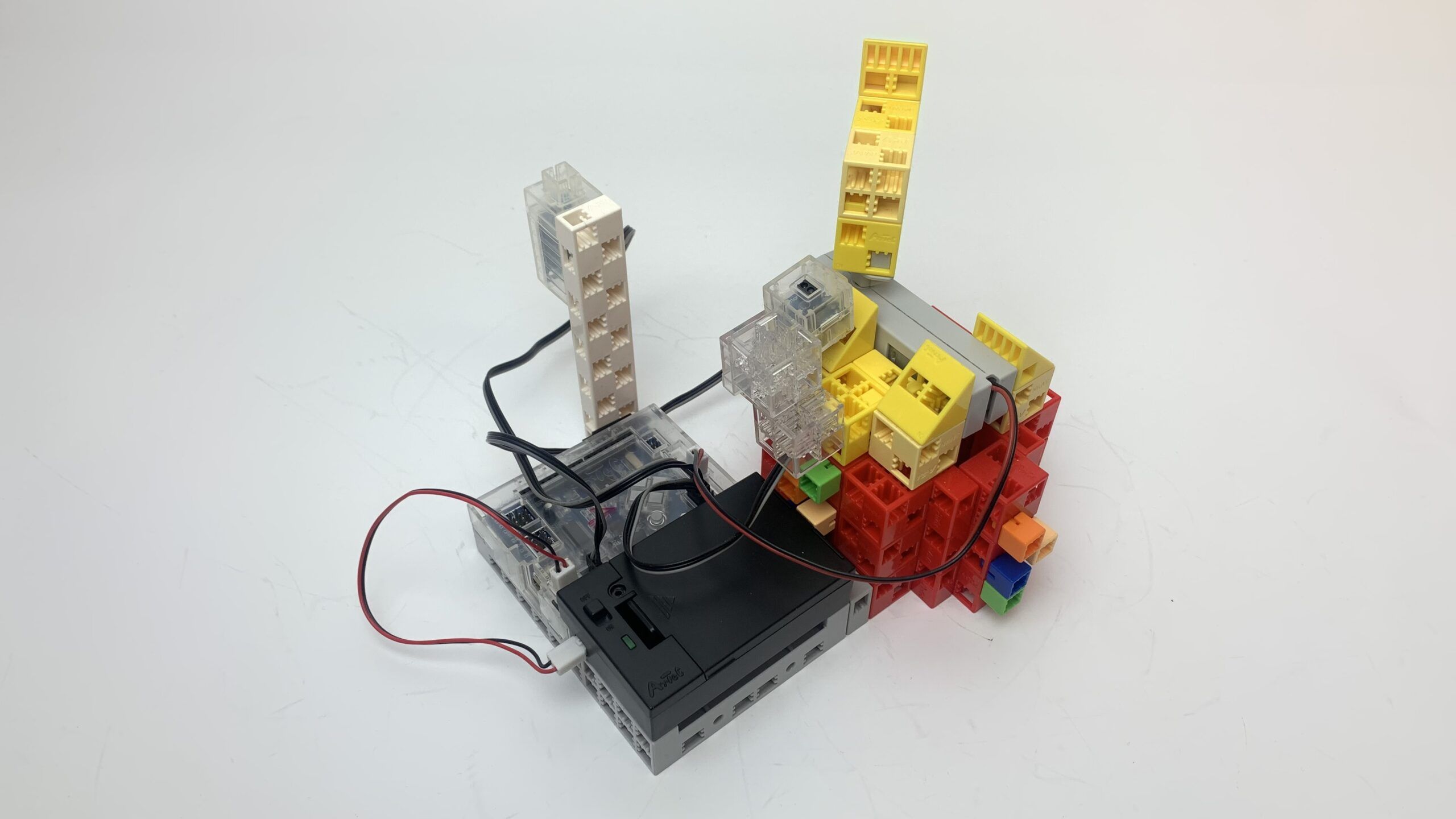

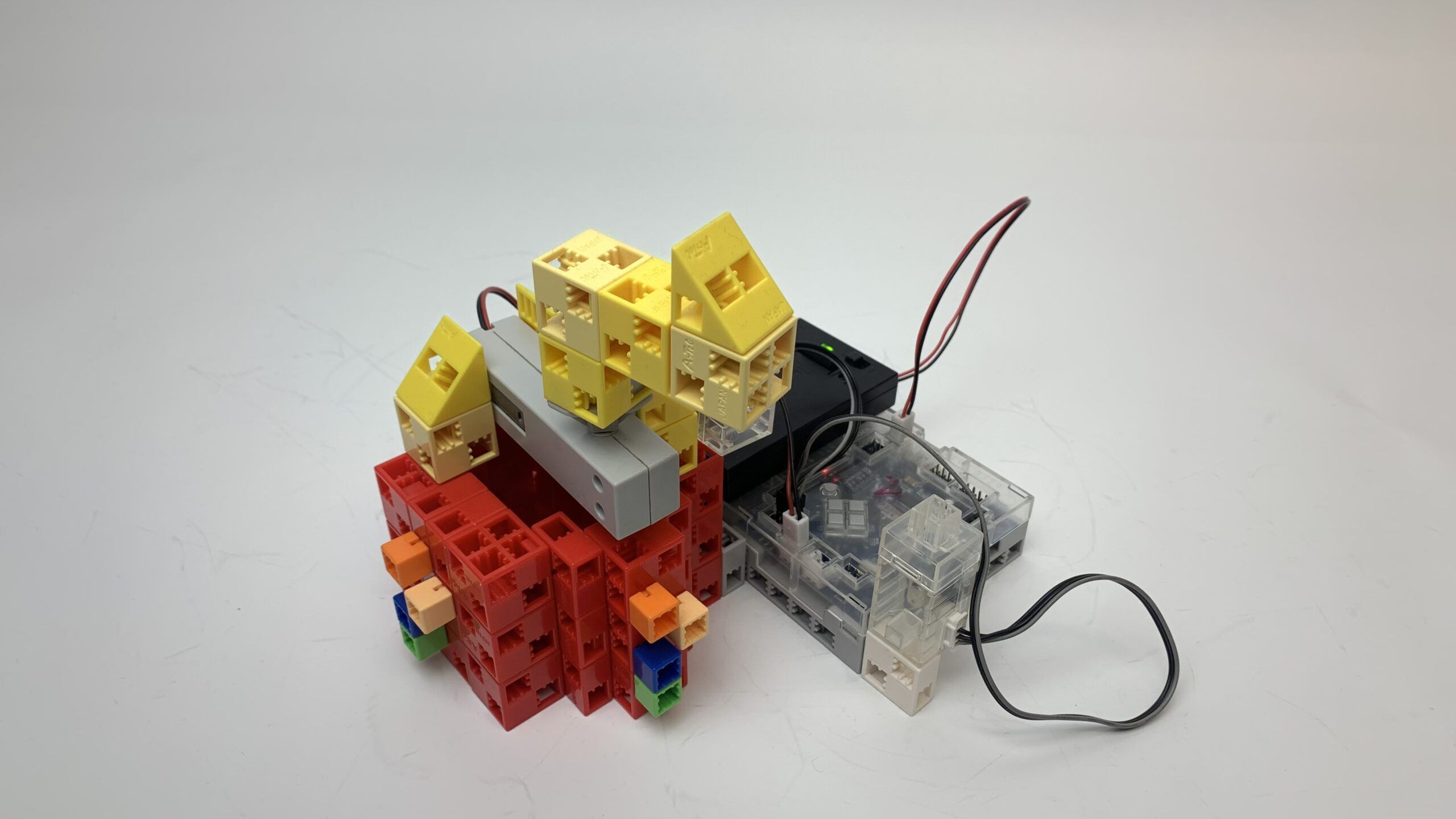

- The DC motor and 1 Touch sensor and 1 Buzzer are connected to a programmable motehrboard (Attention! The DC motor must be connected to port M2 for the Buzzer to work properly.)
- When the Touch sensor is pressed, the coffee grinder lever starts rotating, and meanwhile, using the Buzzer, the melody is played
P2
Coffee grinder
P2
P2
Programming level 3
Controllable coffee grinder
P3
How to build
Controllable coffee grinder
- The coffee grinder is constructed in the same way as in P2

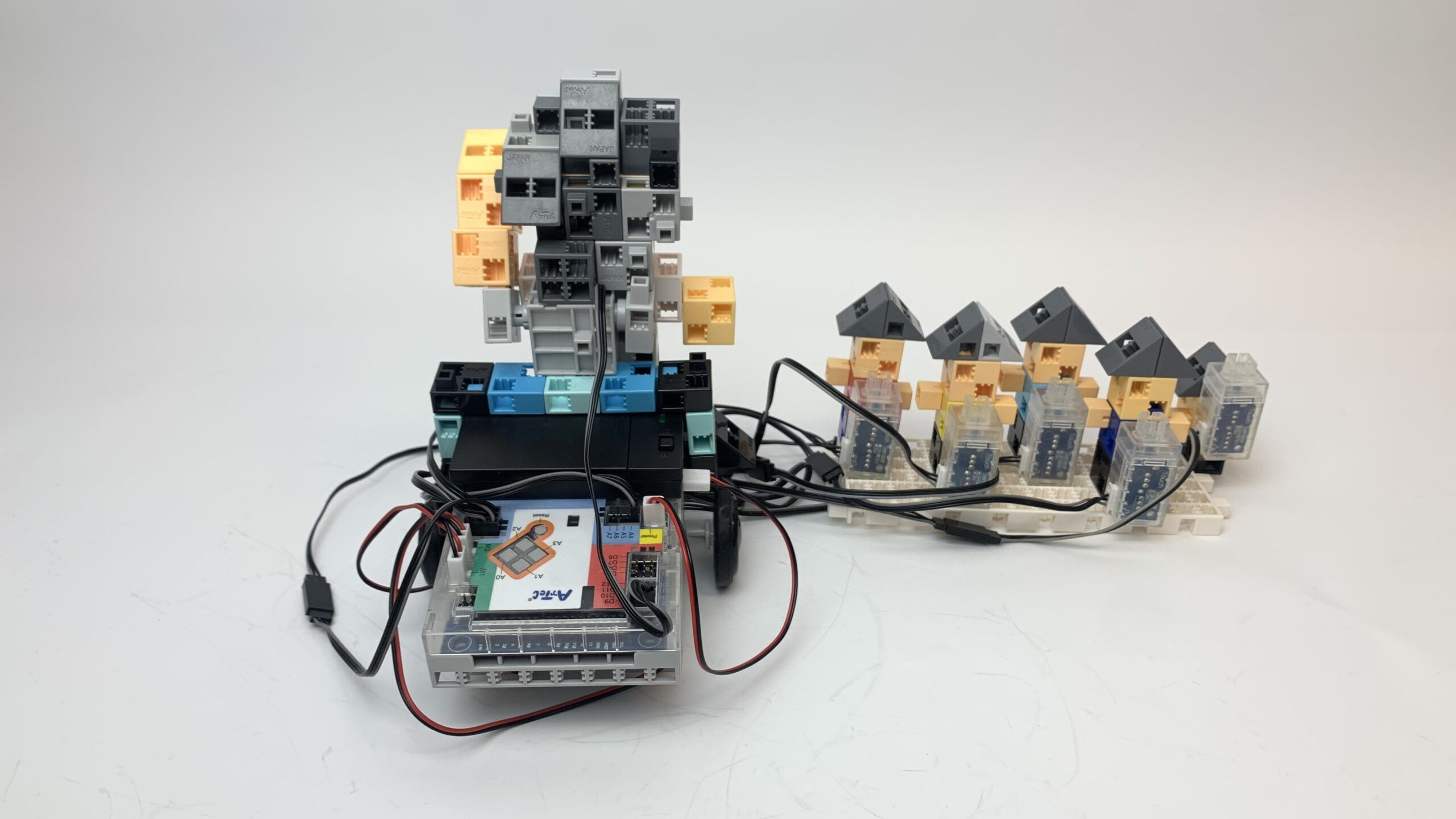

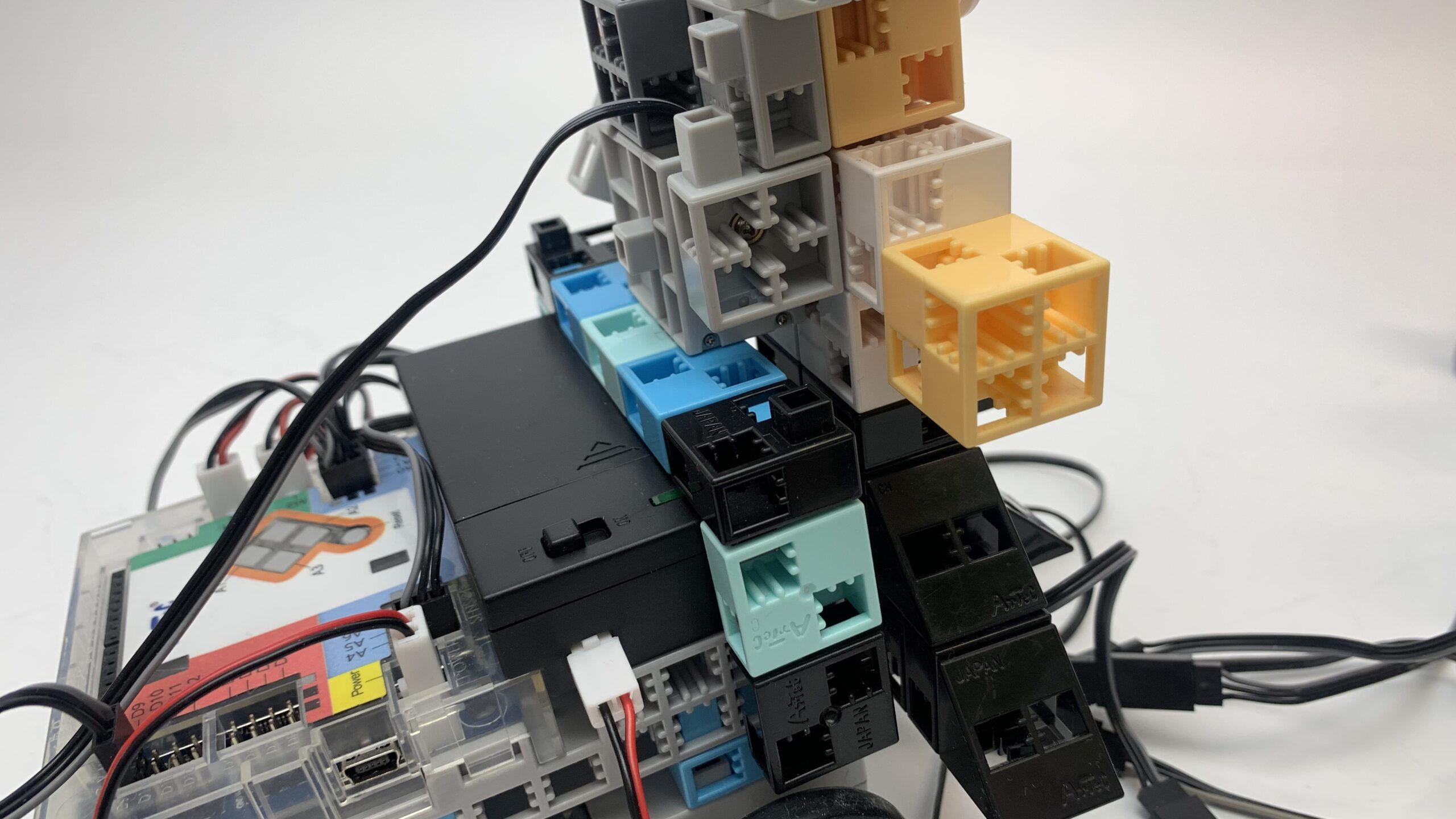

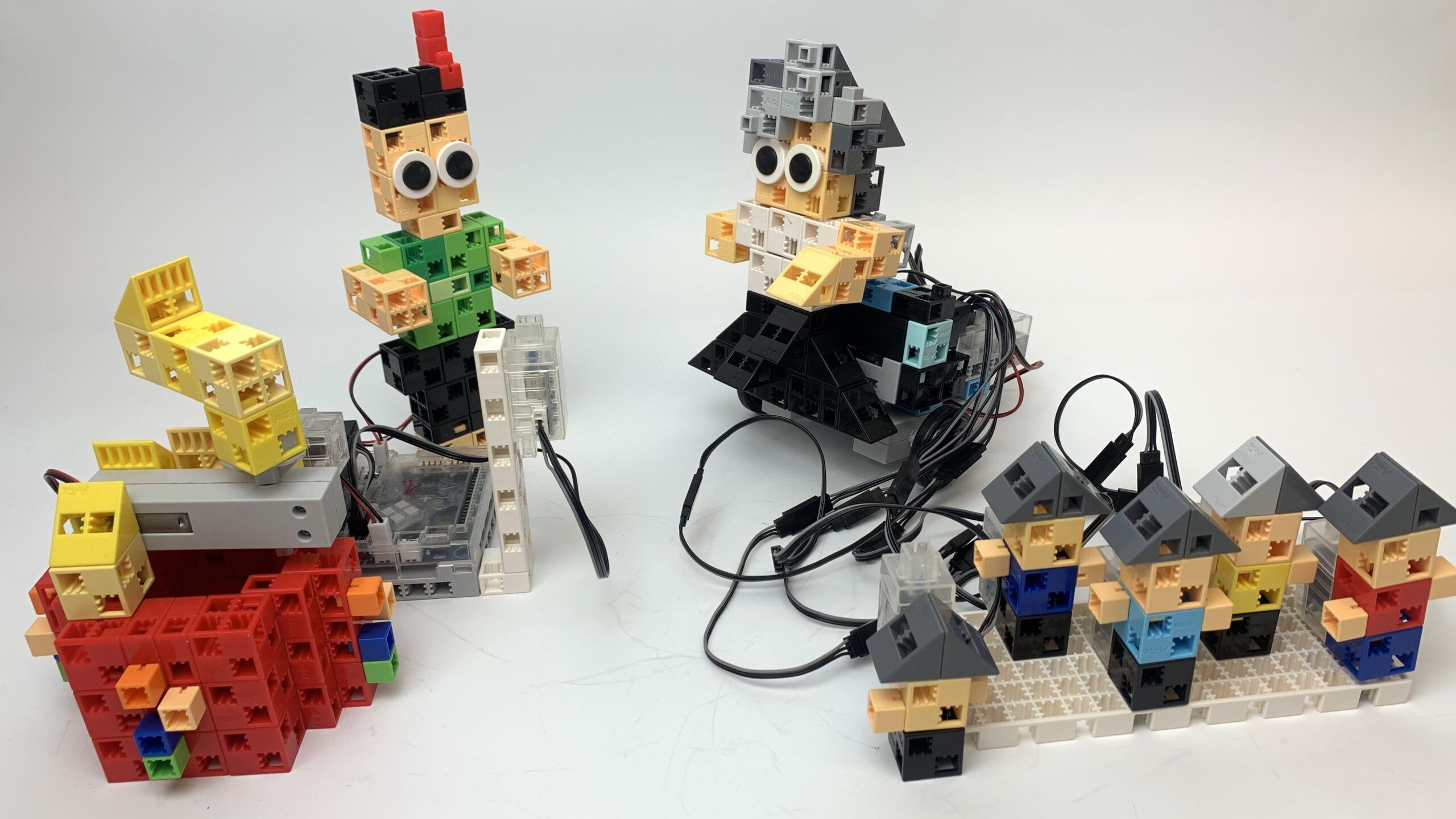

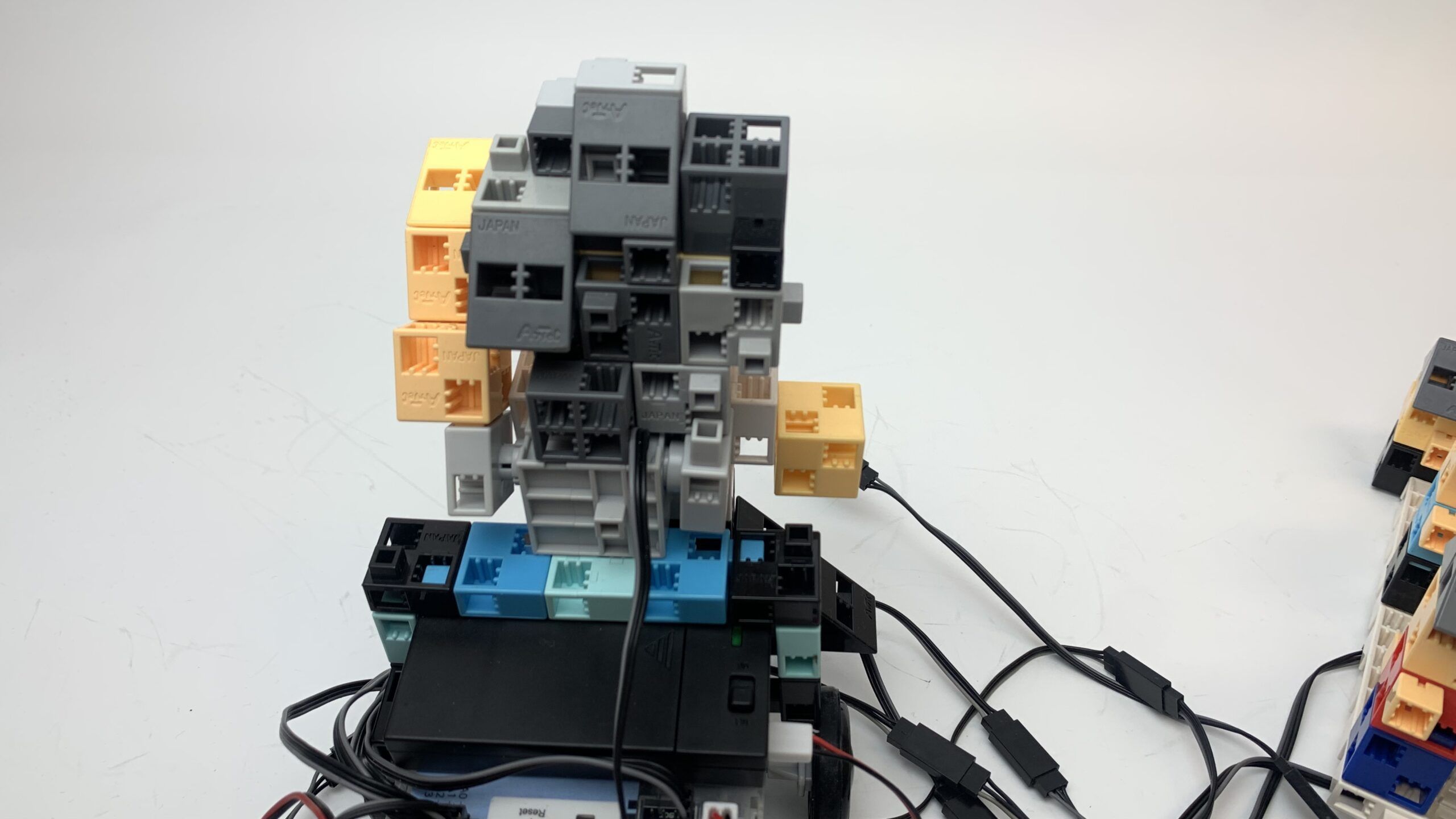

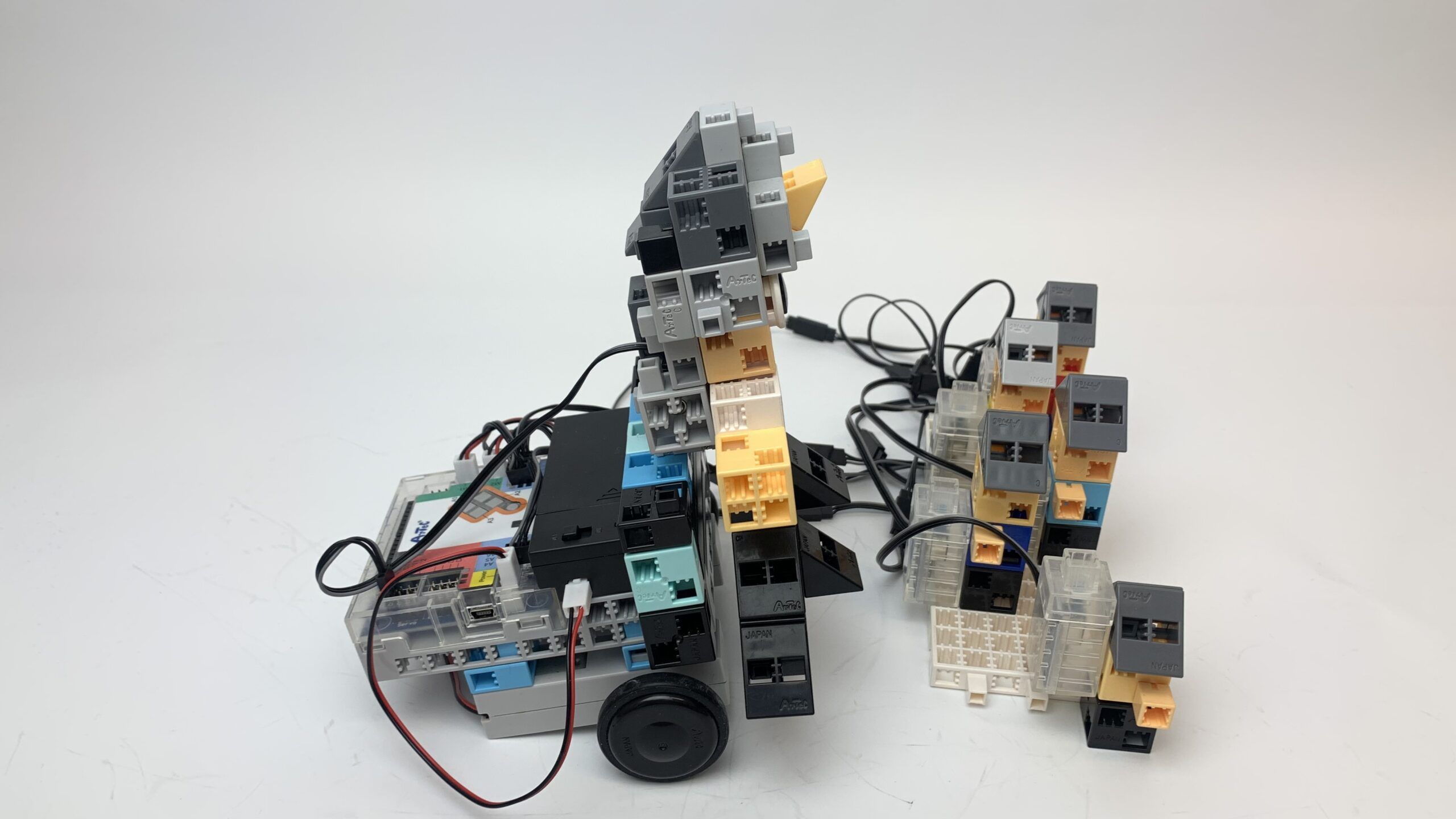

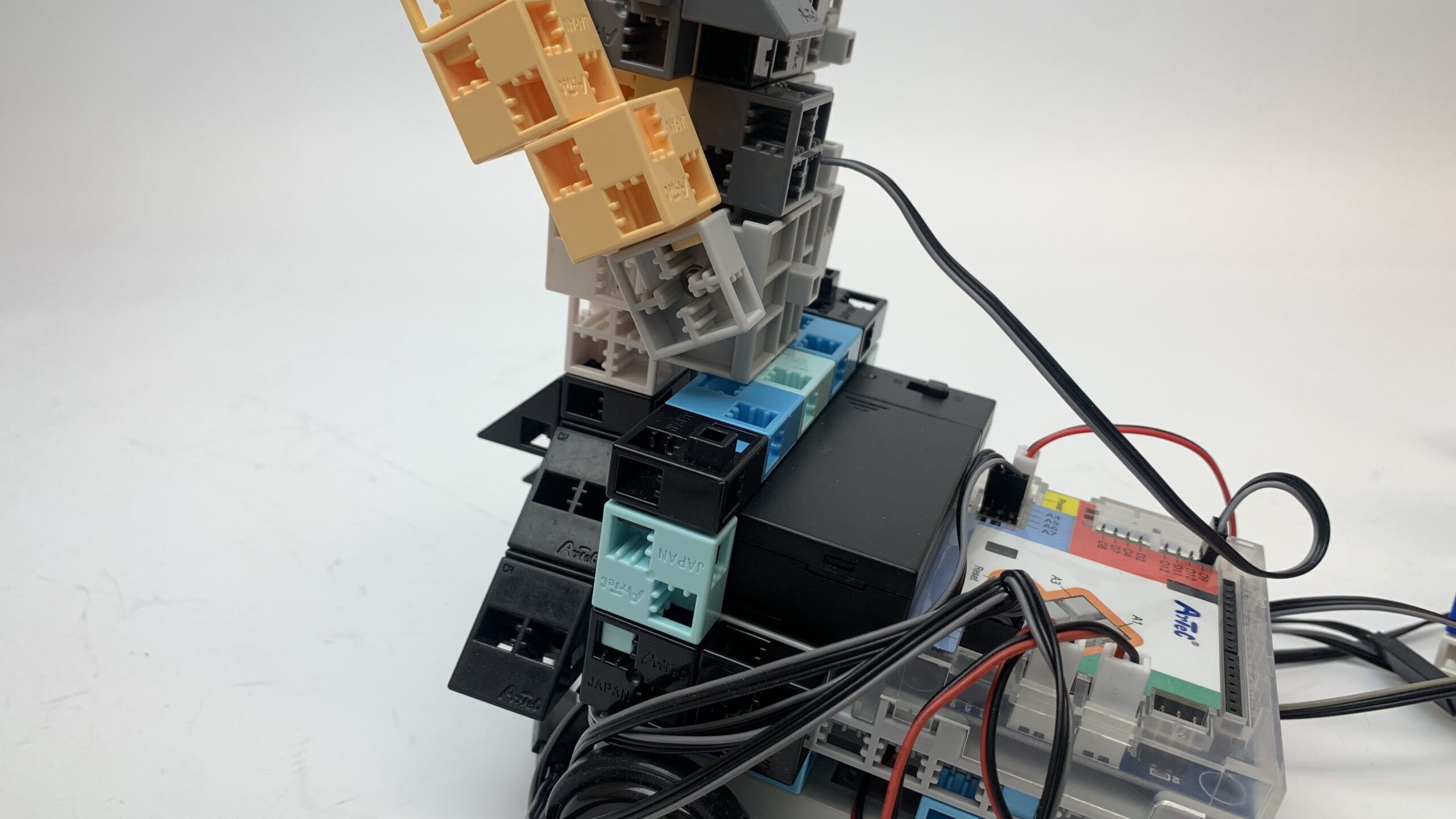

- The grandmother rolls up to the coffee grinder on a 5-button remote controlled robot, raises her arm with a servo motor mounted on her shoulder, then strikes and pushes the button, which starts the coffee grinder
- The first press of the button plays the first section, the next press, and so on, until the end of the tune
- After the last melody part, the next press starts the melody from the beginning
- The coffee grinder arm always rotates with the music
P3

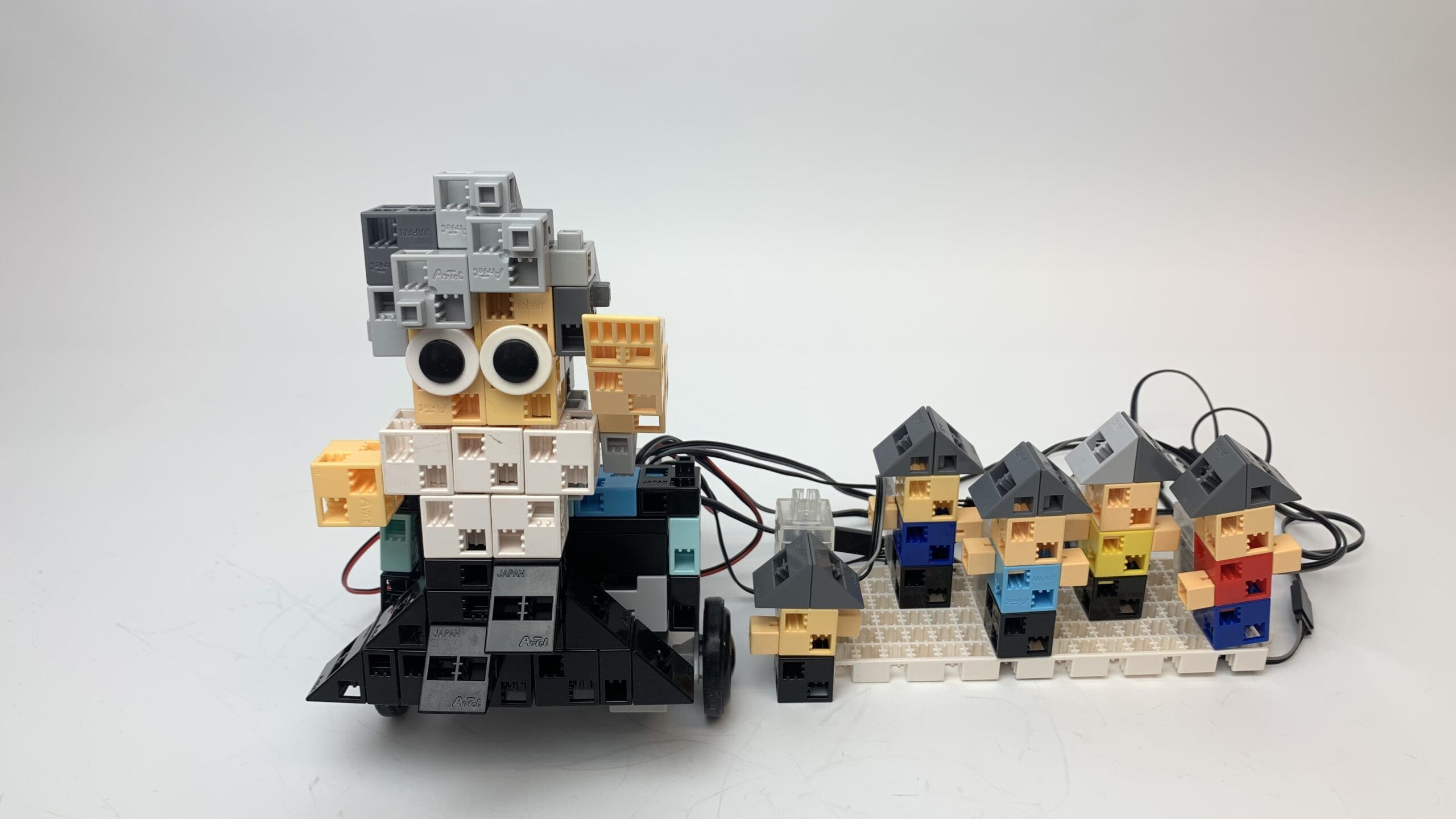

Angry Girls
P3
P3
Programming level 4
Random speed coffee grinder
P4
How to build
Coffee grinder
- The coffee grinder is constructed in the same way as in P2

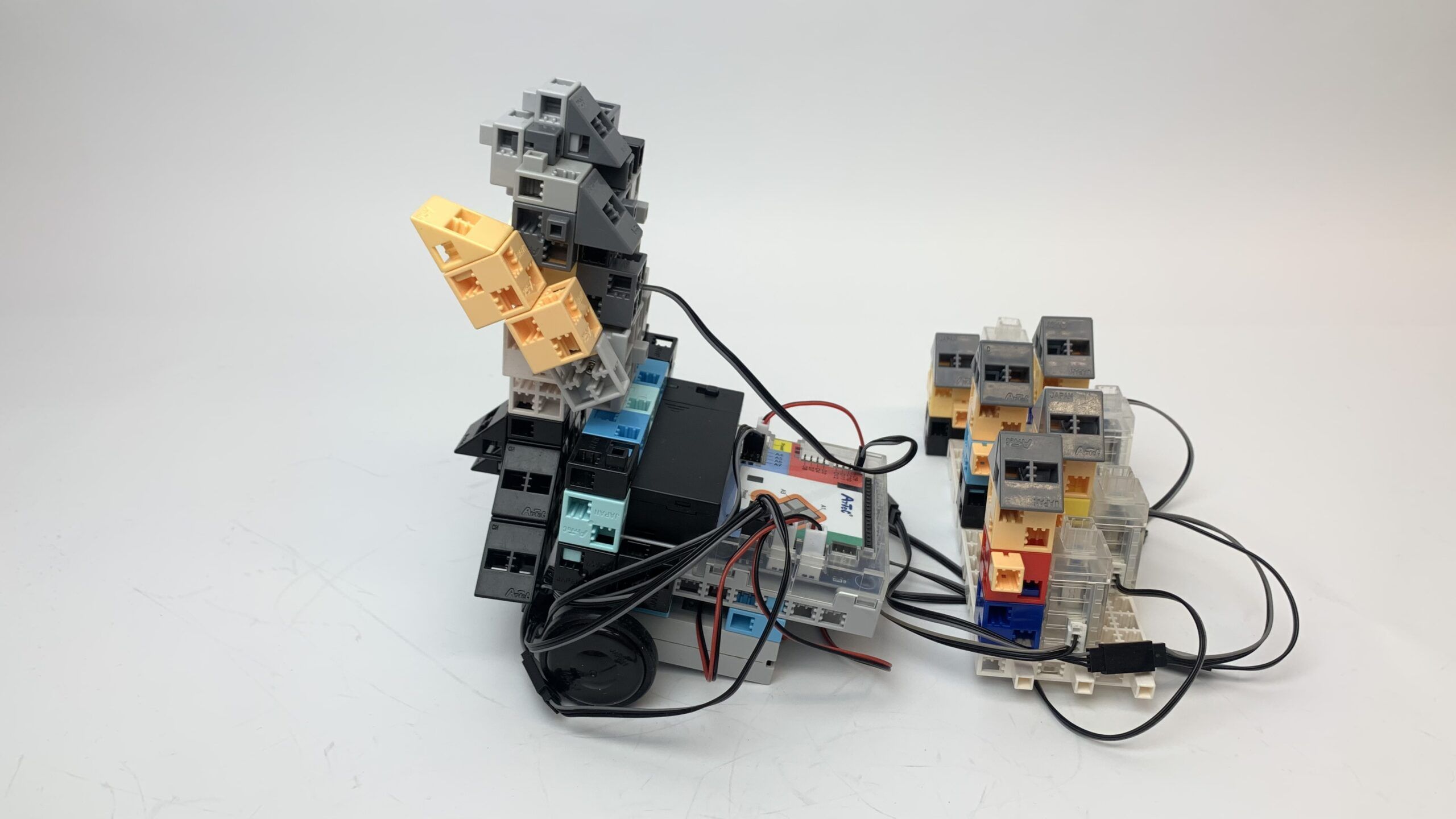

- The grandmother is built in the same way as in P3, but an accelerometer and a push button are used for control
- Pressing the Touch sensor of the coffee grinder causes the coffee grinder arm to rotate at a random speed, 1 IR Photoreflector is used to measure the rotation speed of the coffee grinder arm
- After one lap, the song plays at the corresponding speed while the arm continues to rotate
P4
