At the Mother of the Forest
Programming level 1
Dragons on gears
P1
How to build
The robots

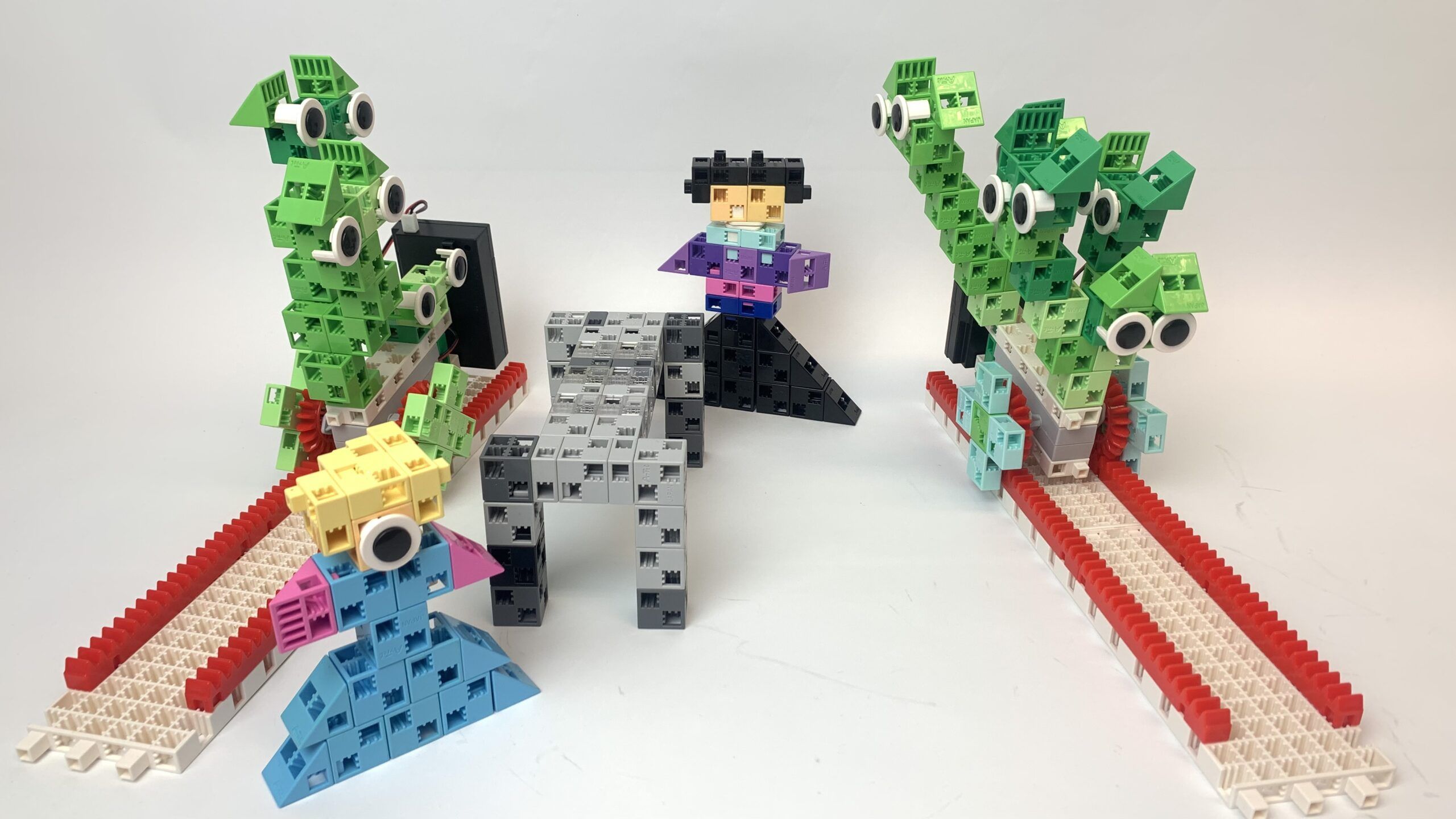

- Rack and pinion – rack and pinion solution, powered by a DC motor connected to a battery holder
- On both side of the table, the kites sit on a gear carriage and move alongside the table
P1
The robots
P1
Programming level 2
Feeding the dragons
P2
How to build
The robots

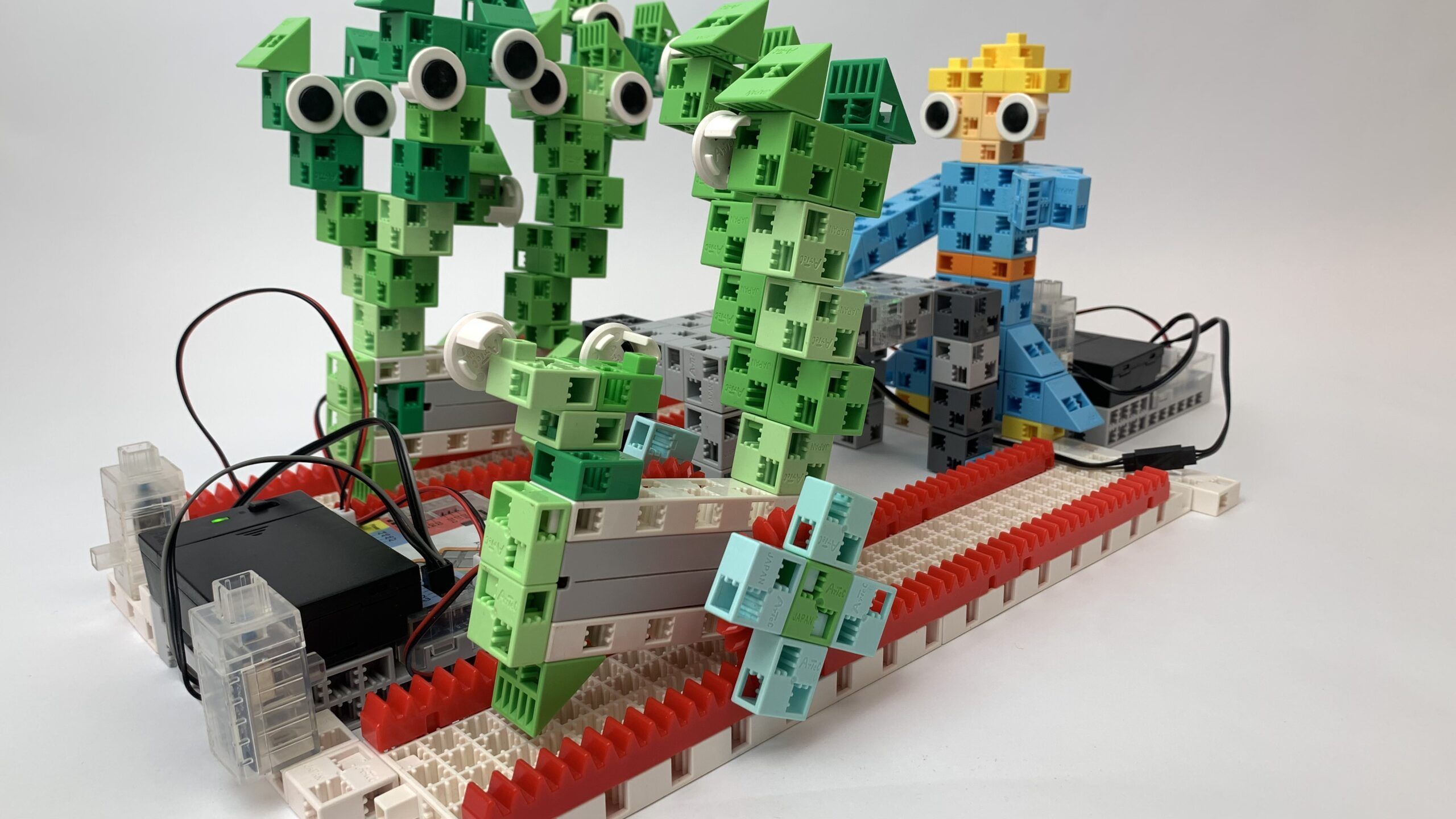

- The girl is built next to the table, moving her shoulders with a DC motor
- We connect 1 Touch sensor and 1 LED to the robot.
- When Touch sensor is pressed, she reaches her arm towards the table, when she lift her hand, the green LED built into the table lights up.
- The kites on both side of the table are connected to another motherboard. They are built on a gear and rack structure.
- 2 Touch sensors are connected to the robot.
- By pressing 1 Touch sensor, the kites roll back and forth on the gears.
P2
The robots
P2
P2
Programming level 3
Kites moving randomly
P3
How to build
The robots

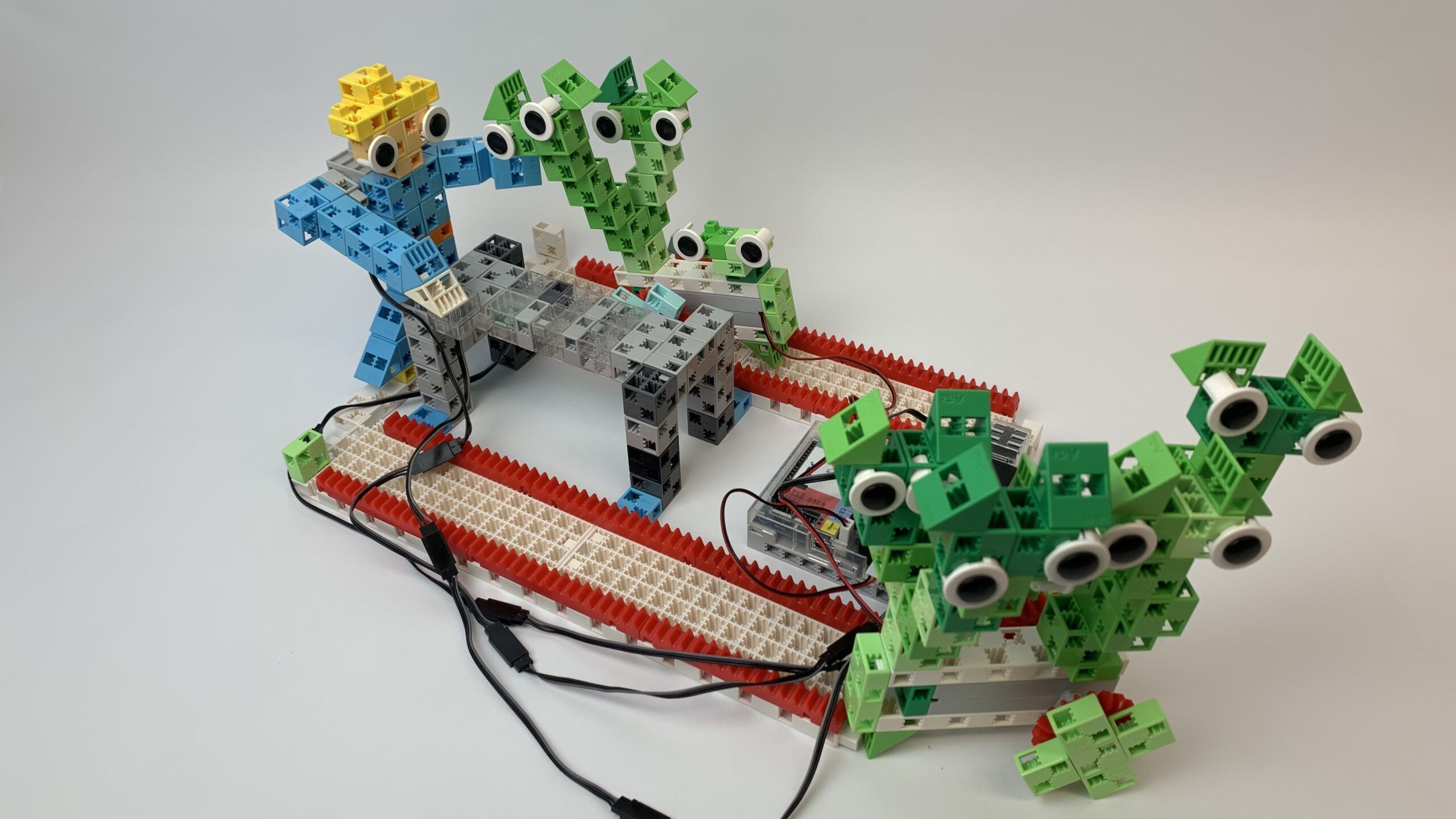

- We build the girl next to the table, mount a servo motor in her shoulder and connect a sound sensor to her.
- She reacher her arm toward the table, which is detected by the IR Photoreflector in the table.
- The green LED in the table will light up and the kites will start moving.
- The kites always start from the middle, and when she lifts her hand over the table, the kites randomly slide either left or right on the rack, and then after a few seconds they move back to the middle.
- When the kites are back in the middle, the girl pulls her arm back.
P3
The robots
P3
P3
Programming level 4
Stepping kite
P4
How to build
The robots

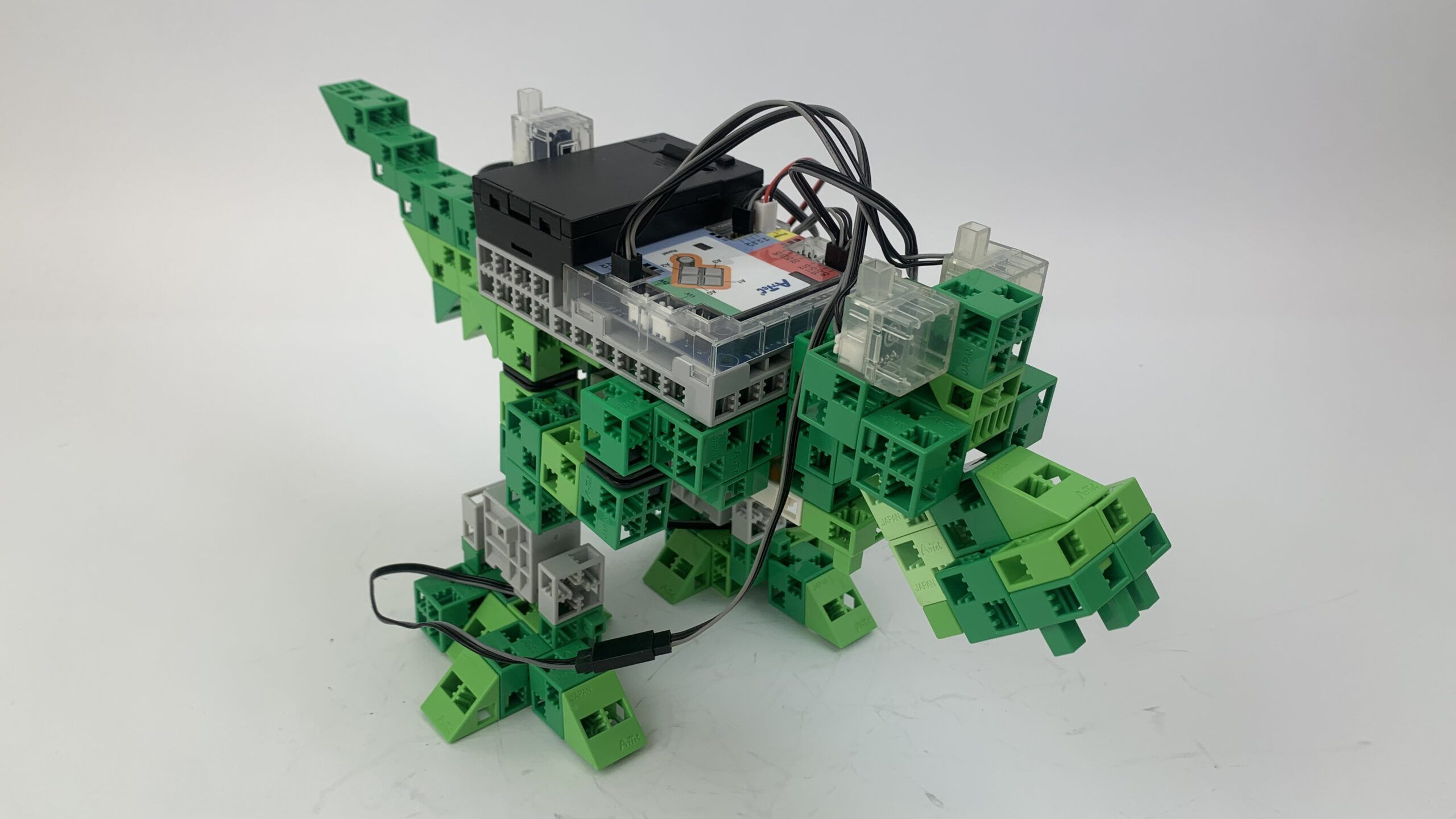

- Building a 3 servo-motor powered stepping kite.
- The kite steps towards the girl with its eyes glowing green. When it stops, it makes a sound.
- The girl is built as a figure.
P4
The robots
