Lotte in the restaurant
Programming level 1
Lotte
P1
How to build

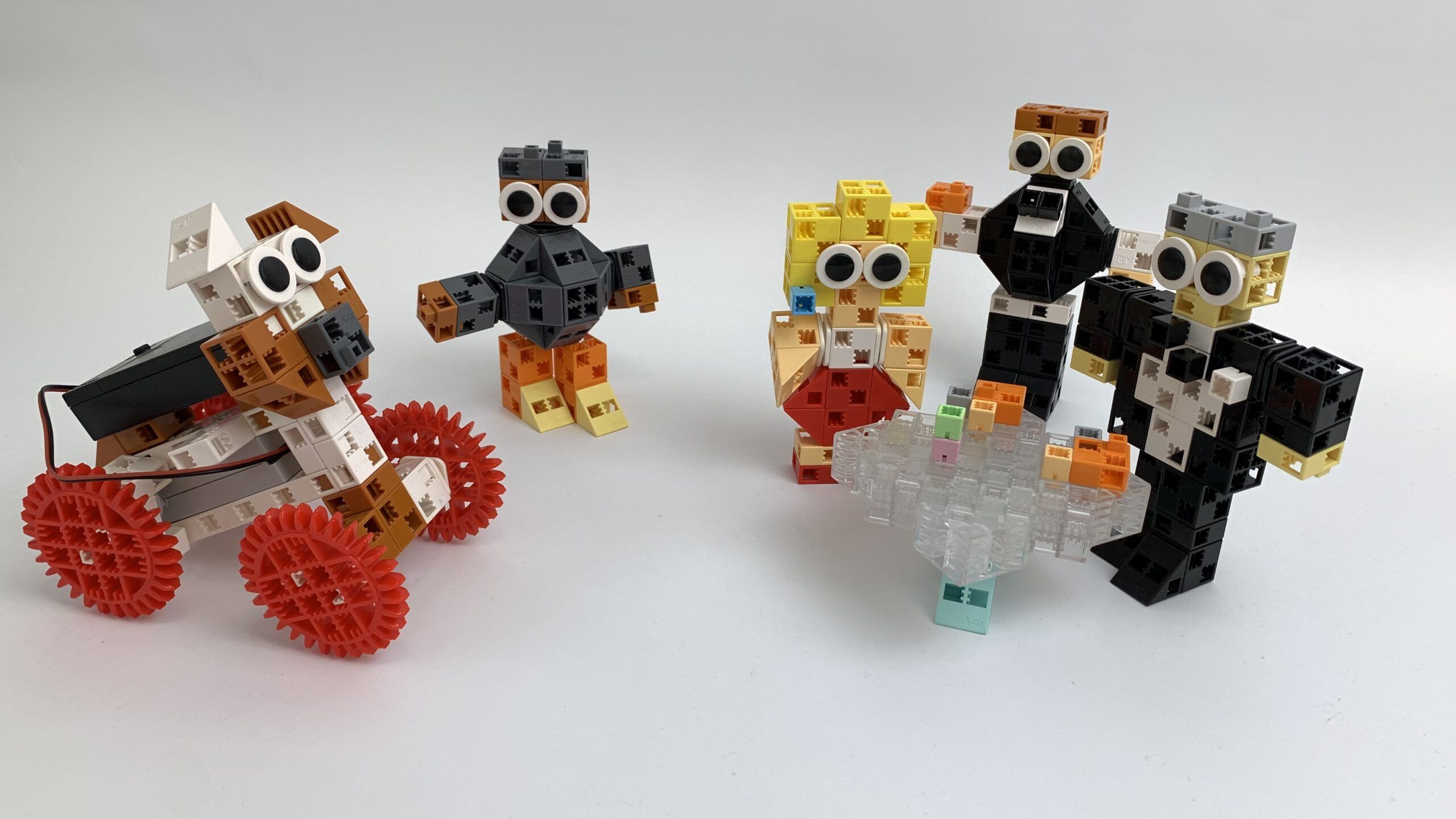

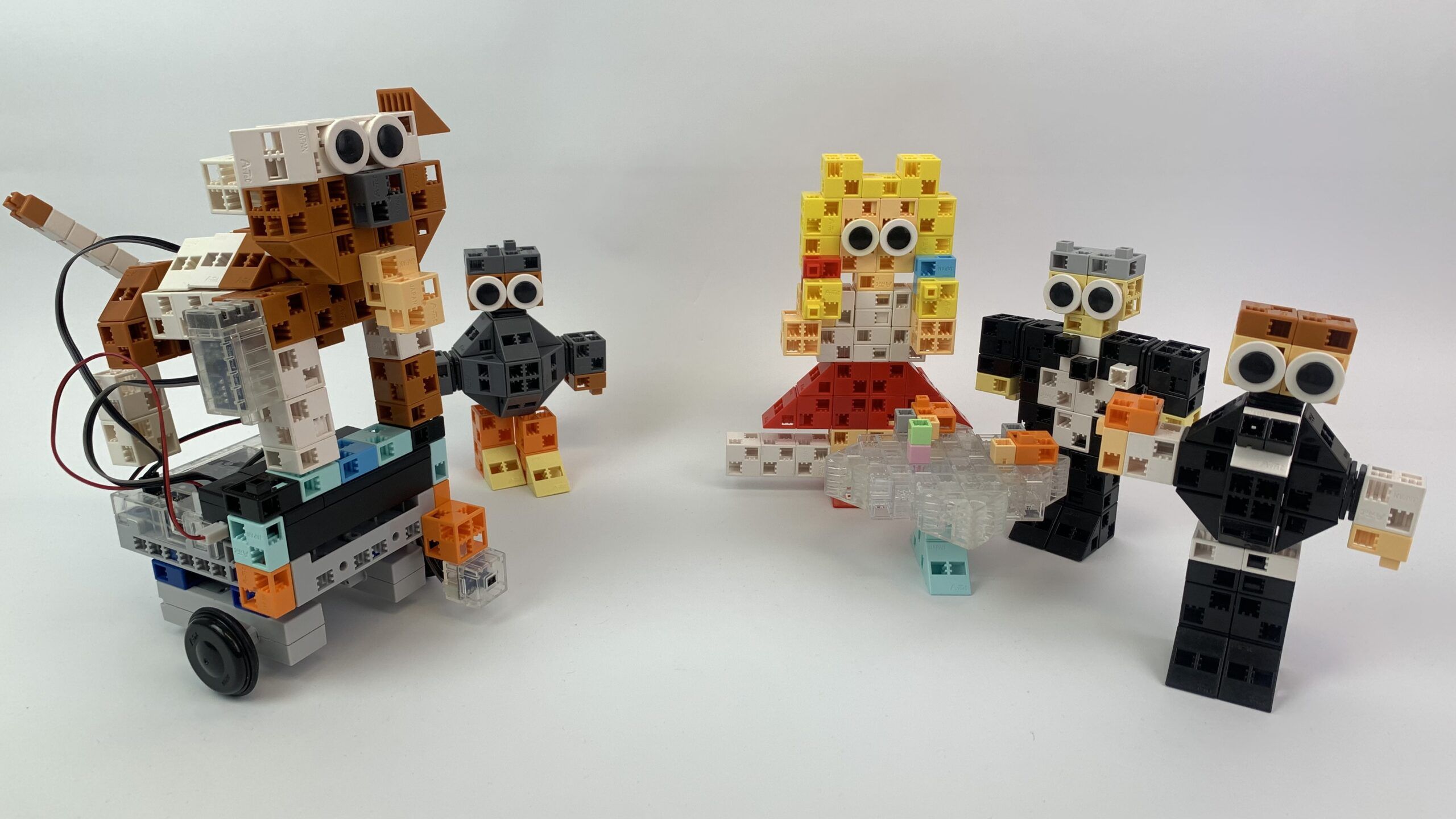

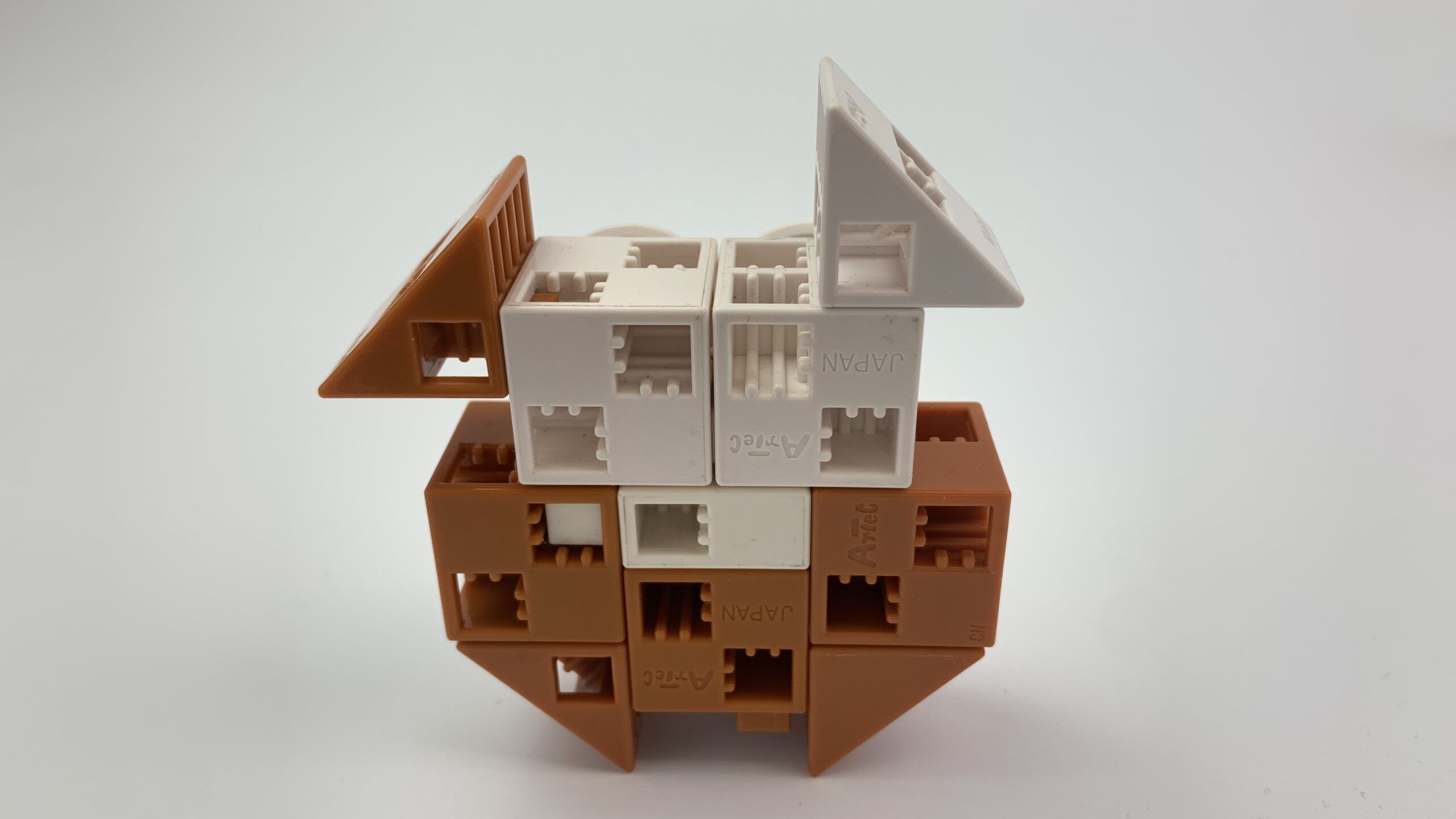

Build the static figures

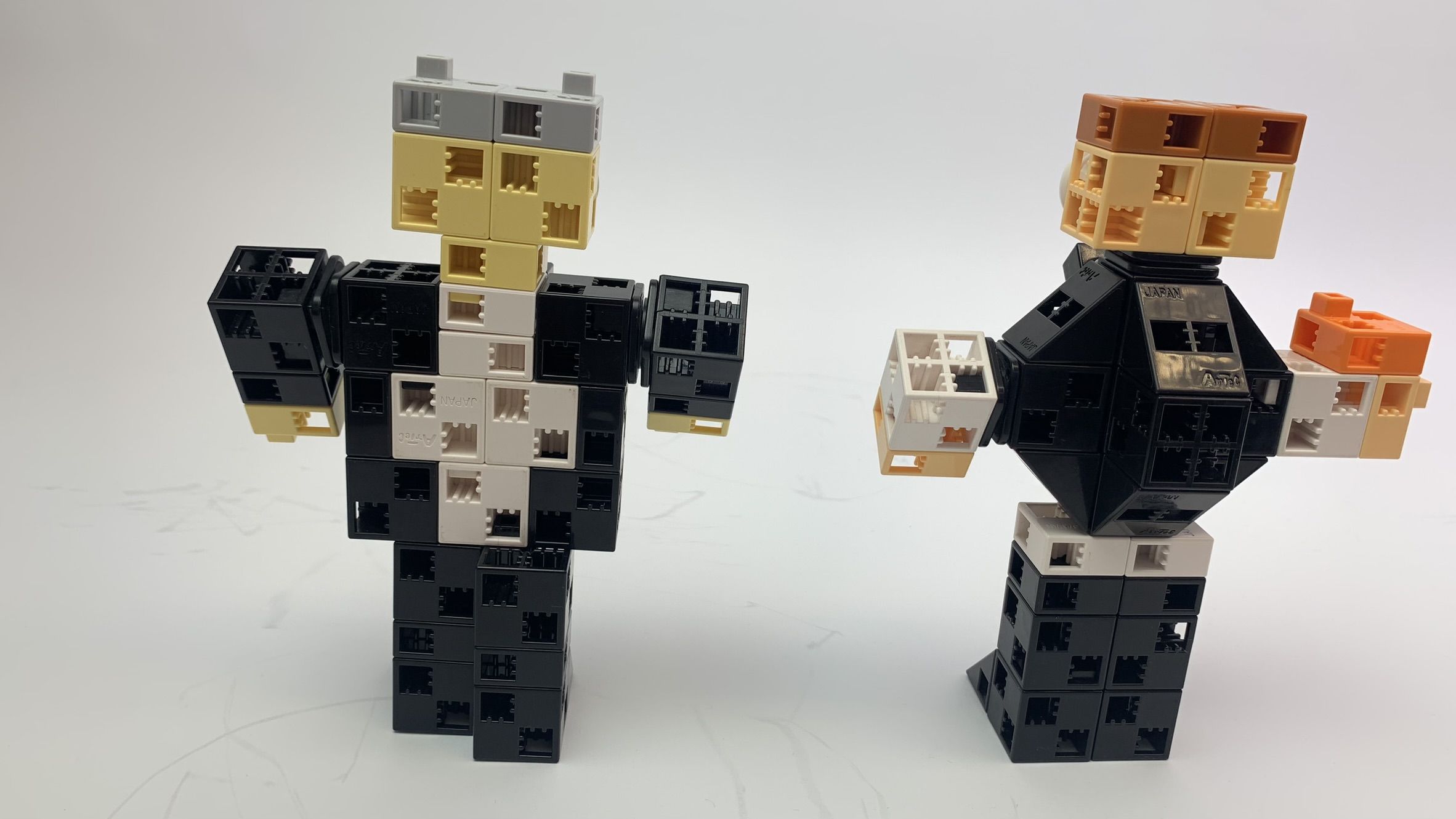

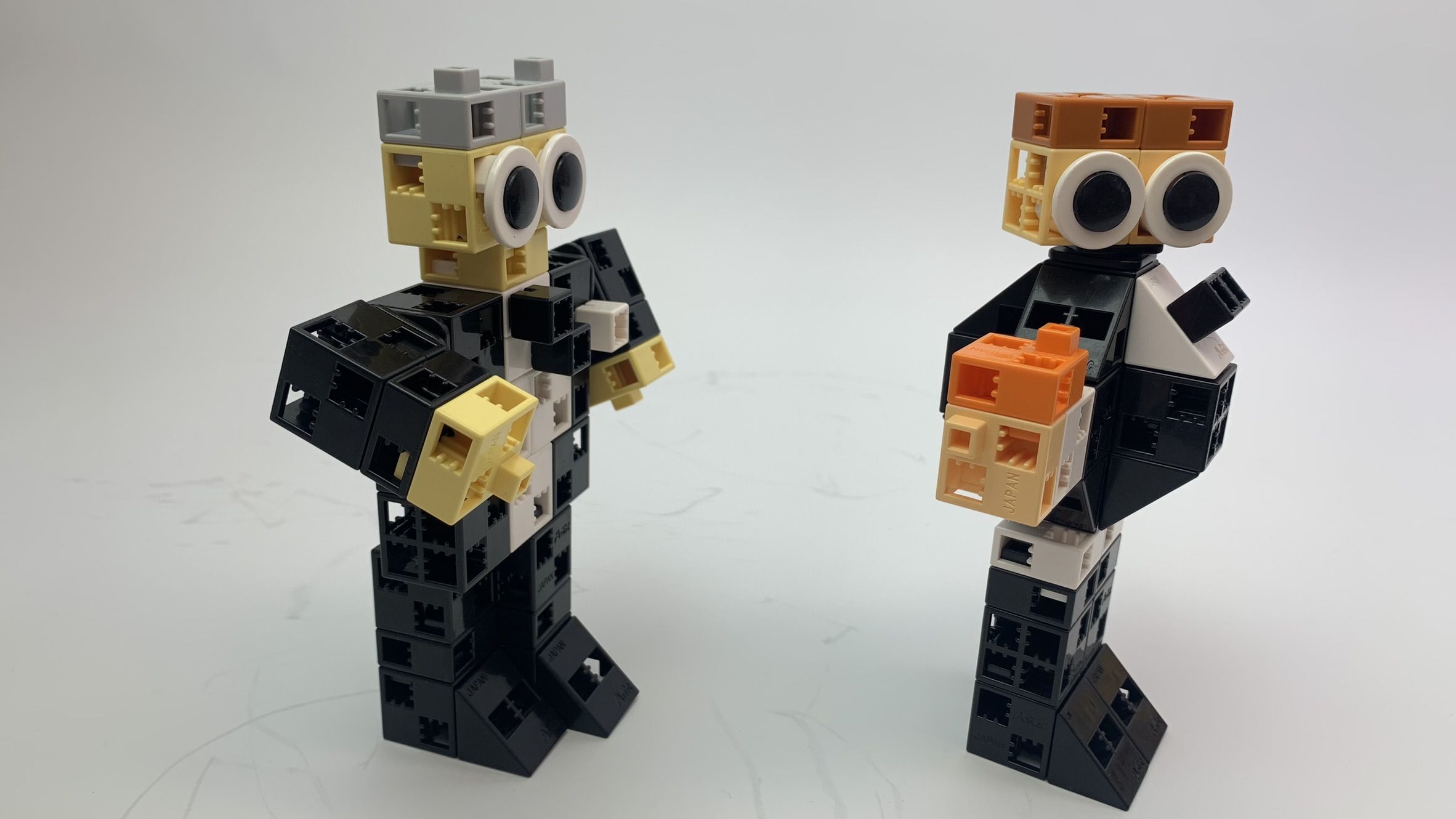

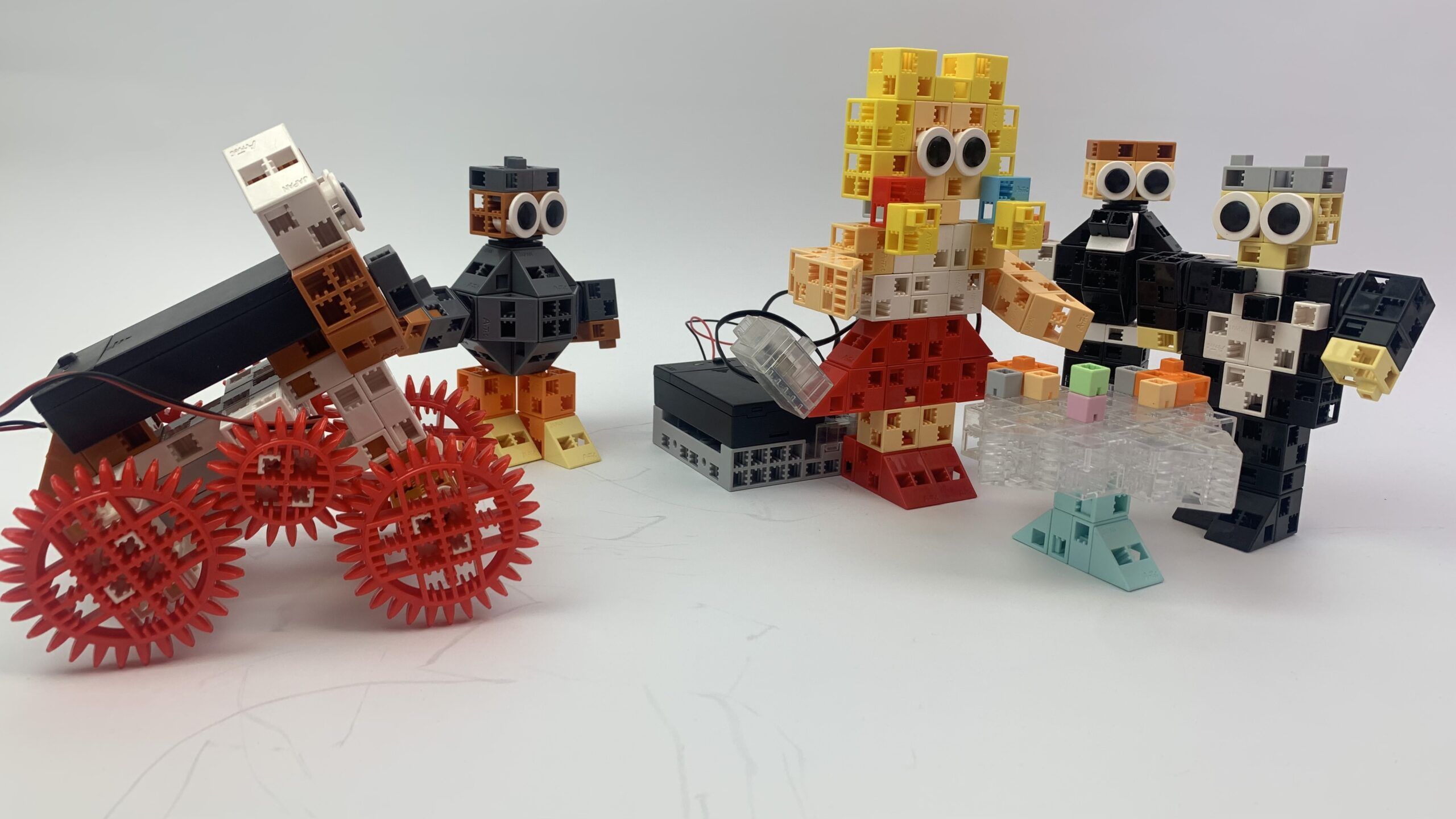

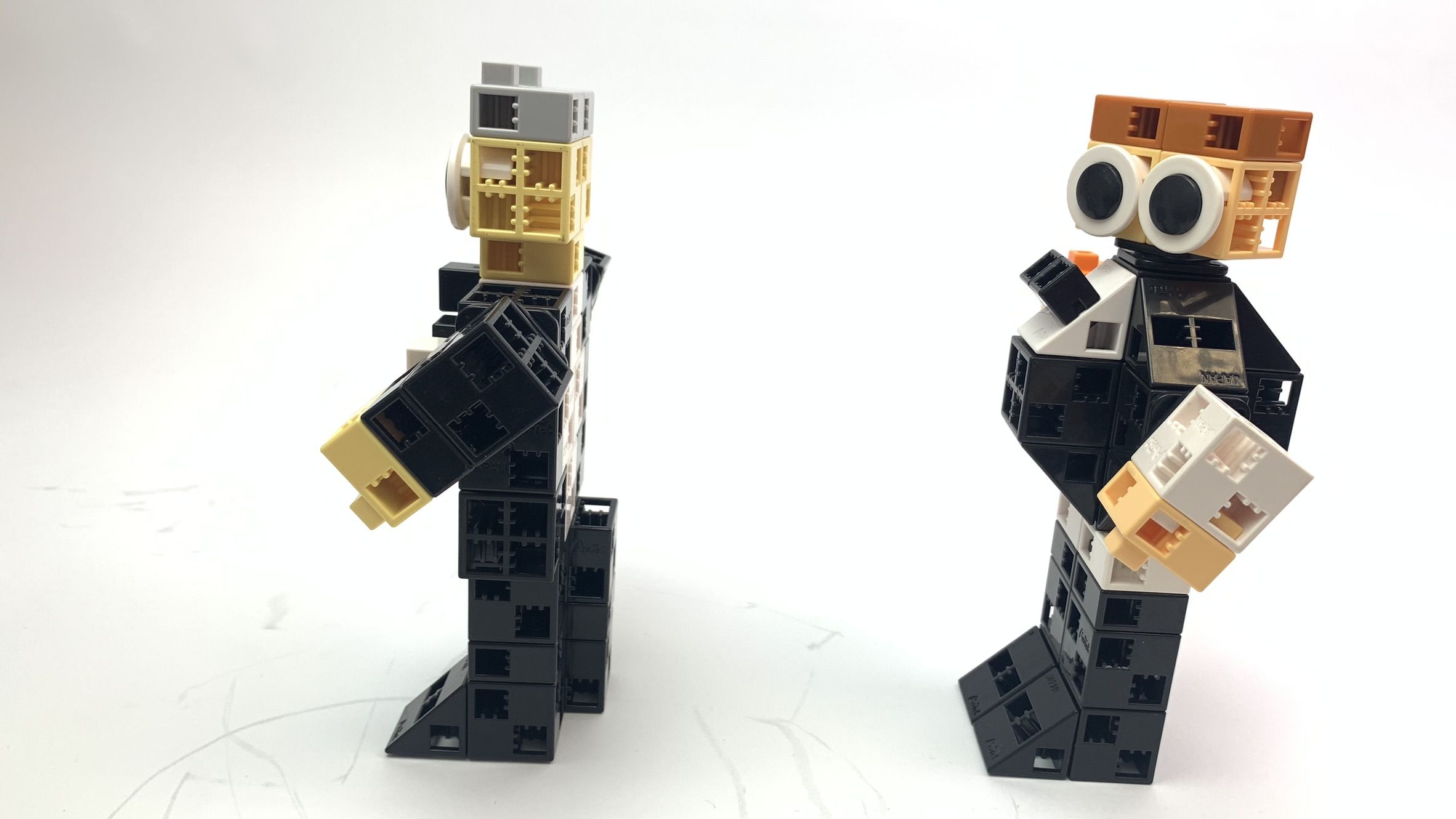

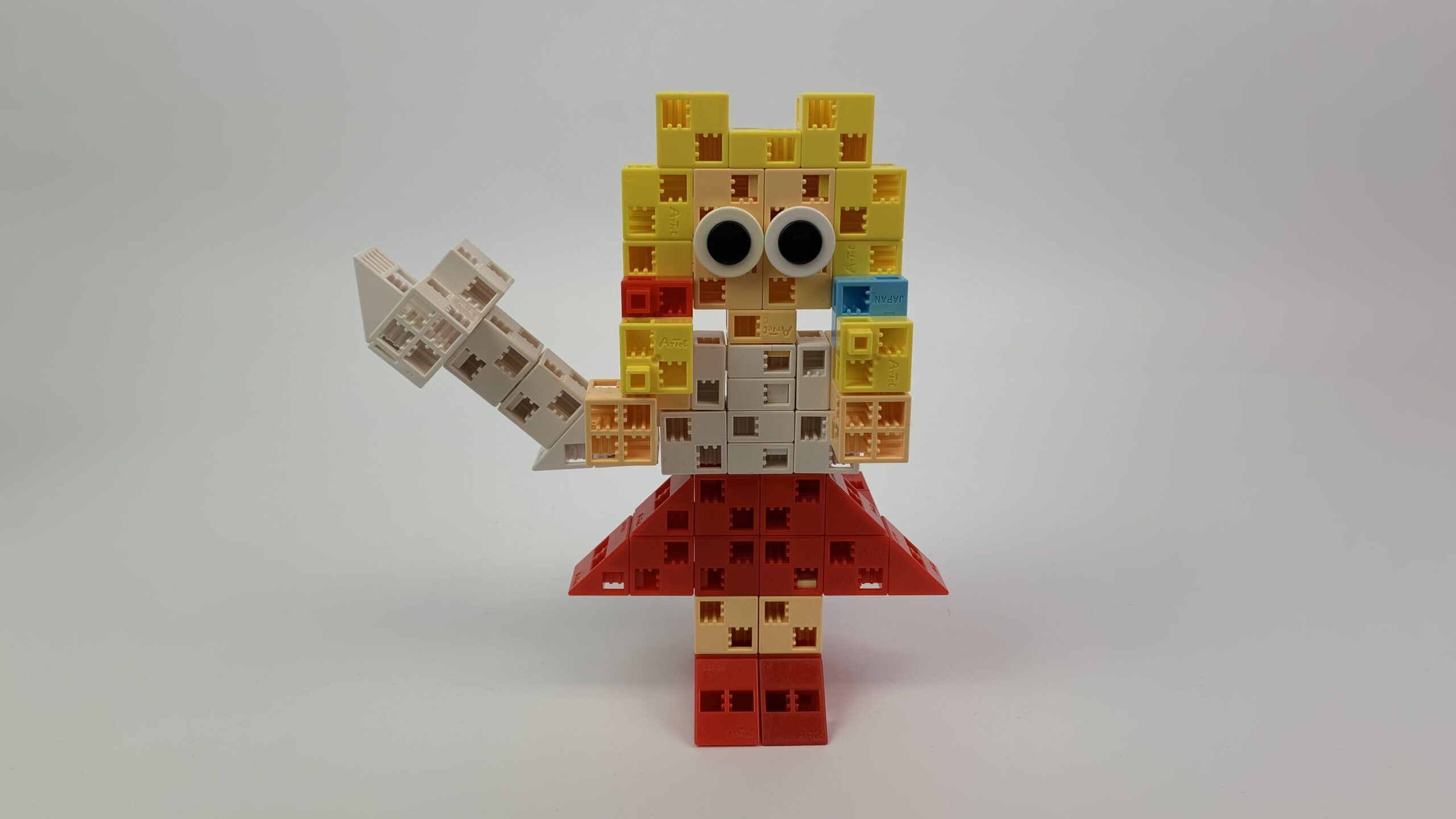

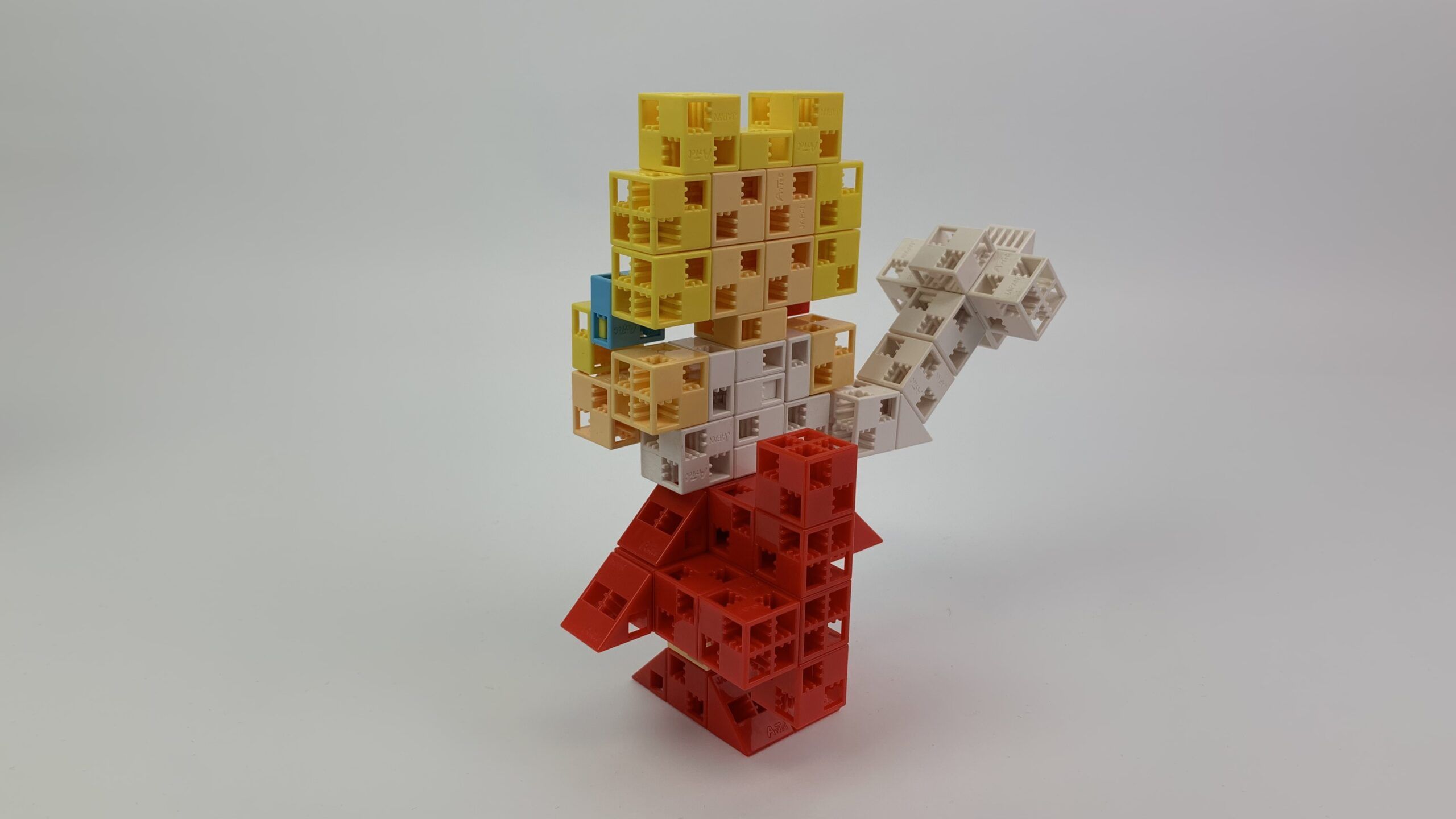

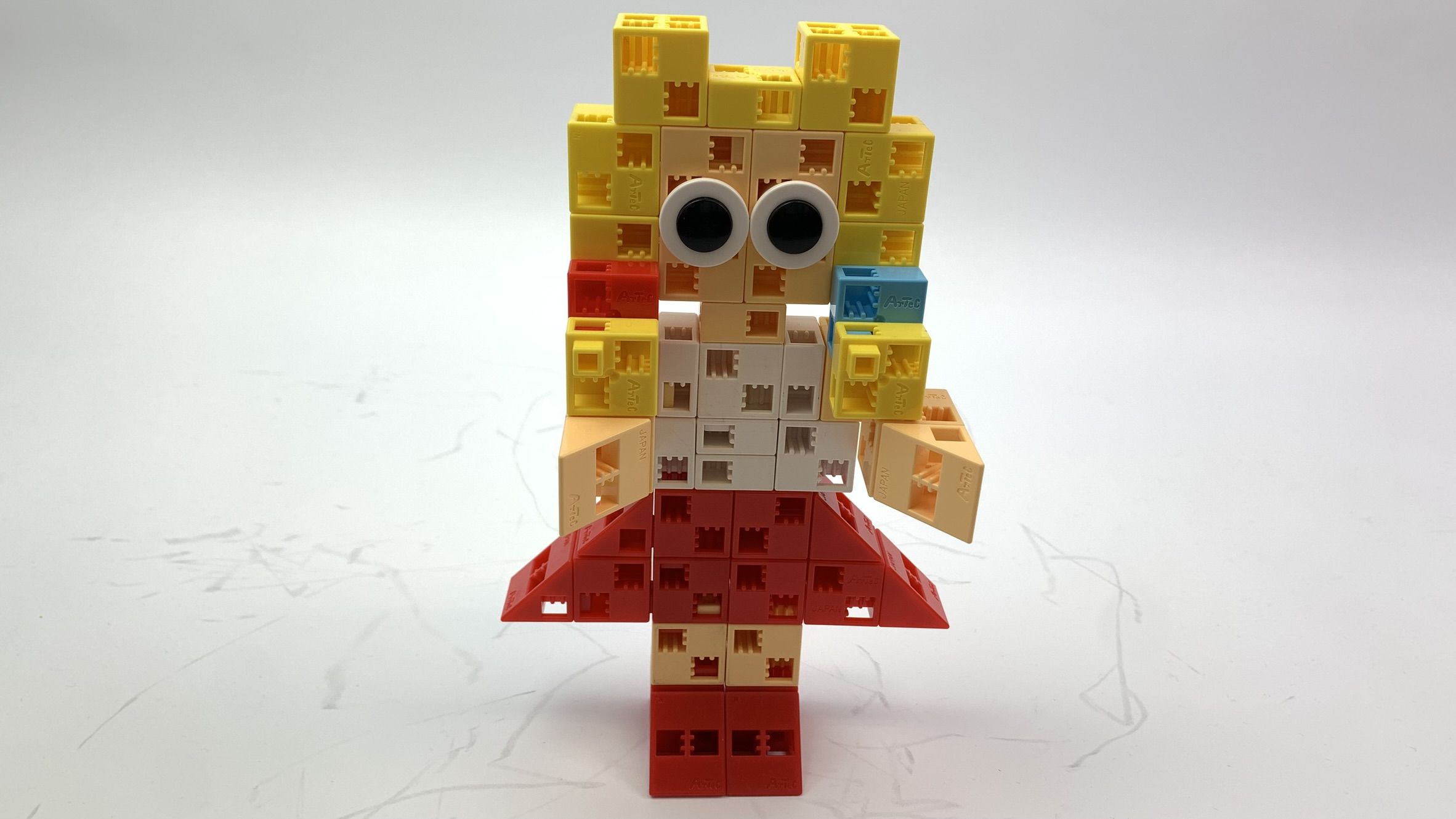

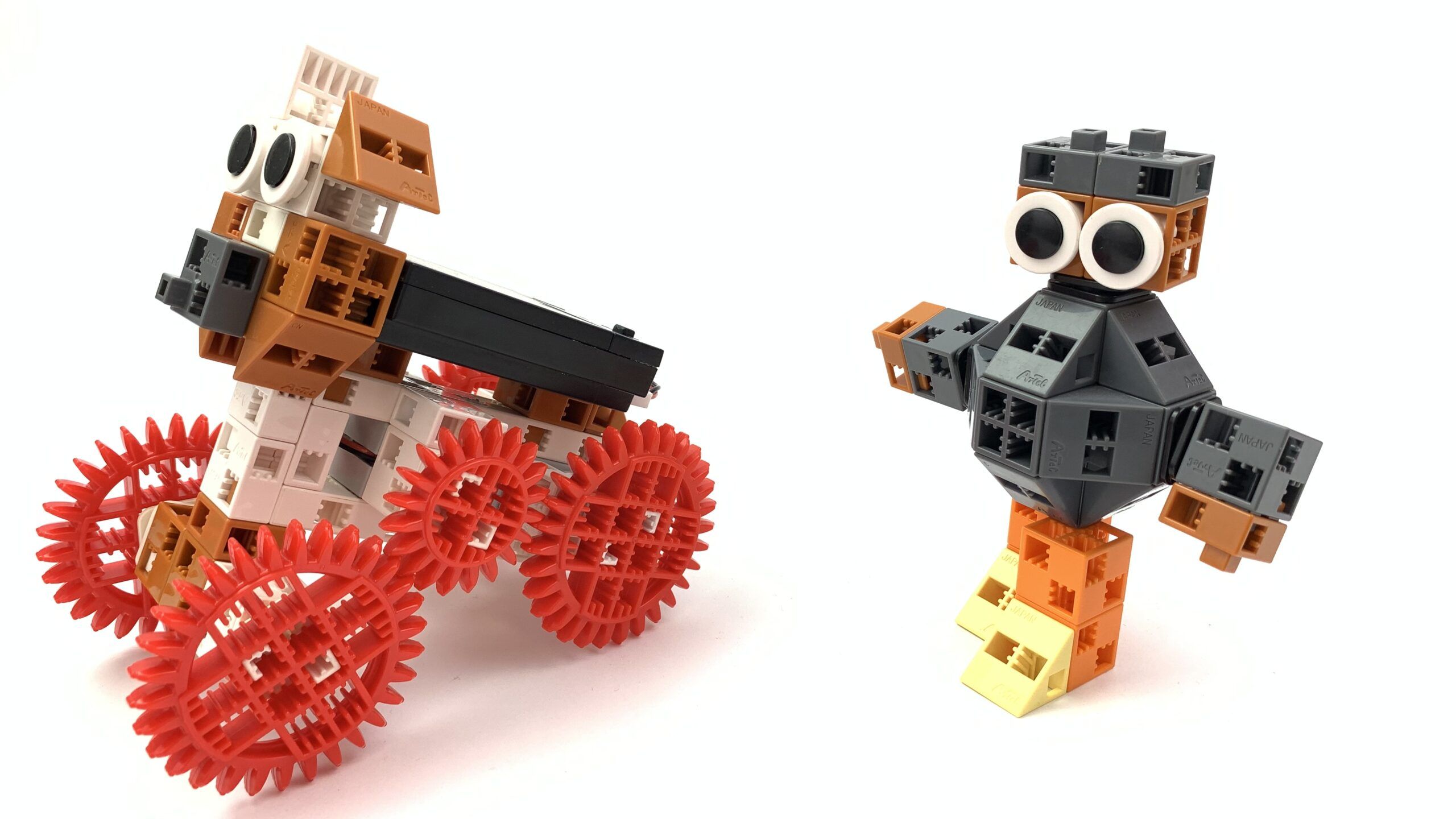

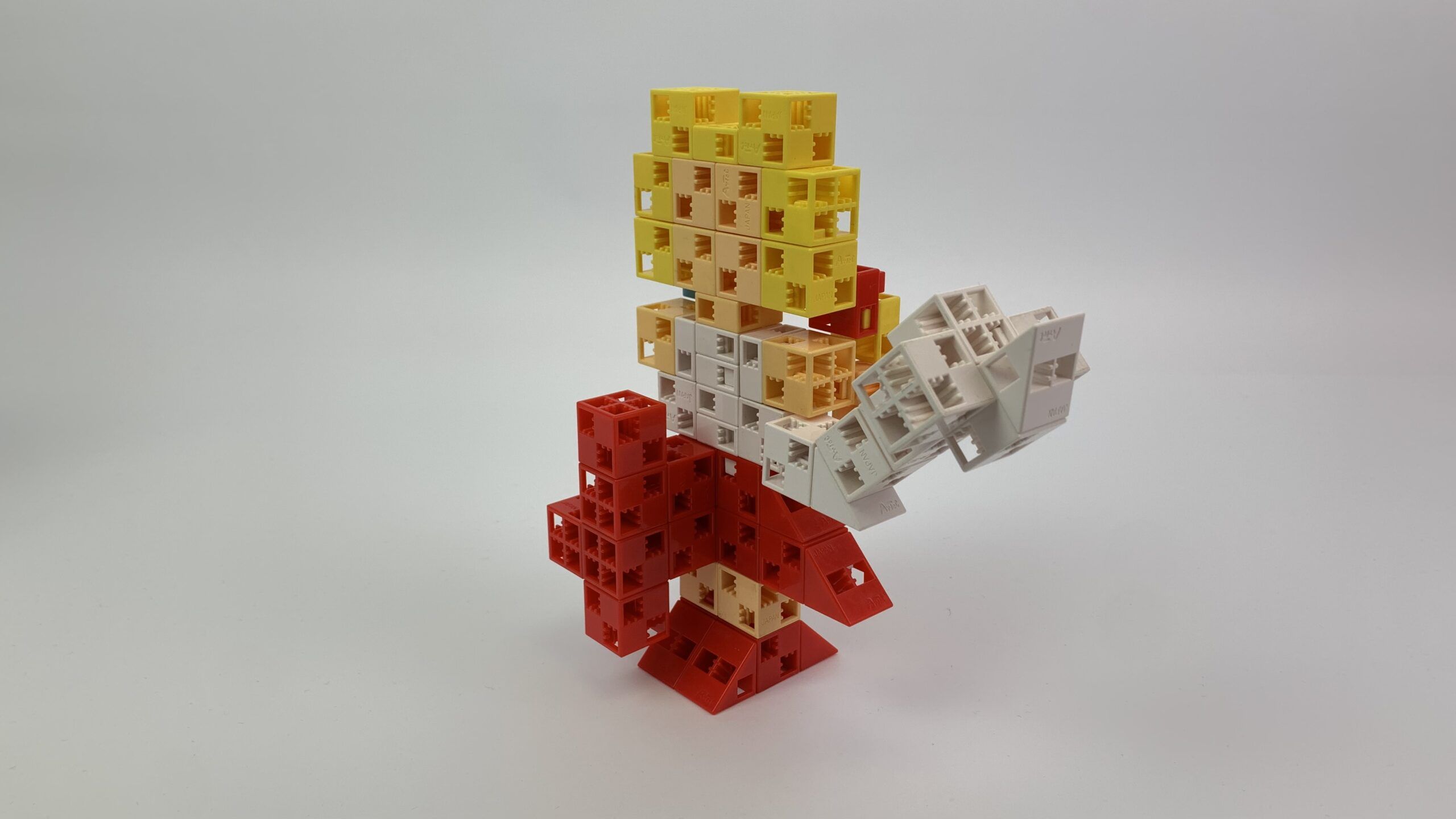

- Lotte and the other characters are static figures. Lotte’s arm can be moved on an axis.

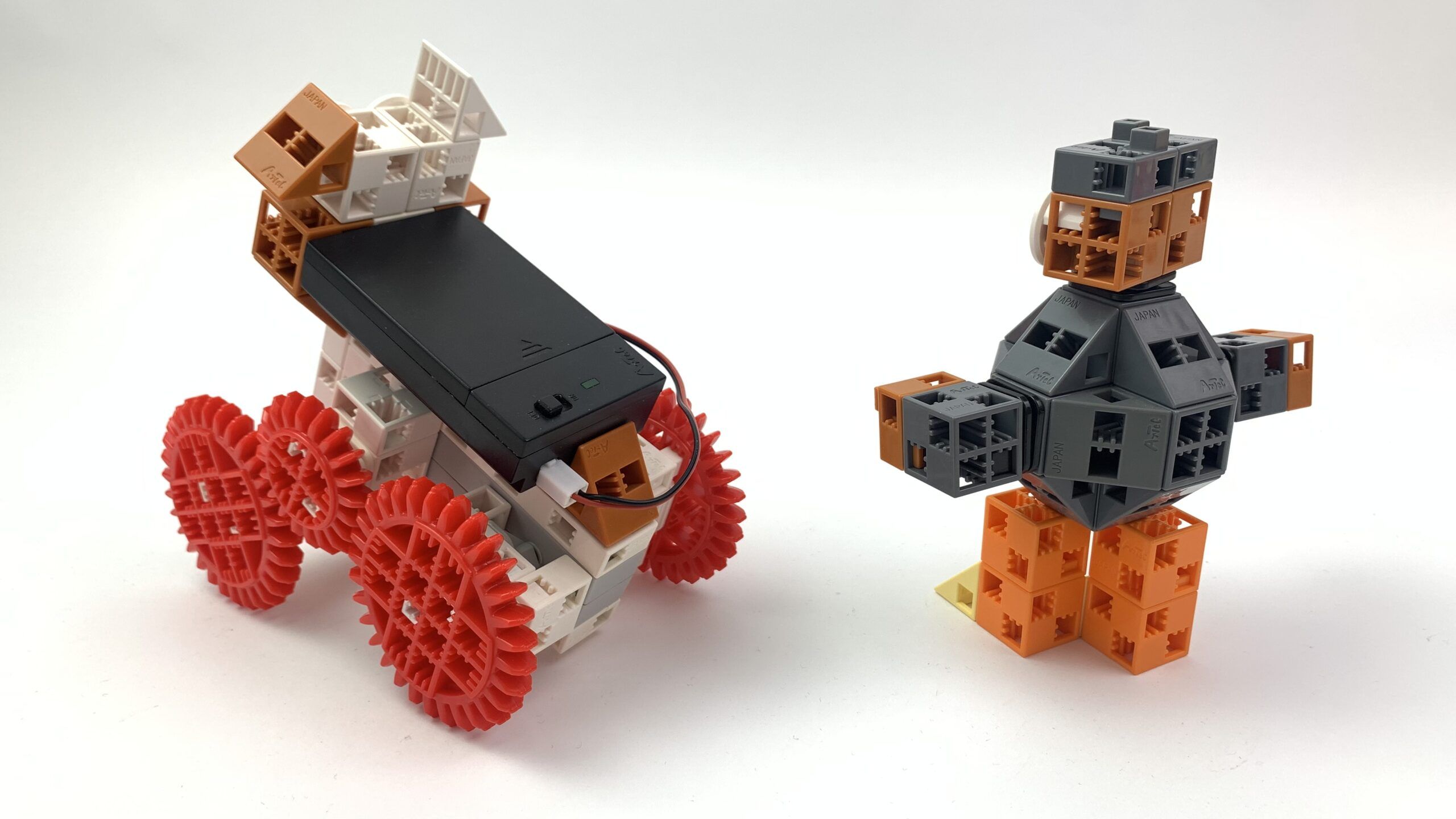

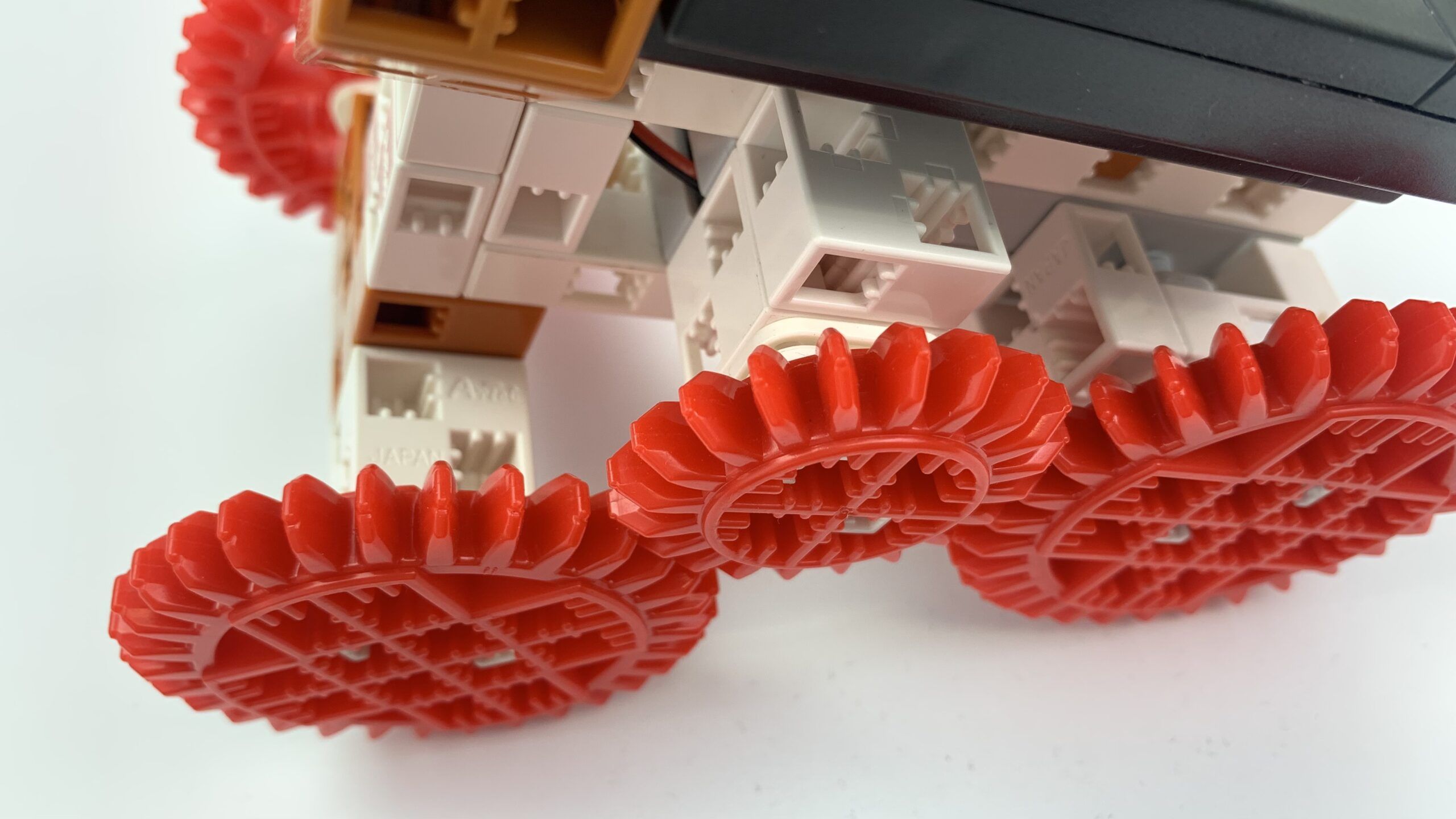

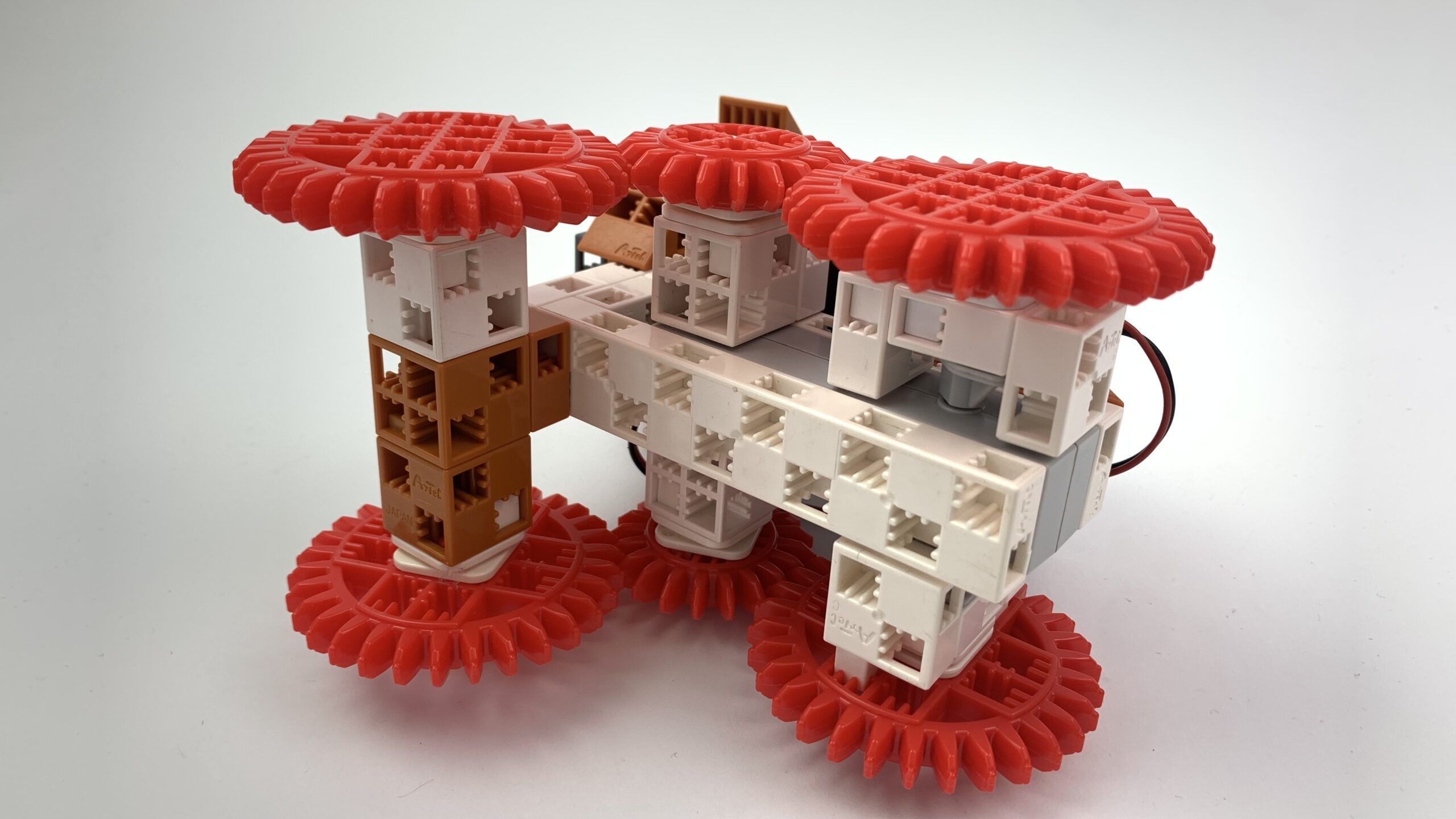

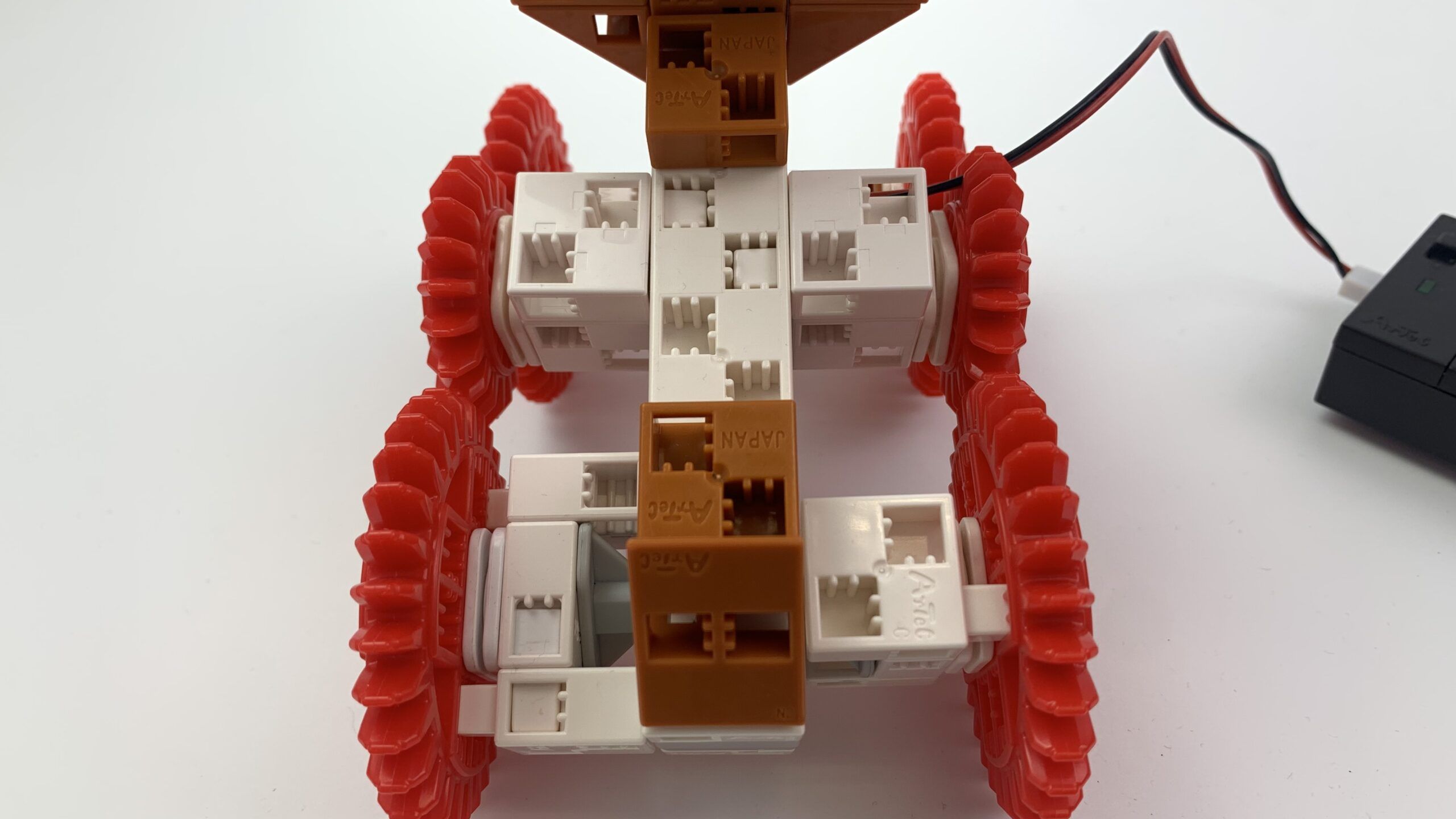

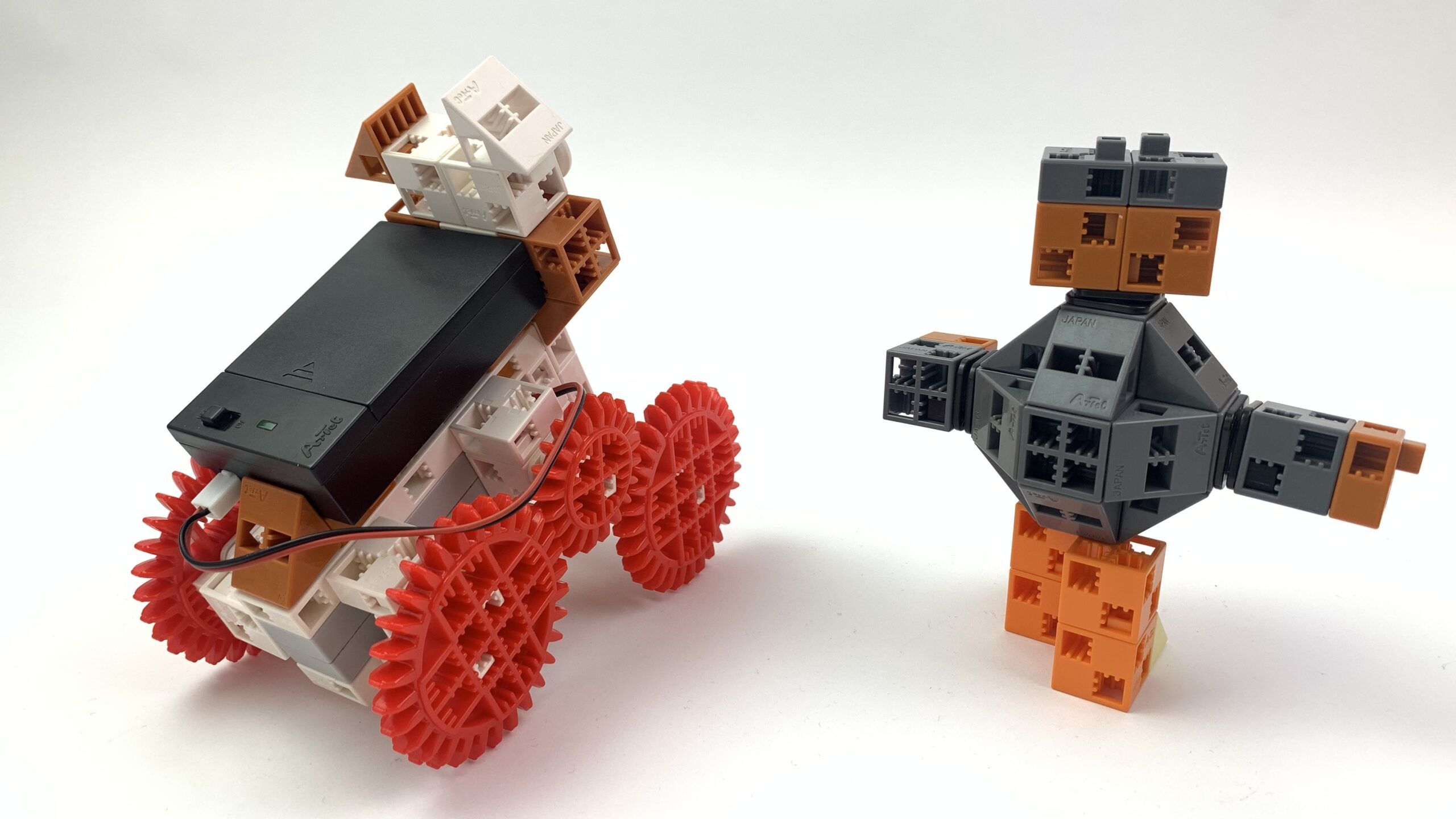

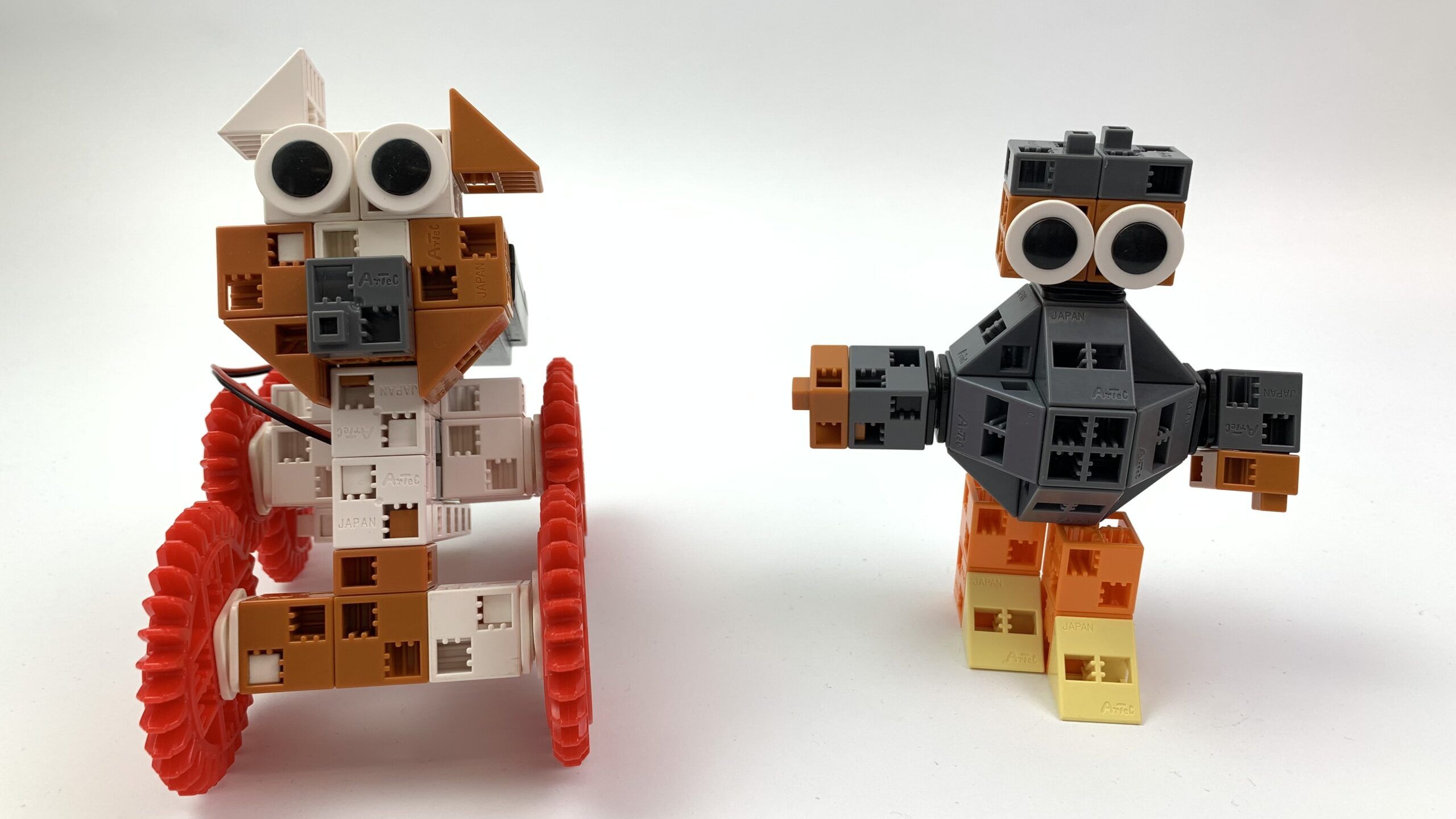

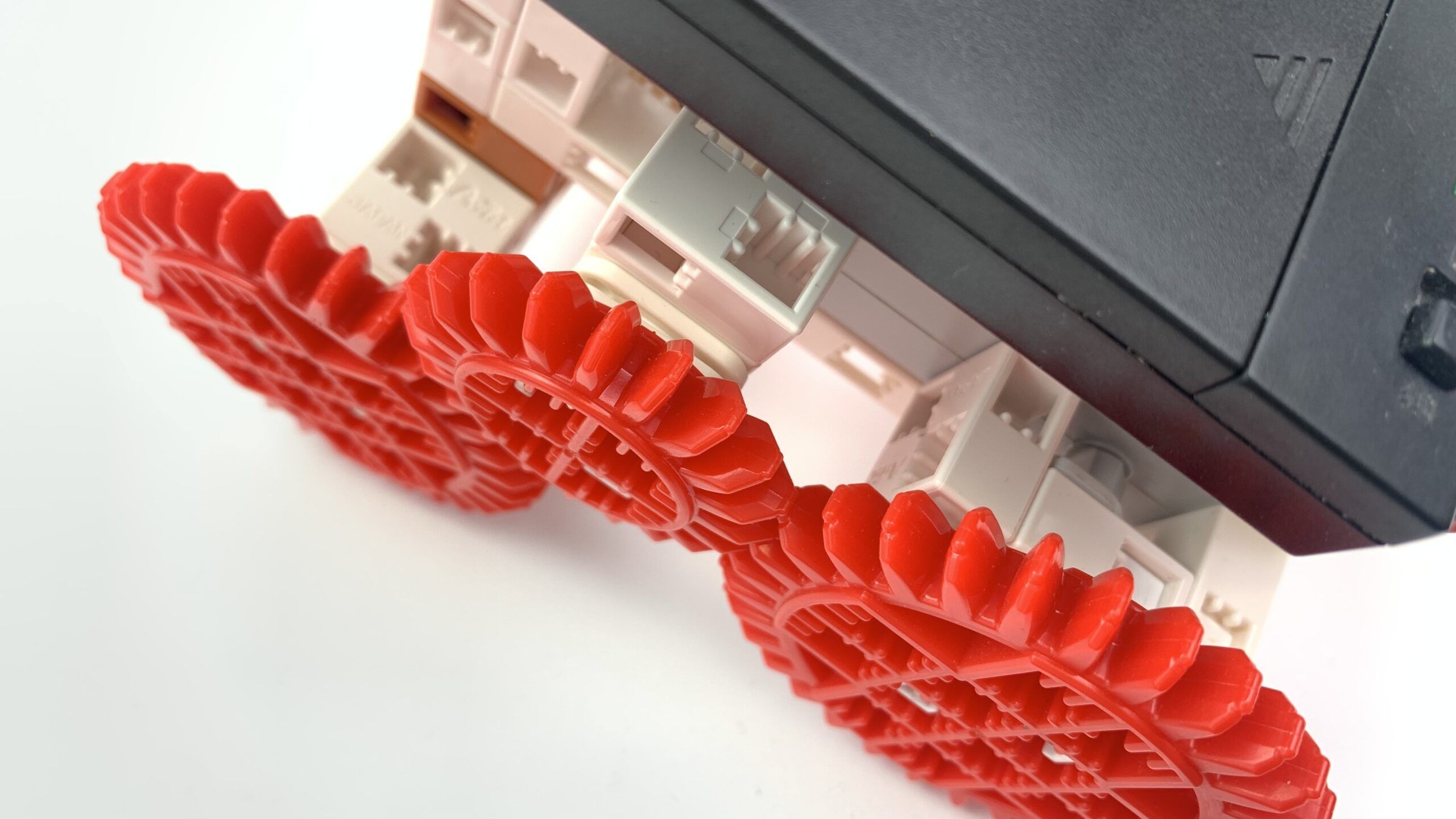

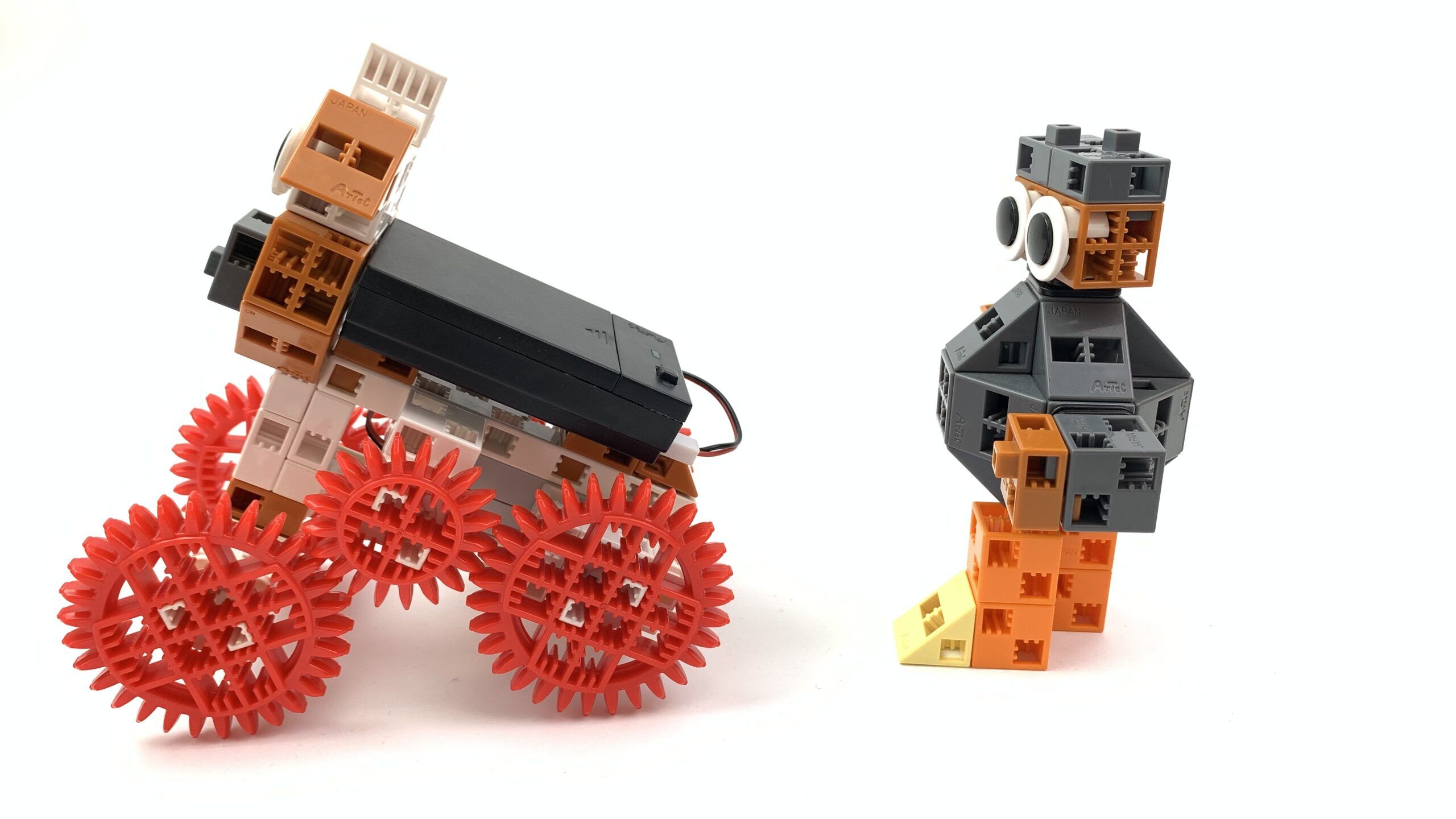

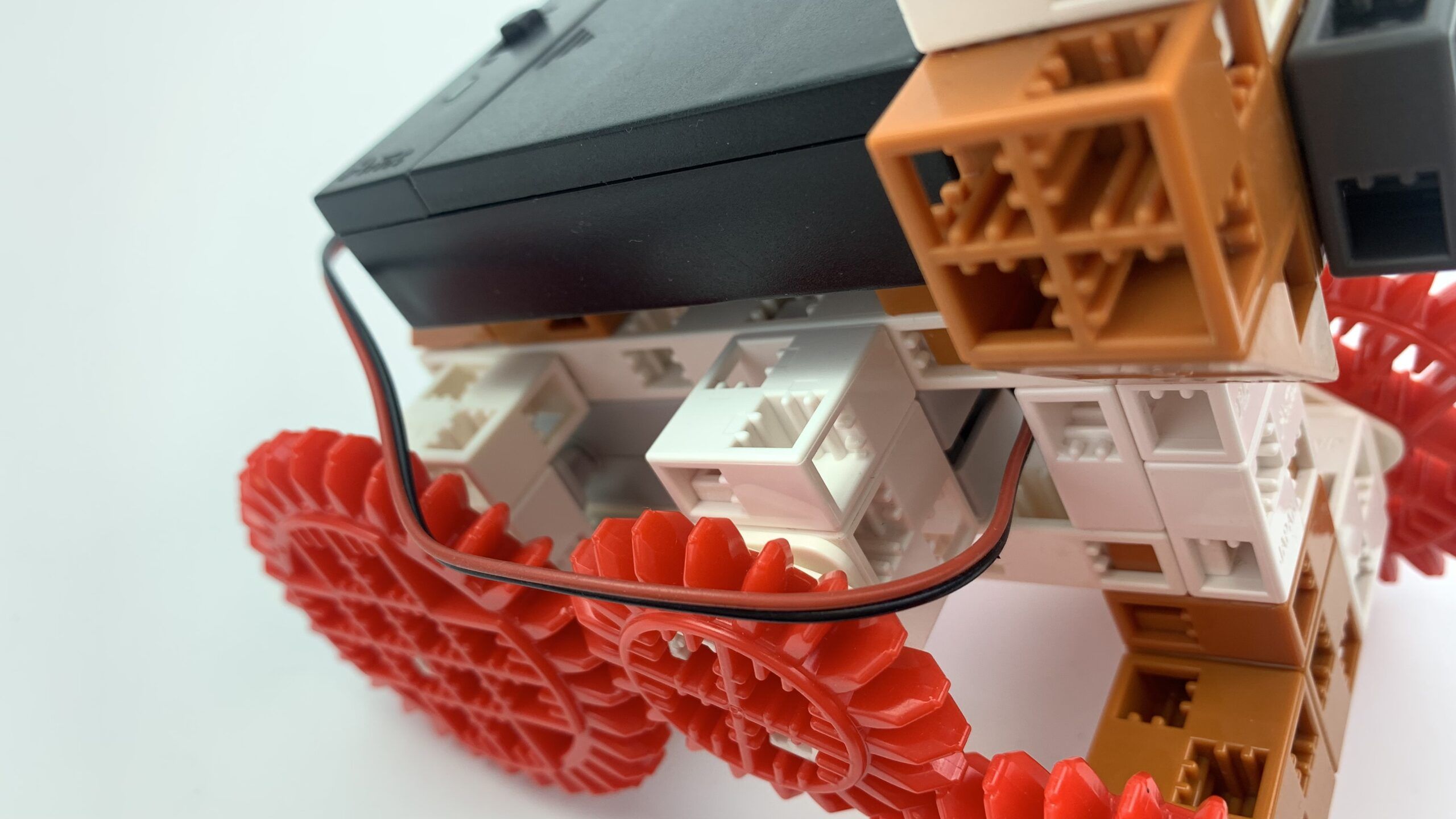

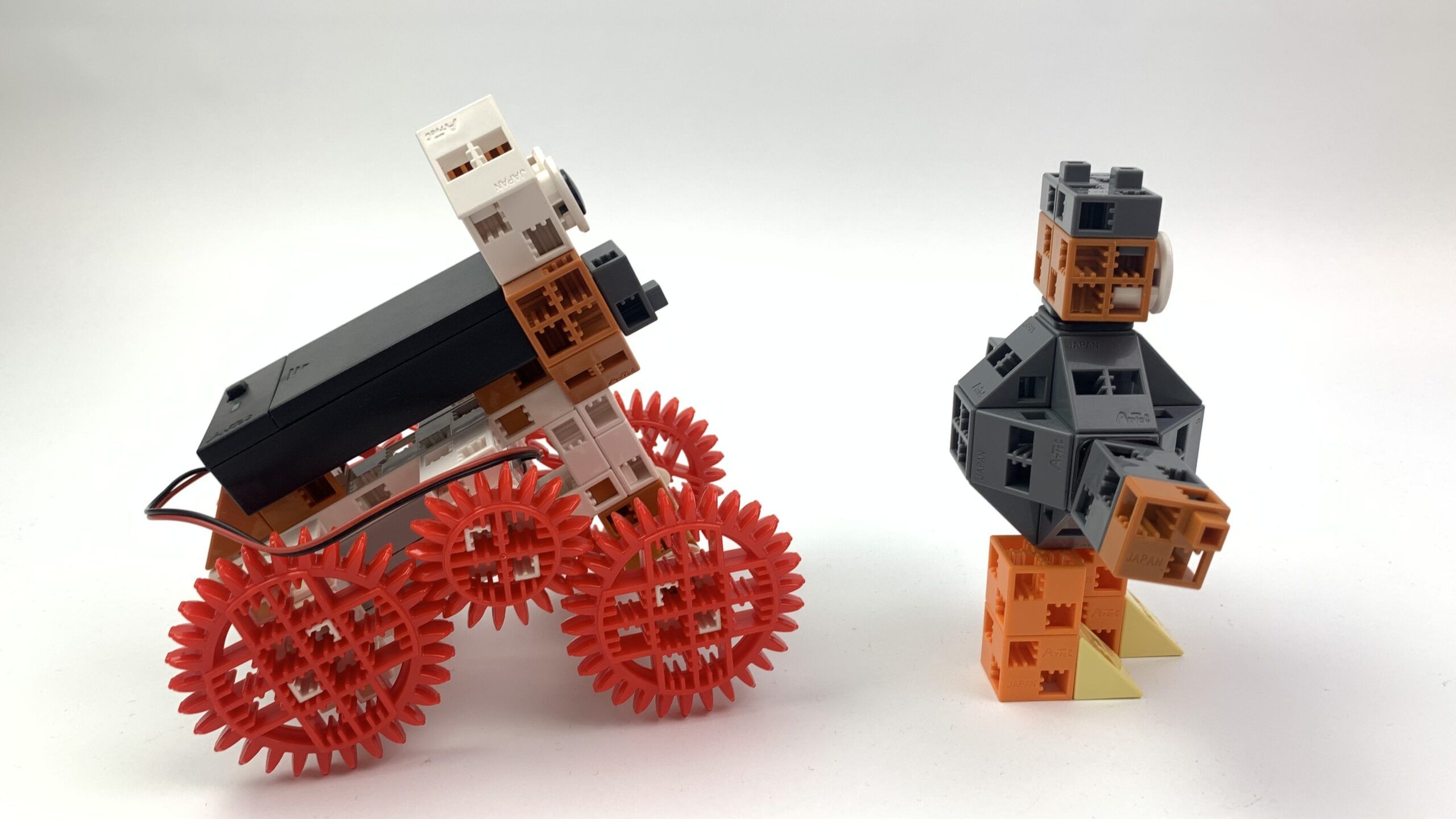

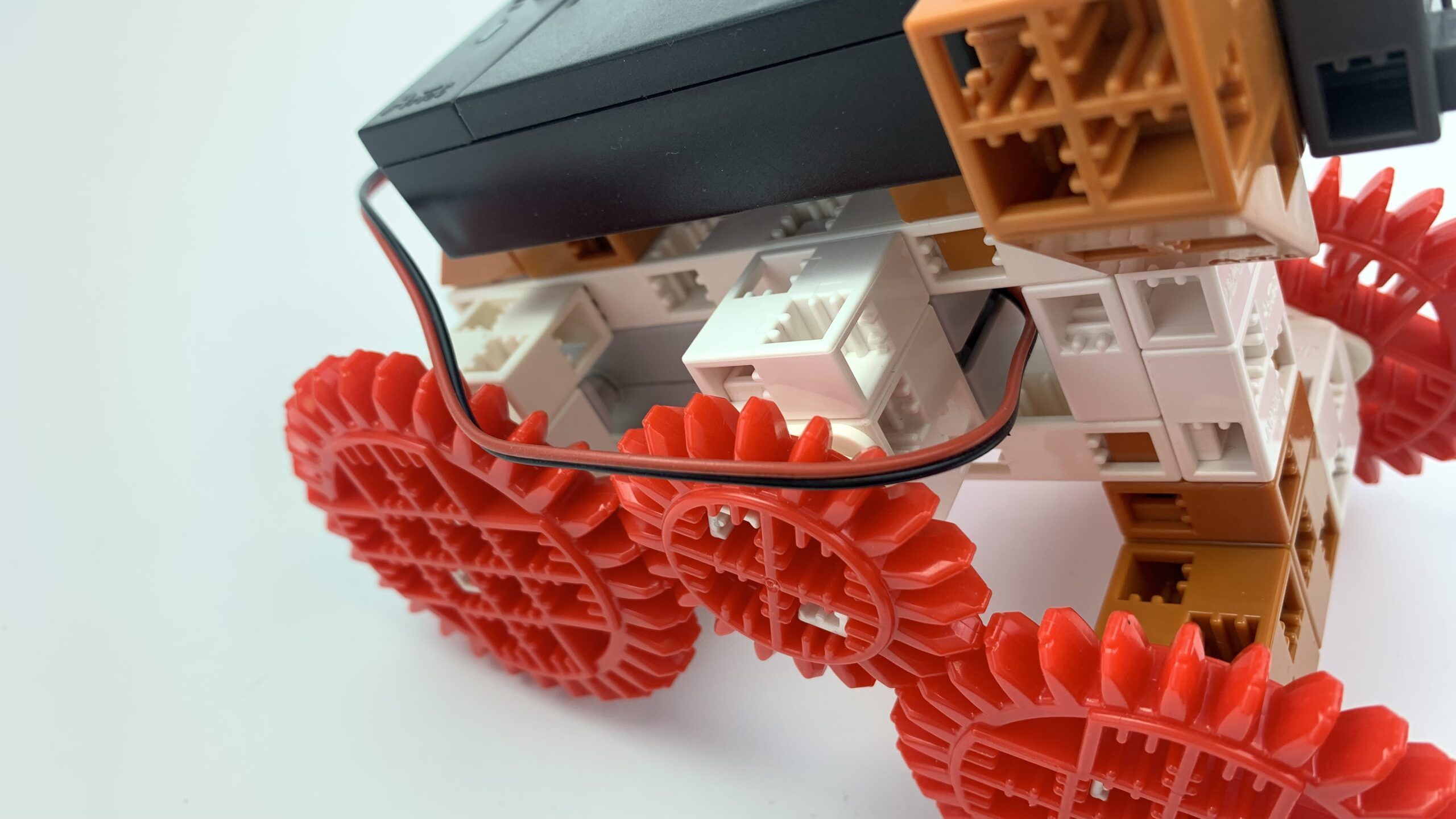

- The dog is a DC motor-driven robot powered directly by a battery holder, rolling on gears instead of legs.
- When switched on, it goes to Lotte, is switched off, turned around and switched on again.
P1
Build the figures
P1
Programming level 2
Lotte stops asking for pancakes
P2
How to build
Lottie

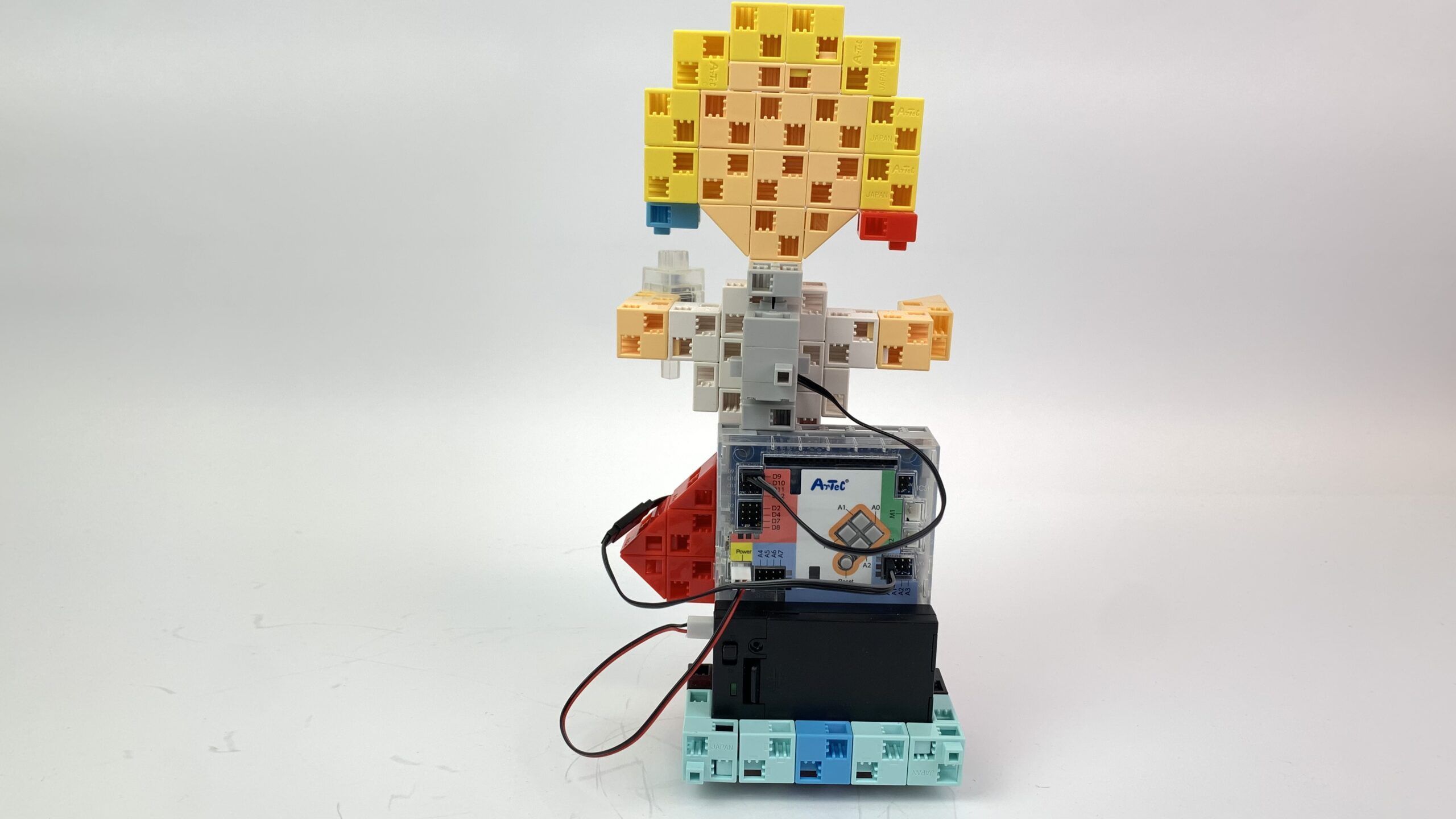

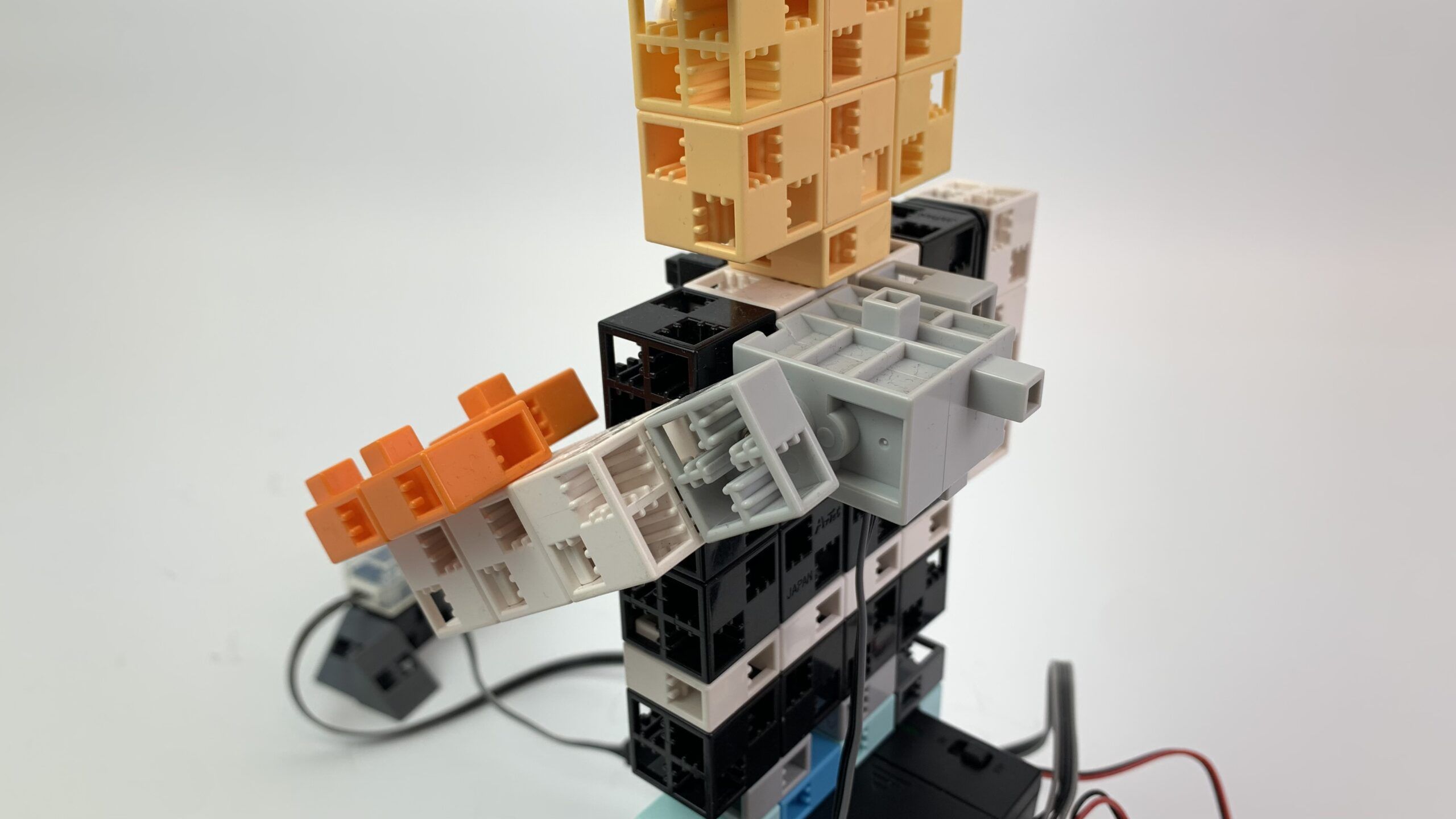

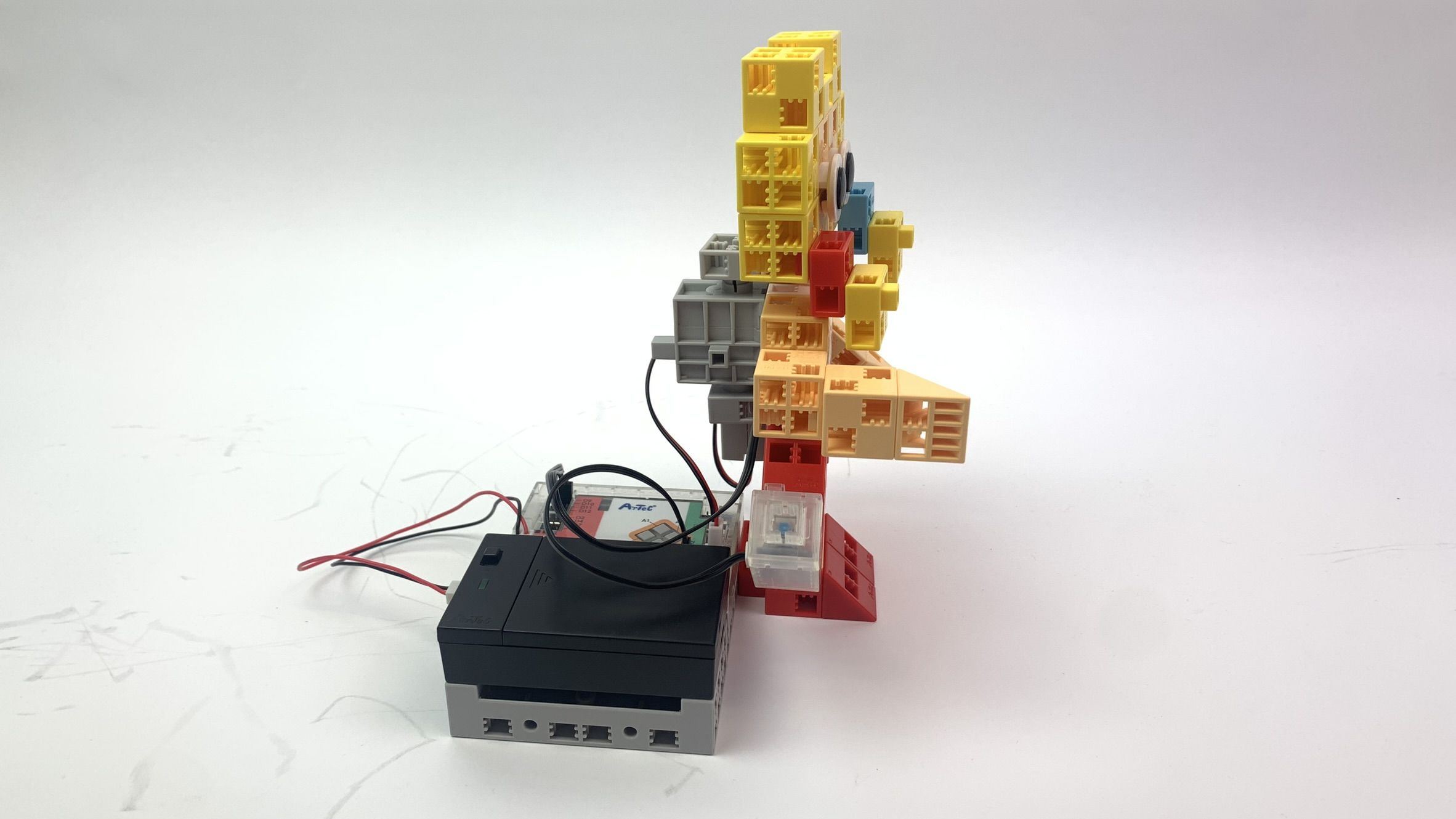

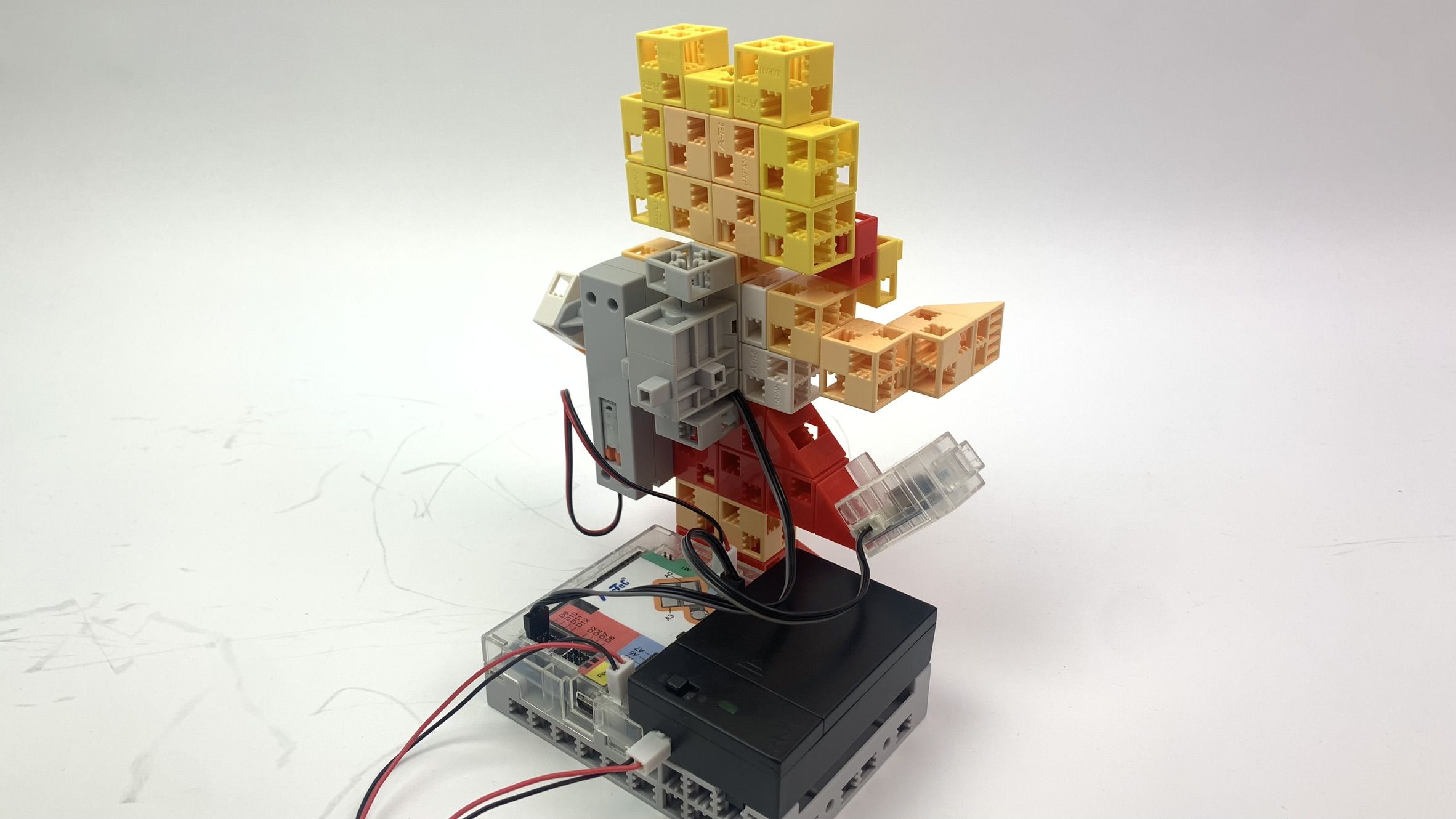

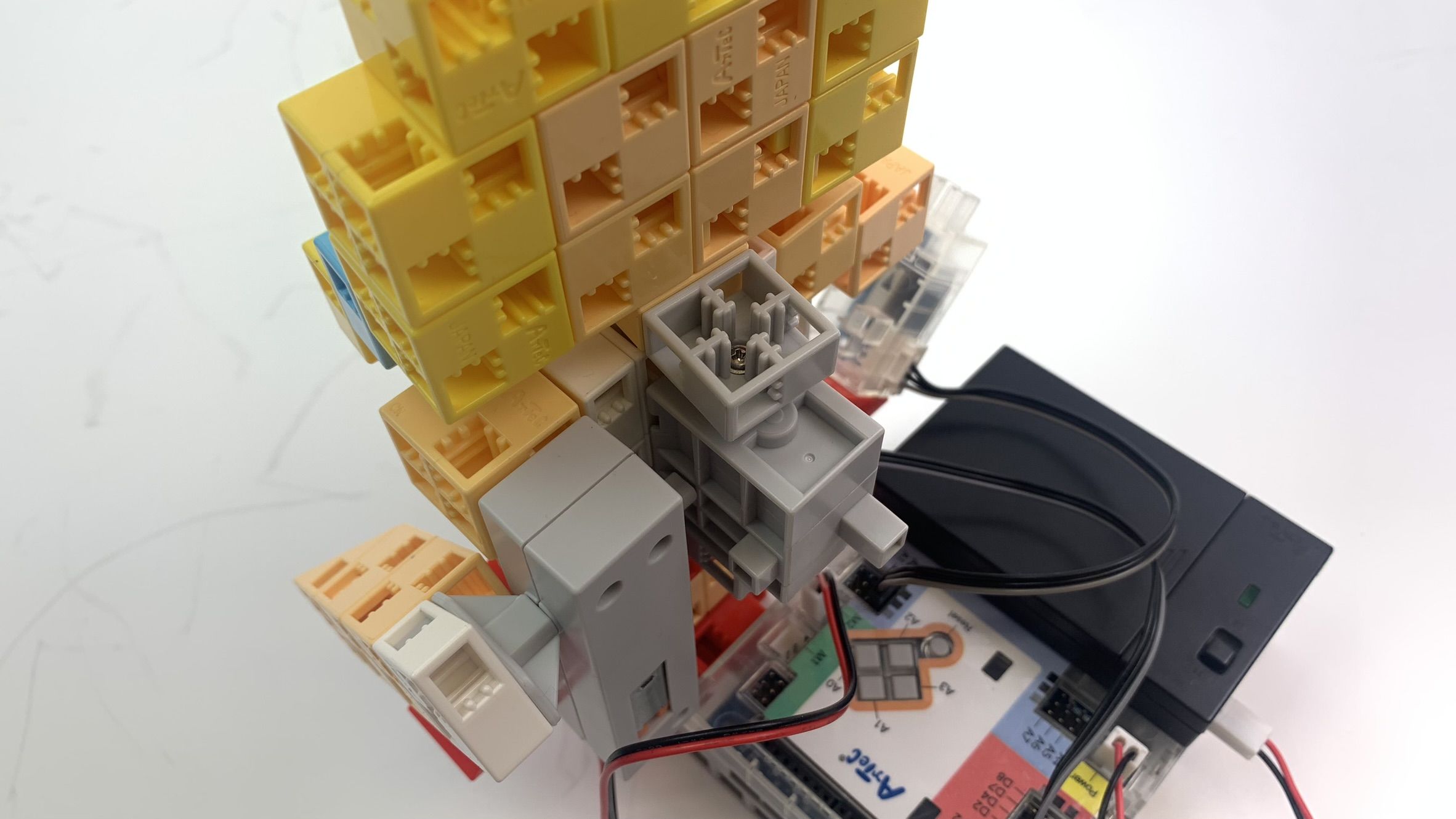

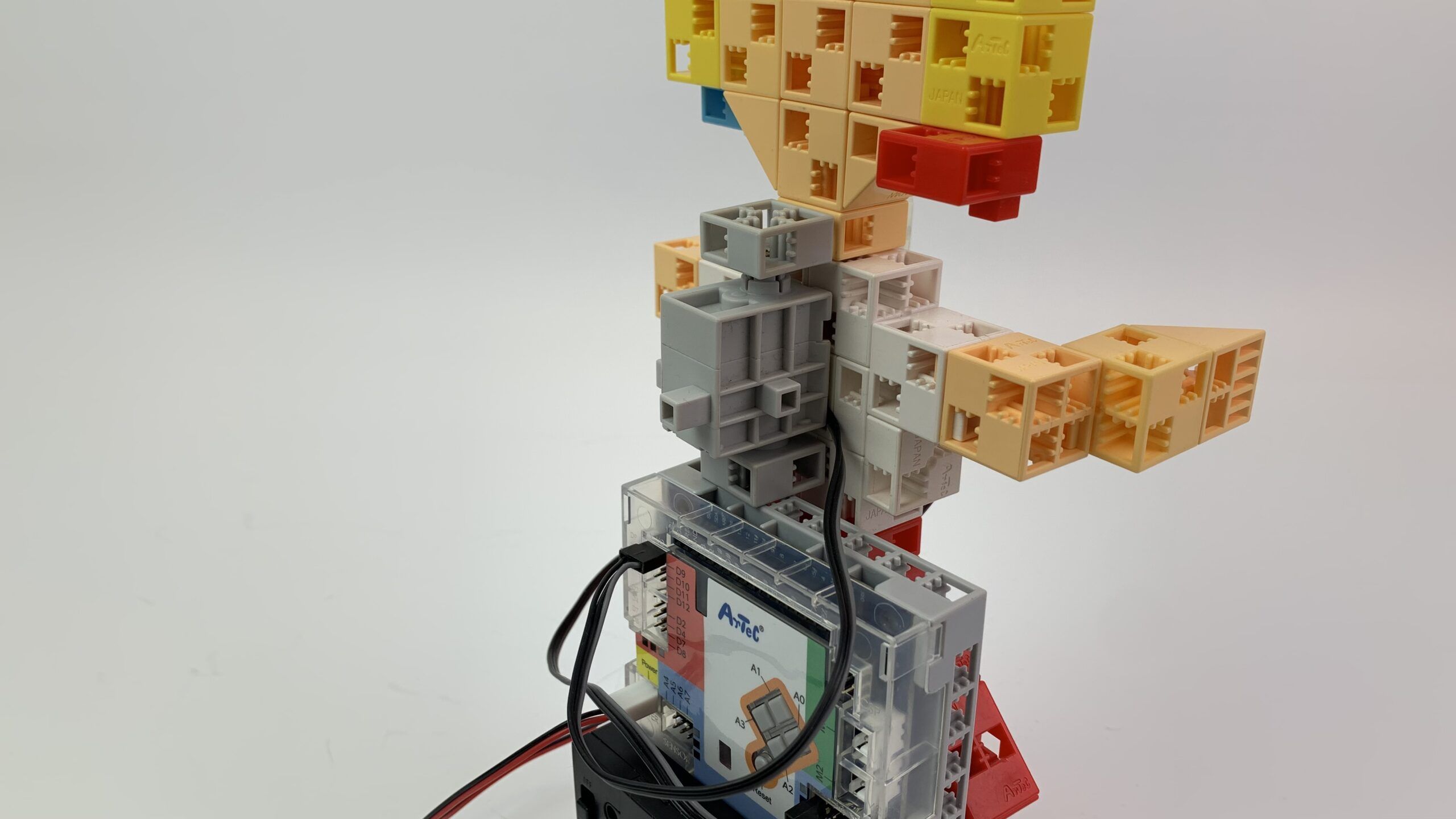

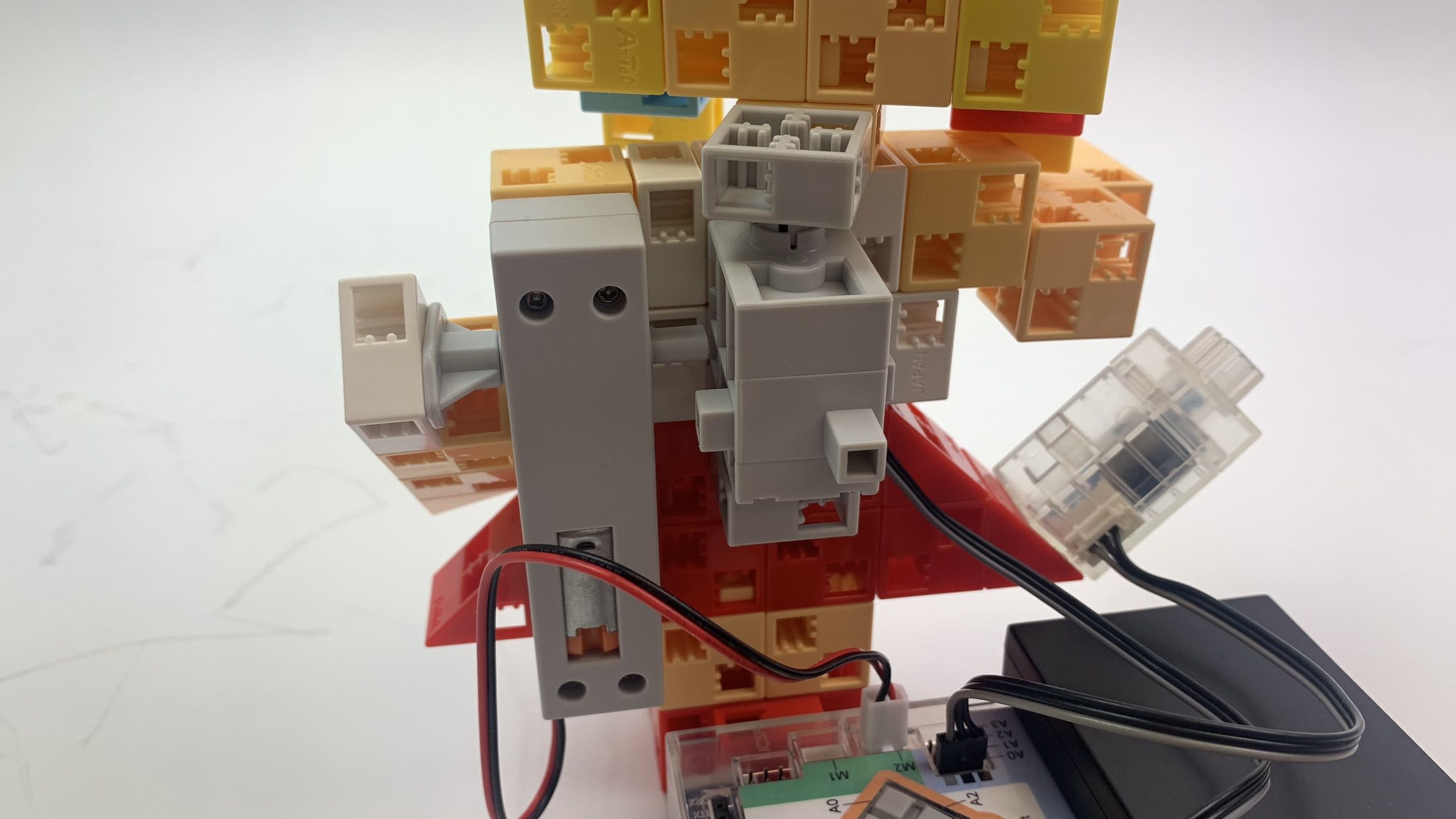

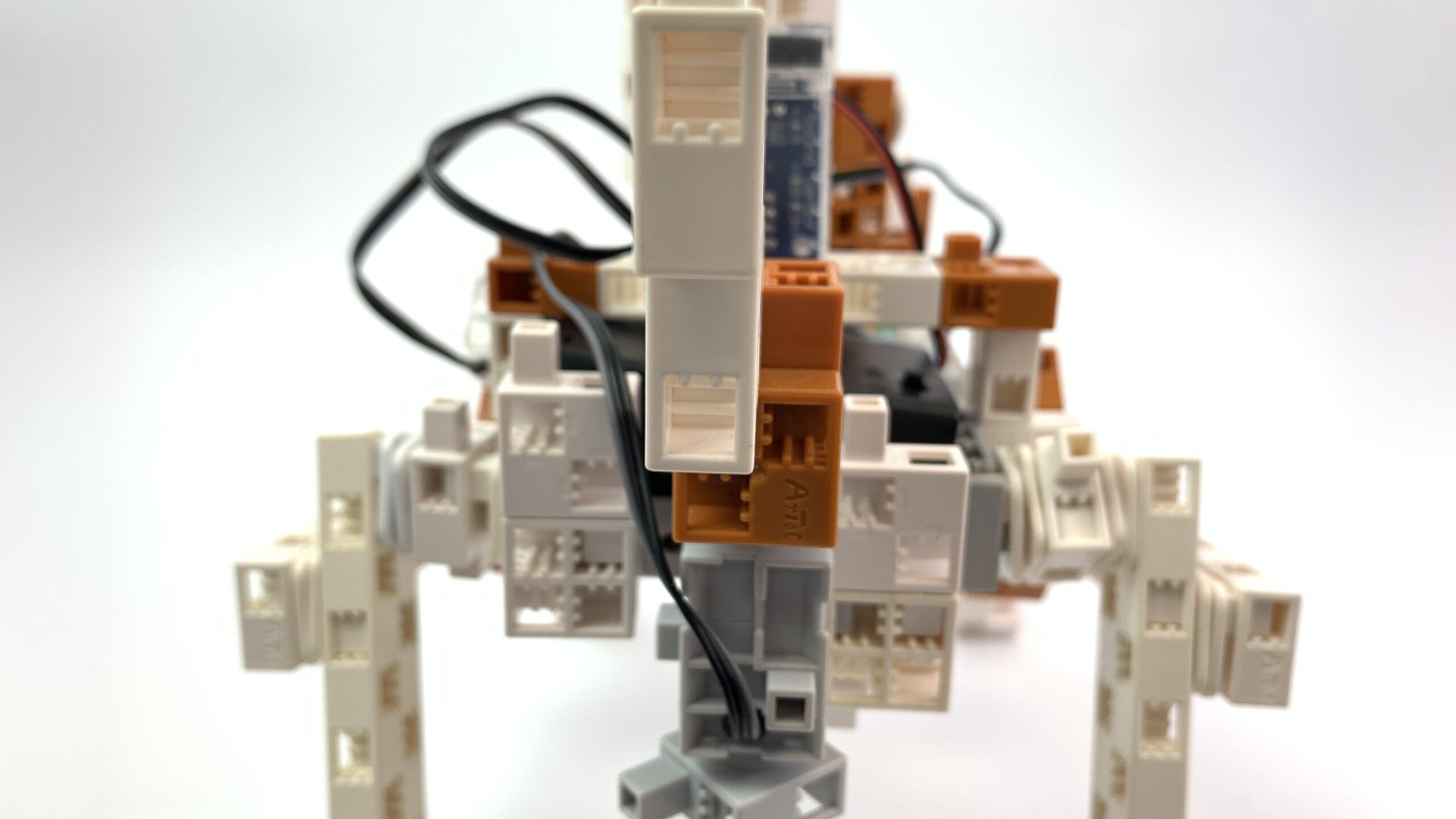

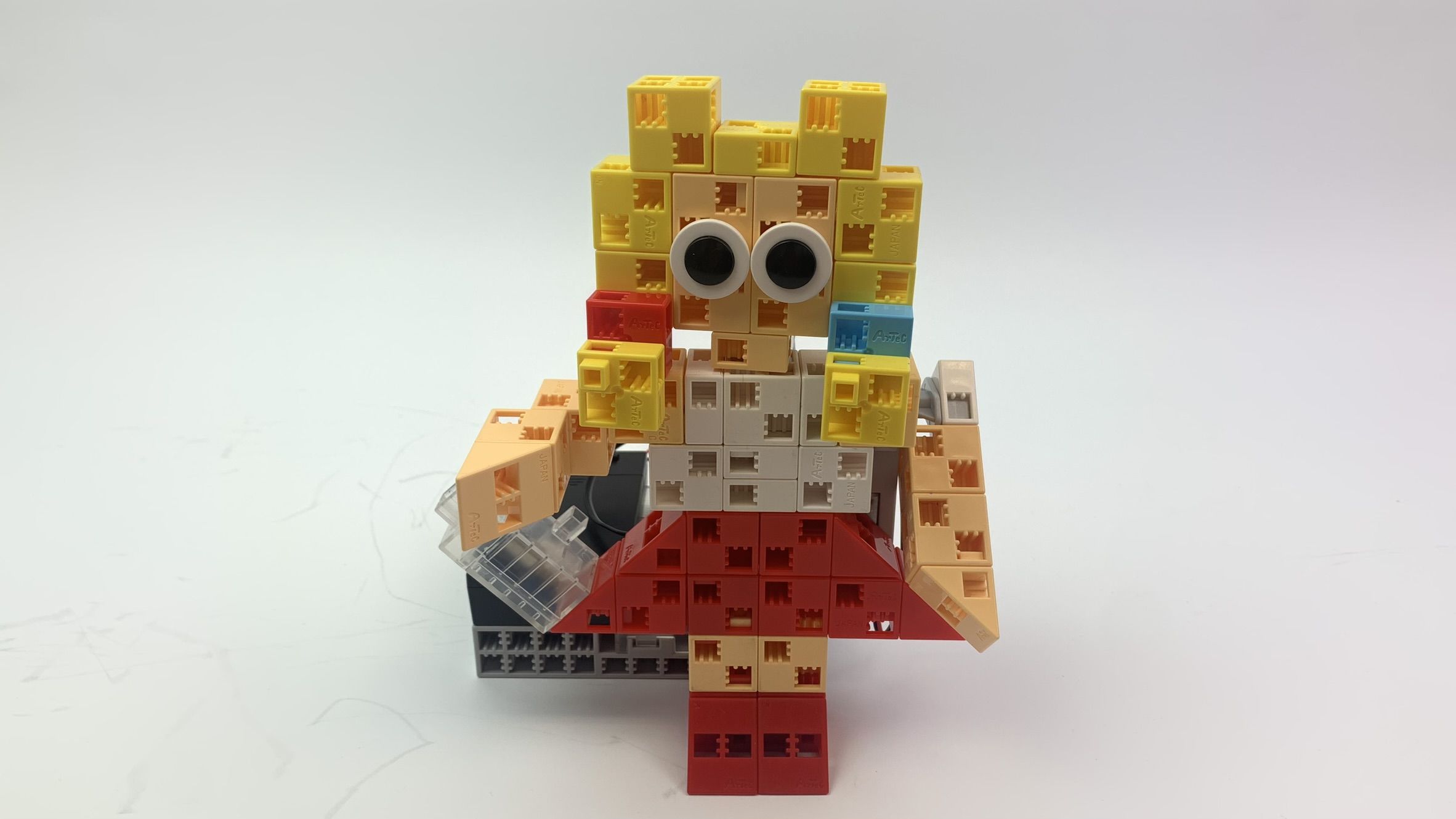

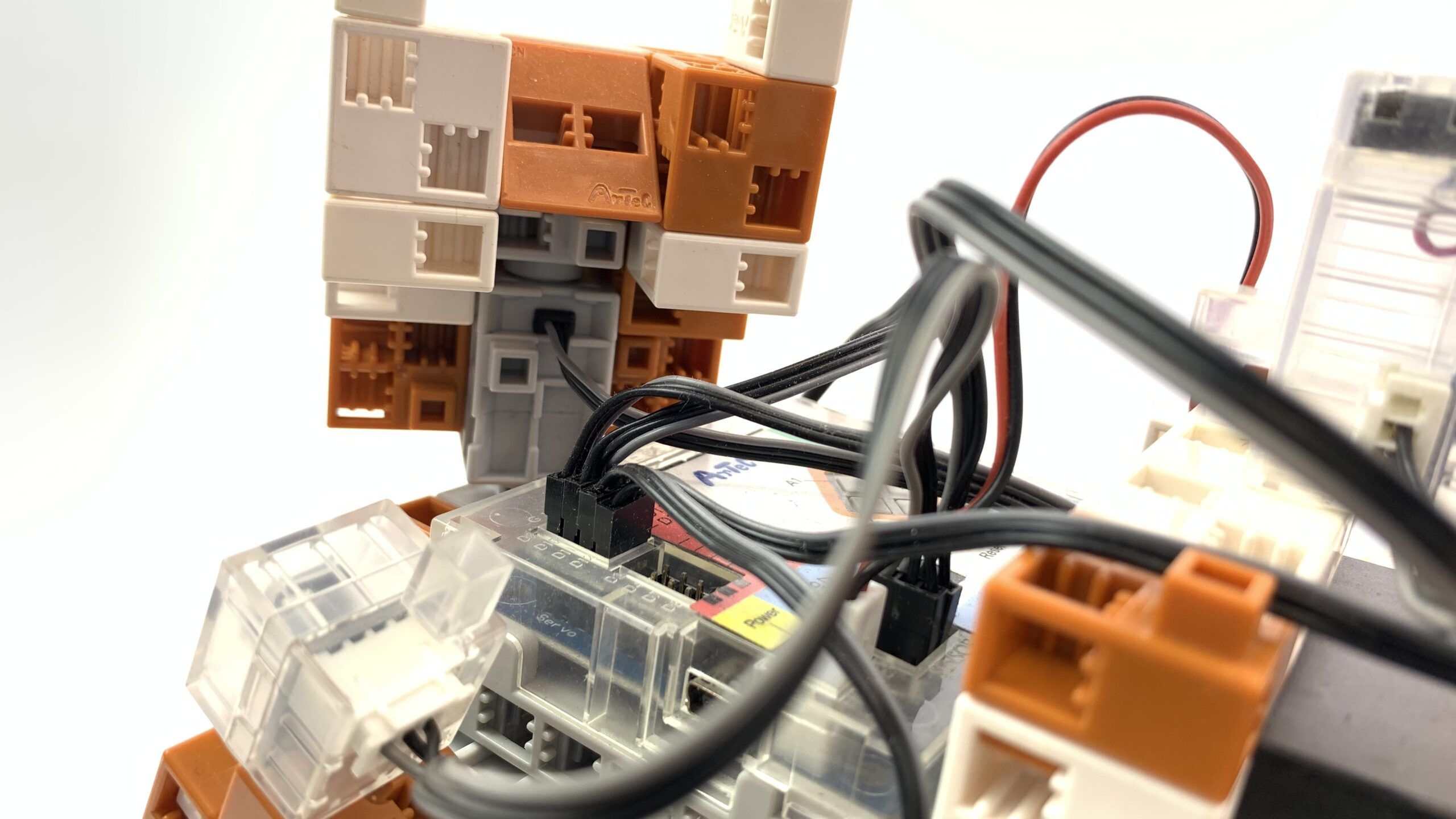

- Lotte is standing still, her arm connected to a DC motor, her neck connected to a servo motor. Her other hand is connected to a push button.
- When the push button is pressed, she moves her hand up and down four times and then turns her head.

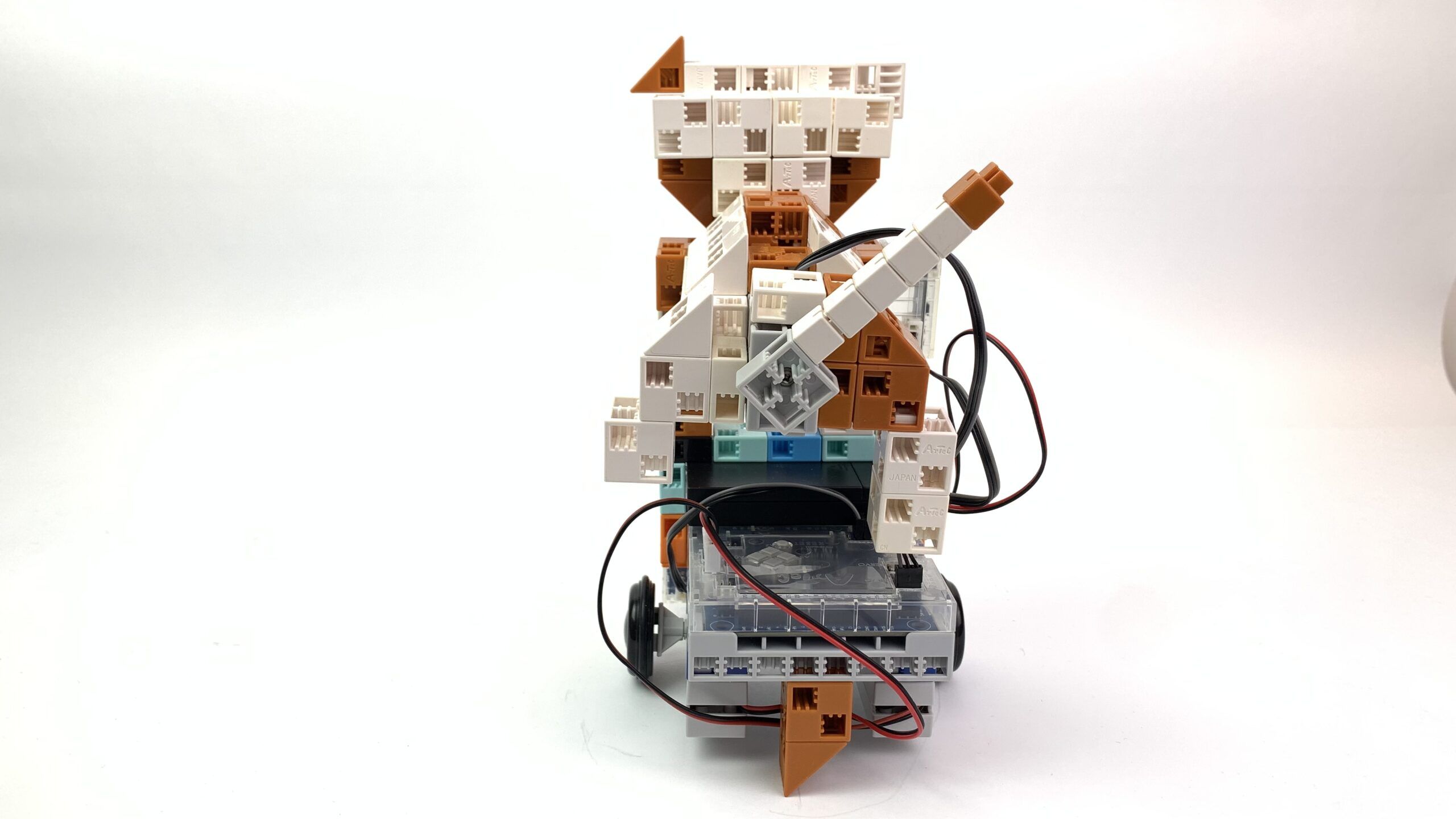

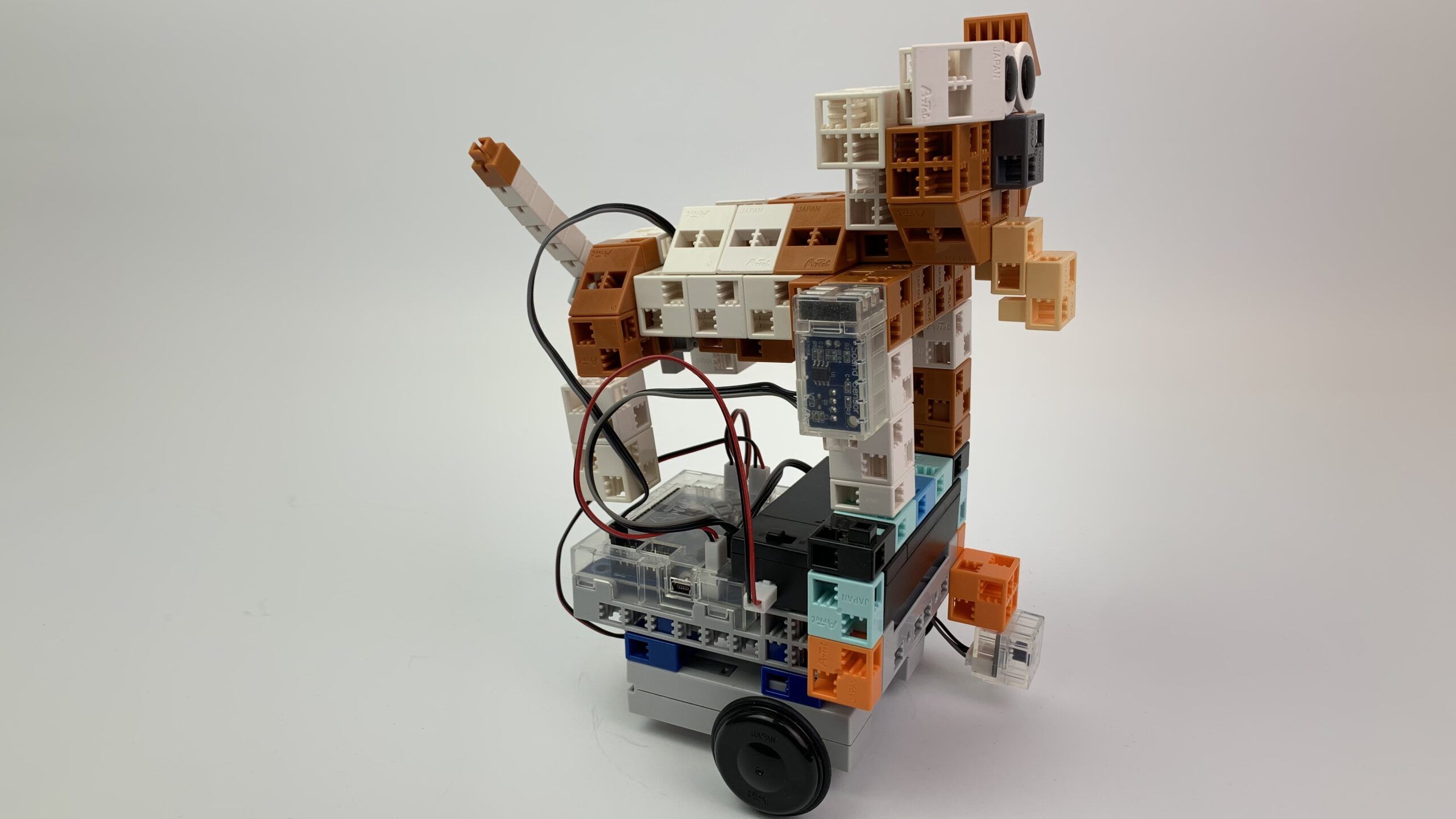

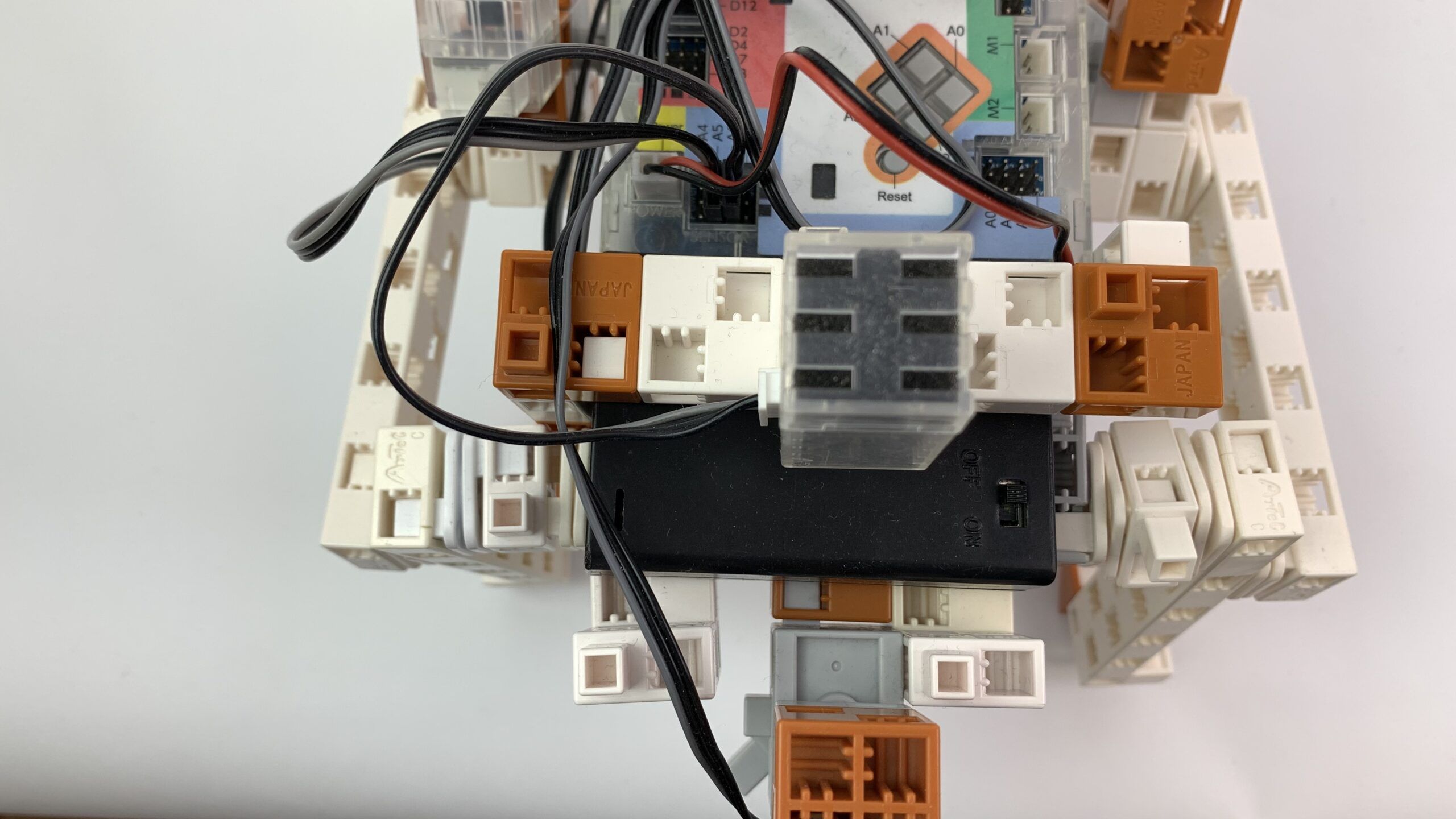

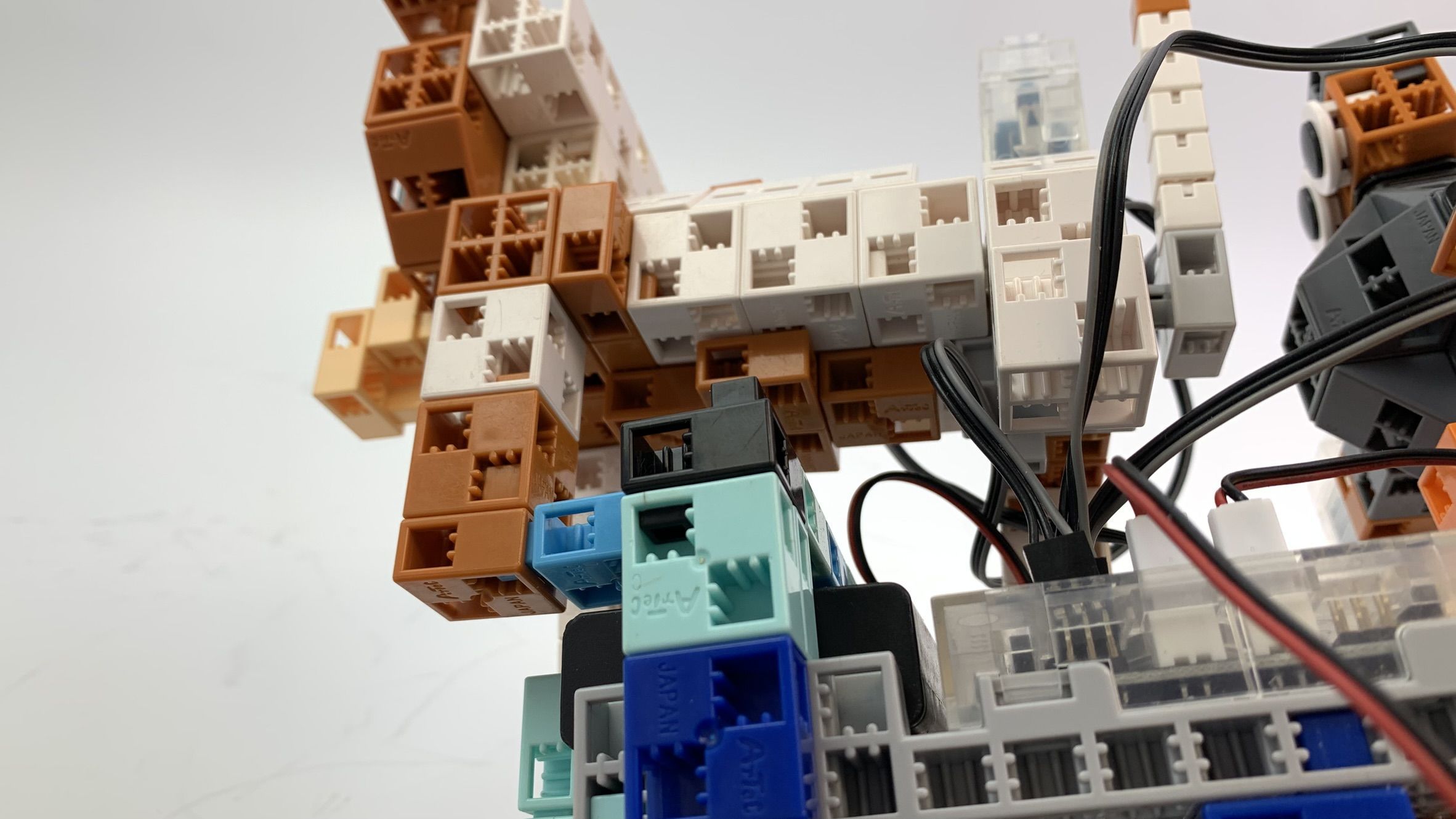

- The dog is a 5-button robot – 4 buttons for directions, 1 for tail wagging. The tail is attached to the dog’s body by a servo motor.
P2
a) Lottie
b) Dog
P2
P2
Programming level 3
Pepike does not know "Lisa"
P3
How to build

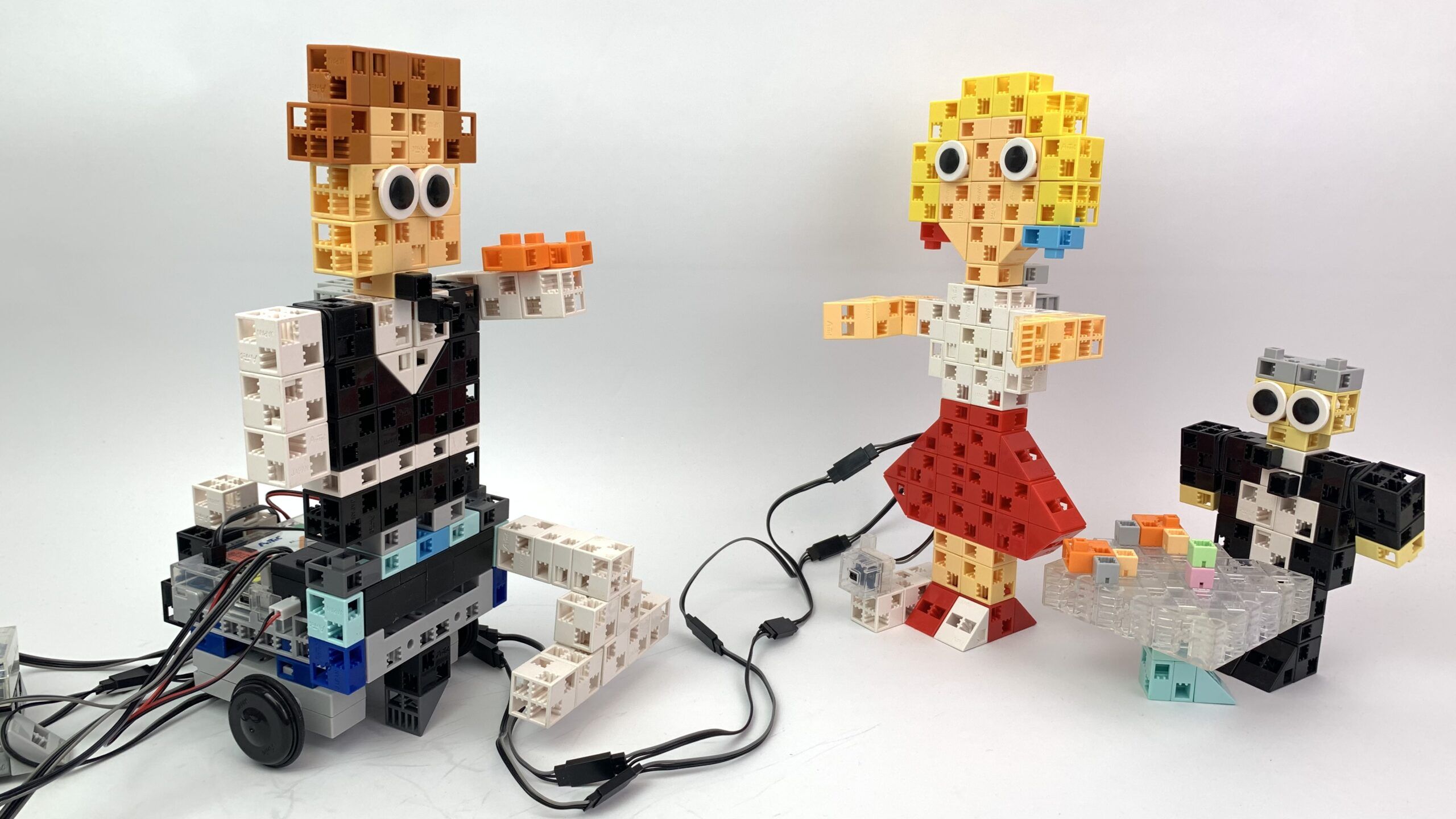

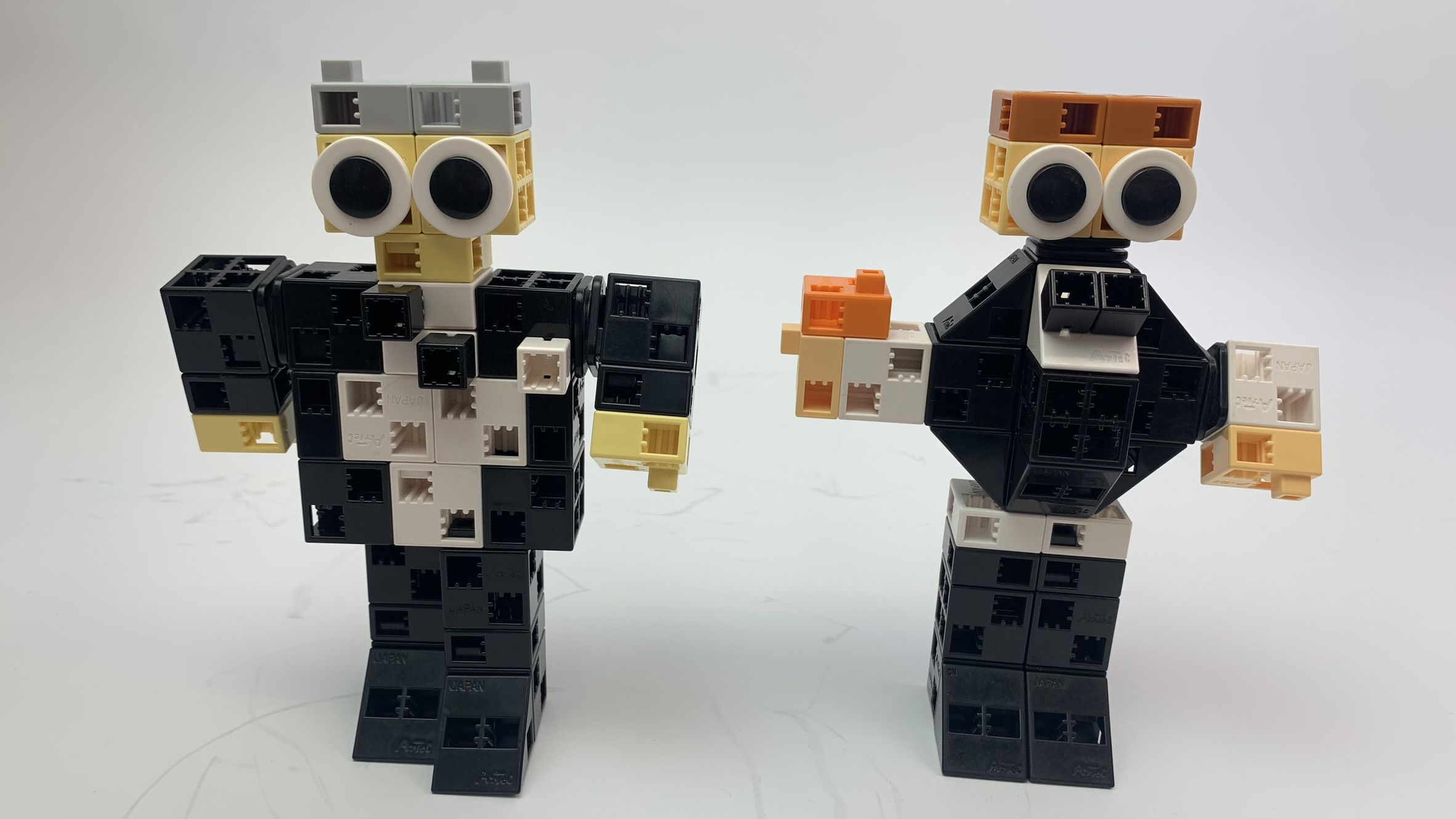

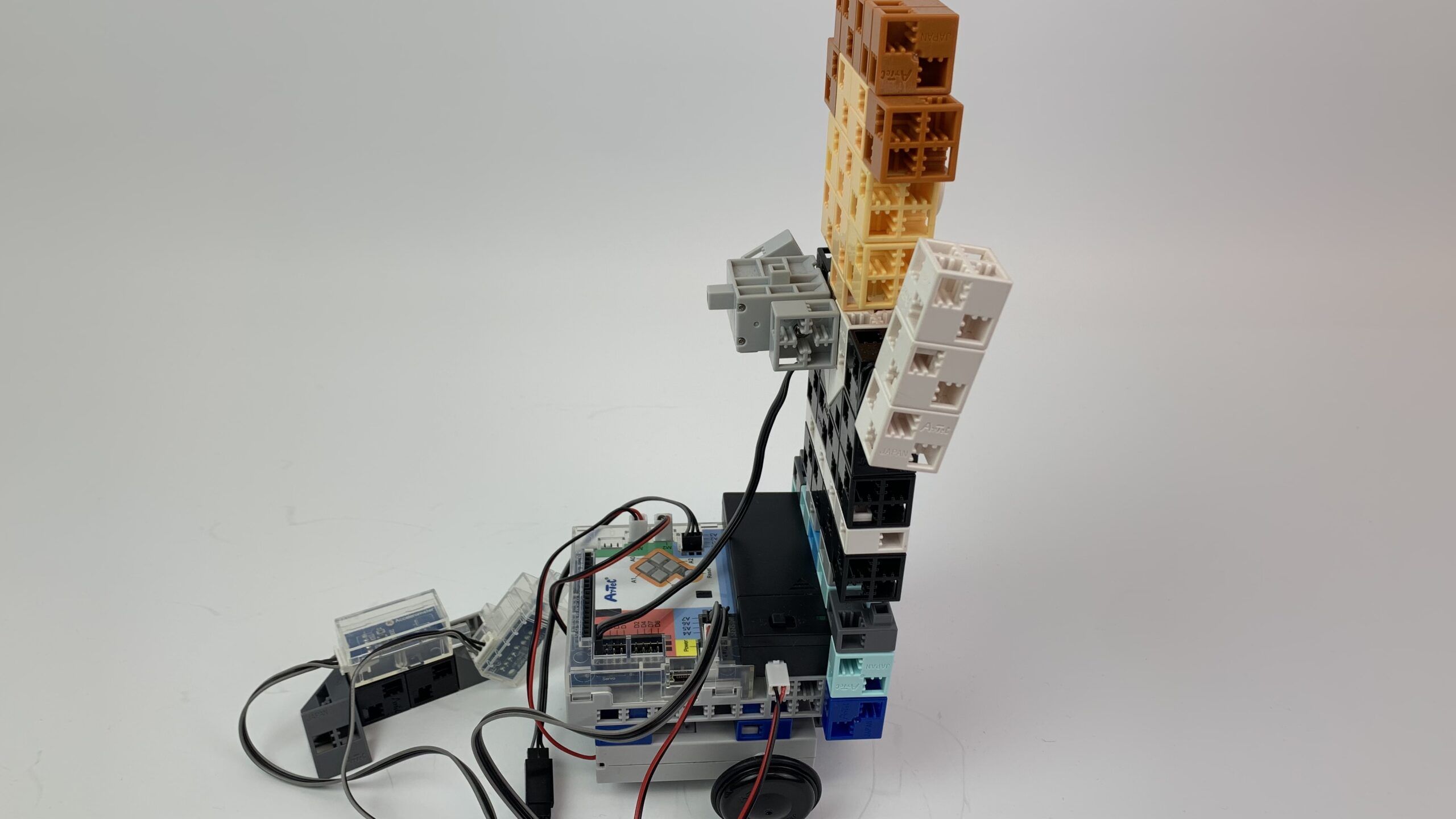

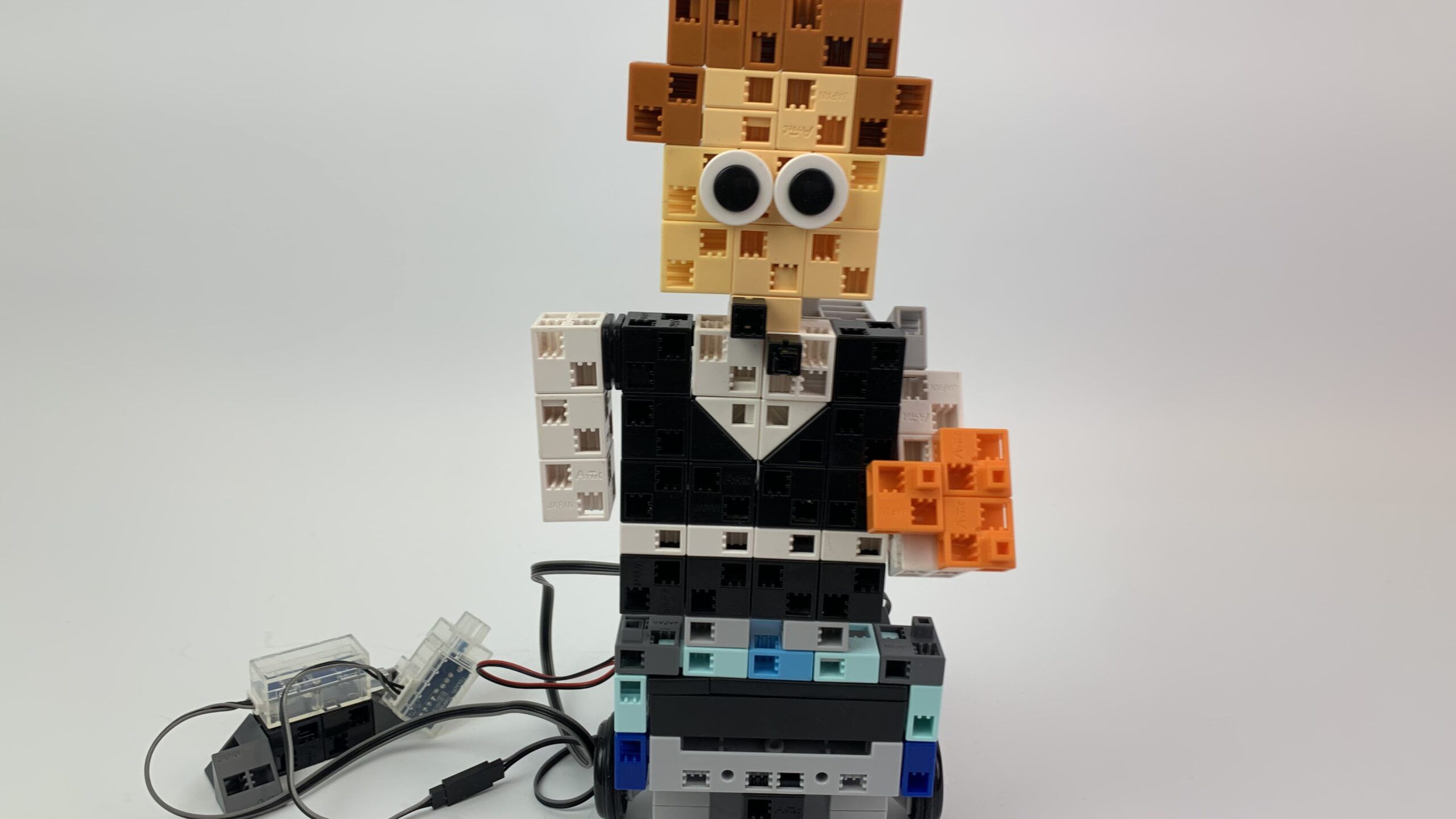

Franz

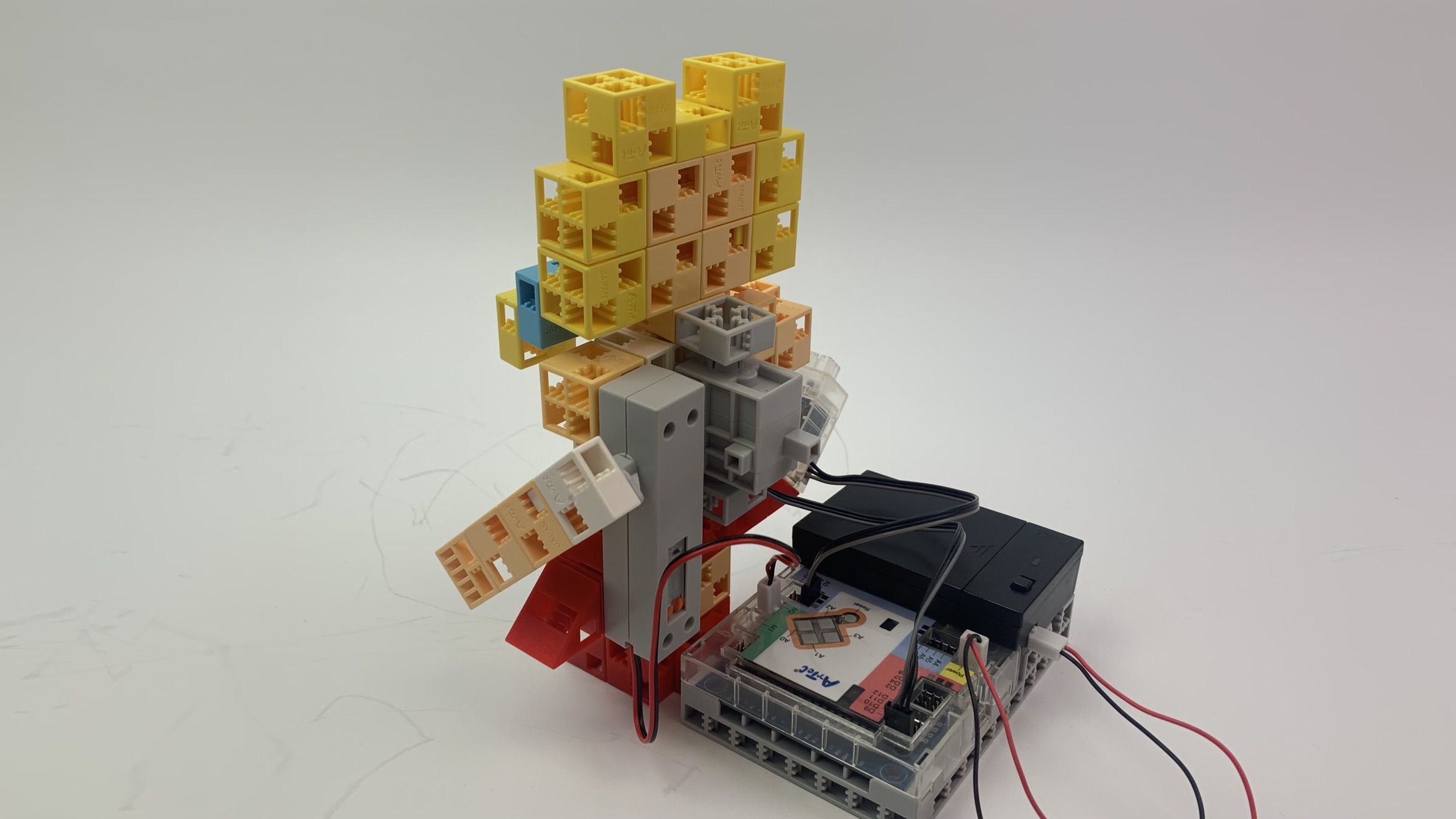

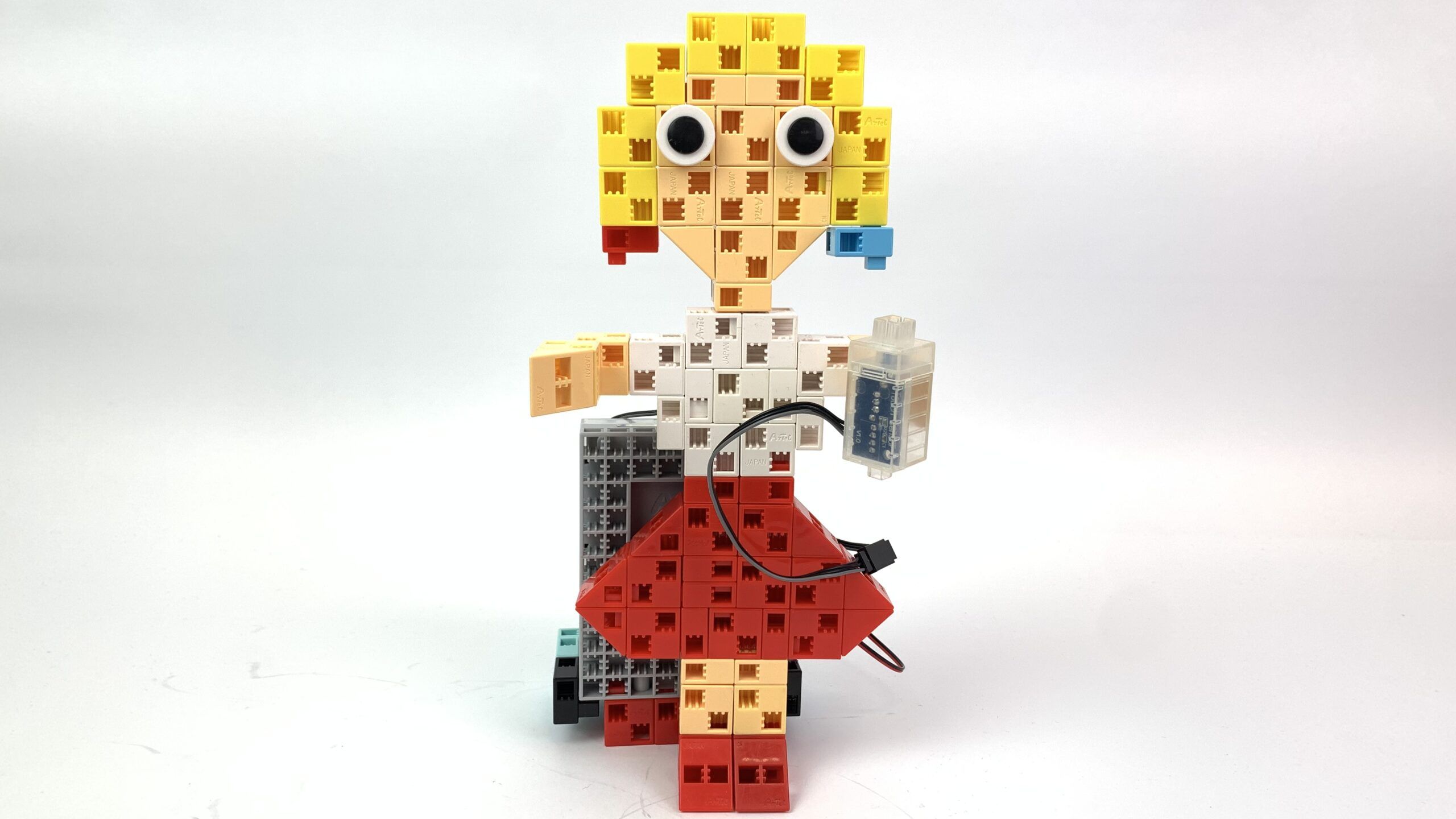

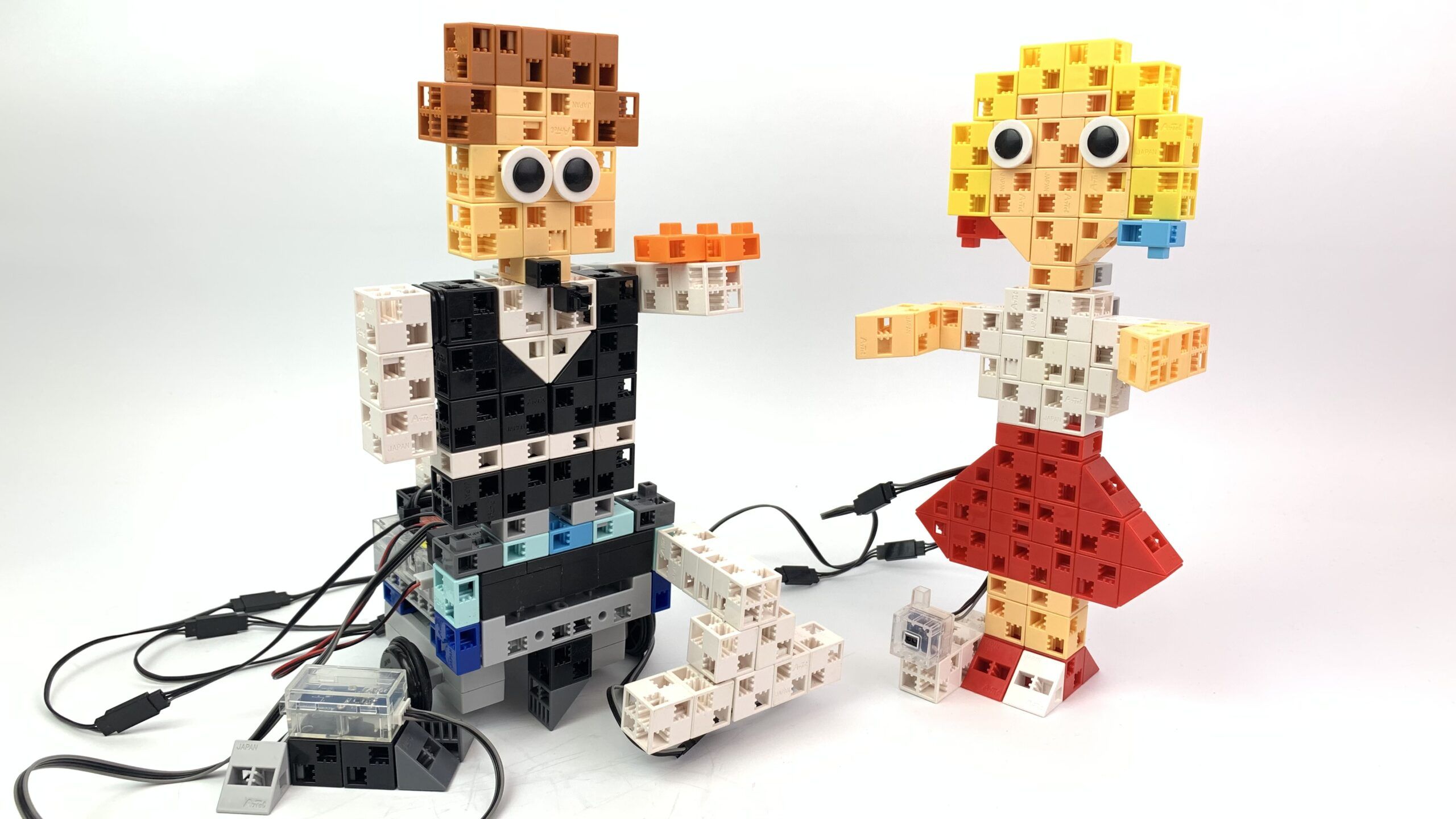

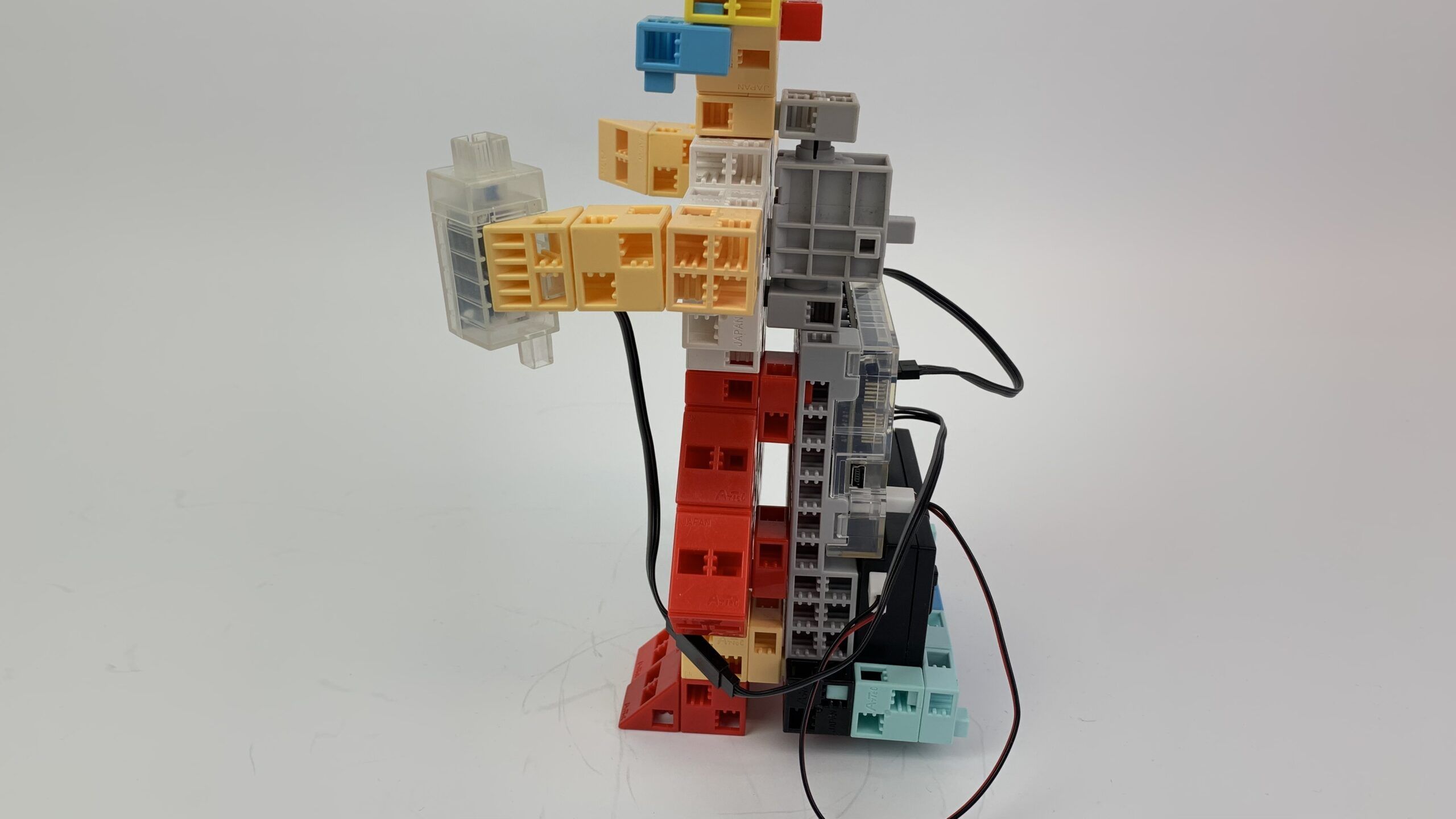

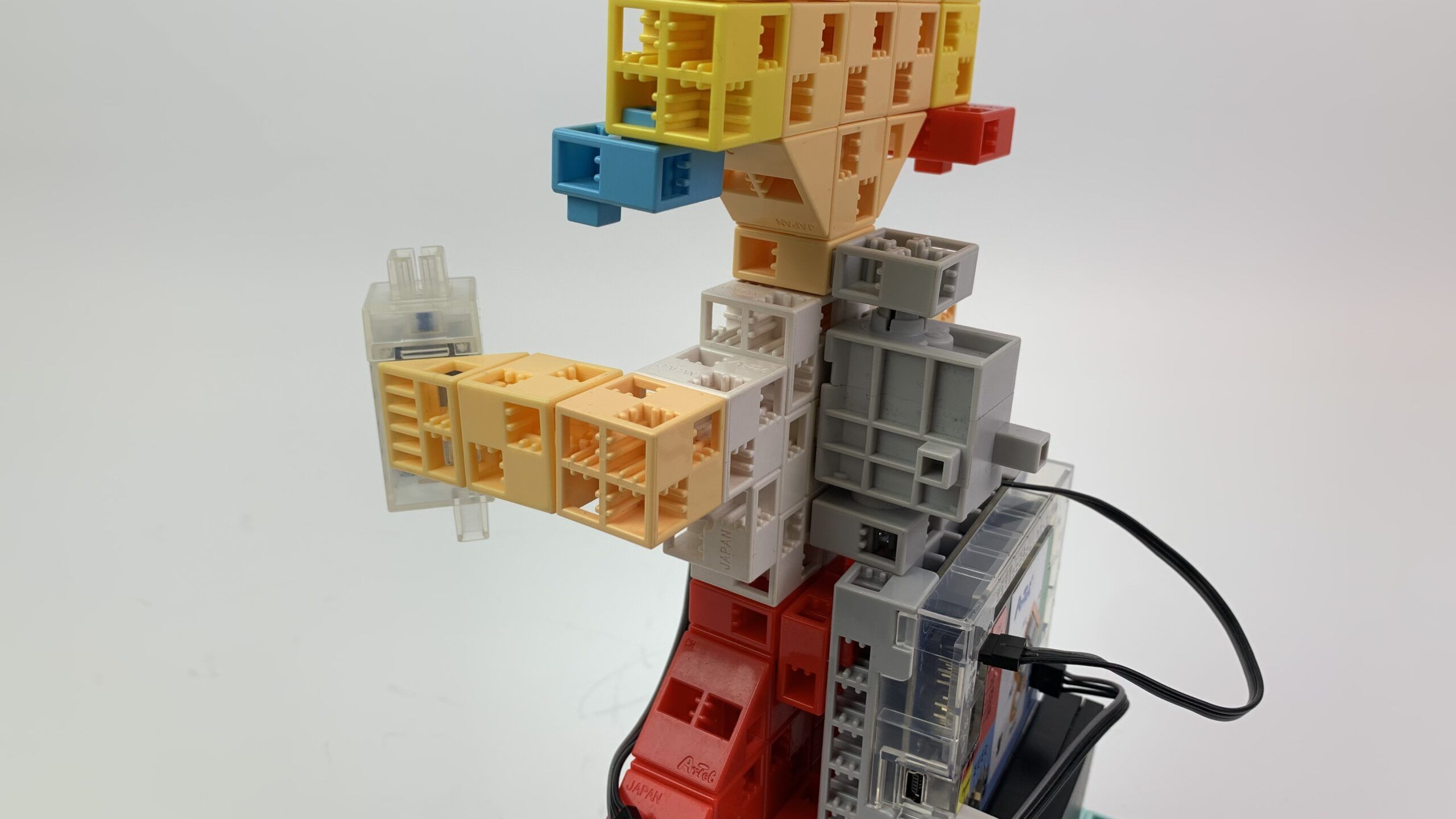

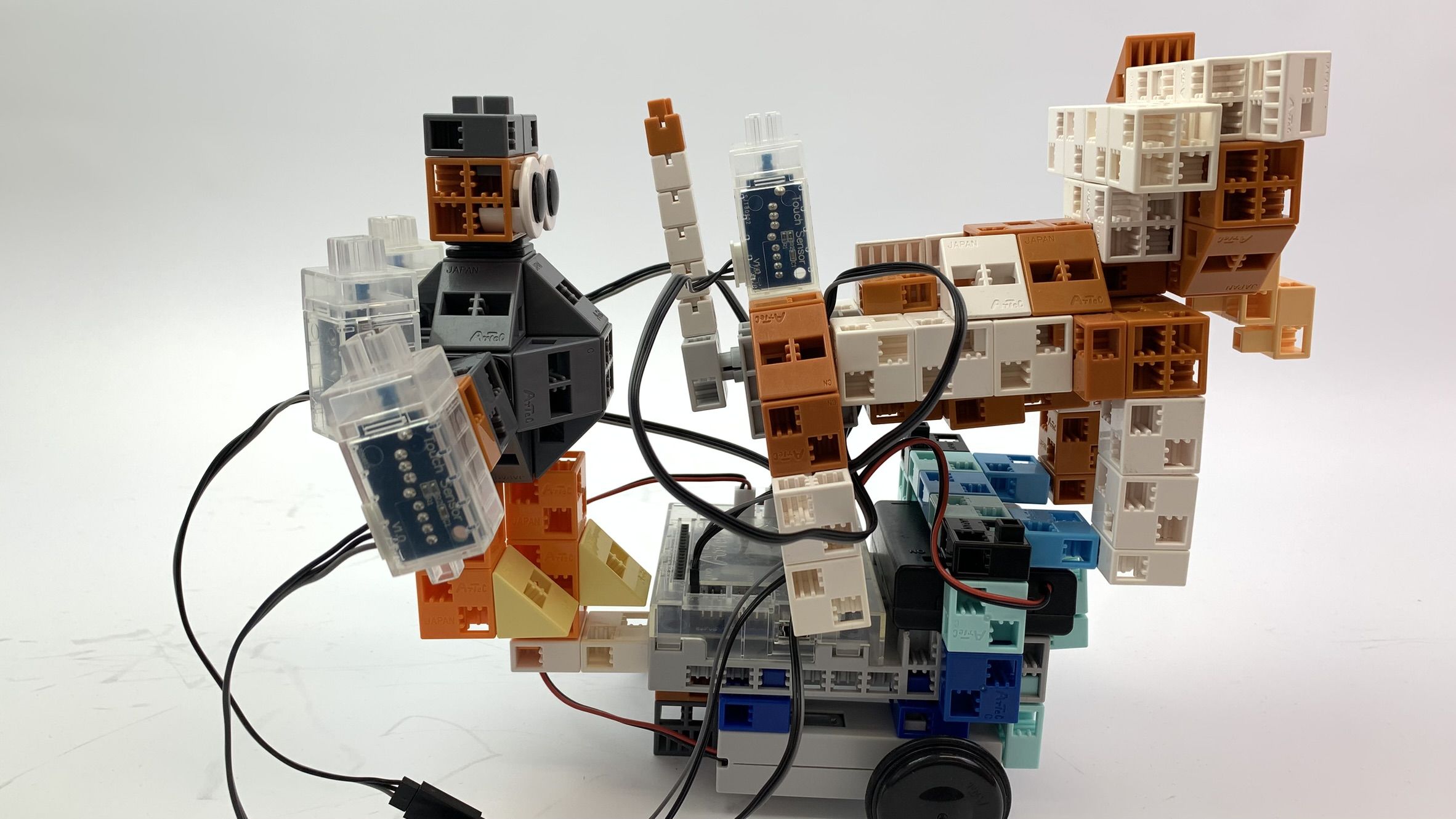

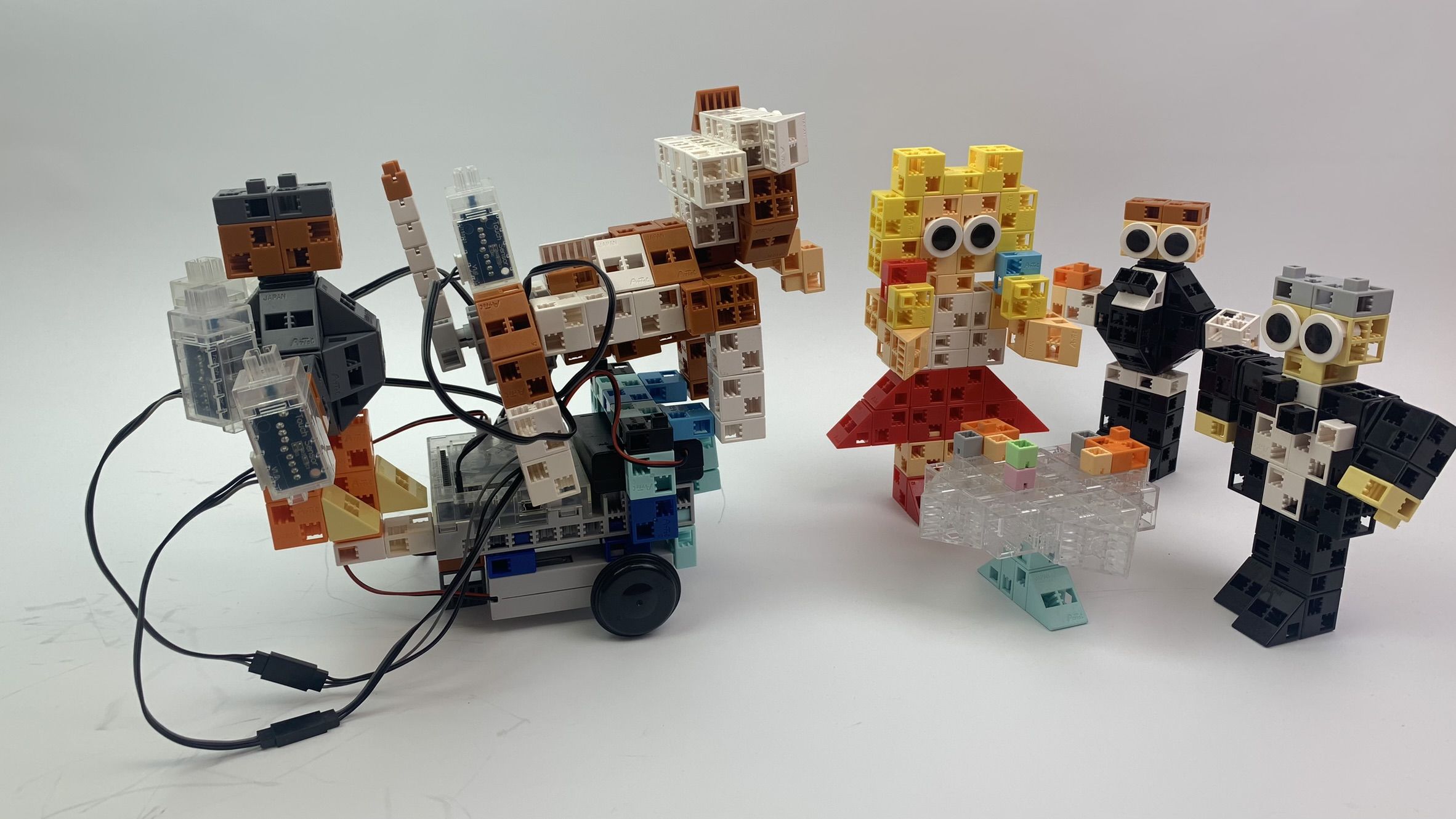

- Lotte is built in the same way as P2. Instead of a push button, an IR photoreflector is attached to her hand.

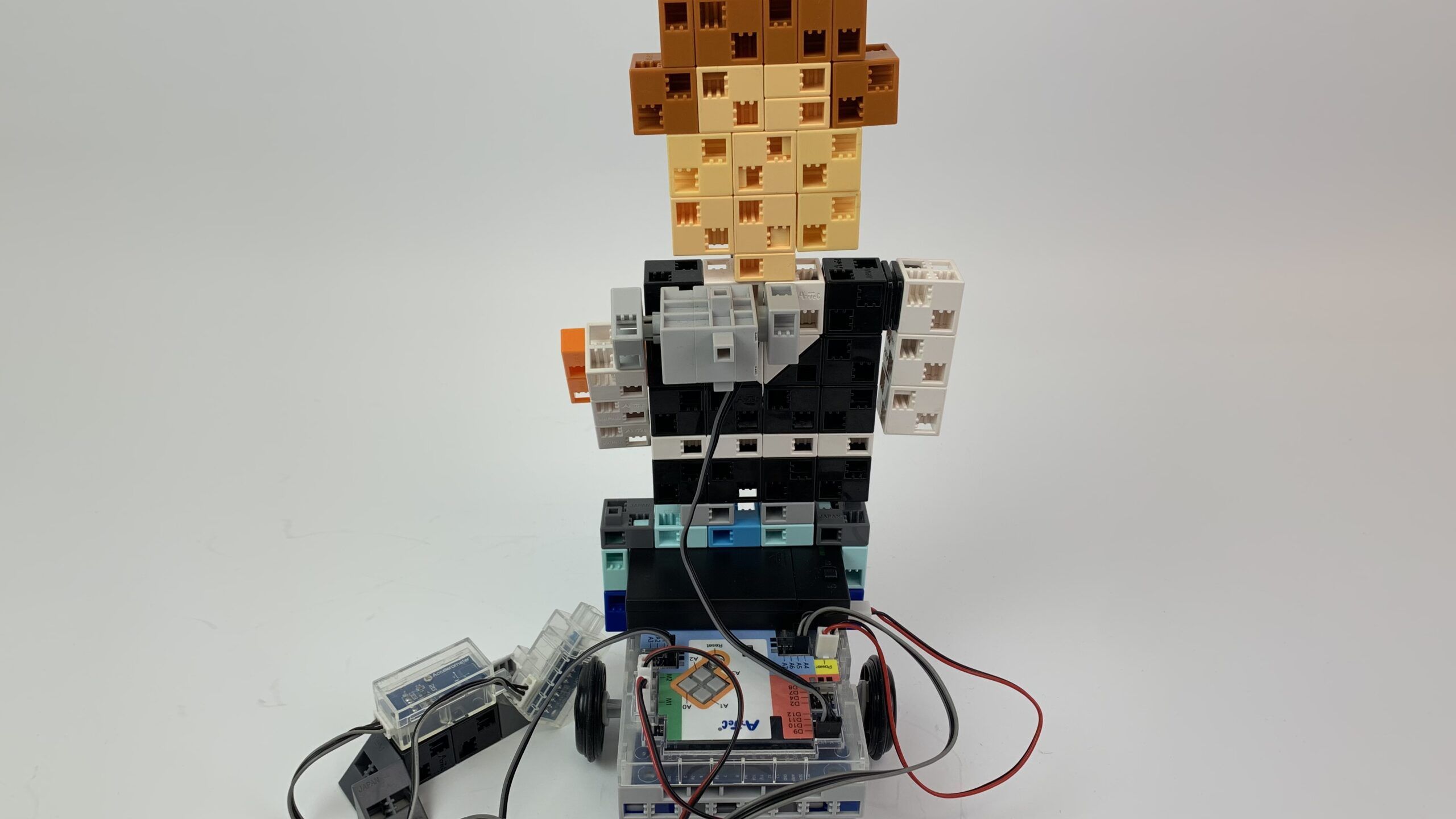

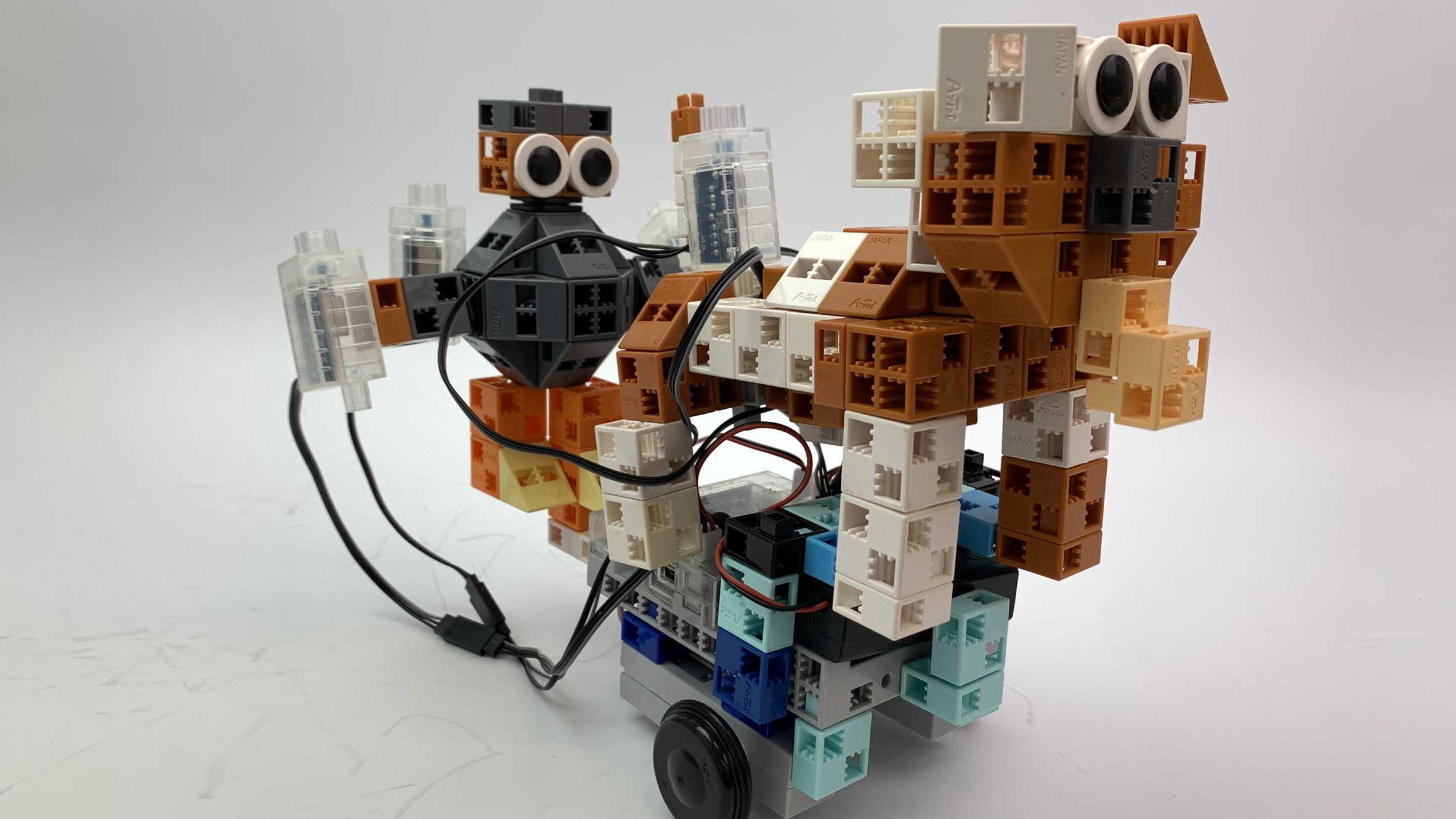

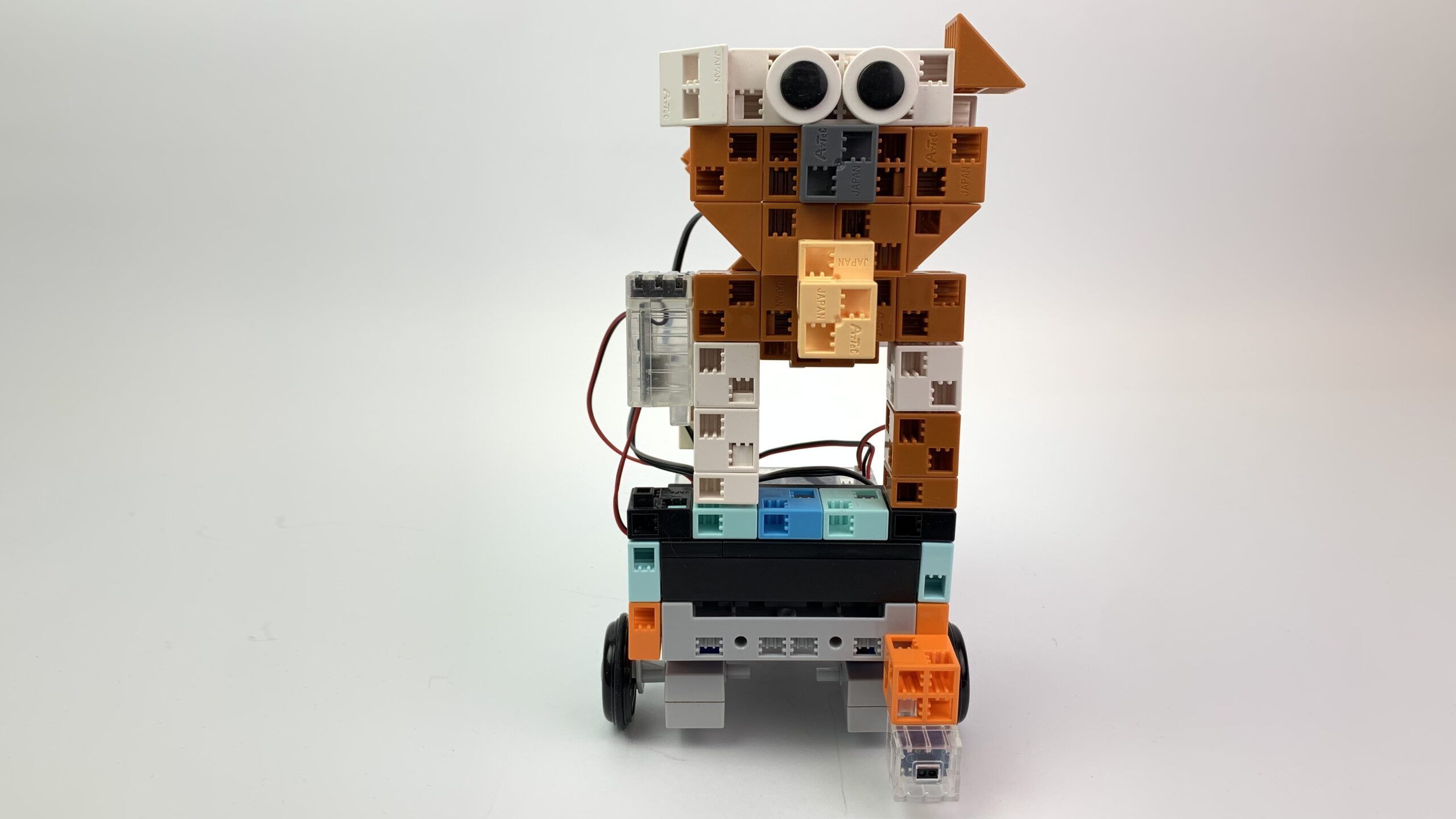

- Franz is a robot controlled by accelerometer.
- Franz rolls back and forth to Lotte’s.
- The IR photoreflector on Lotte’s hand detects Franz, then raises and lowers her hand.
- When Franz reaches her for the 5th time, Lotte does not raise her hand but turns her head away.

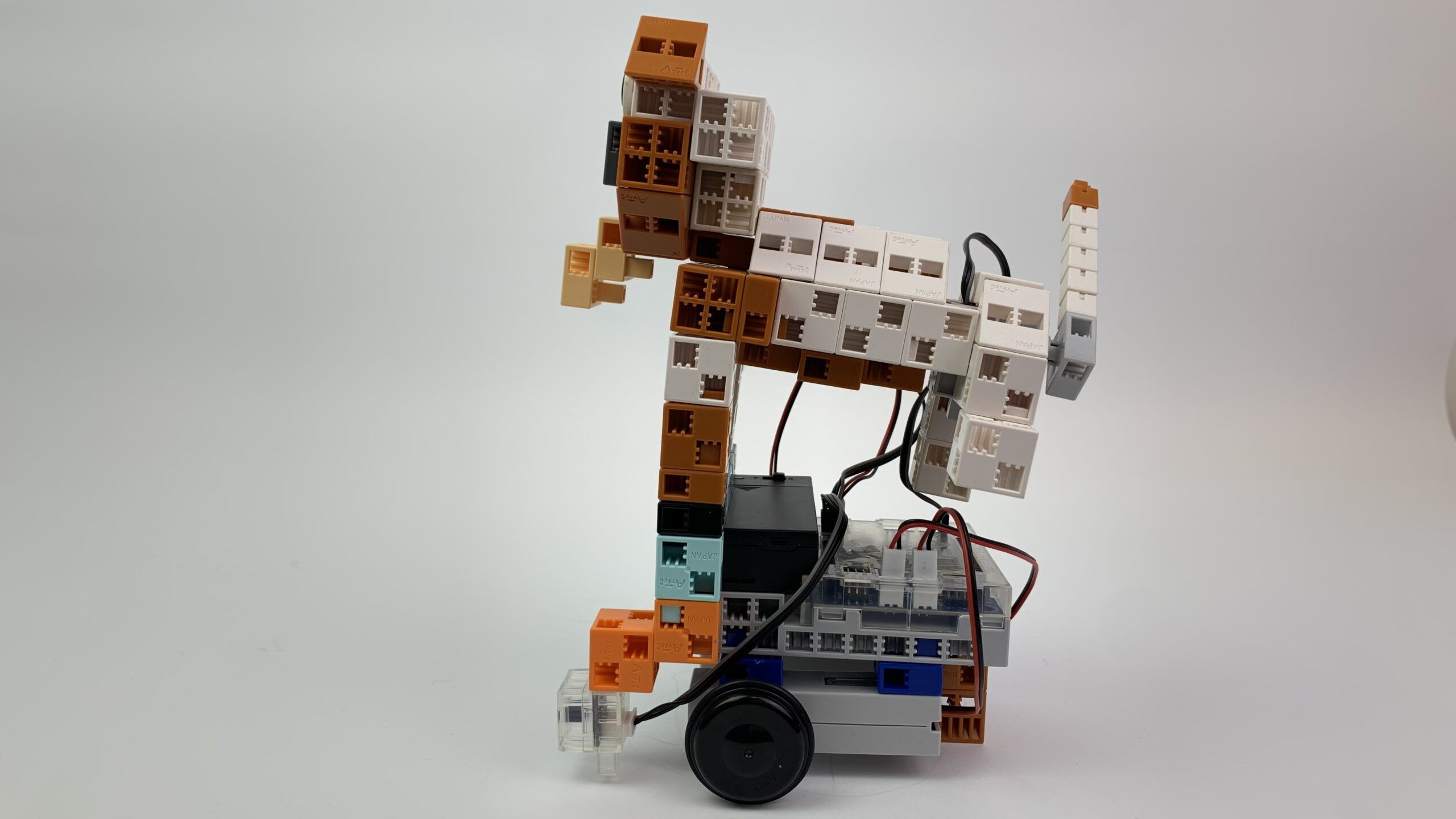

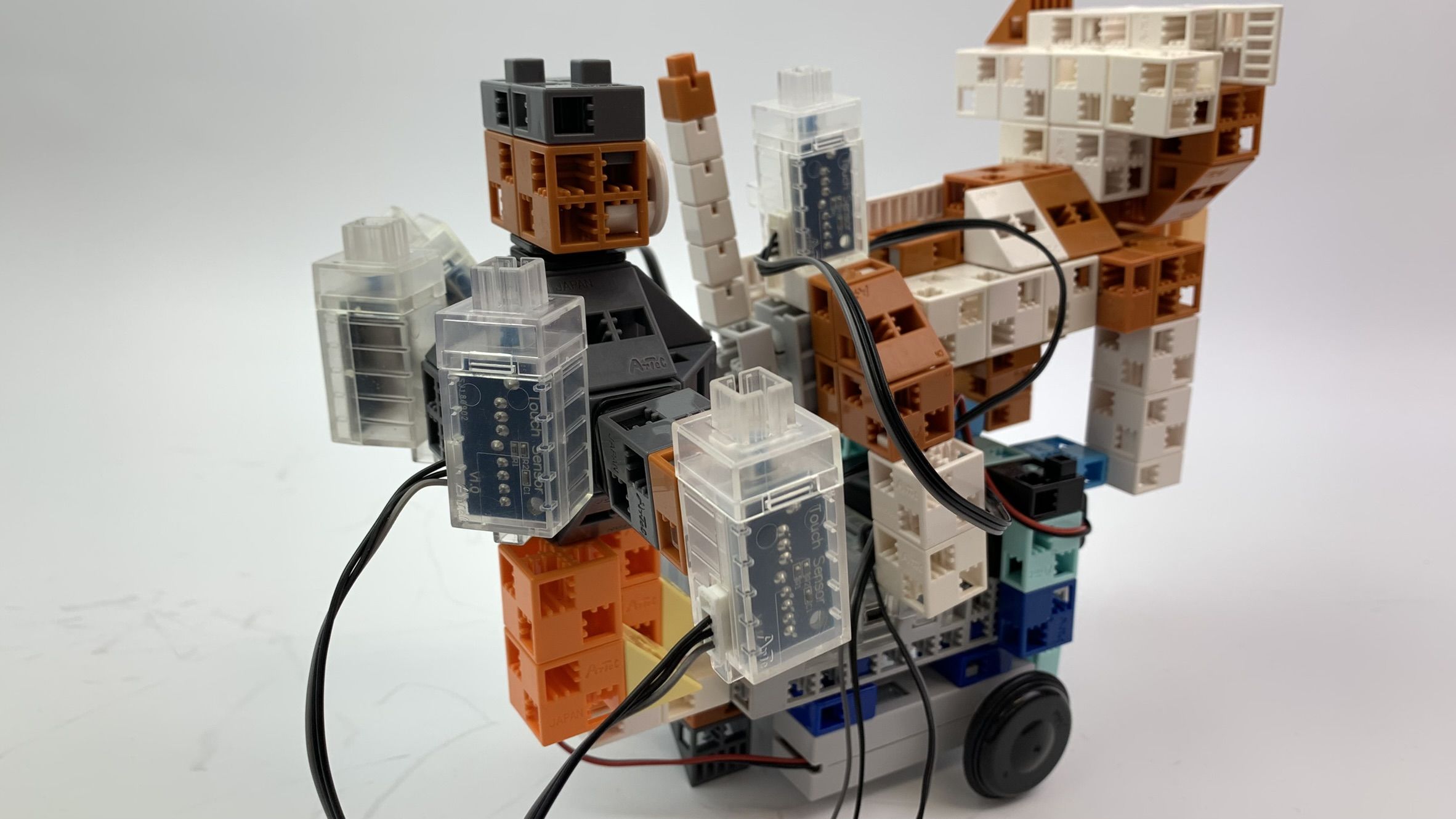

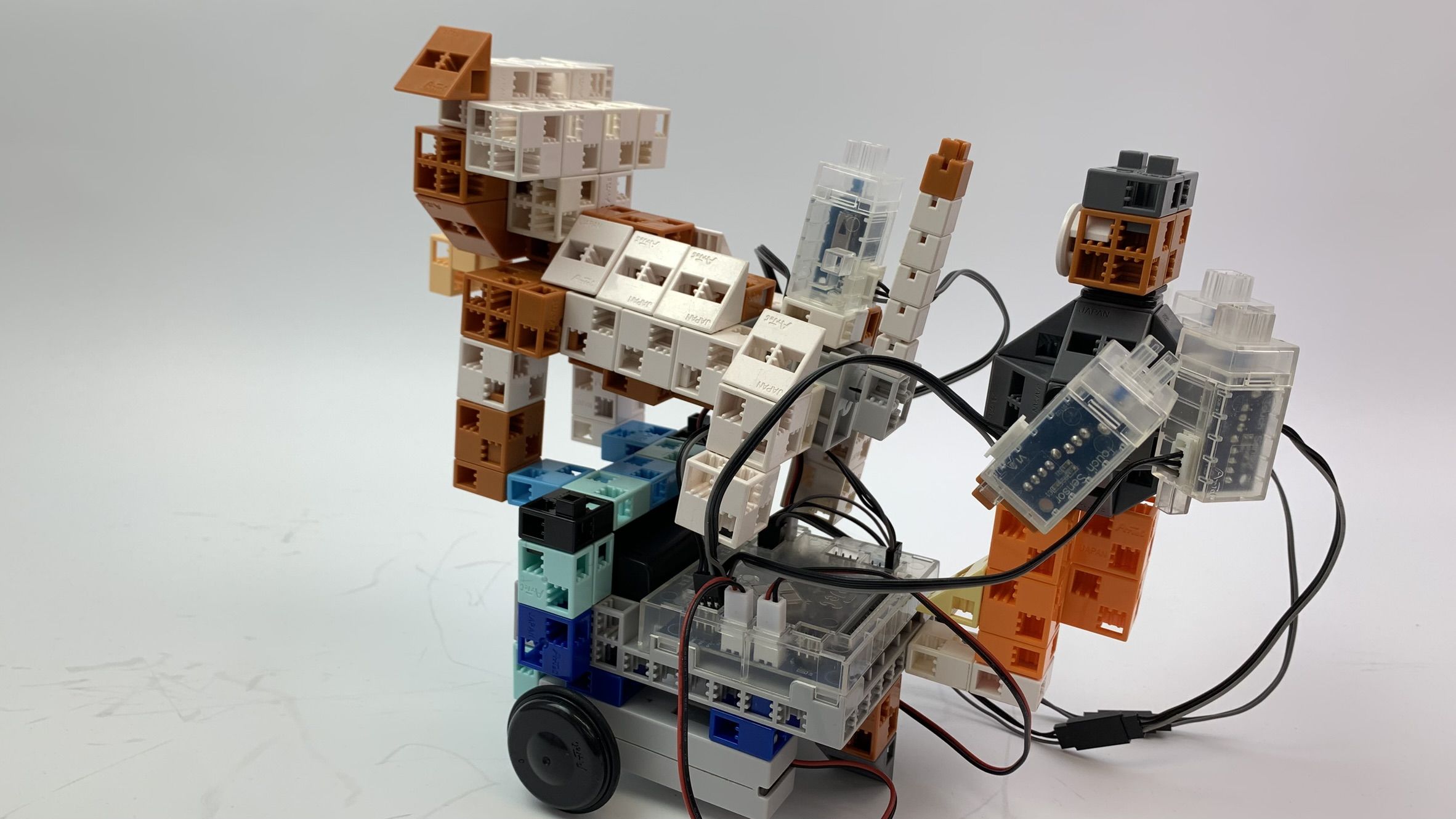

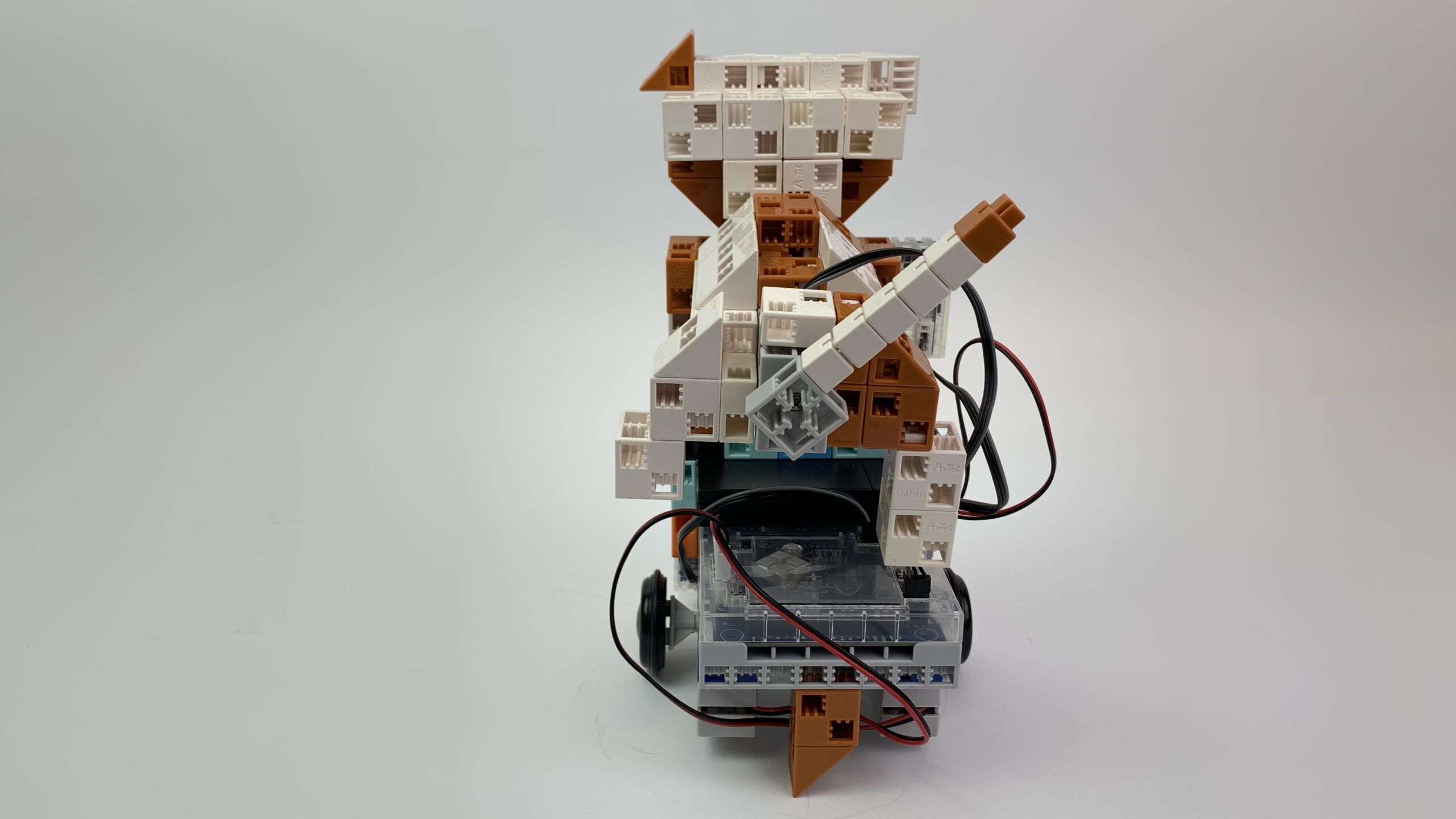

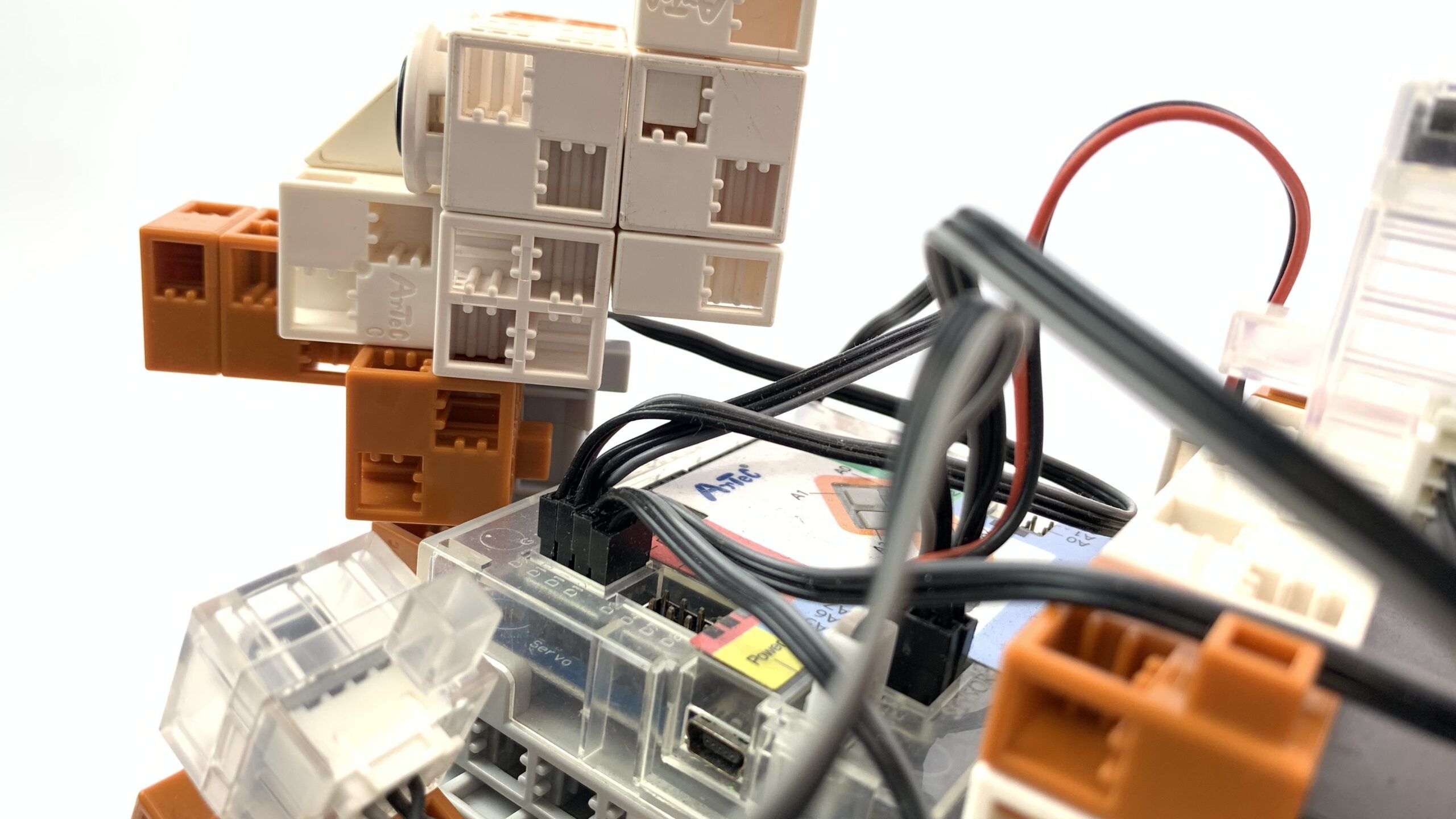

- The dog is a tracking robot. It is equipped with 1 sound sensor, 2 IR photoreflectors and 1 servo motor.
- It will start on paw, tracking its way to Lotte’s. When its IR photoreflector detects Lotte, it stops, wags its tail, then continues tracking and moves away from Lotte.
P3
a)
b)
P3
P3
Programming level 4
Pepike is embarrassed
P4
How to build

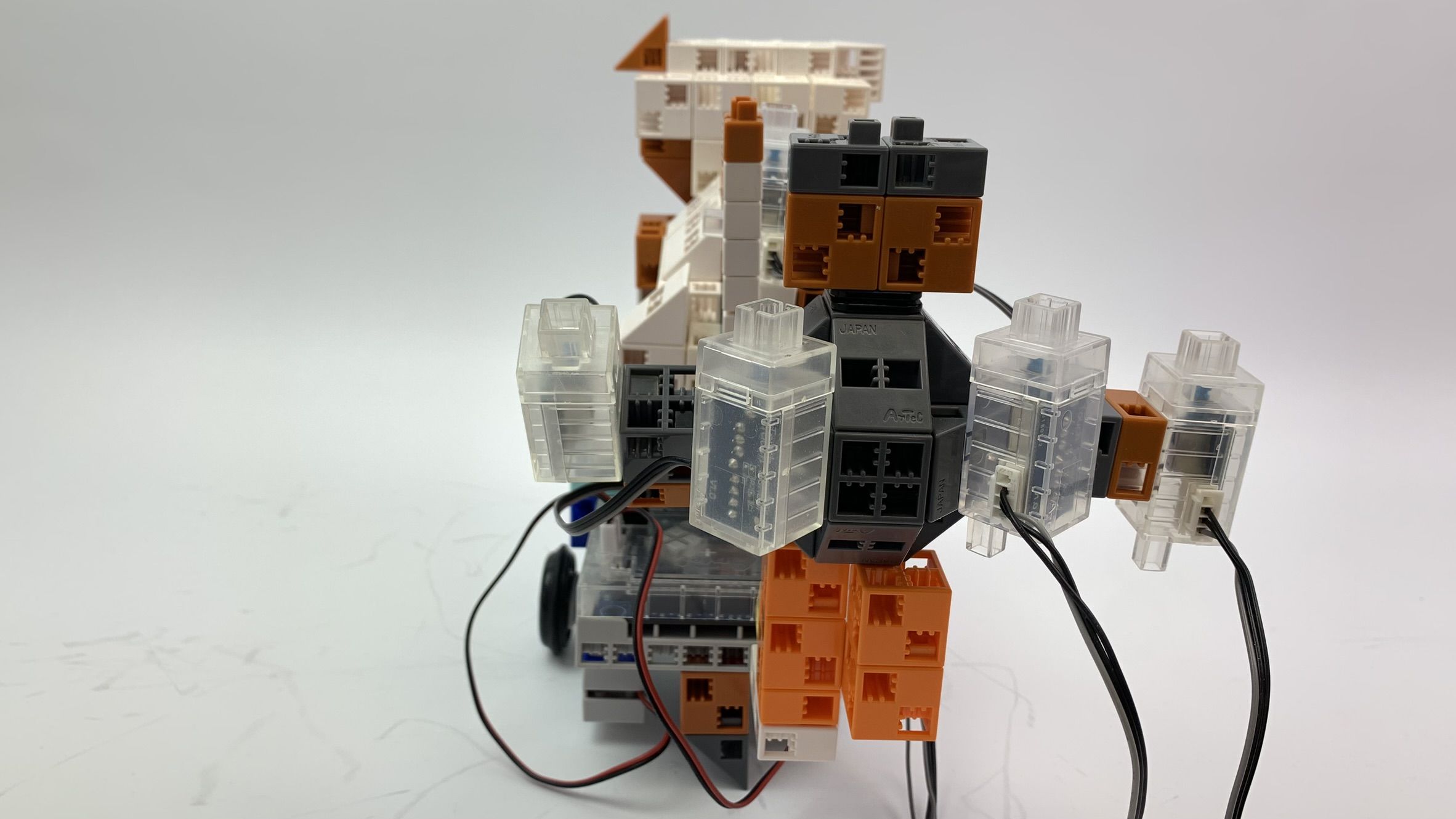

Dog

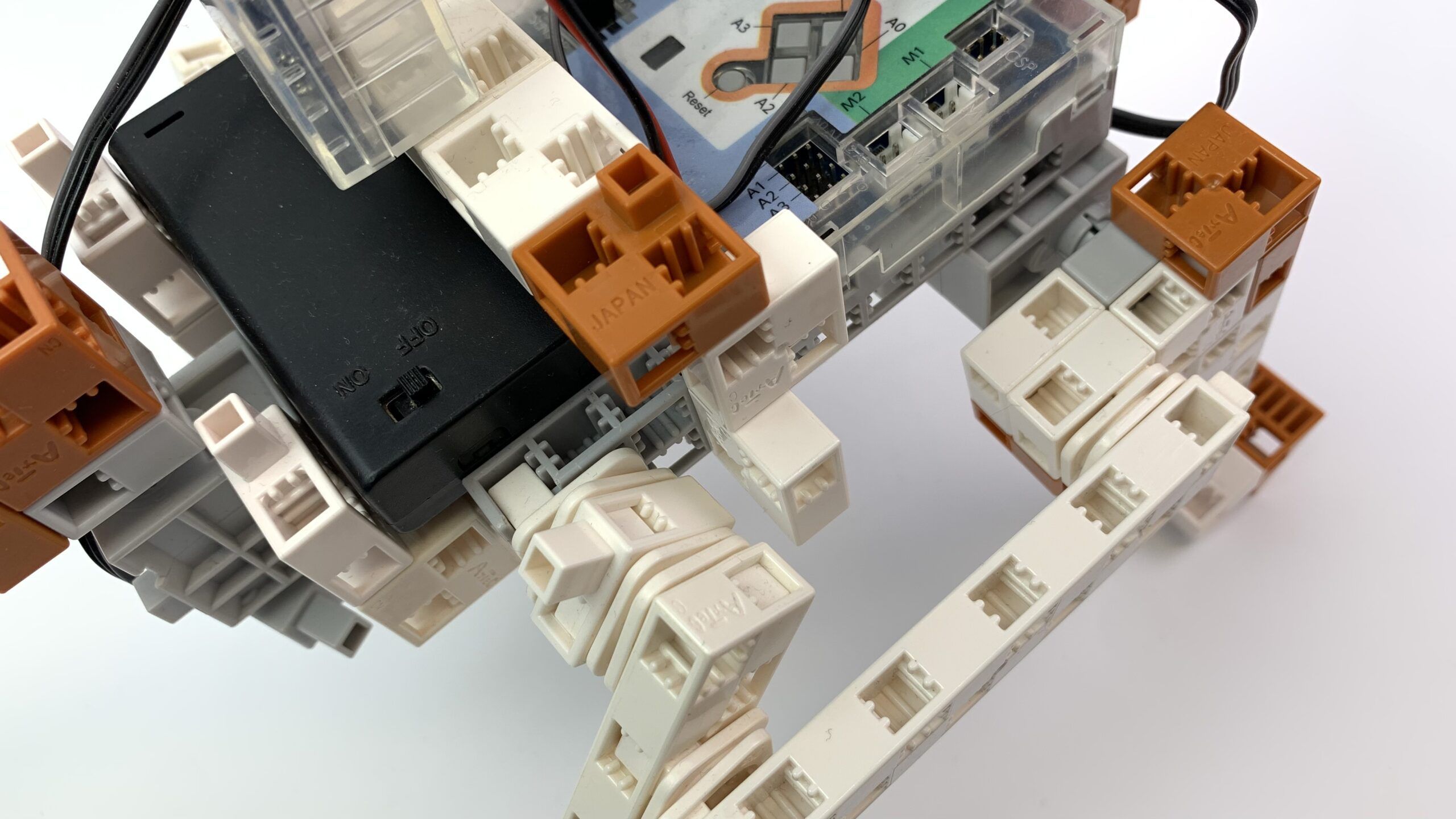

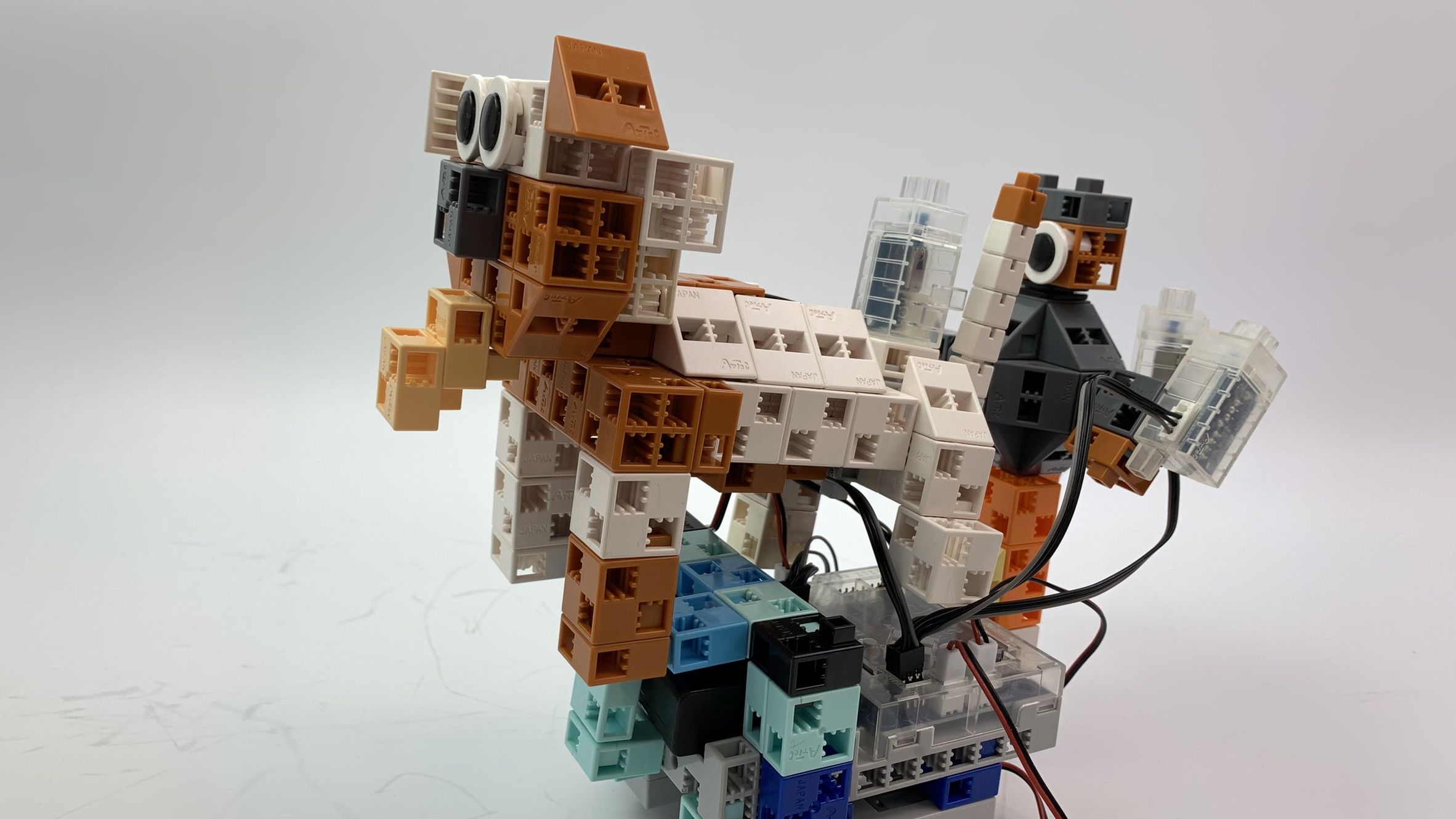

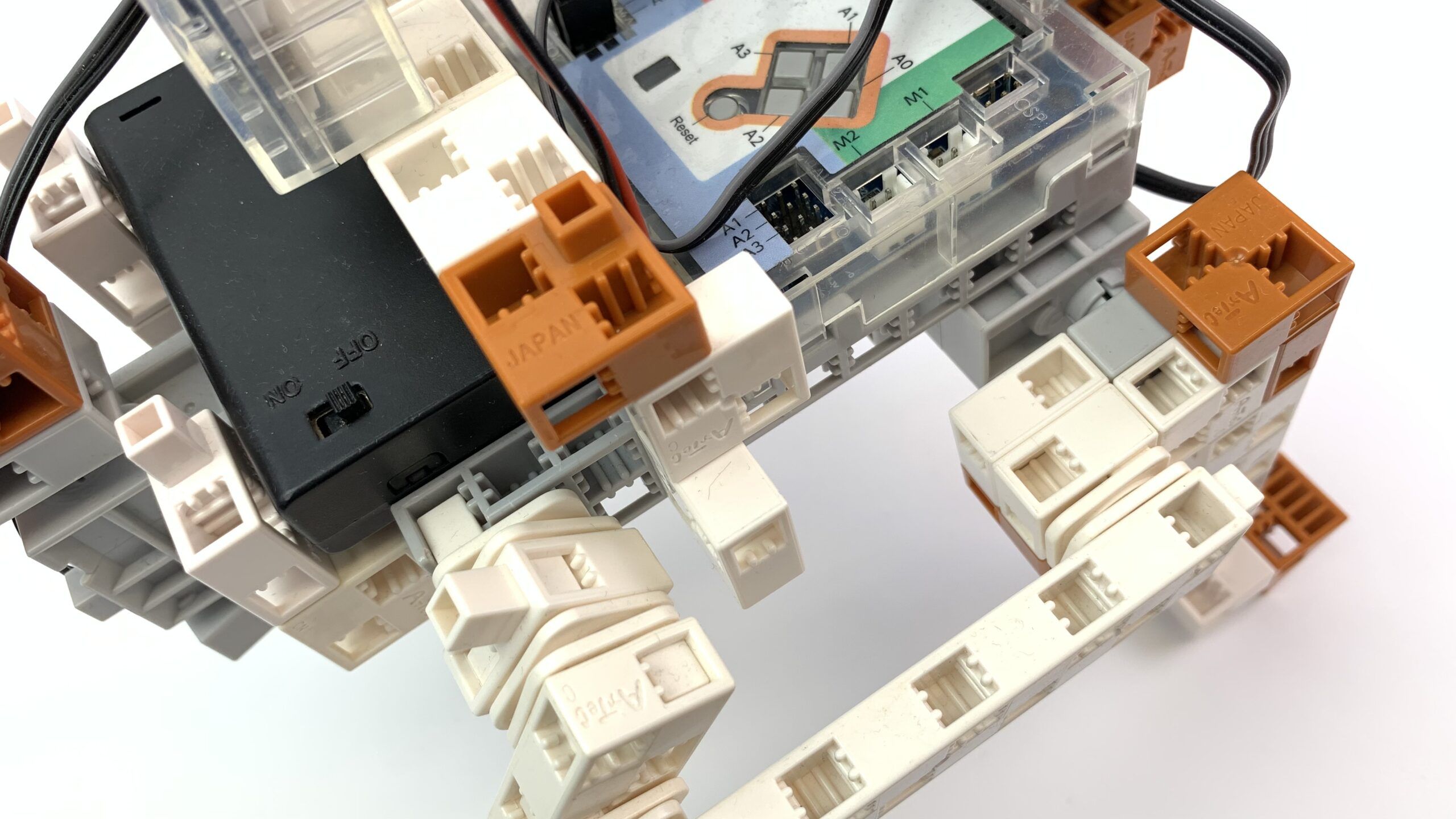

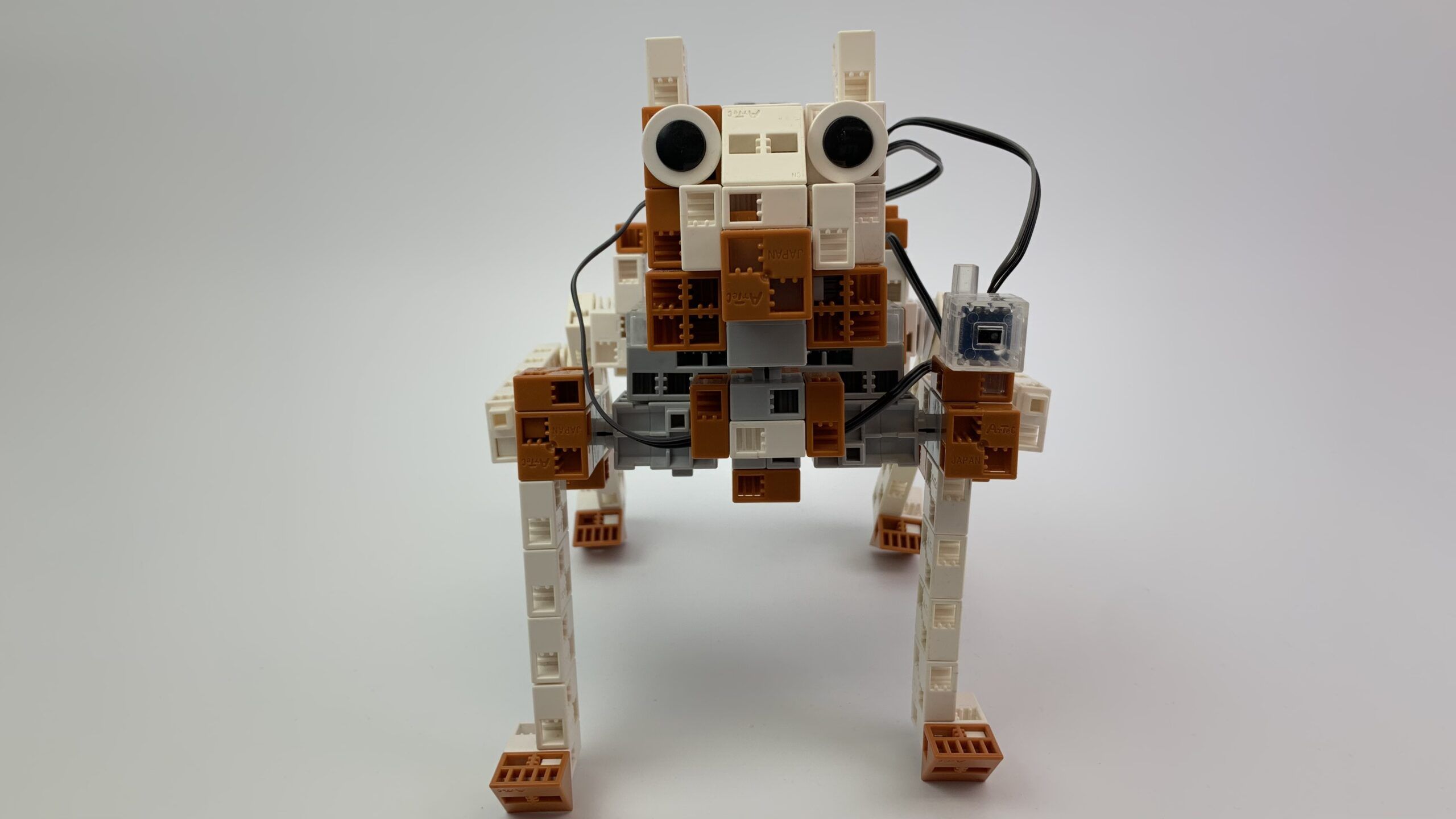

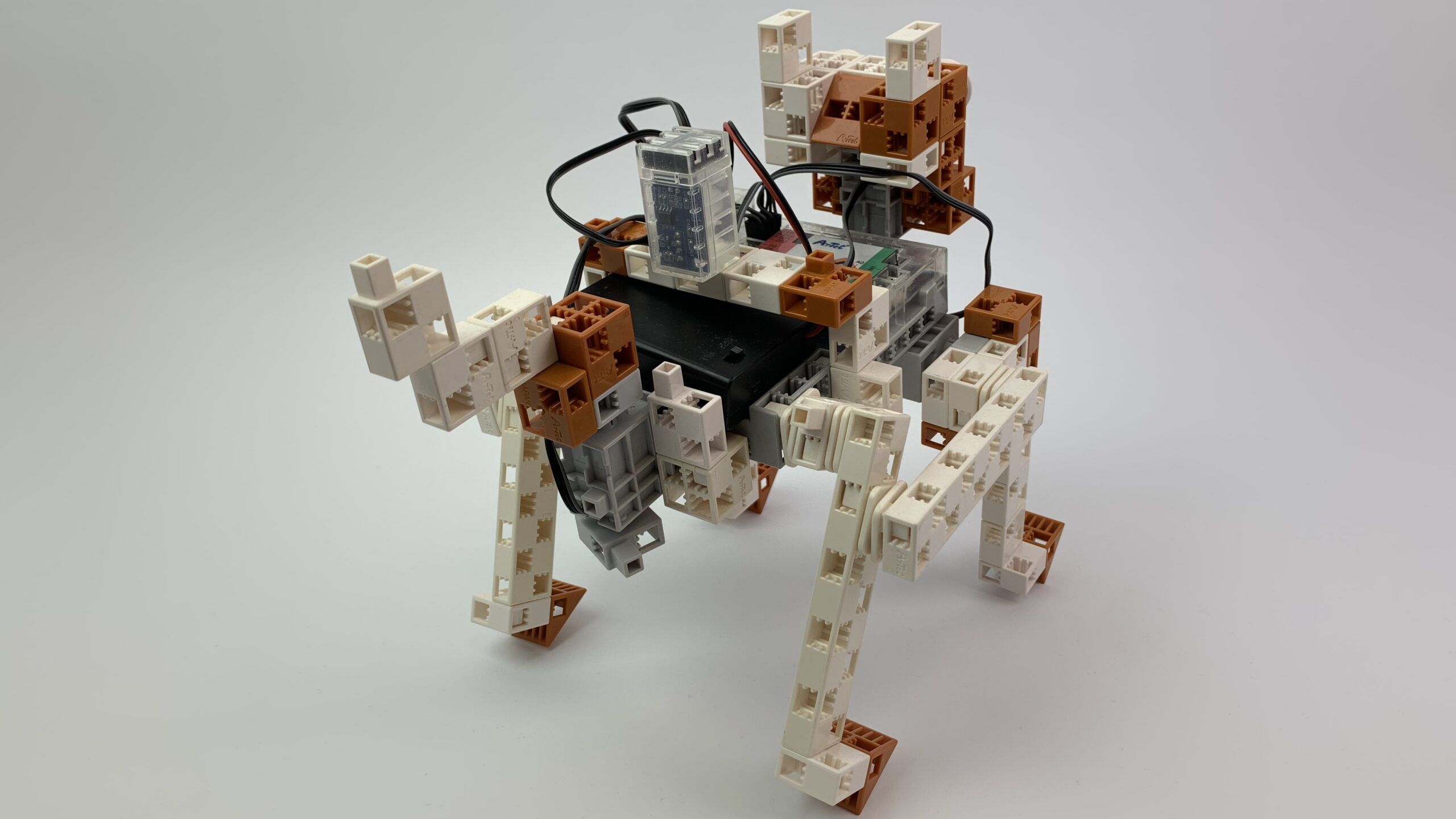

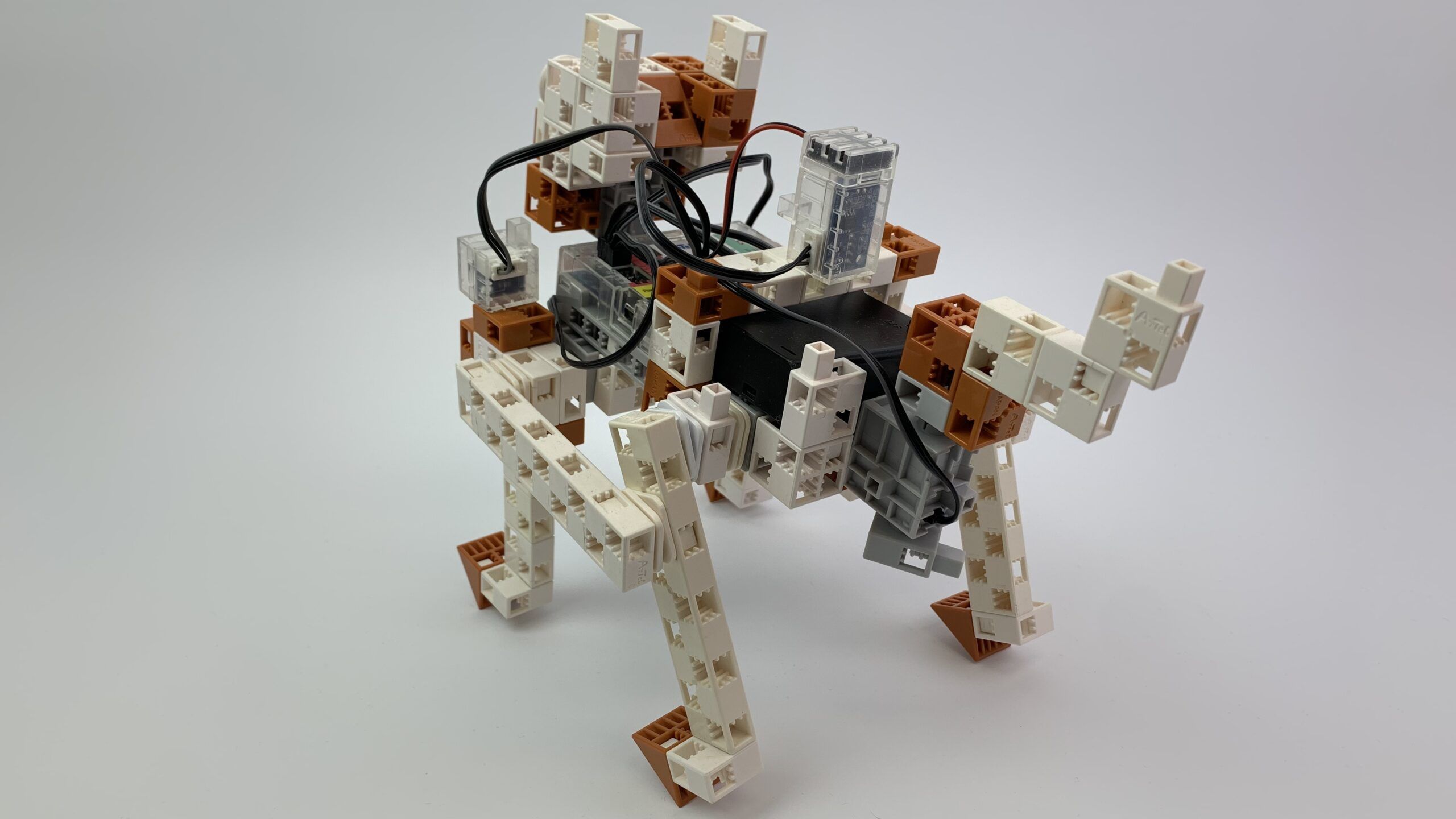

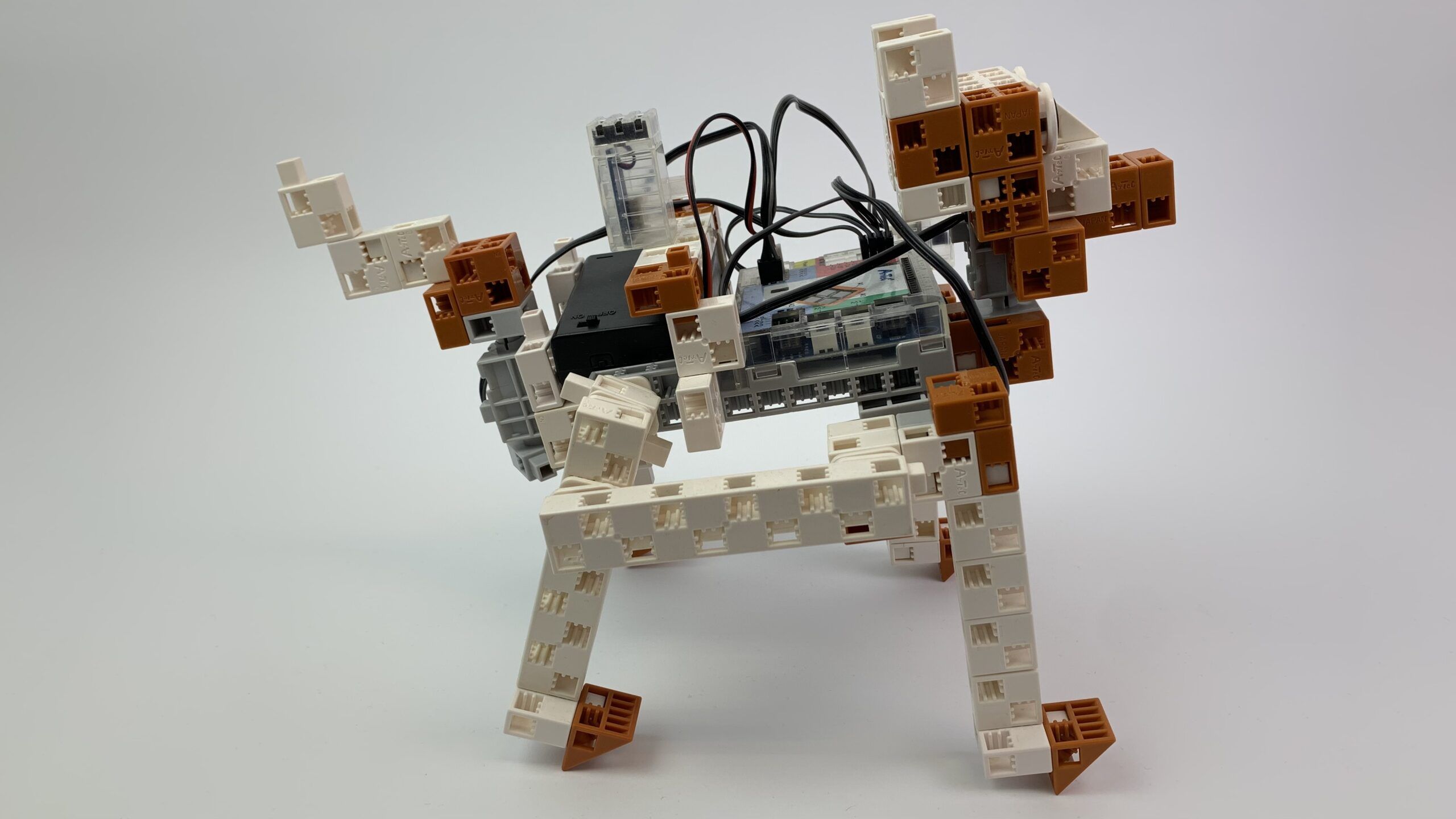

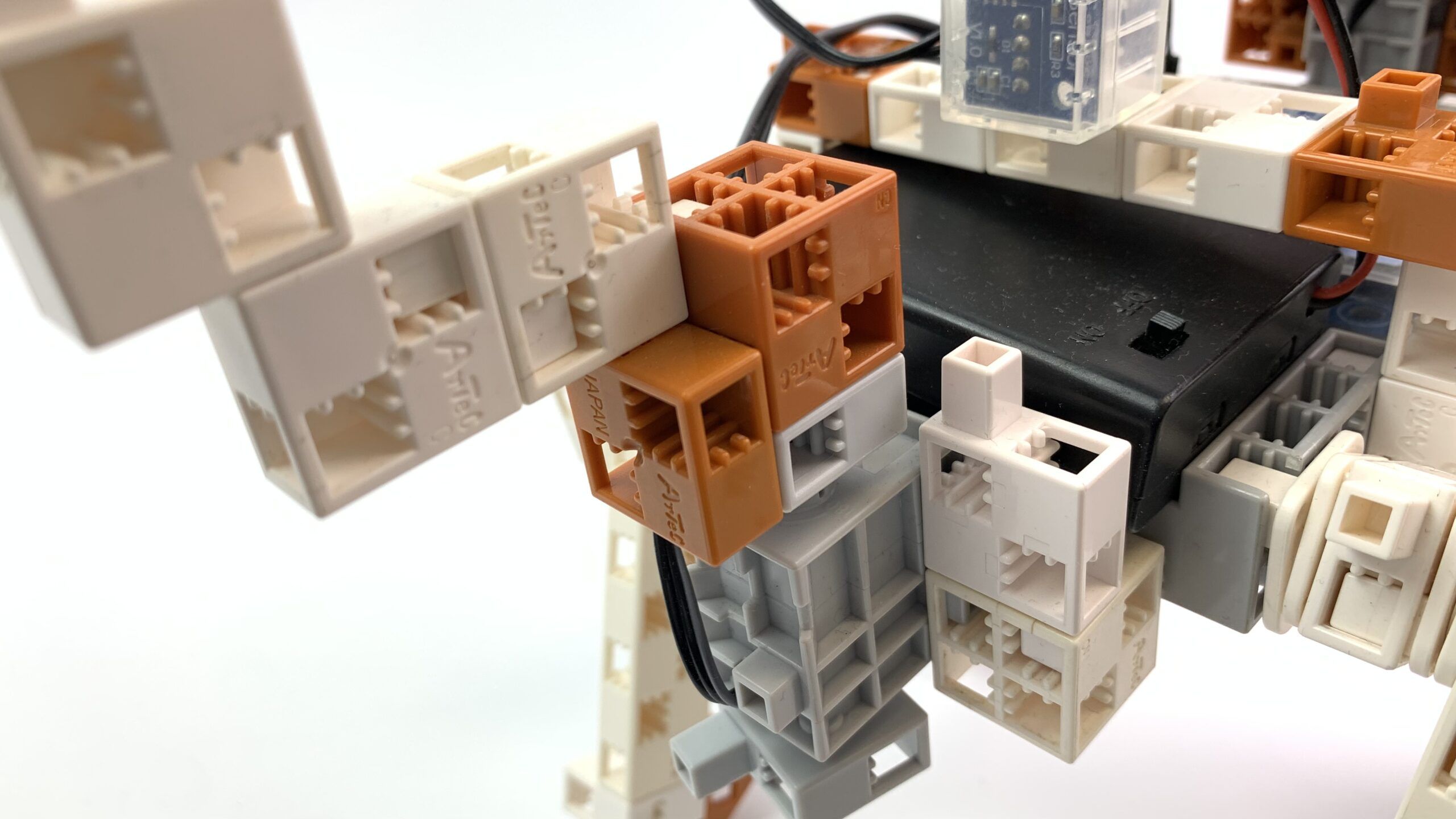

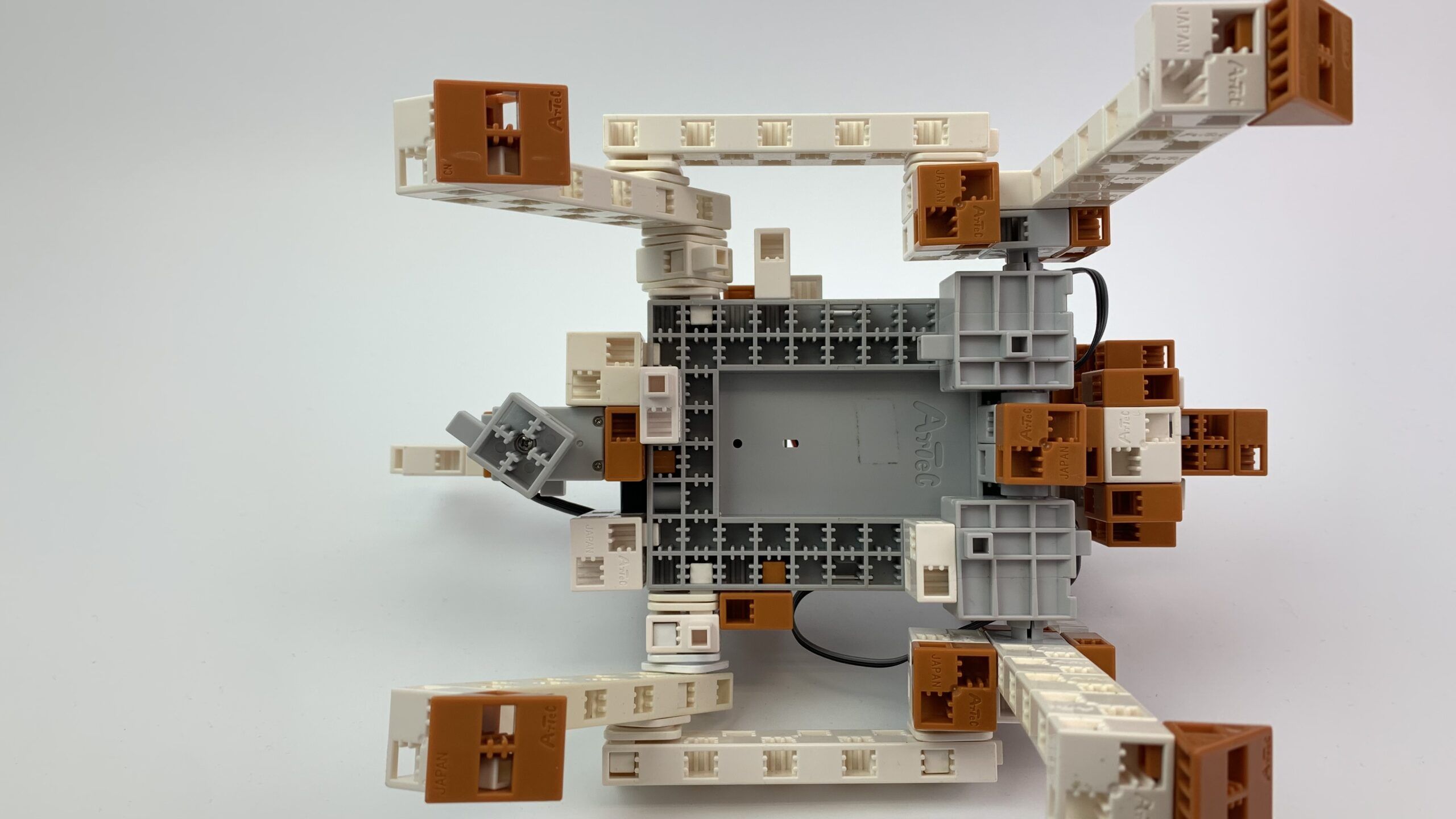

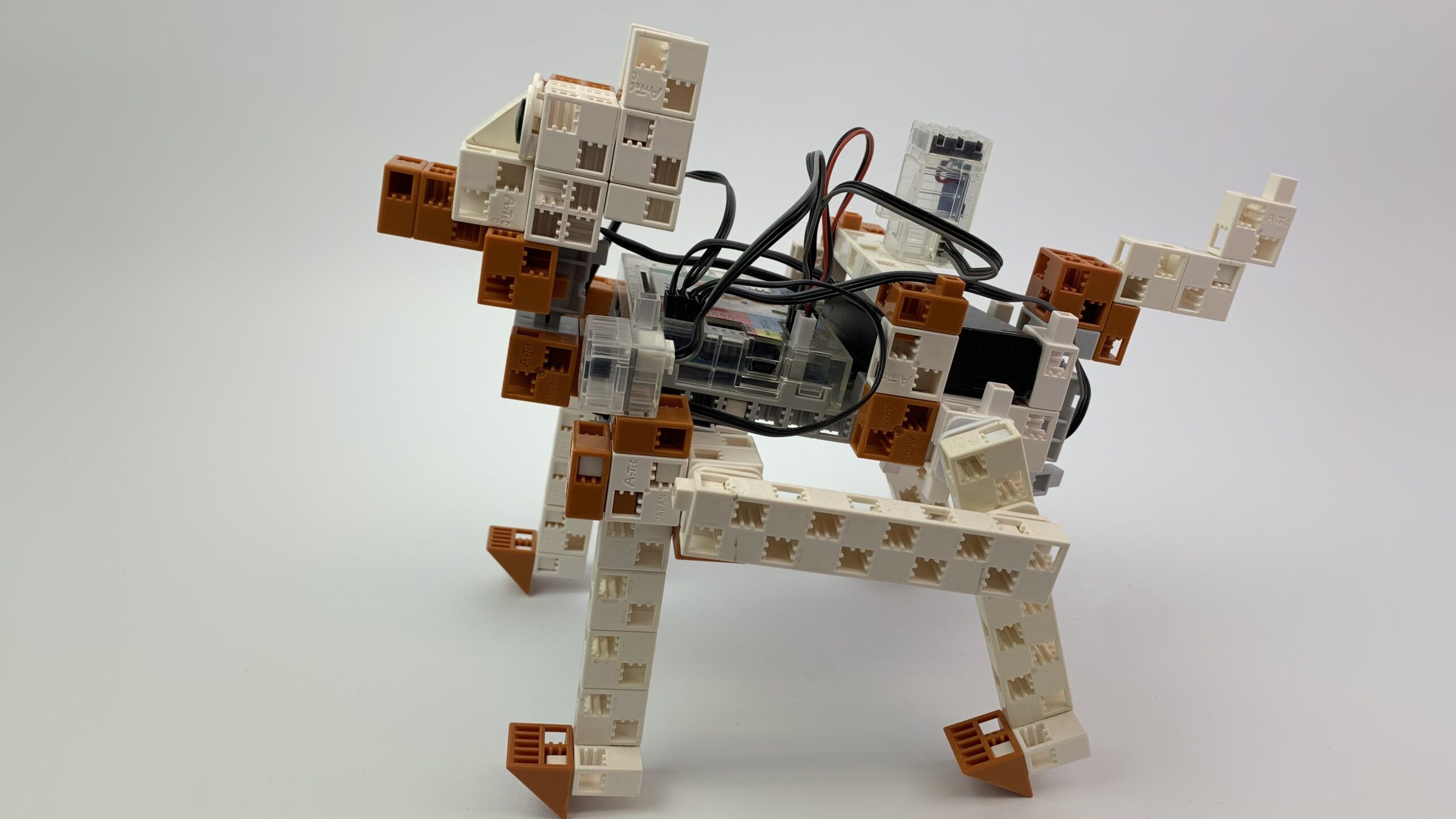

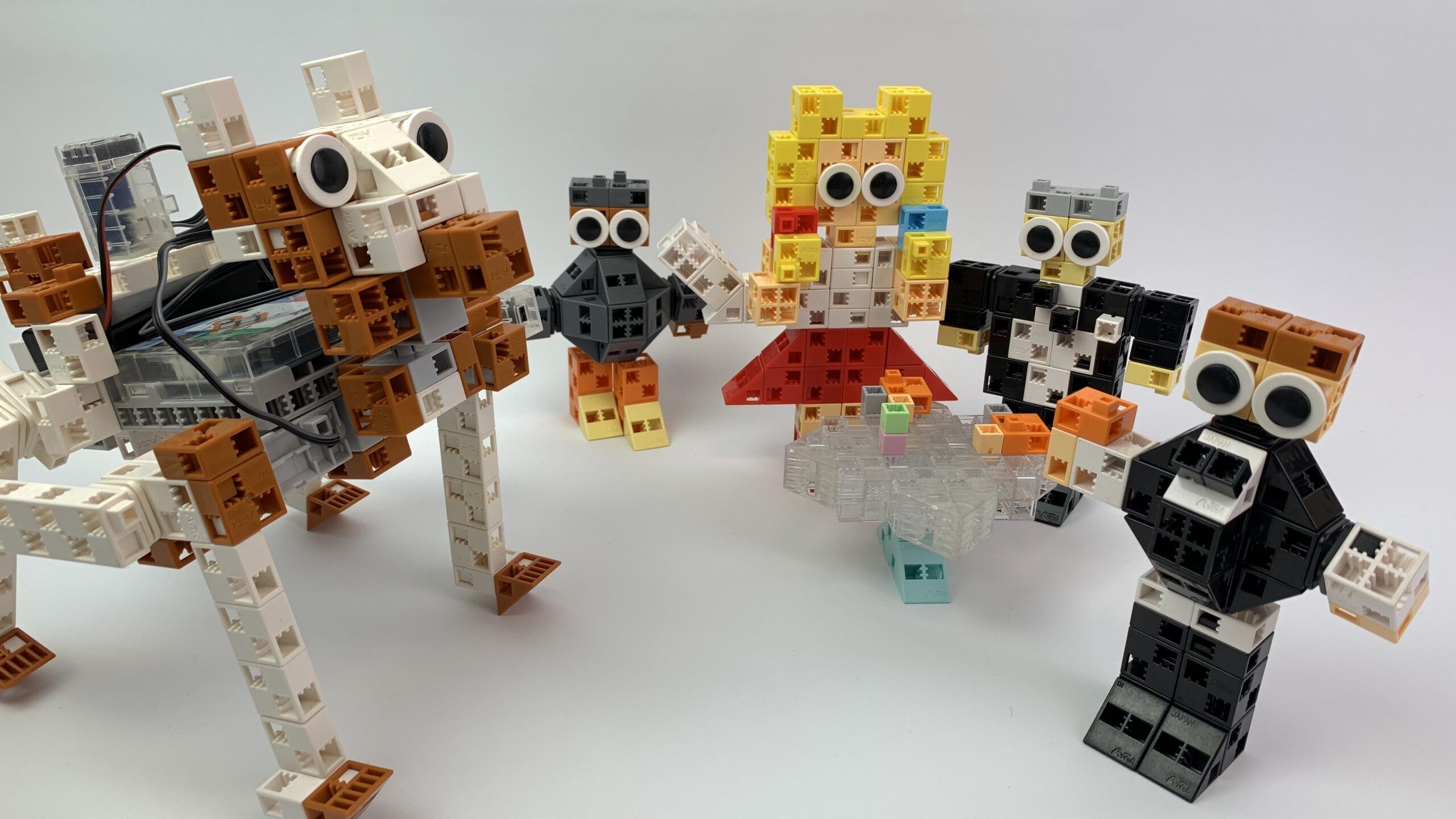

- Building a 4-legged dog following the factory building instructions, with 3 servo motors.
- 1 sound sensor and 1 IR photoreflector are attached to the robot.
- The robot starts clapping, steps forward until the IR photoreflector detects Lotte. Then she bends down, stretches, turns her head, wags her tail.
P4
a)
b)
