Bobula cries, grandfather and grandson enter the clean room
Programming level 1
Puppet theatre
P1
How to build

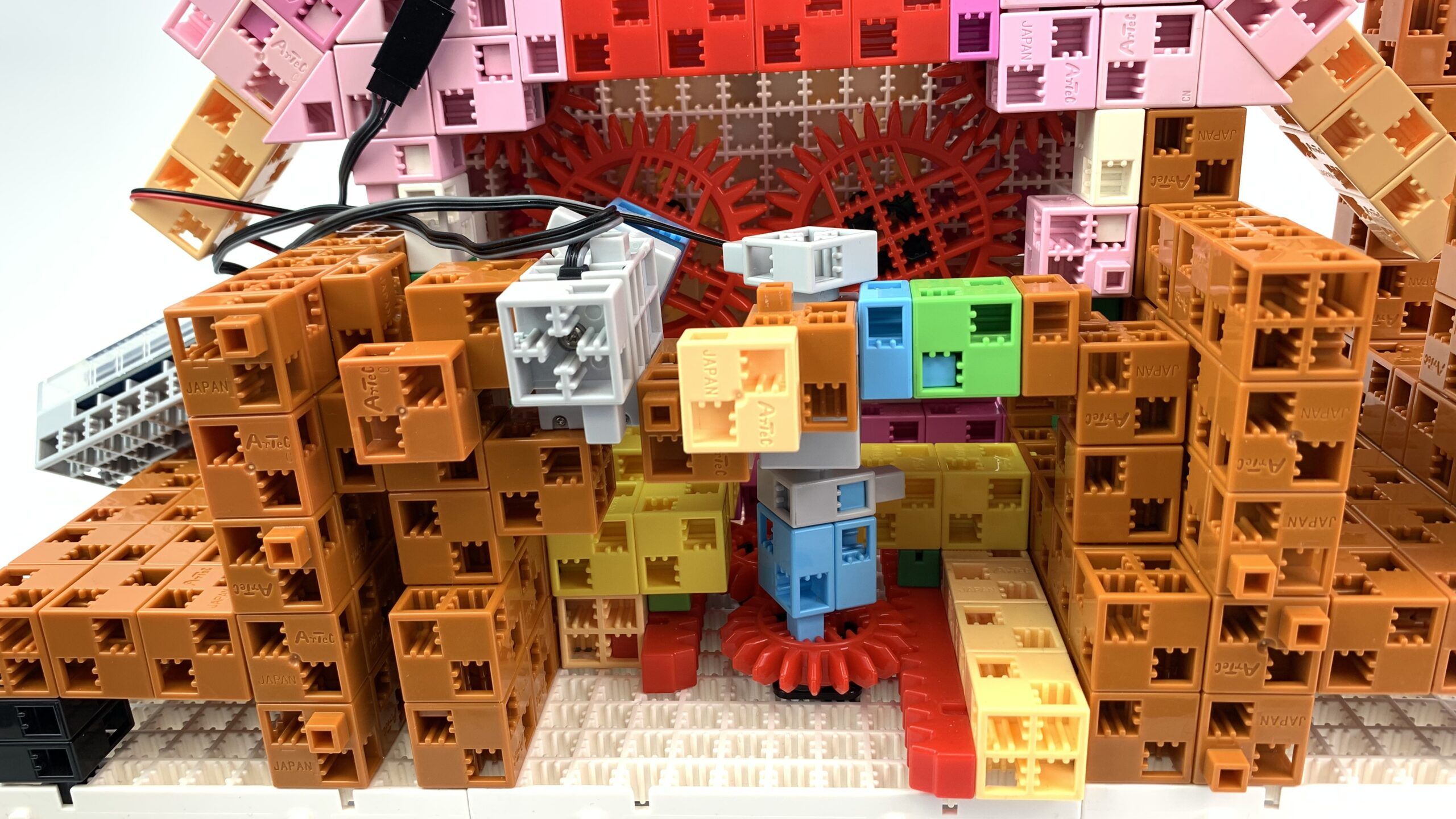

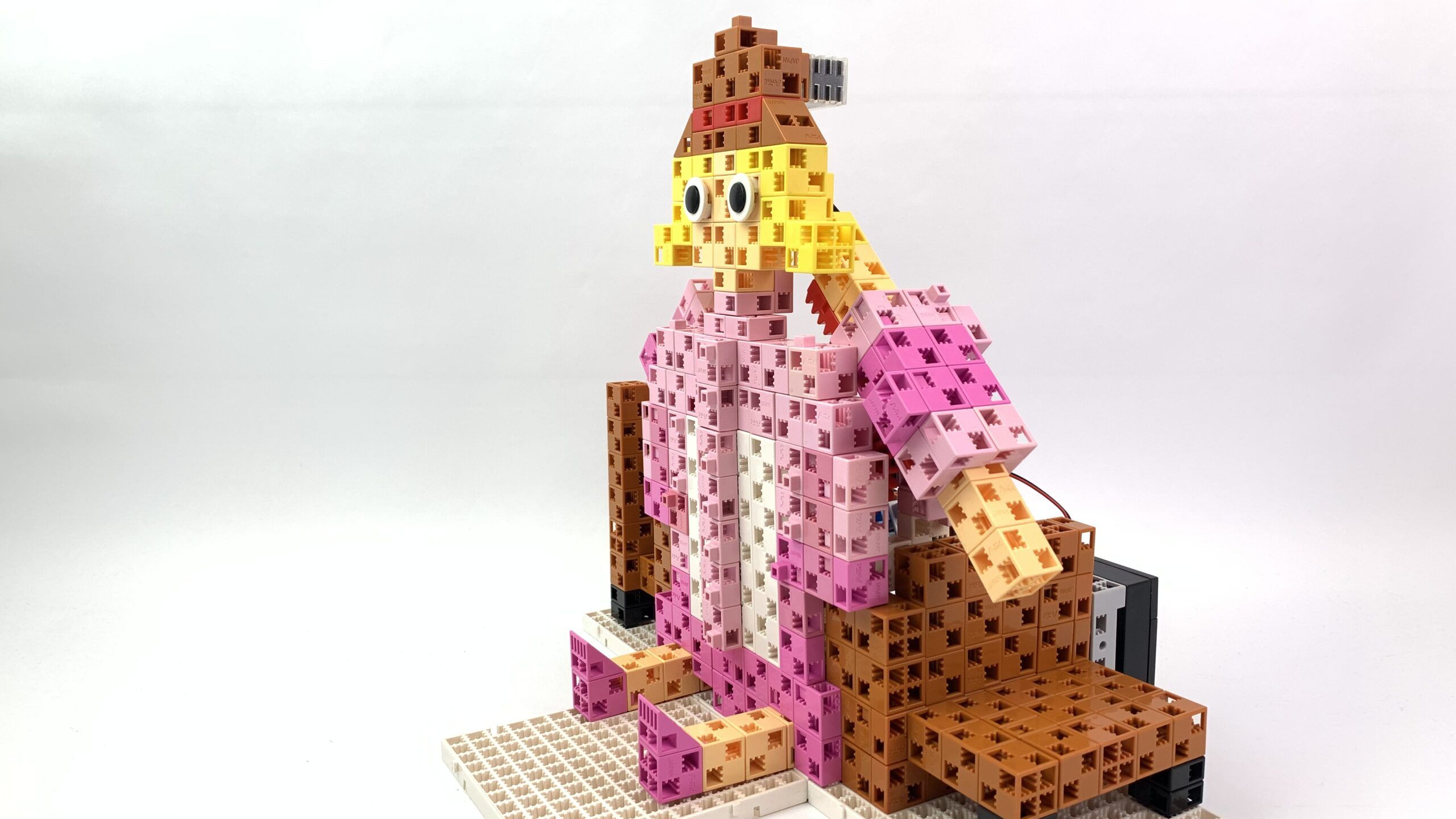

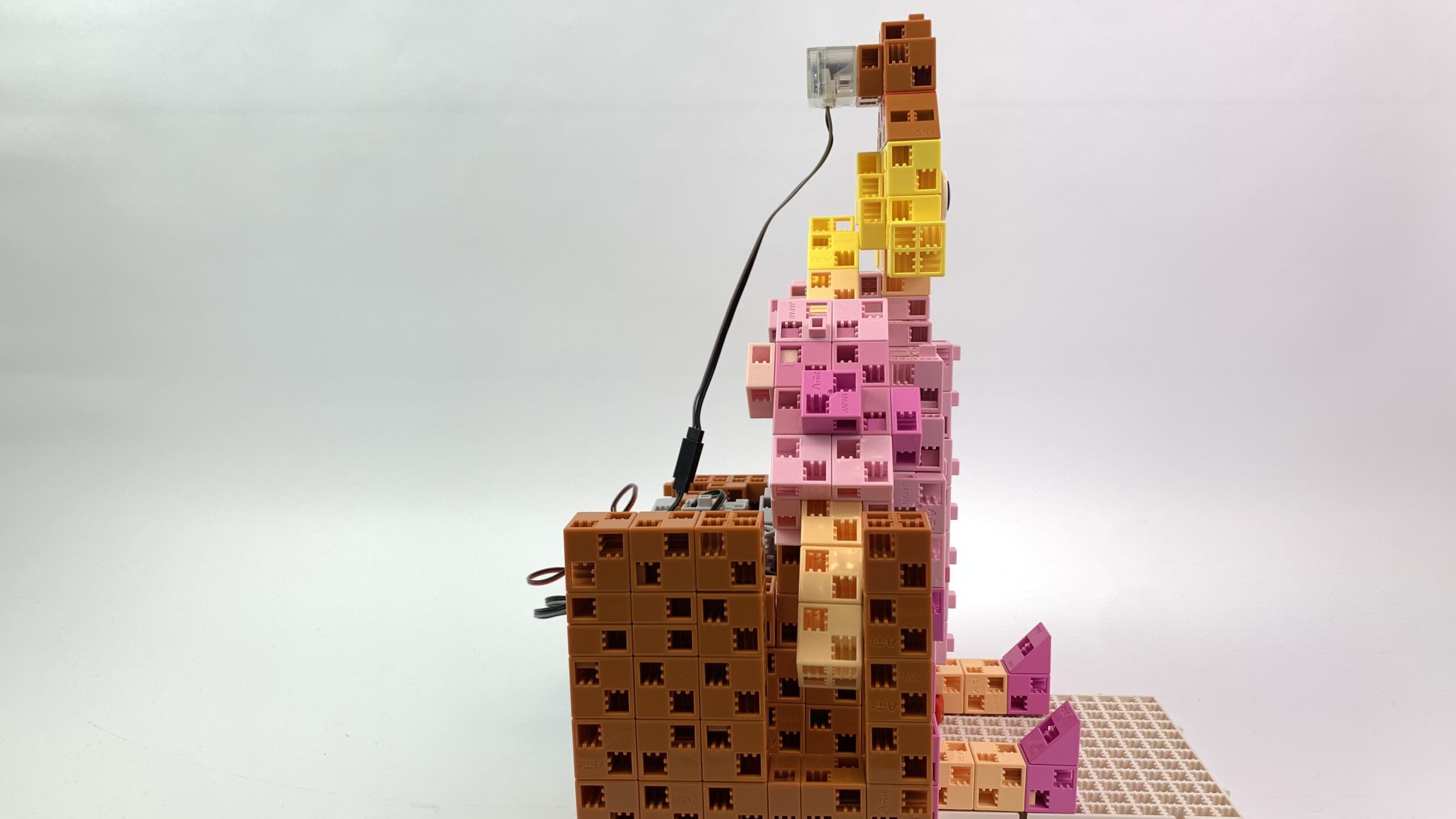

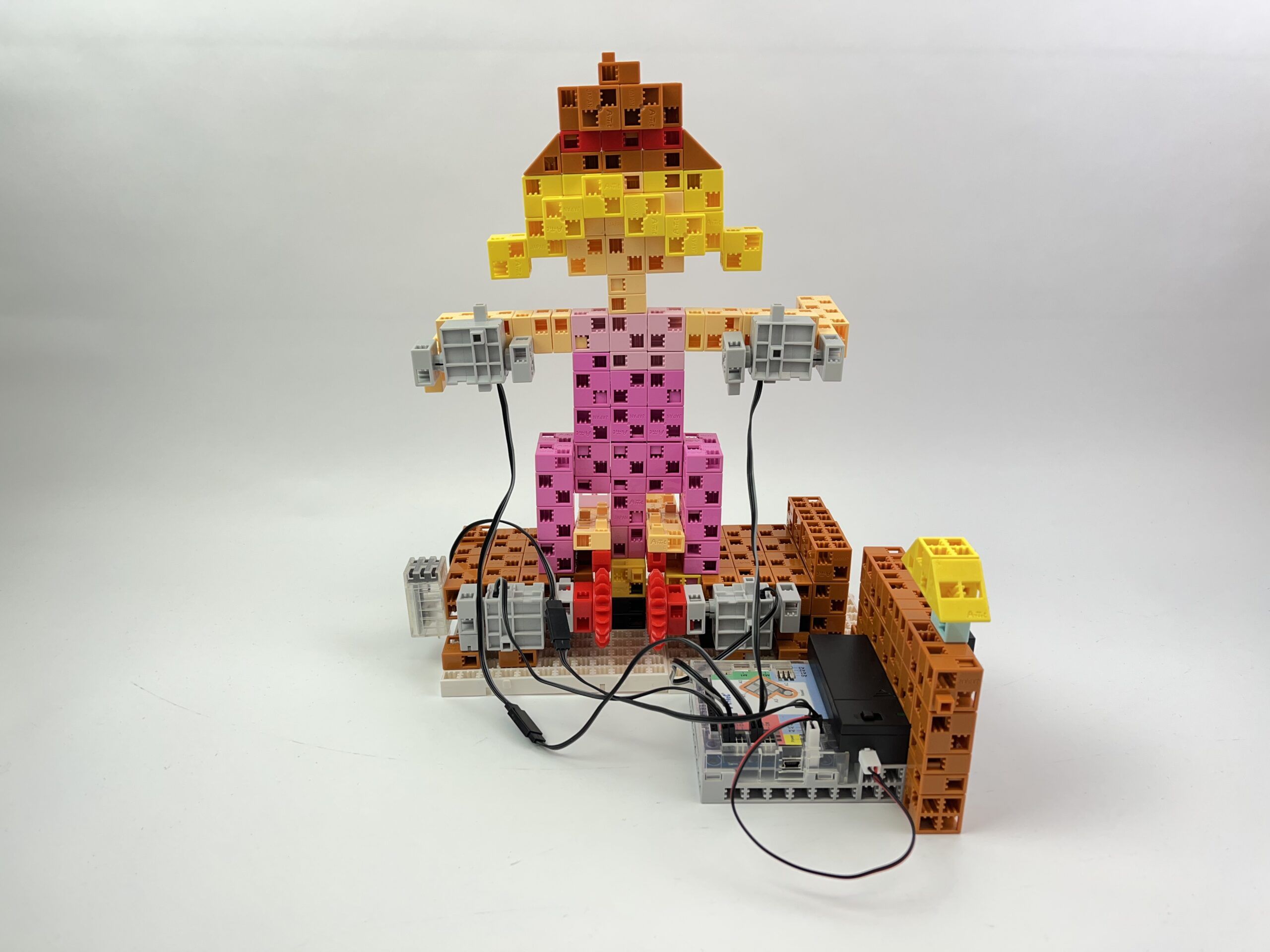

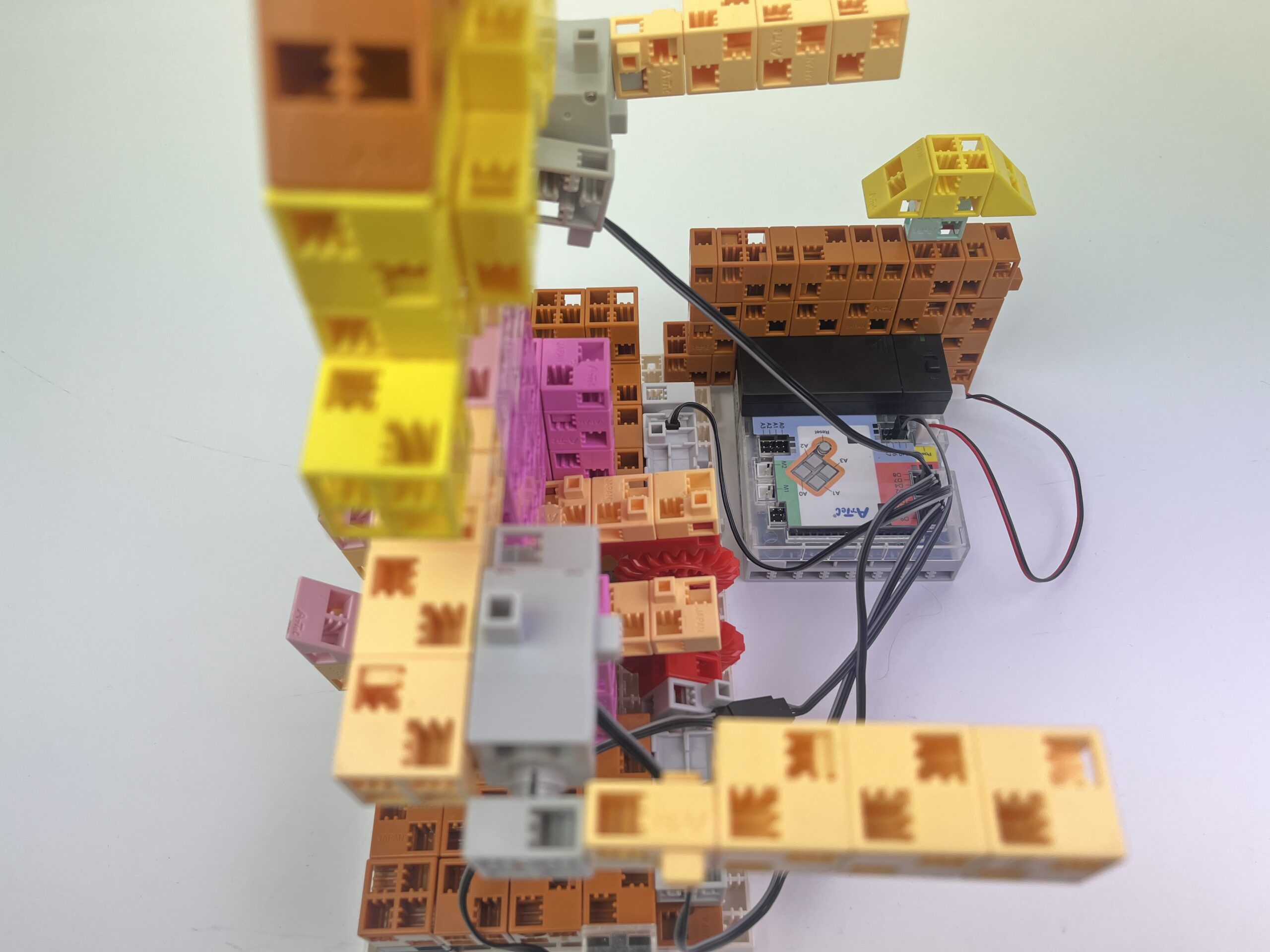

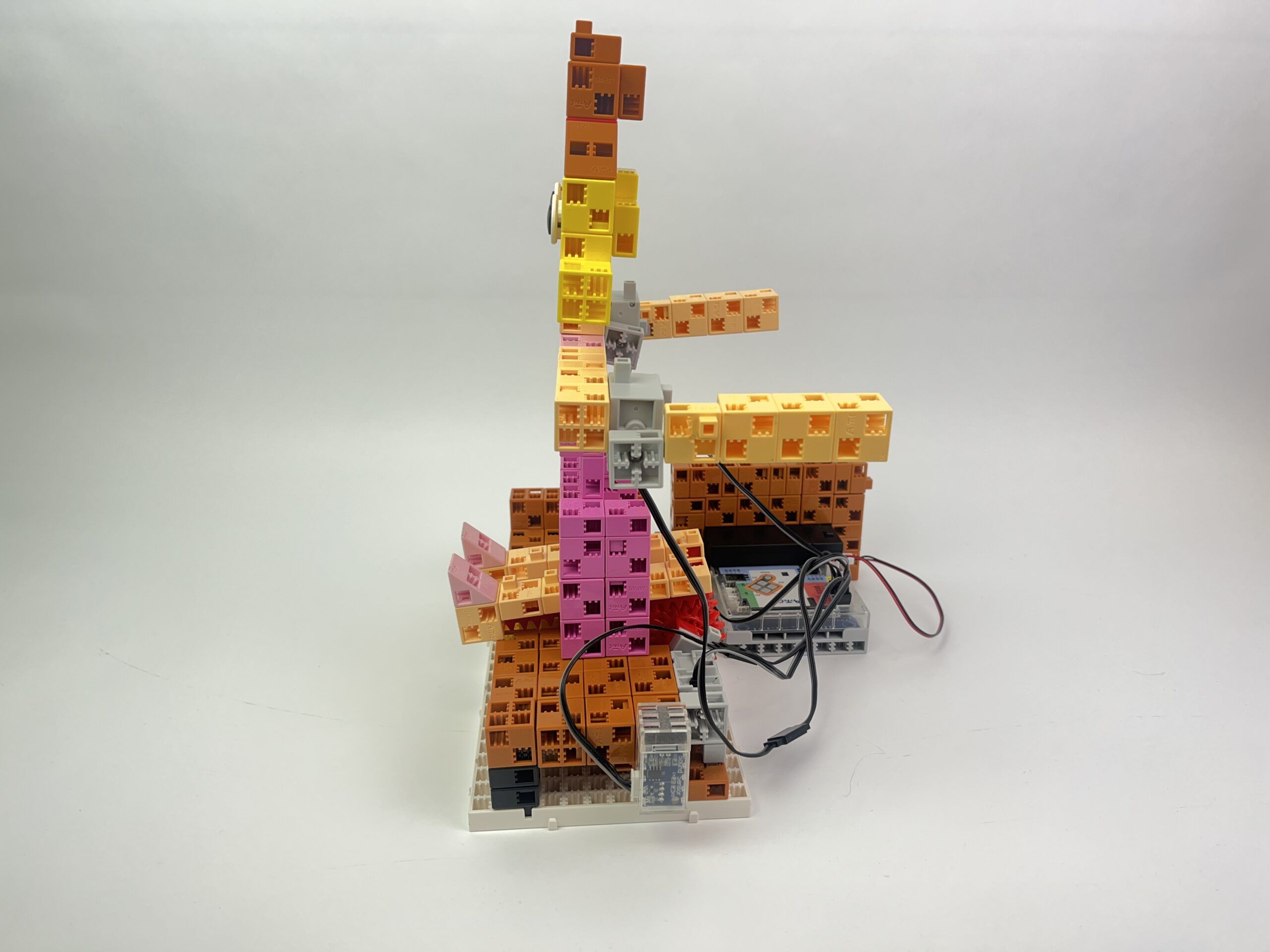

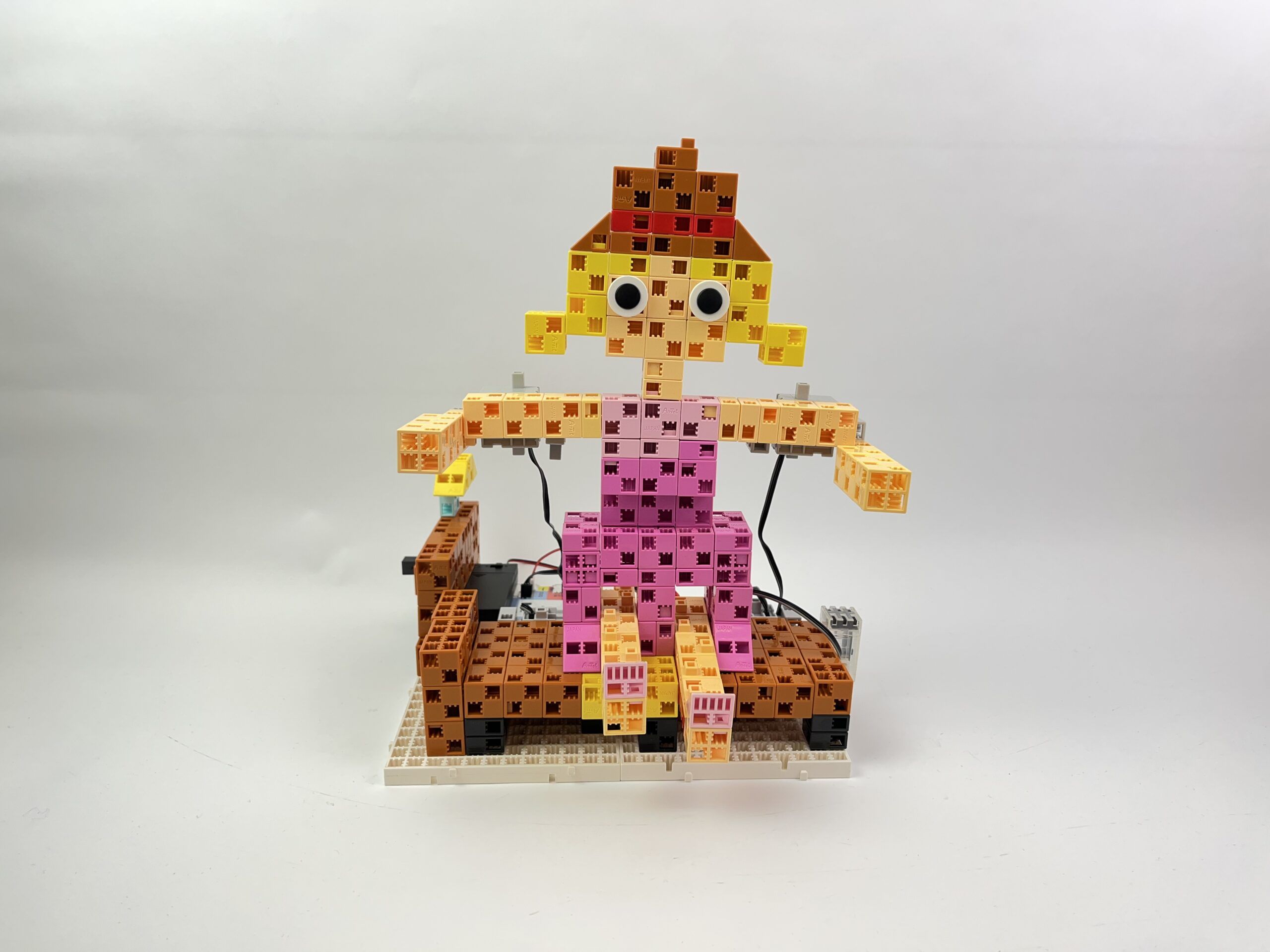

The robot

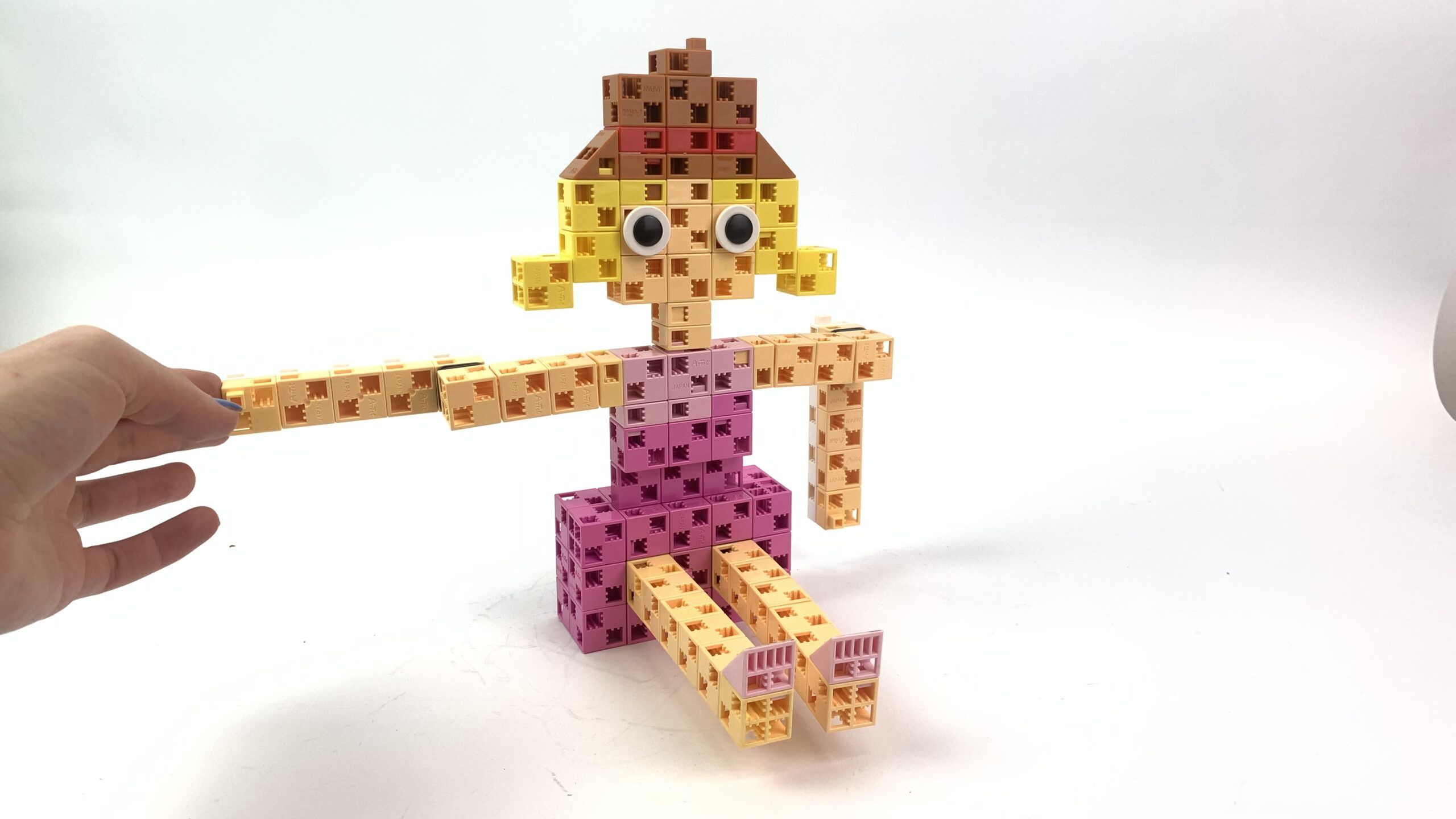

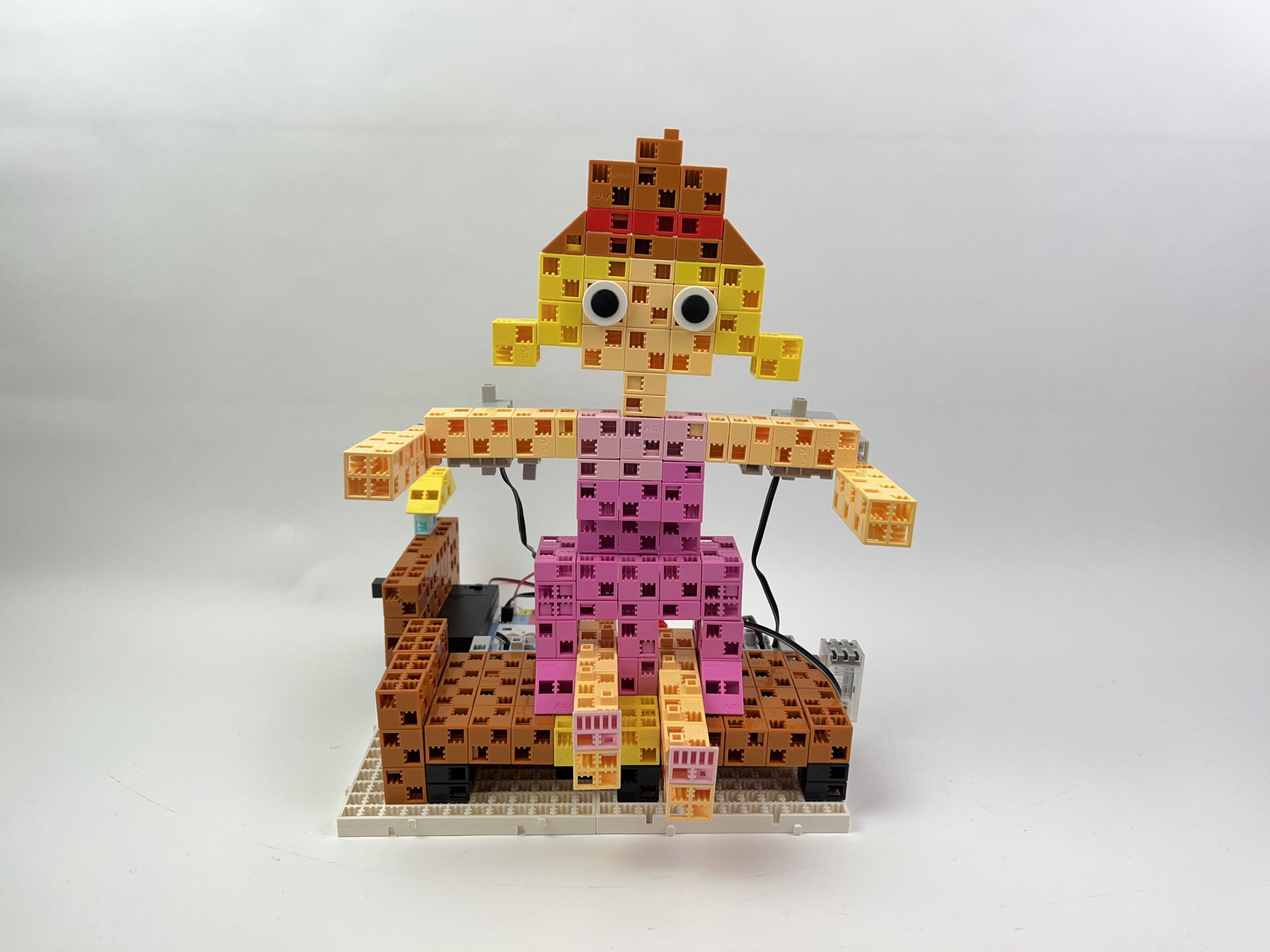

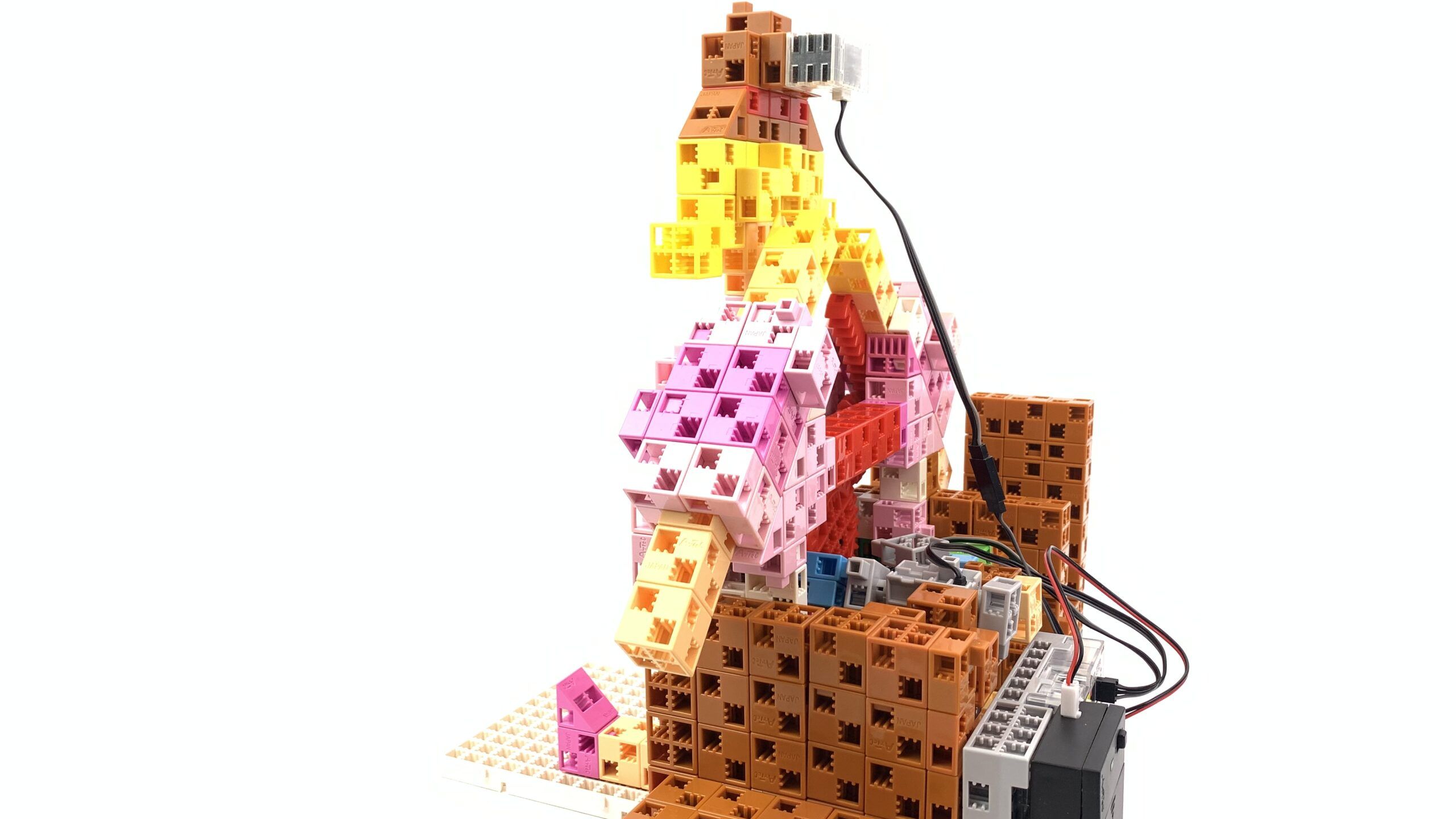

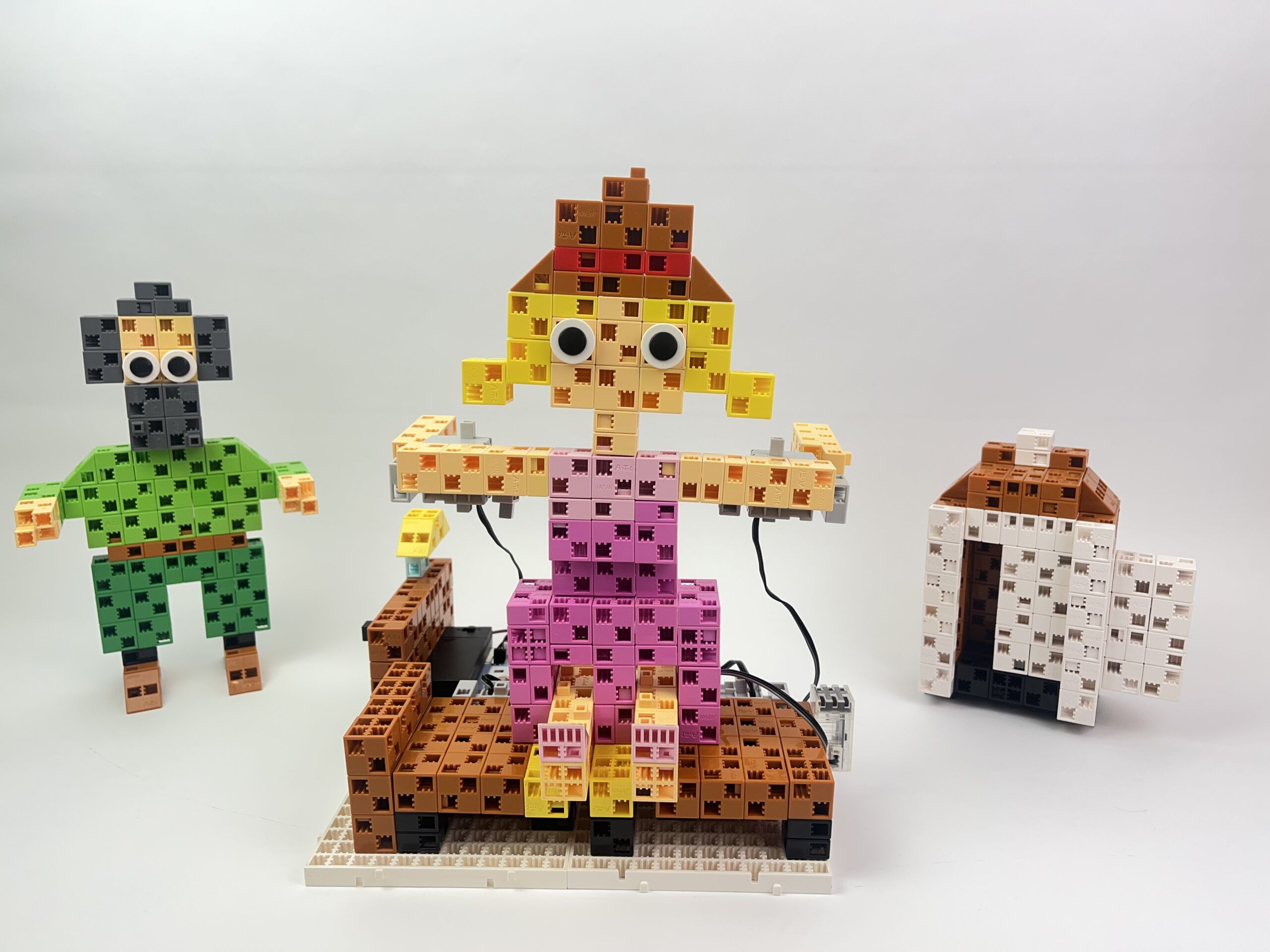

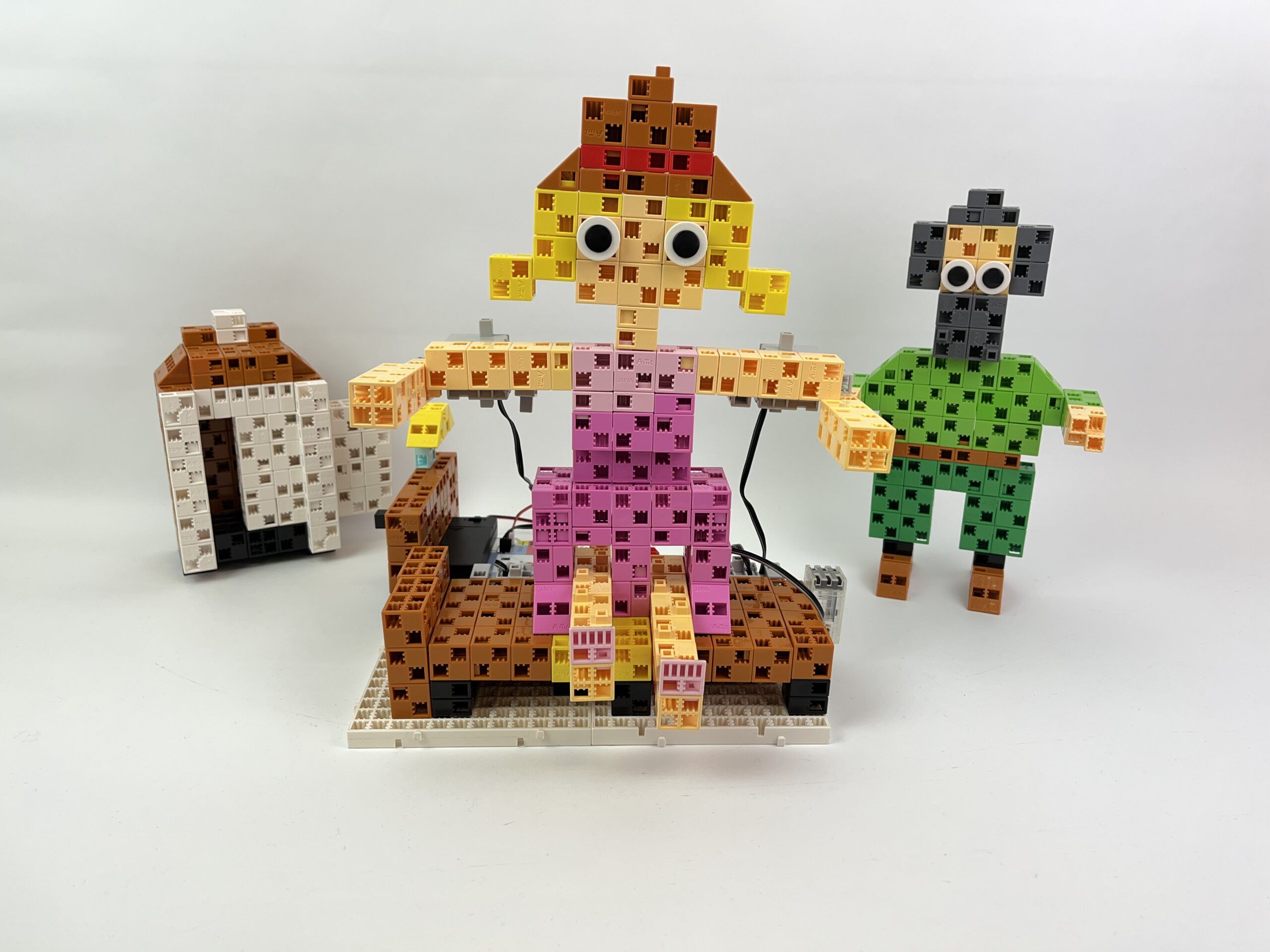

- Building the characters in the scene
- The head and arm can be moved axially, the door can be opened

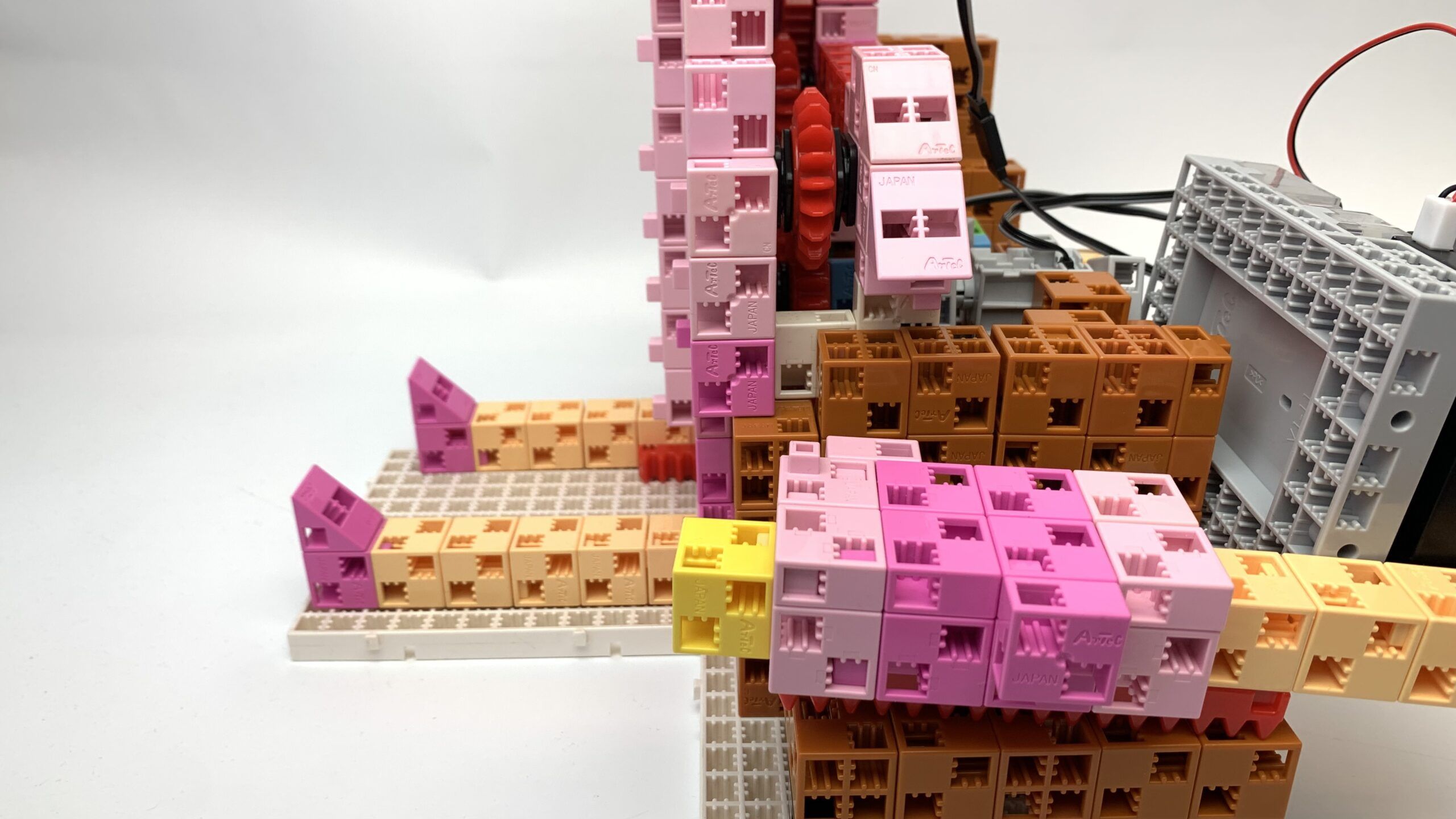

- grandfather’s leg can be moved
P1

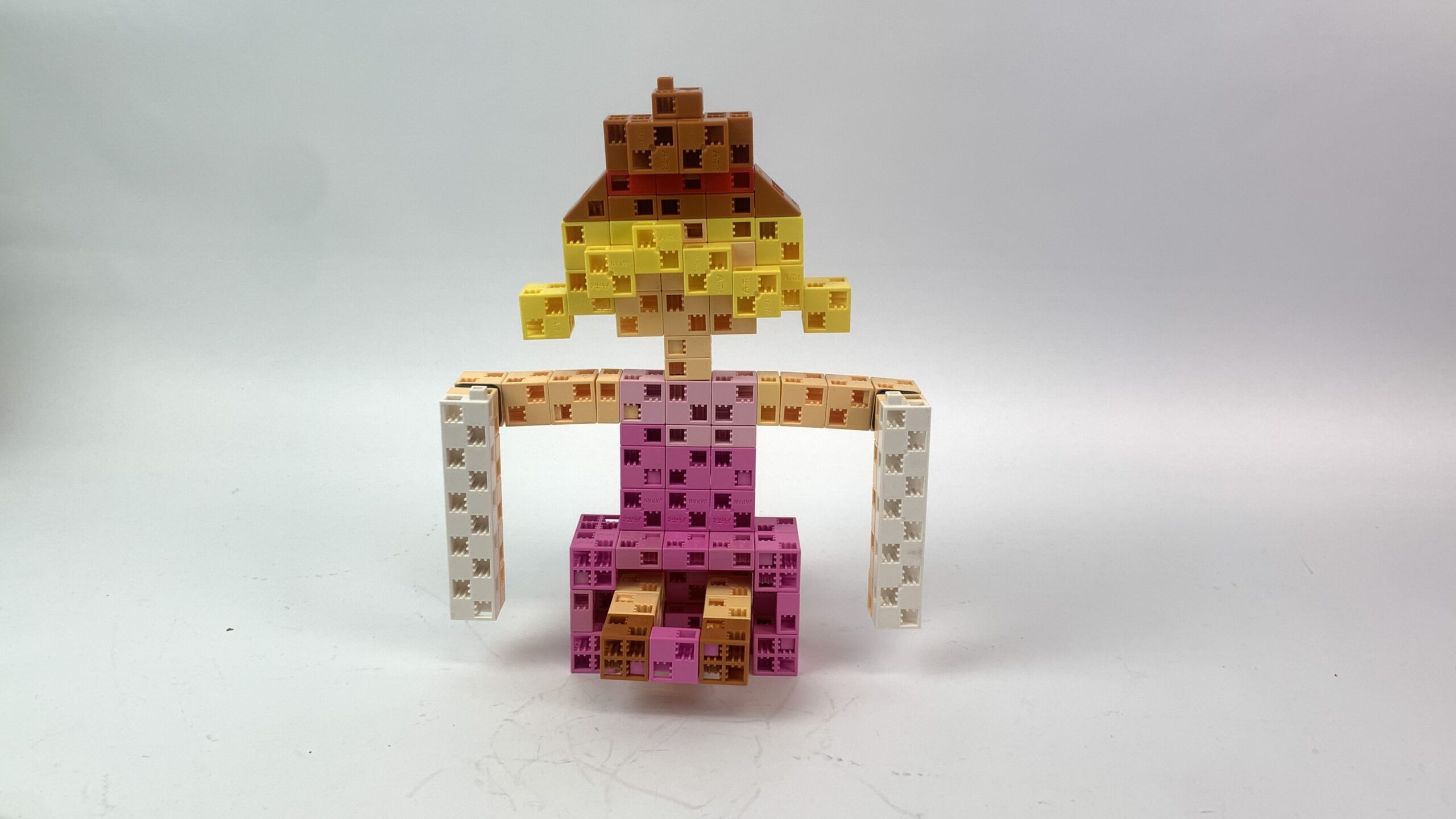

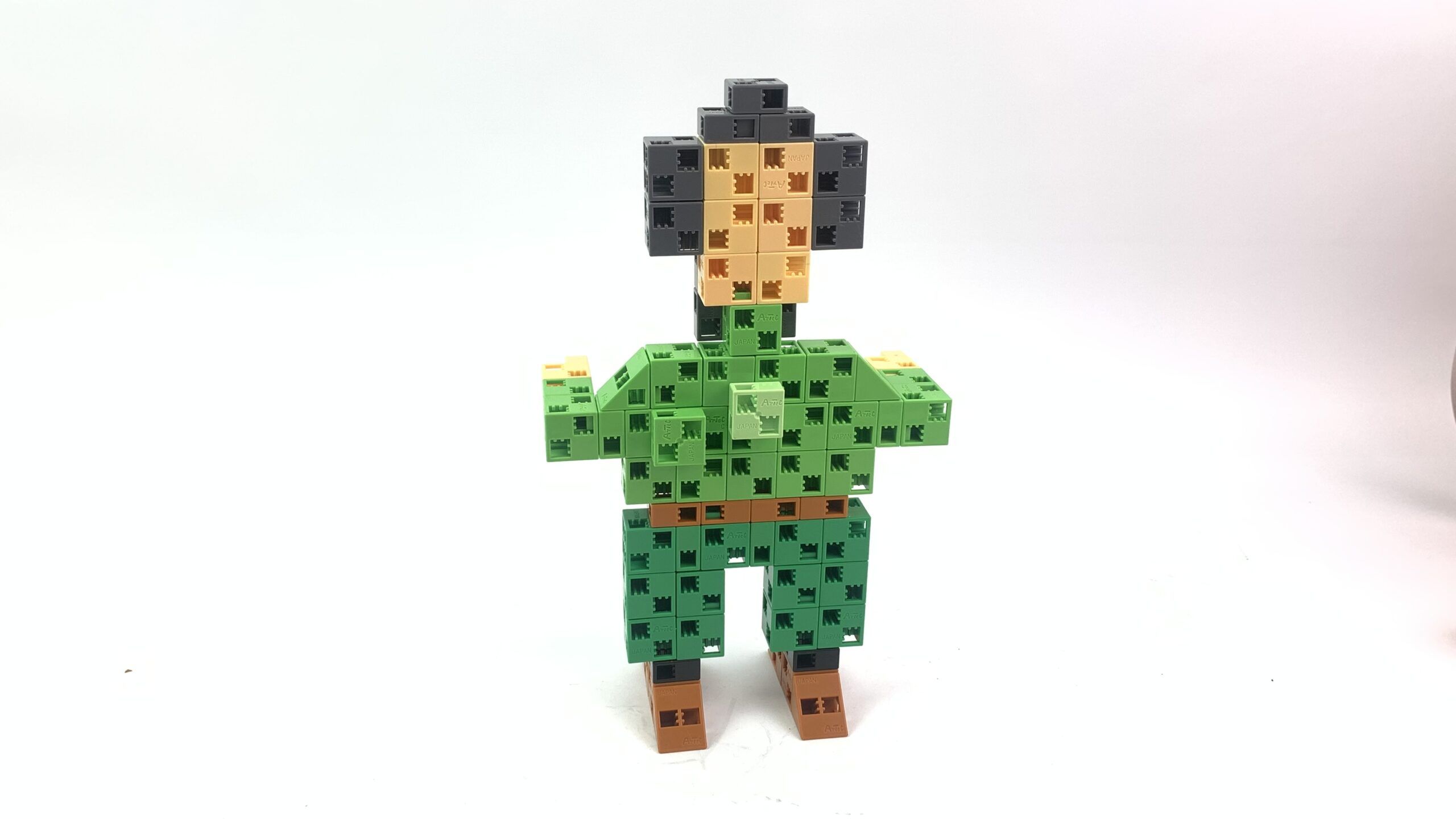

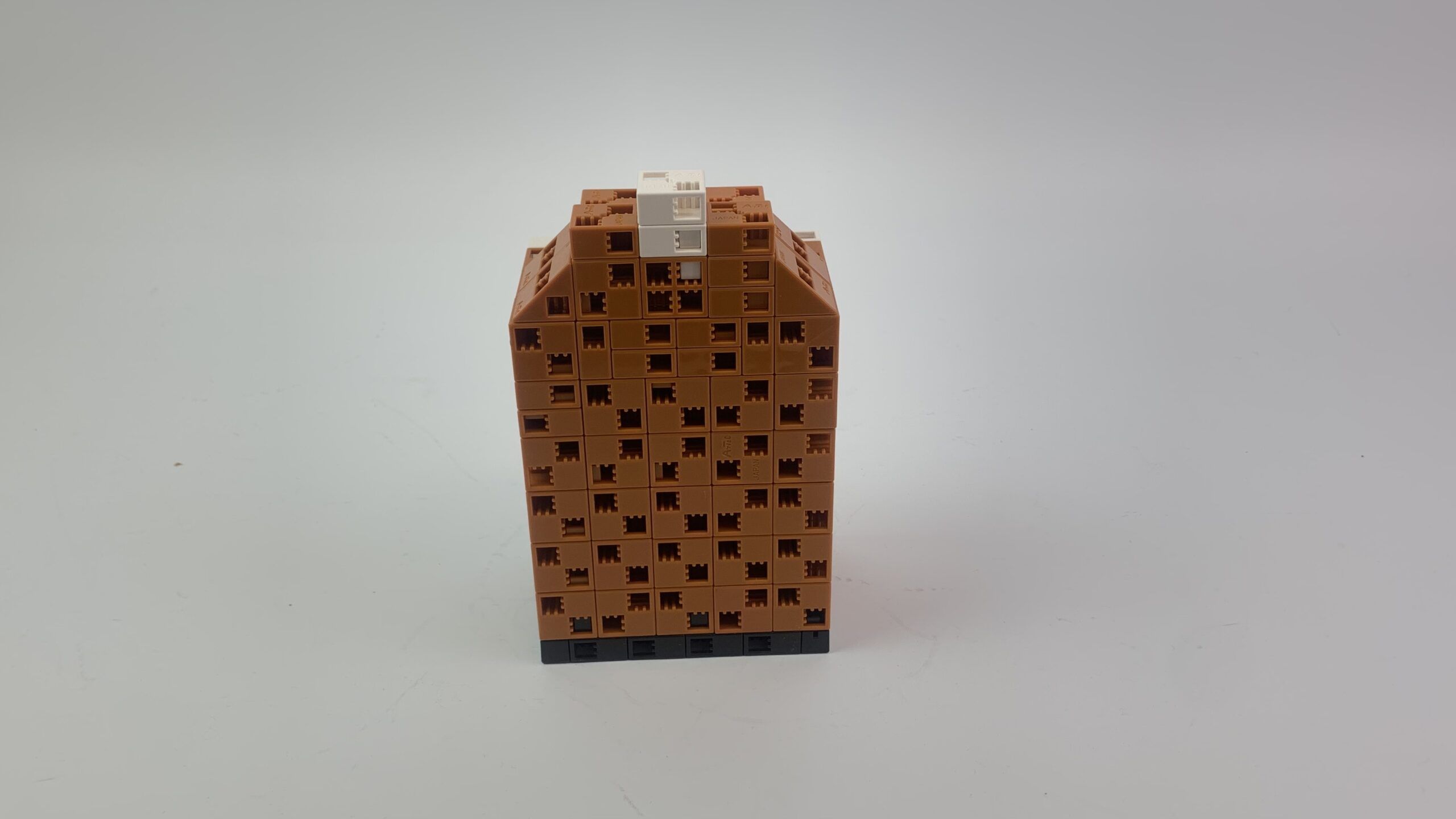

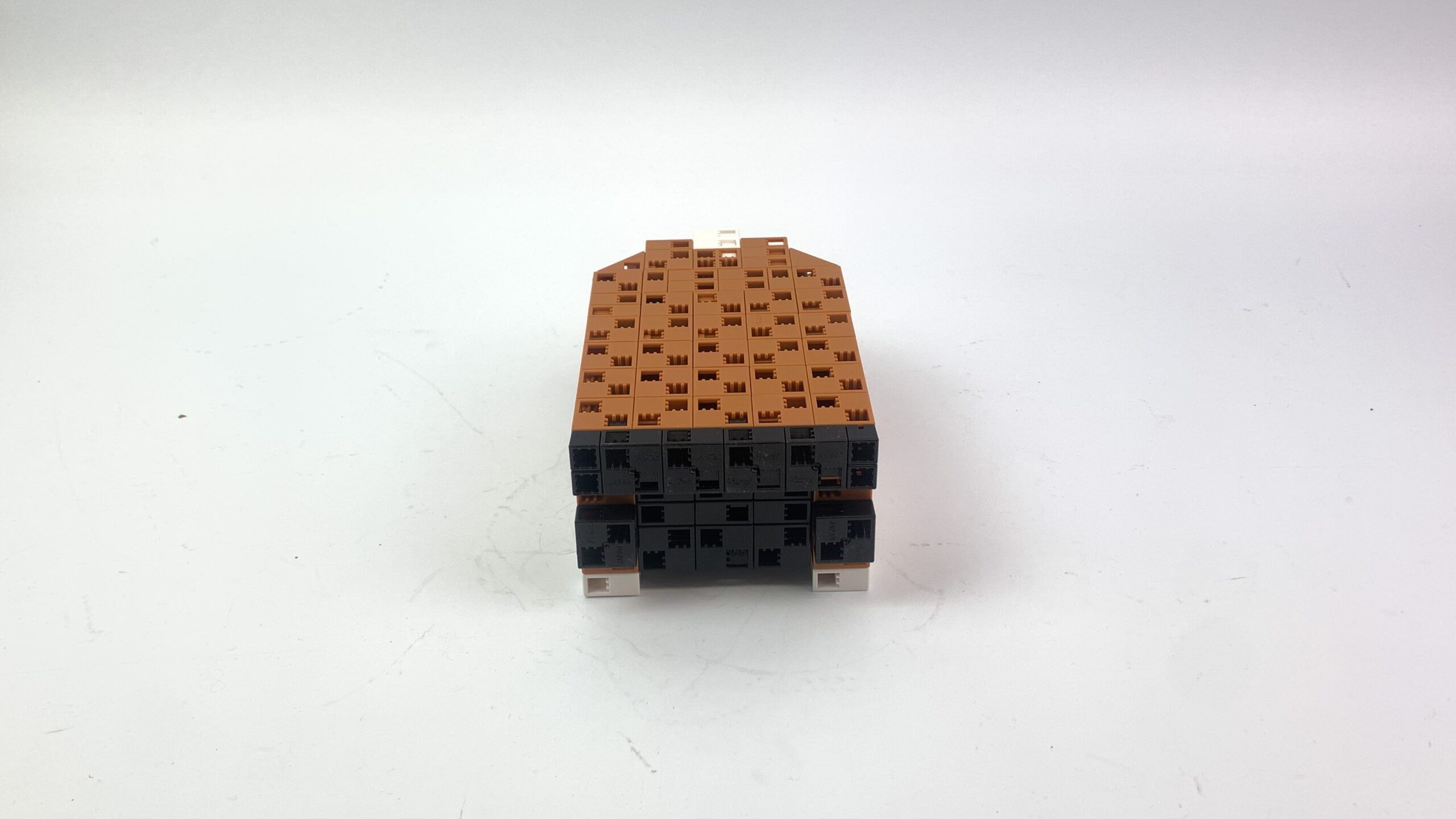

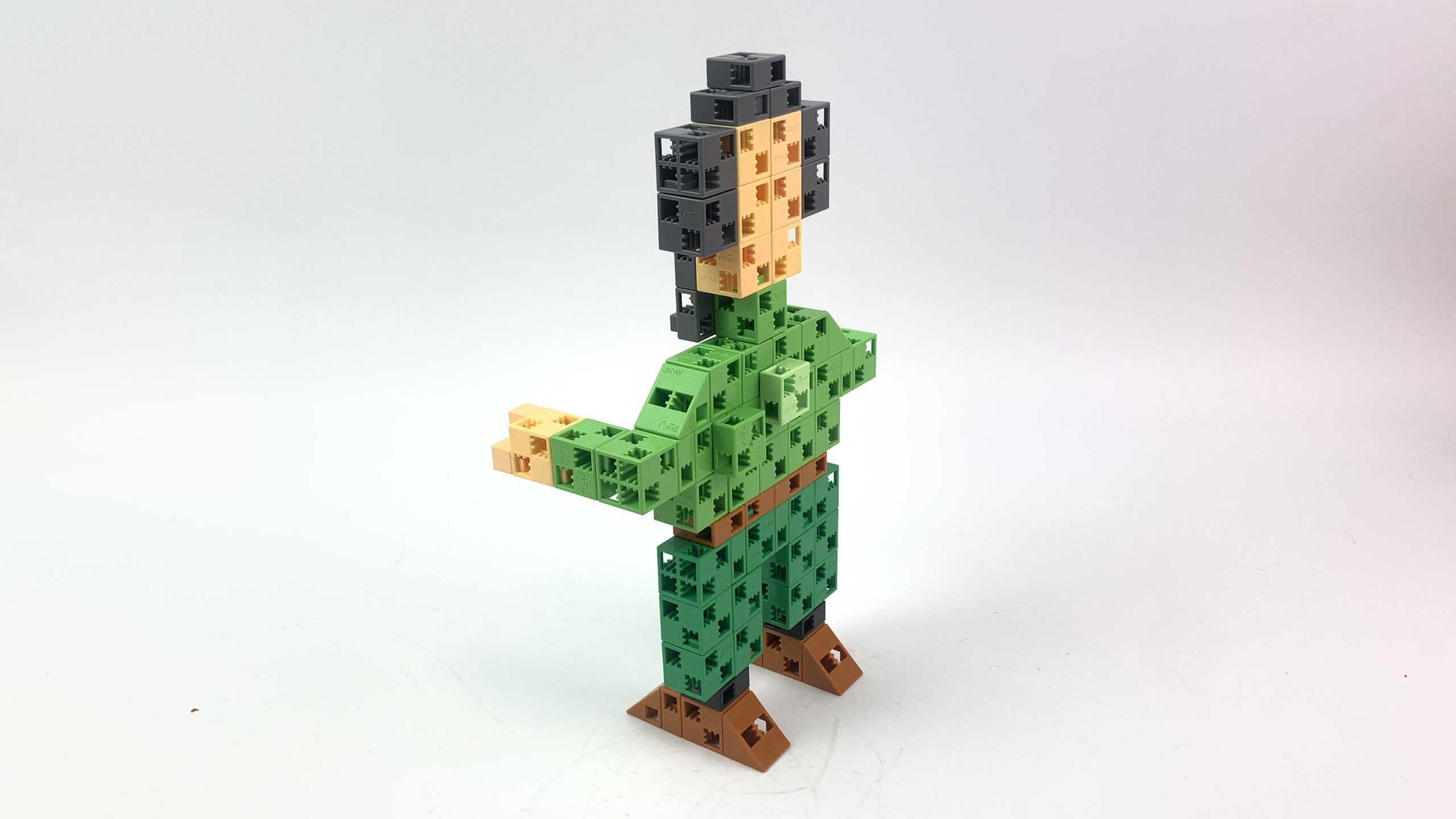

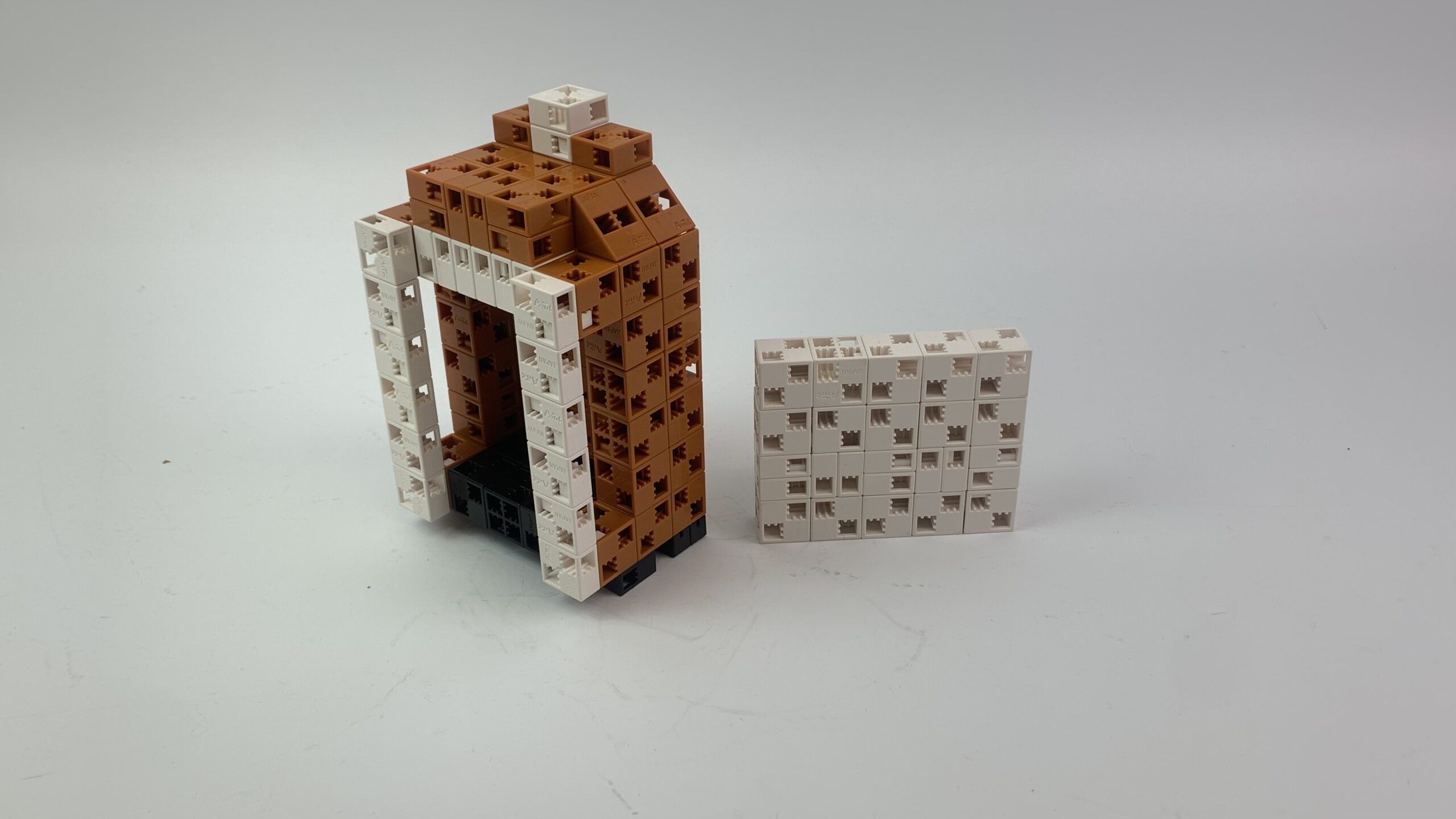

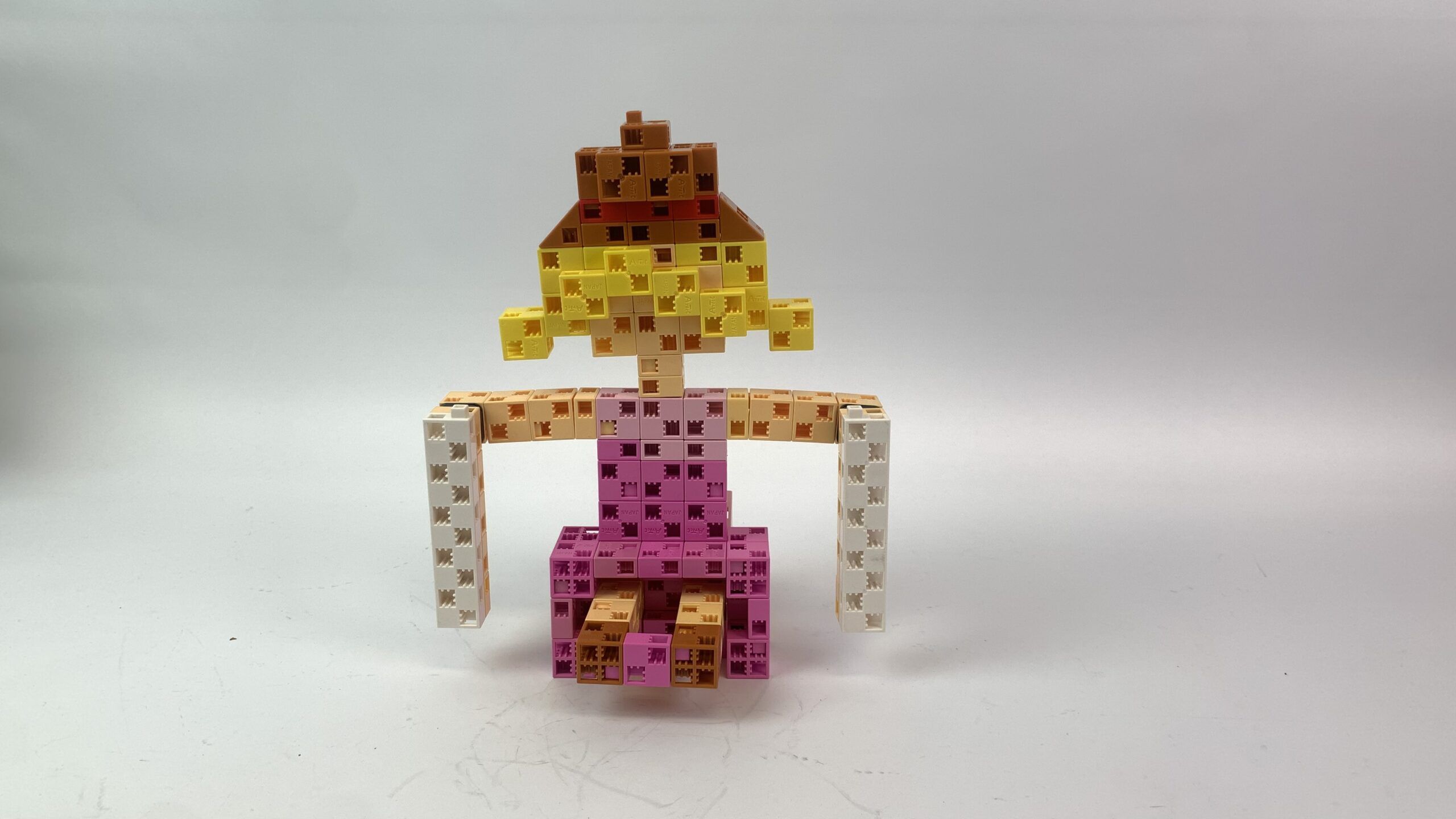

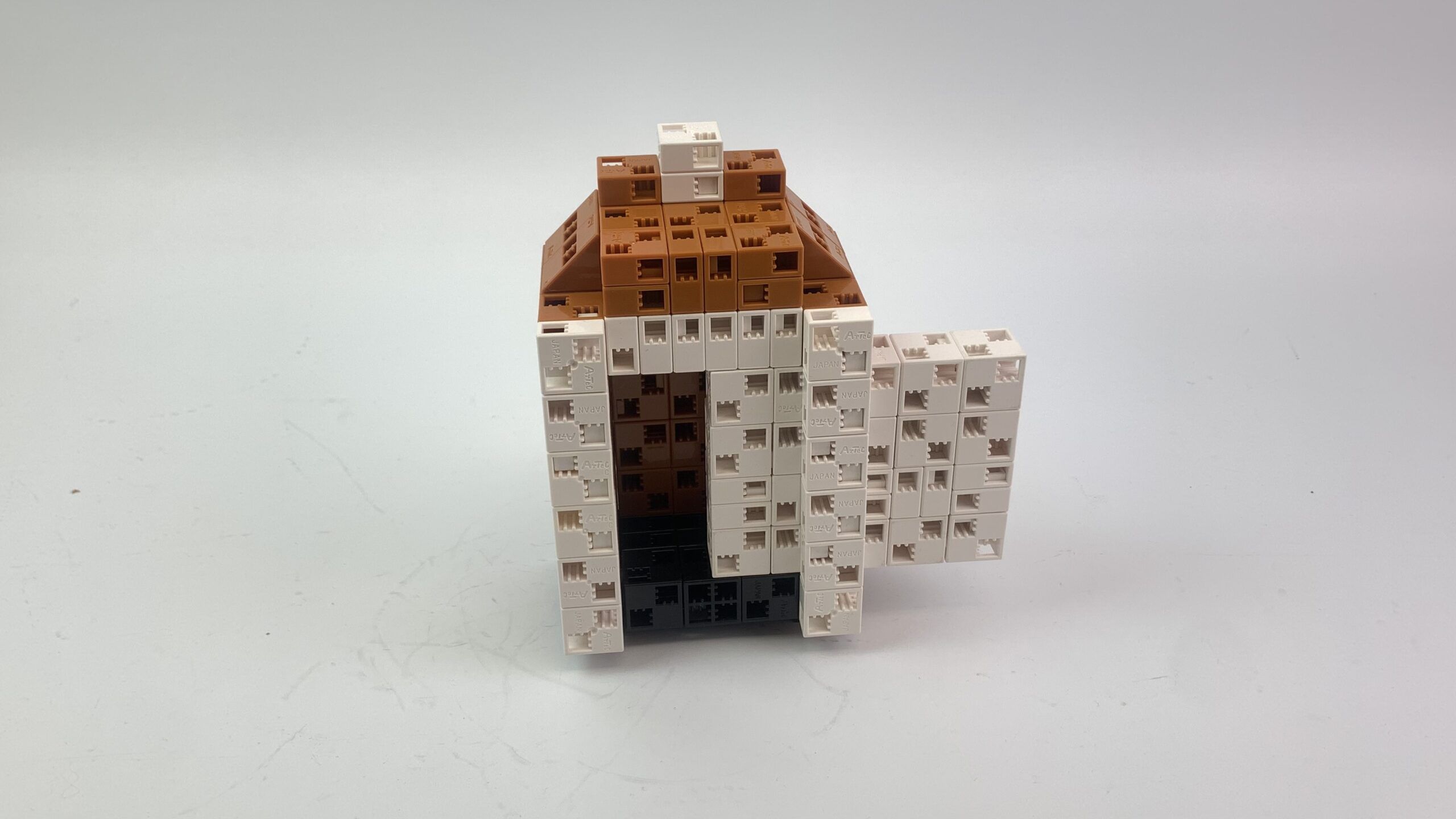

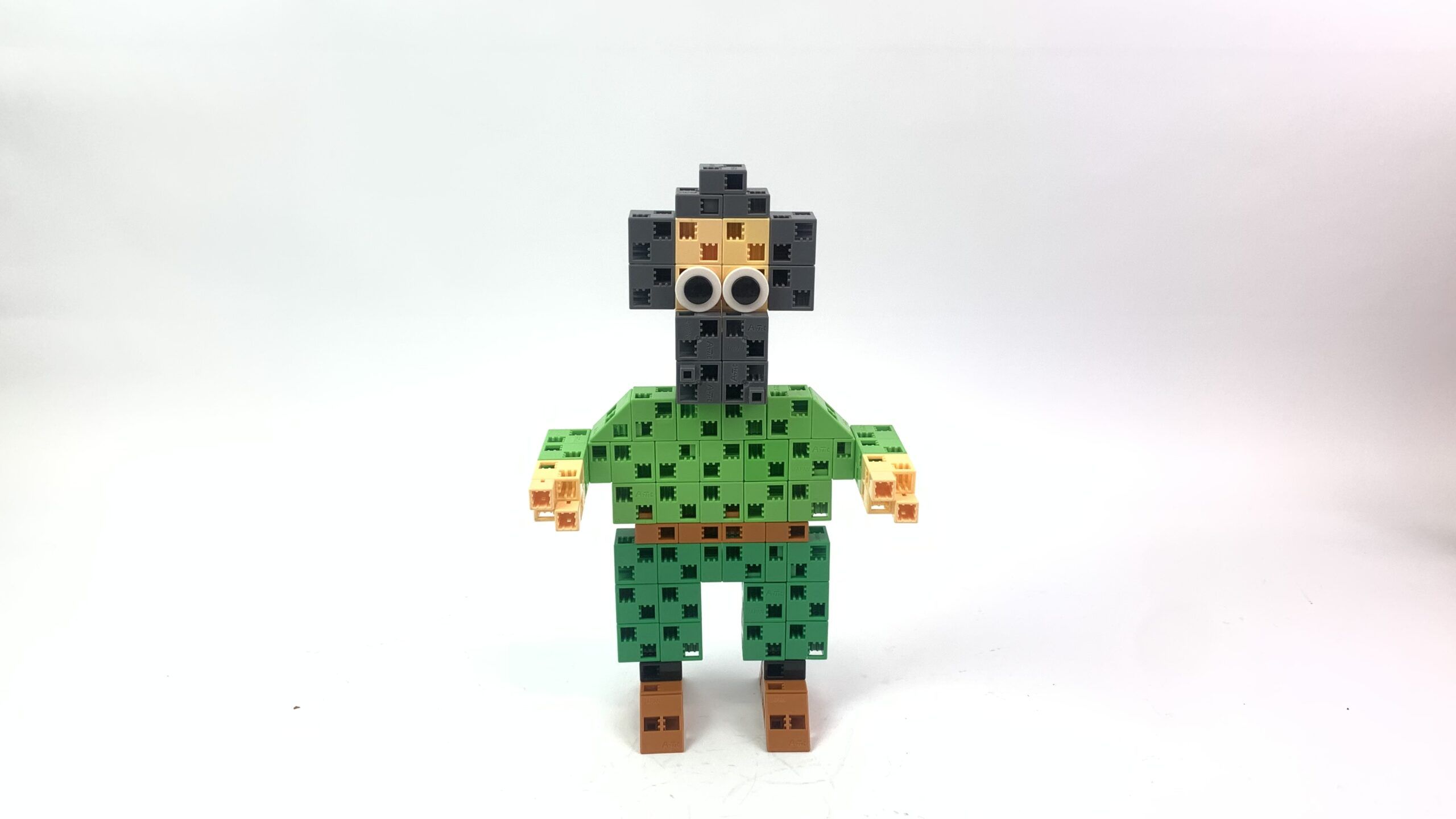

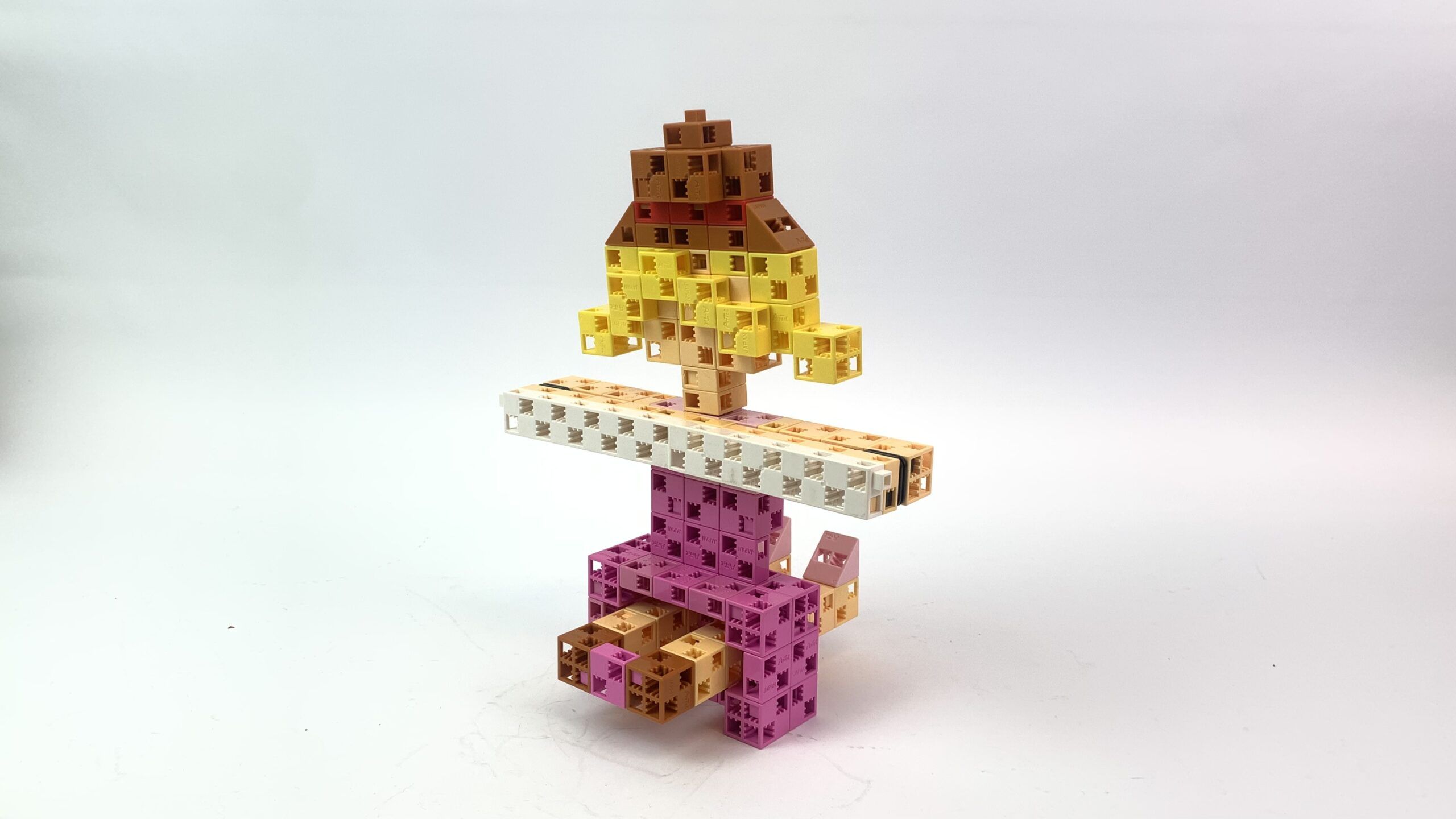

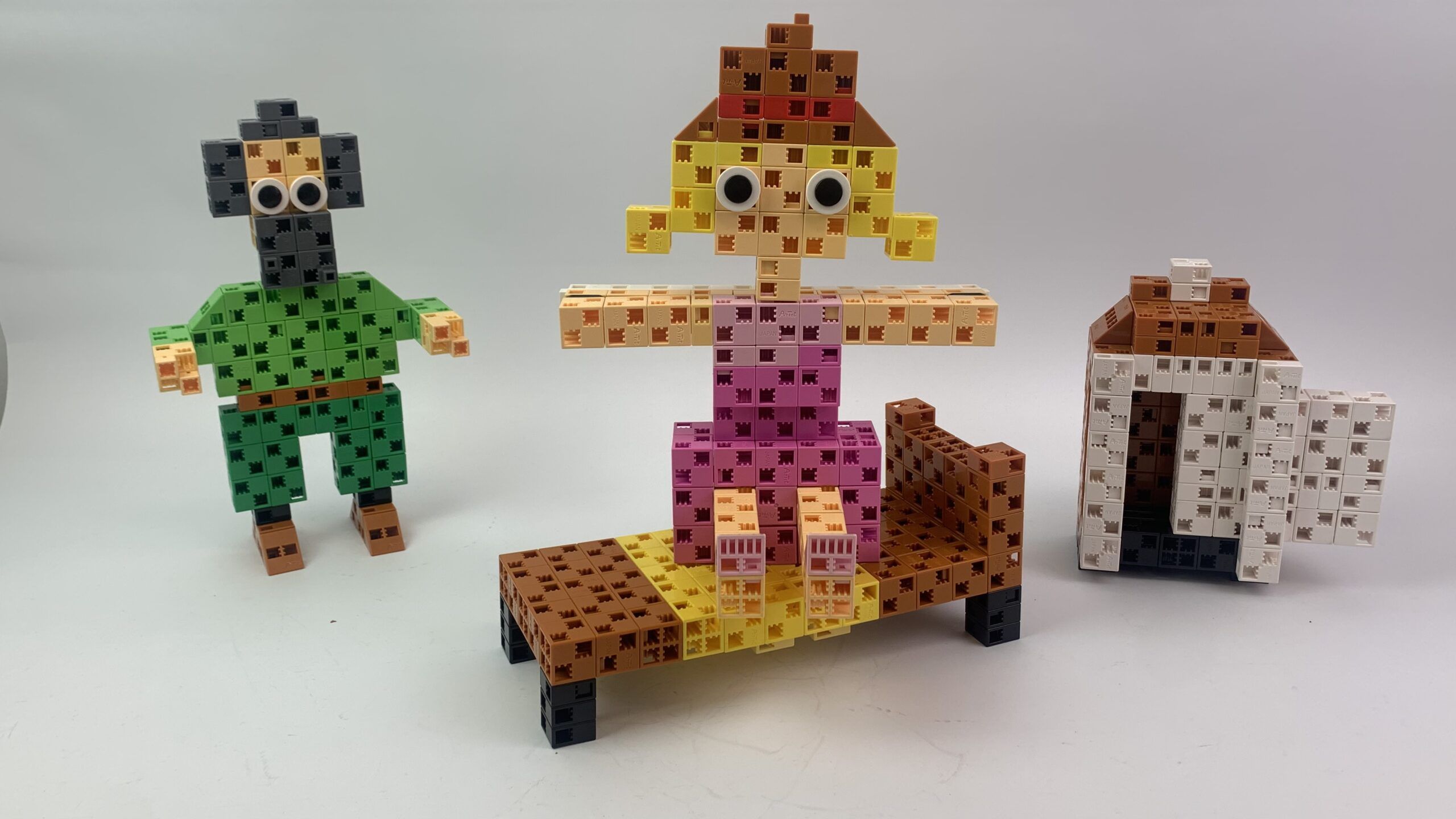

Static figures
P1
Programming level 2
Bobula crying
P2
How to build

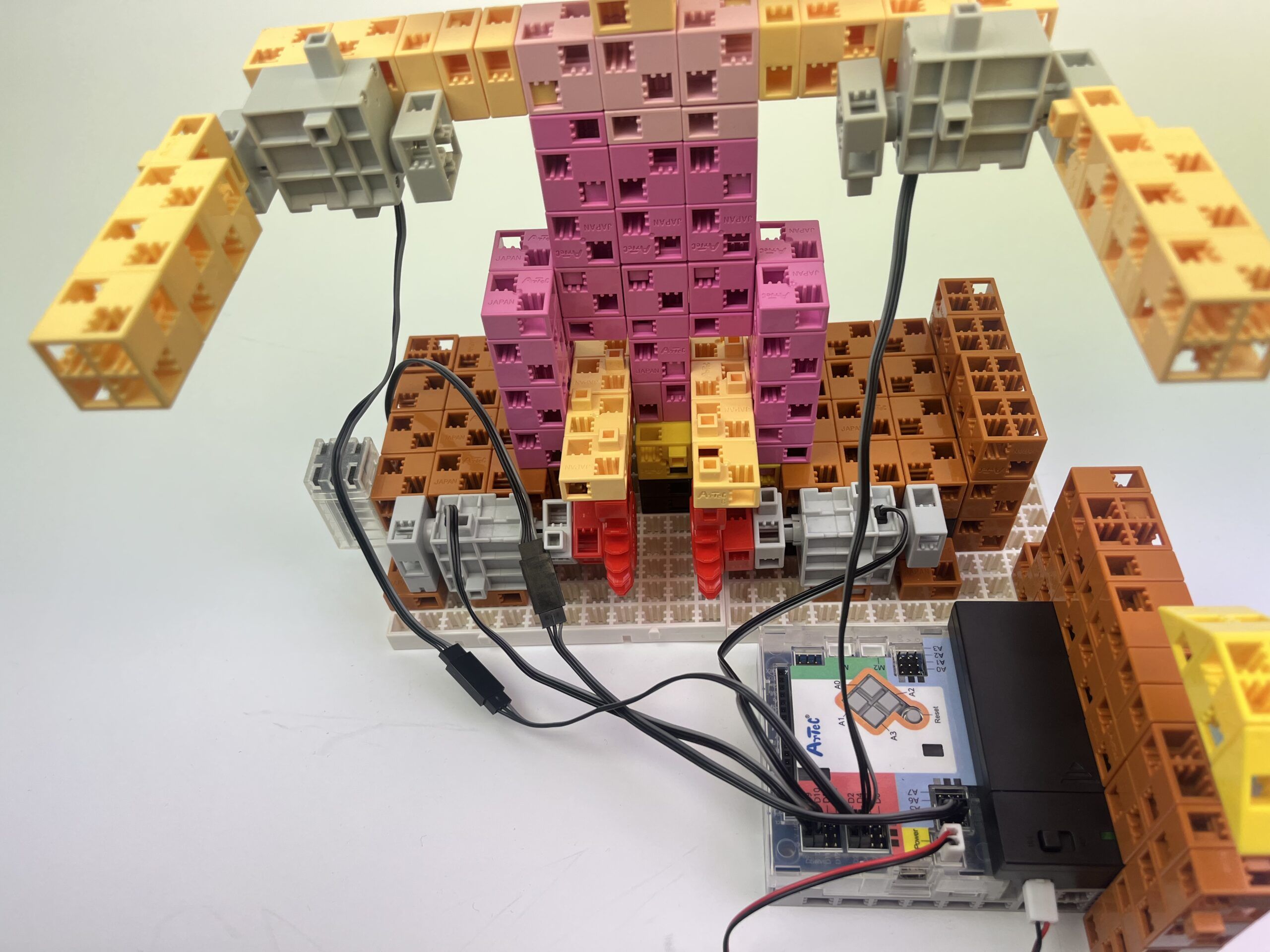

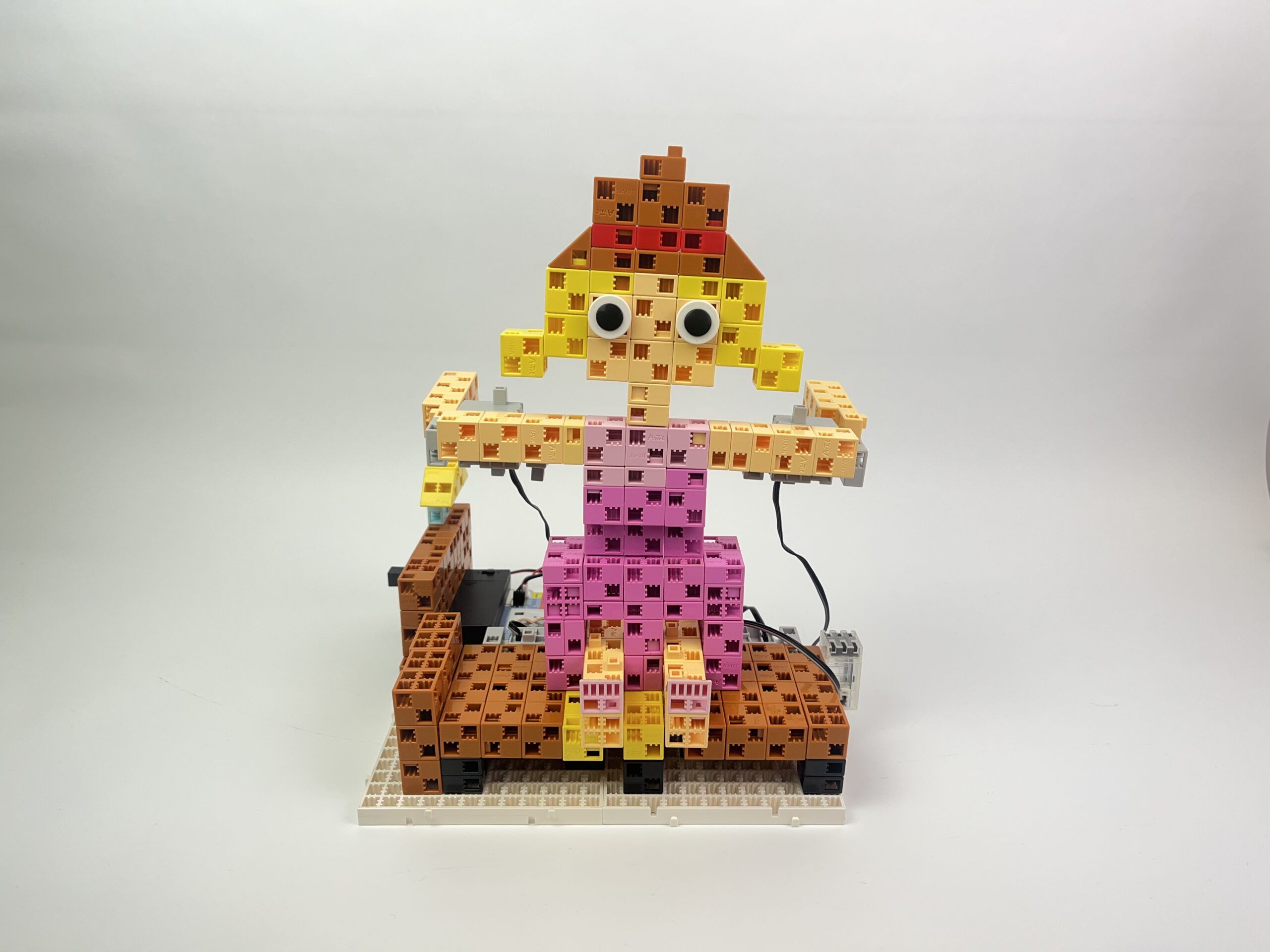

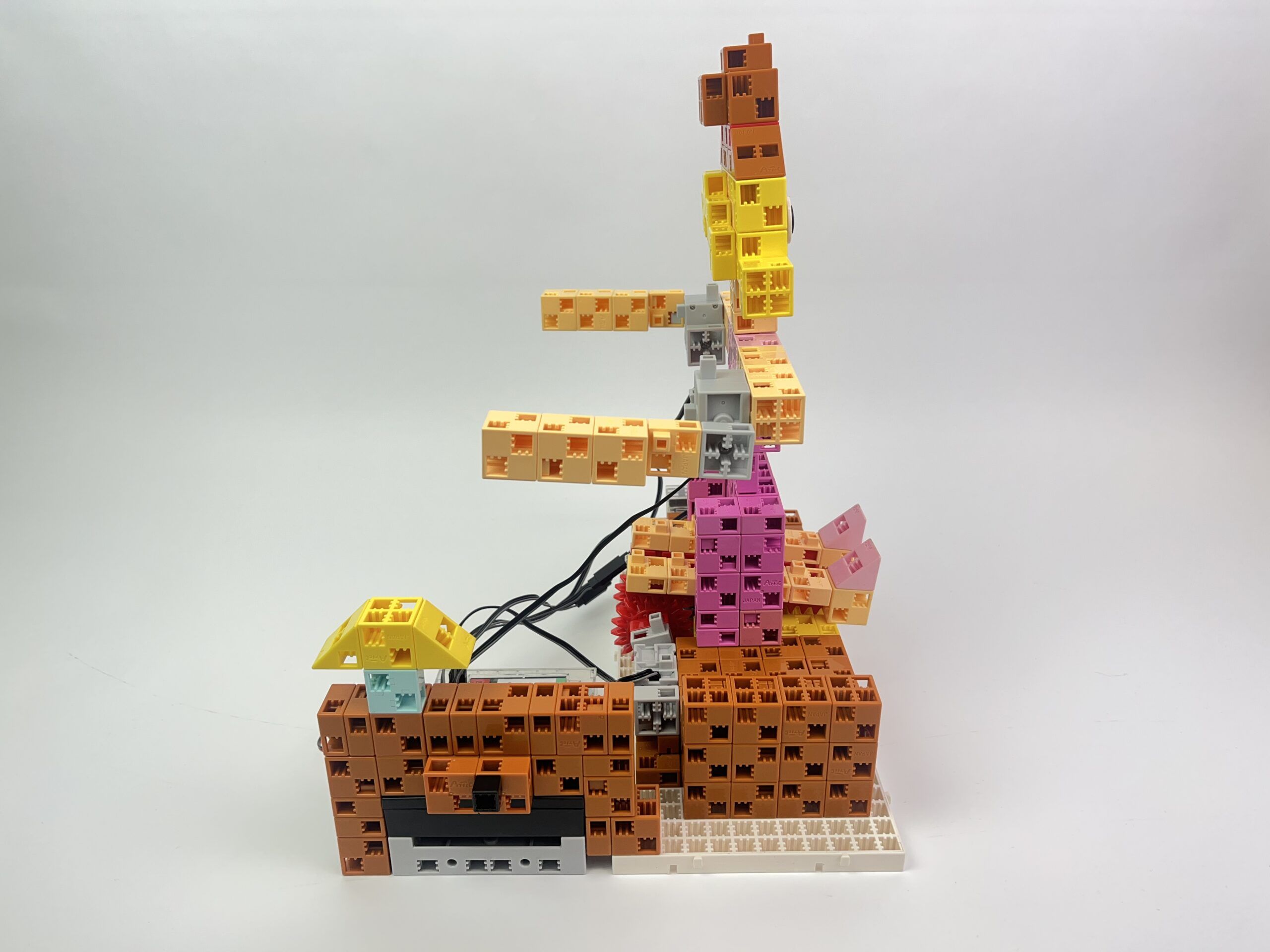

The robots

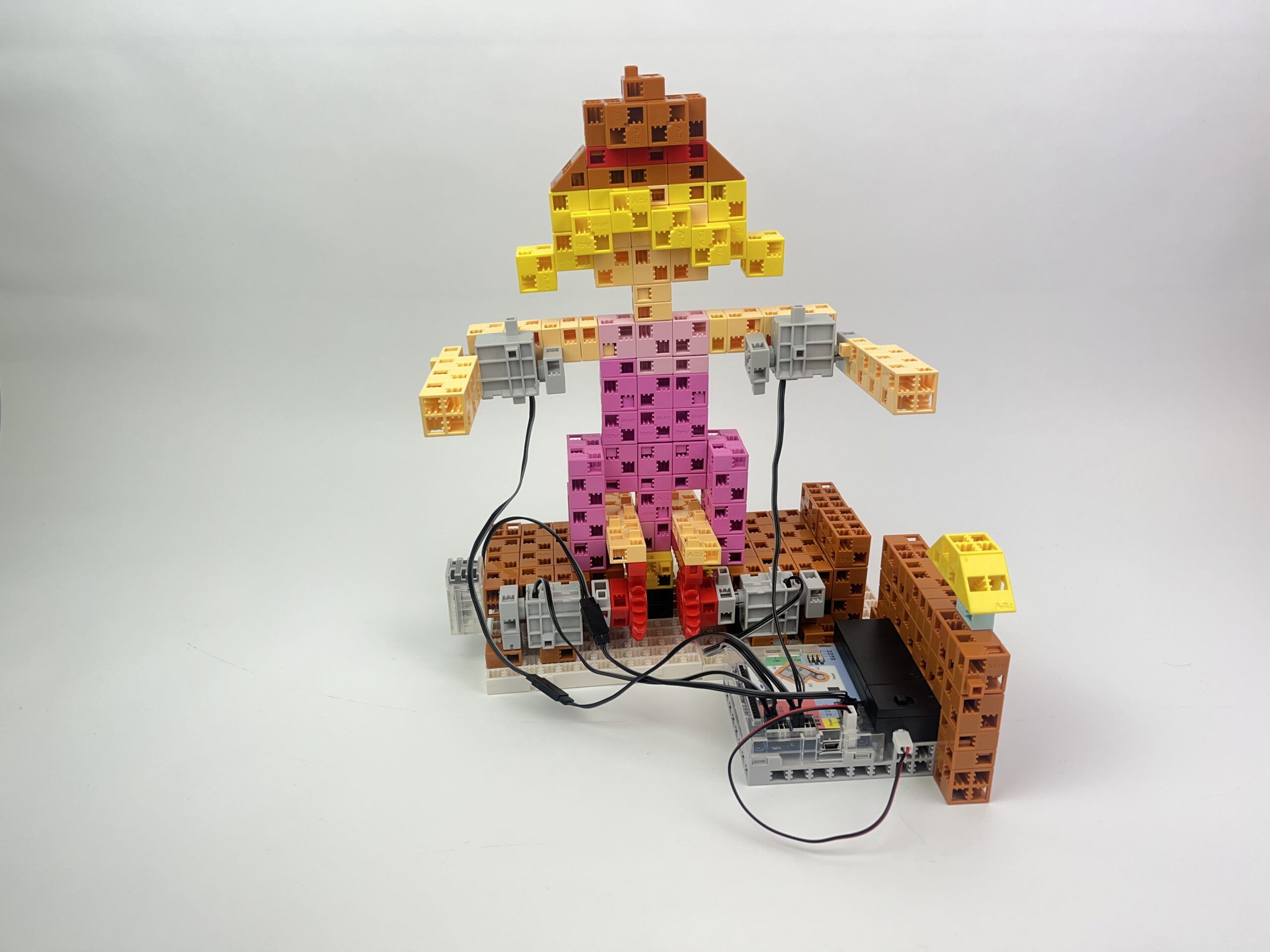

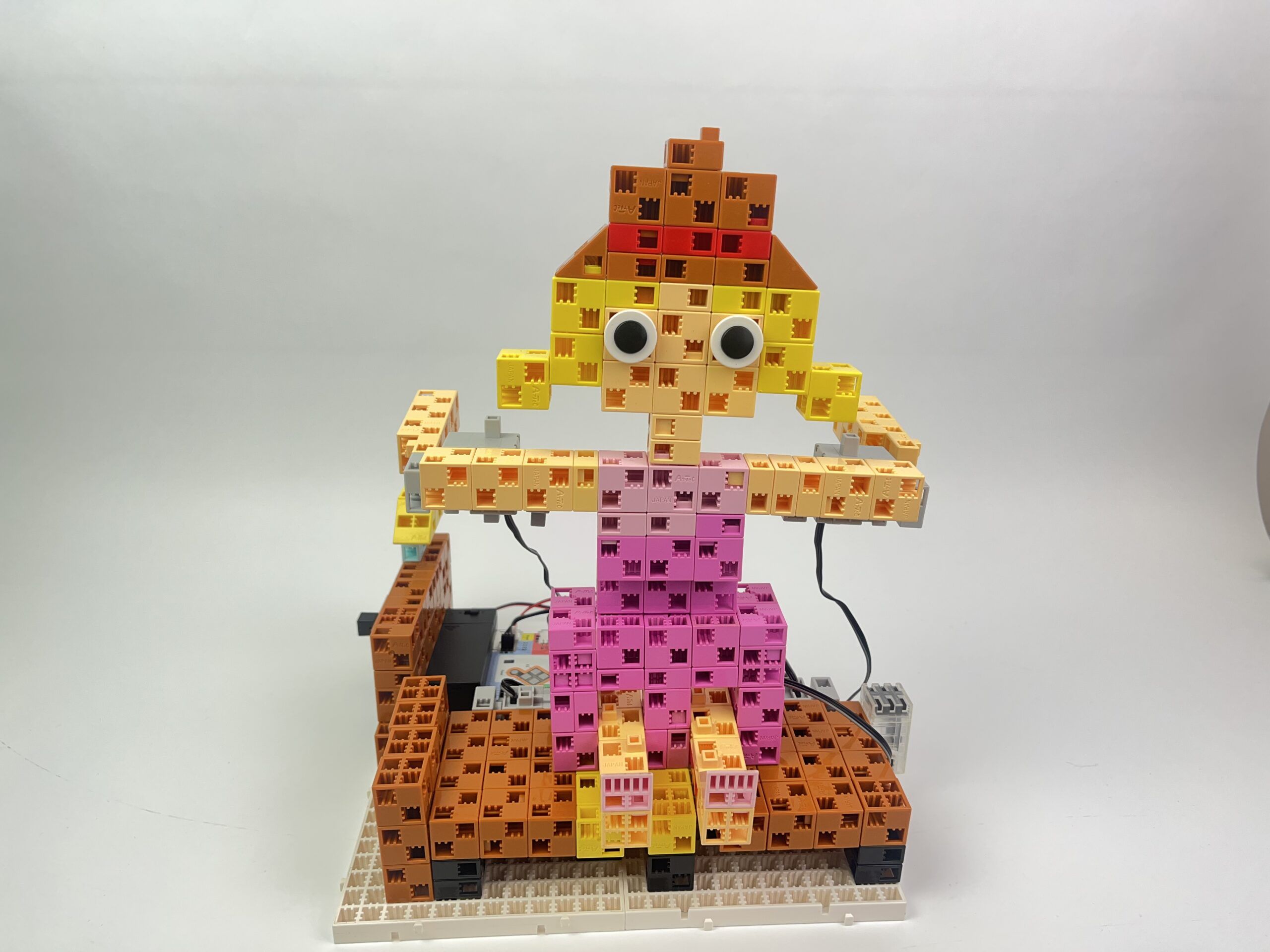

a.) The characters are built in the same way as in P1, but instead of the little girl’s eye, 2 LED lights are used
- Bobula raises his hand
- The LED starts flashing (tearing)
b.) Crying voice
- makes a sound using the Buzzer
P2

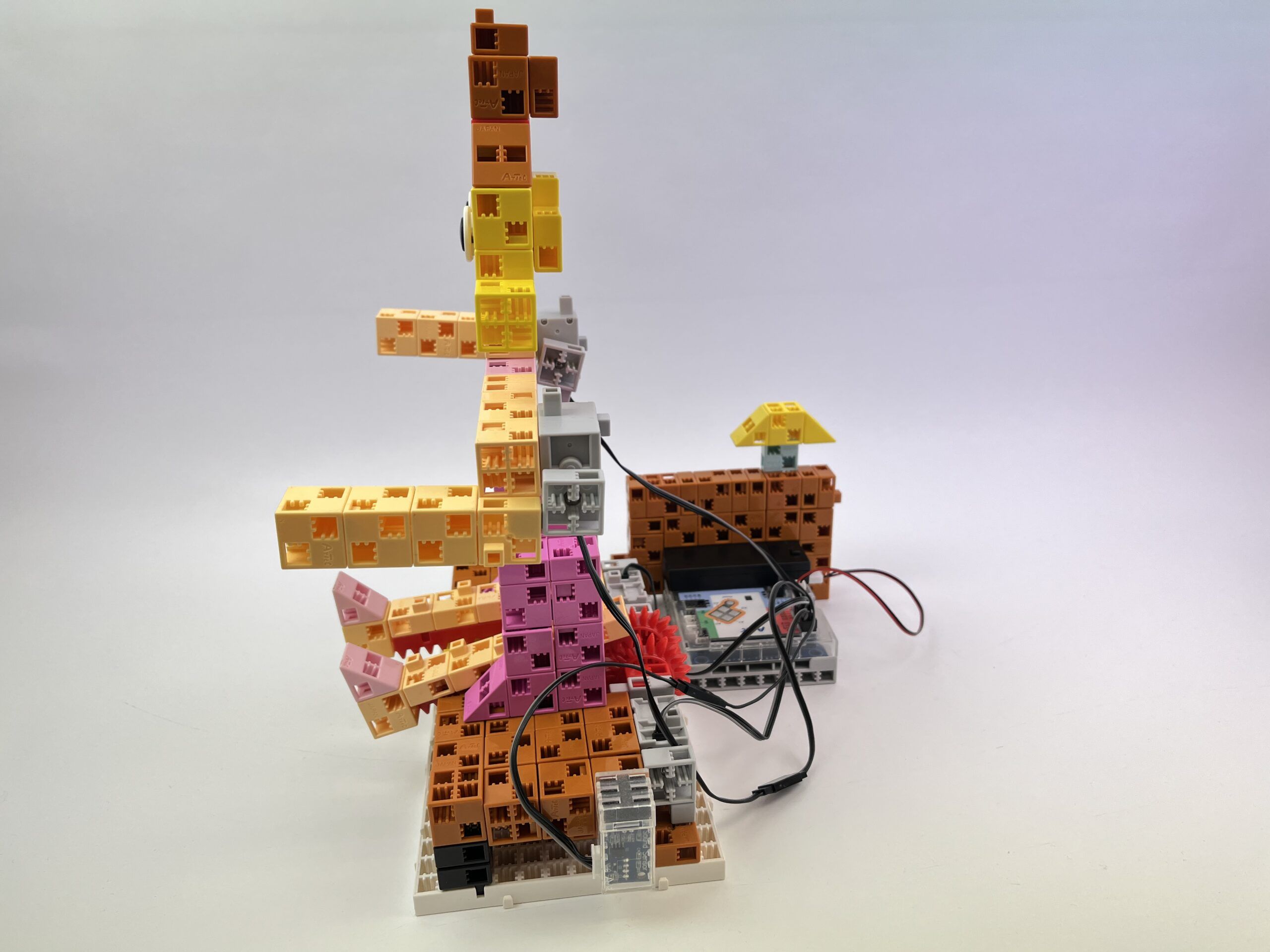

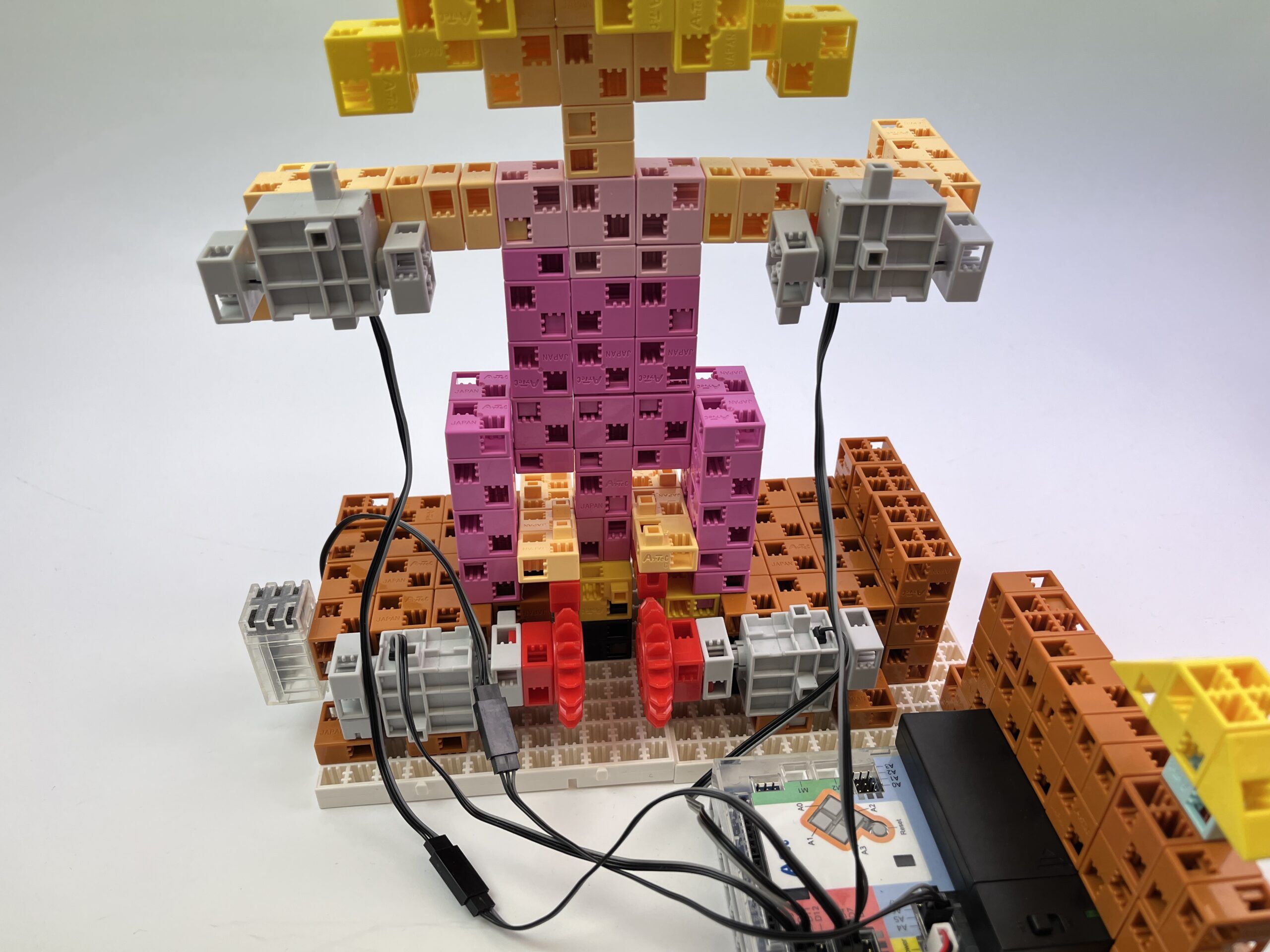

The robots
P2
P2
Programming level 3
Bobula enters the clean room
P3
How to build

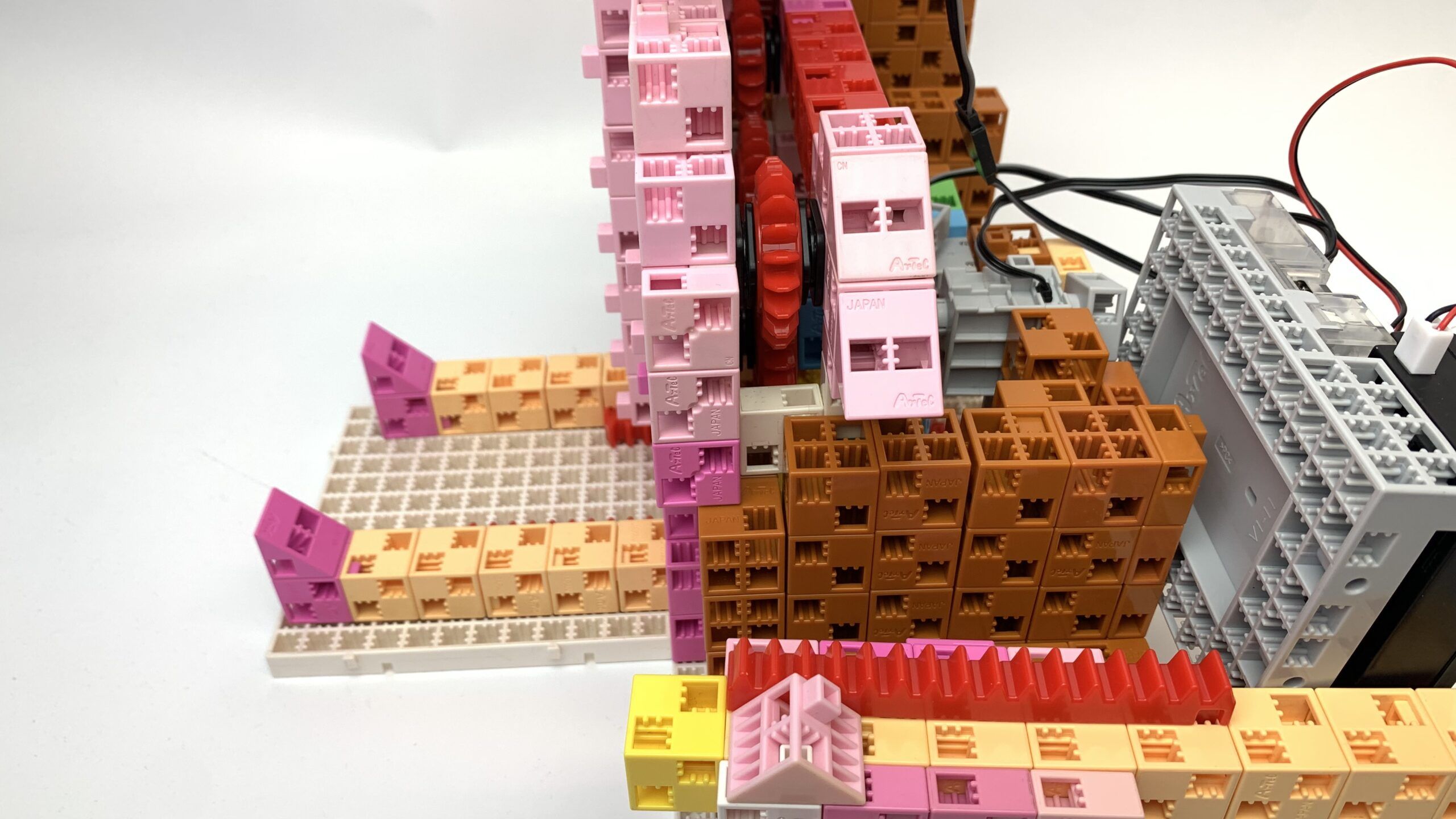

The robots
- Building a stepping robot
- grandpa’s feet move with 2 servo motors
- Bobula is also a walking robot
- they move at the same time
P3
The robots
P3
P3
Programming level 4
Bobula receives a gift
P4
How to build
The robots
a.) Both actors are built on a robot base
- The robot can now be controlled with 4 touch sensors
- We stop it in front of the locker
b.) I The robot uses IR to detect the obstacle and stops
- place a Buzzer on the cabinet (the door squeaks when it opens)
- when the door opens grandpa and Bobula turn around and leave the room

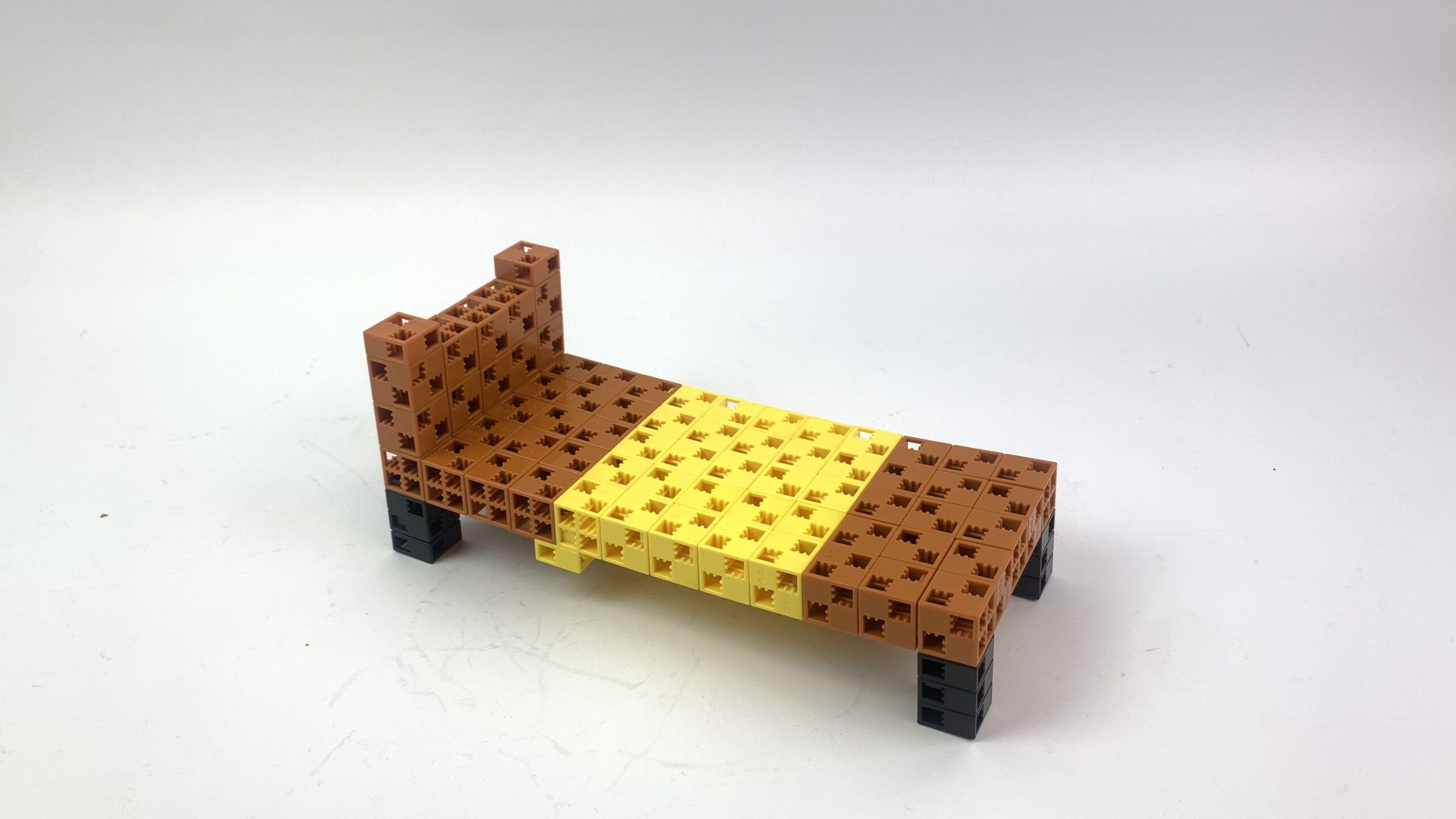

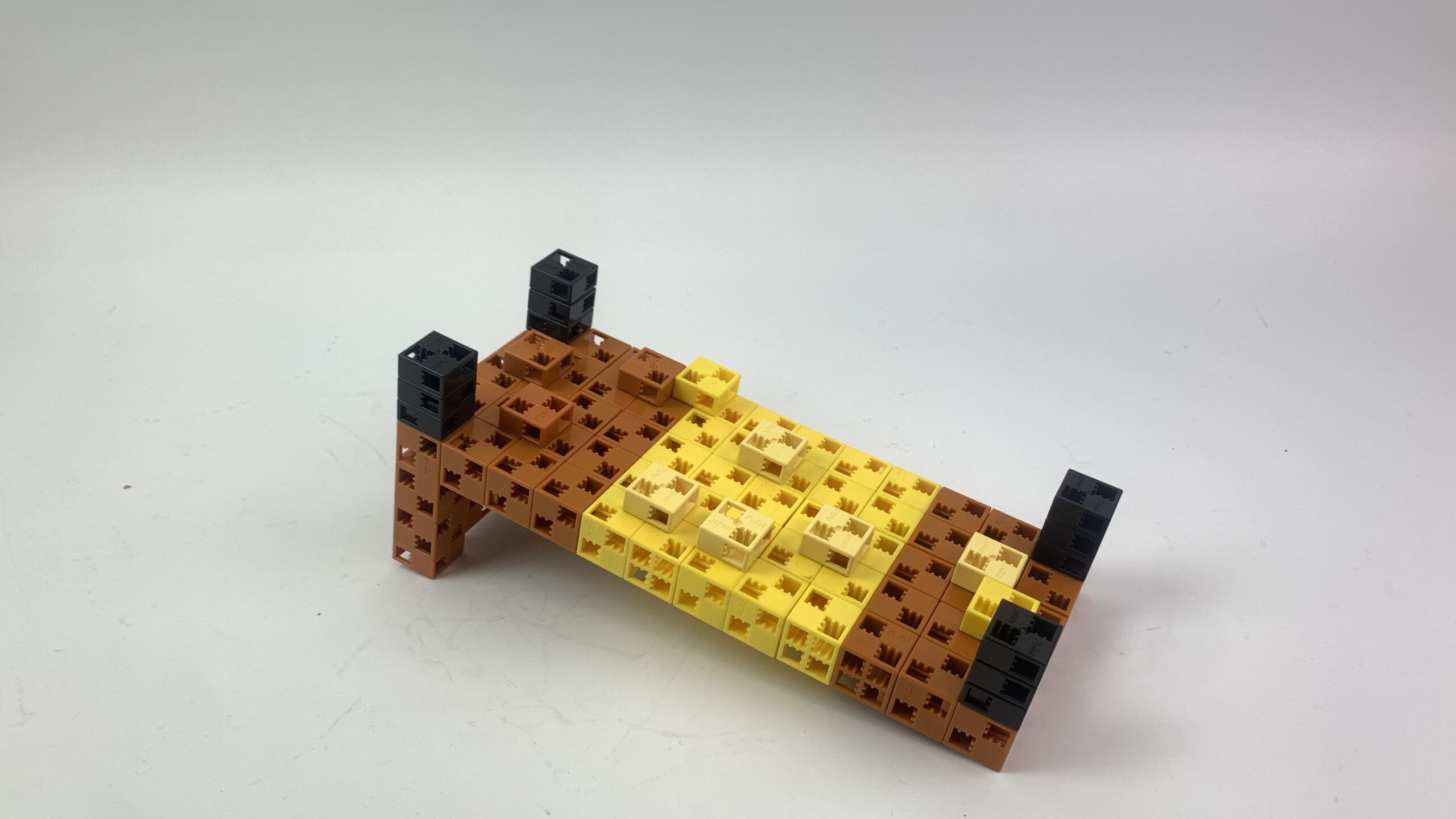

c.) Bobula in bed
- eye closes (LED goes out), grandfather’s mouth moves with servomotor (talks to grandchild)
P4
The robots a)
