Luise and Lotti
Programming level 1
Luise or Lotti
P1
How to build
Build the characters

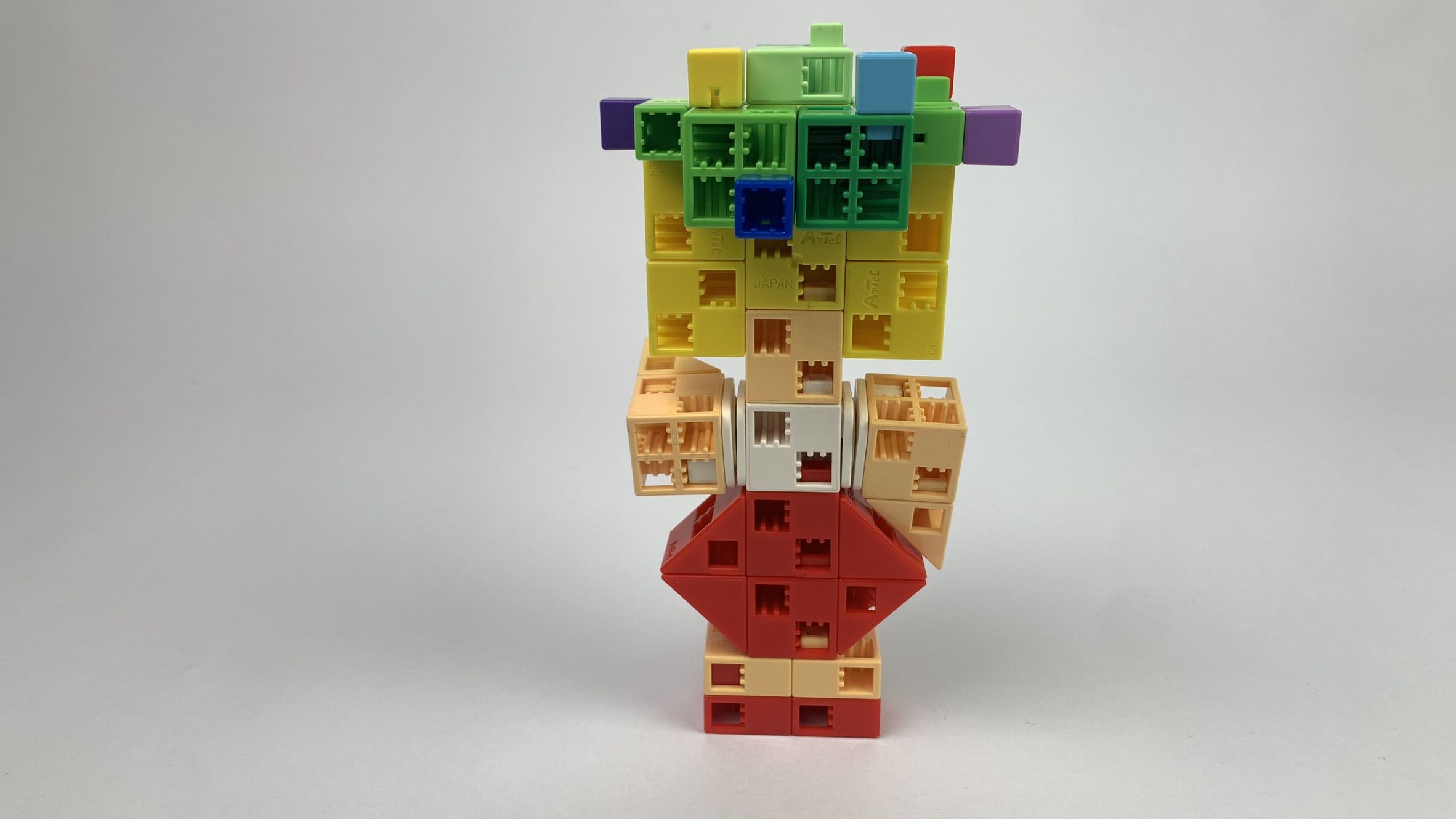

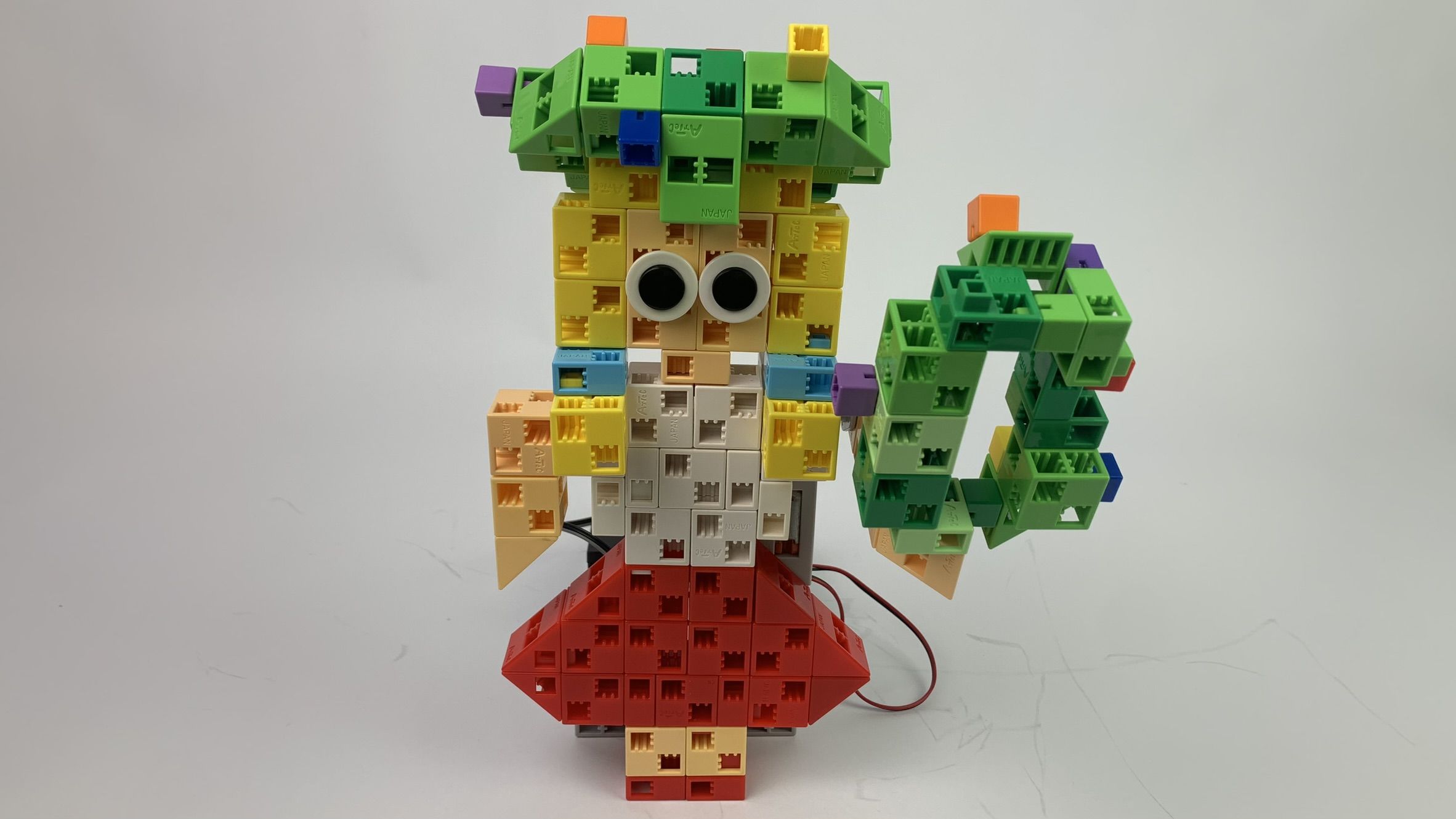

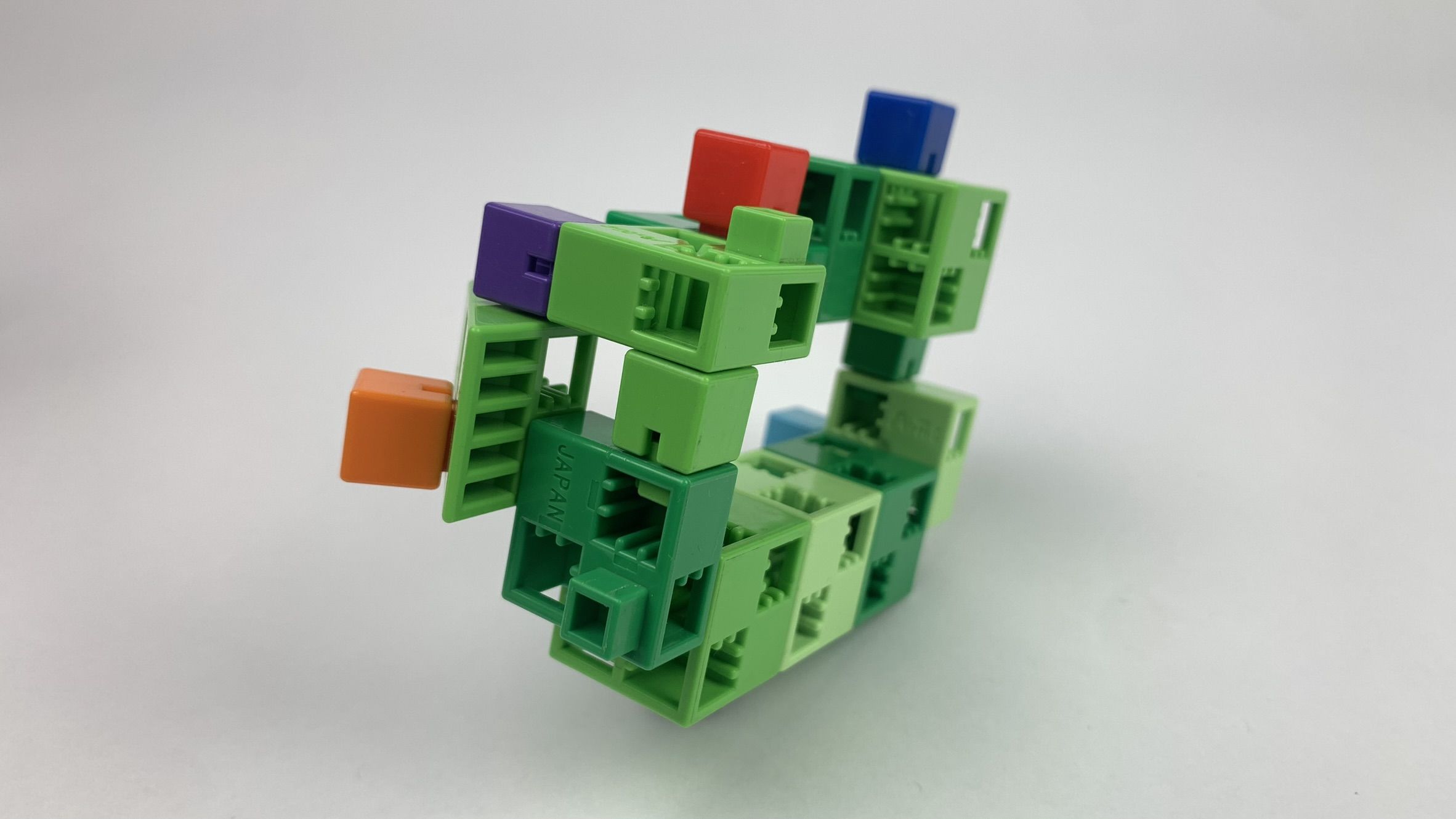

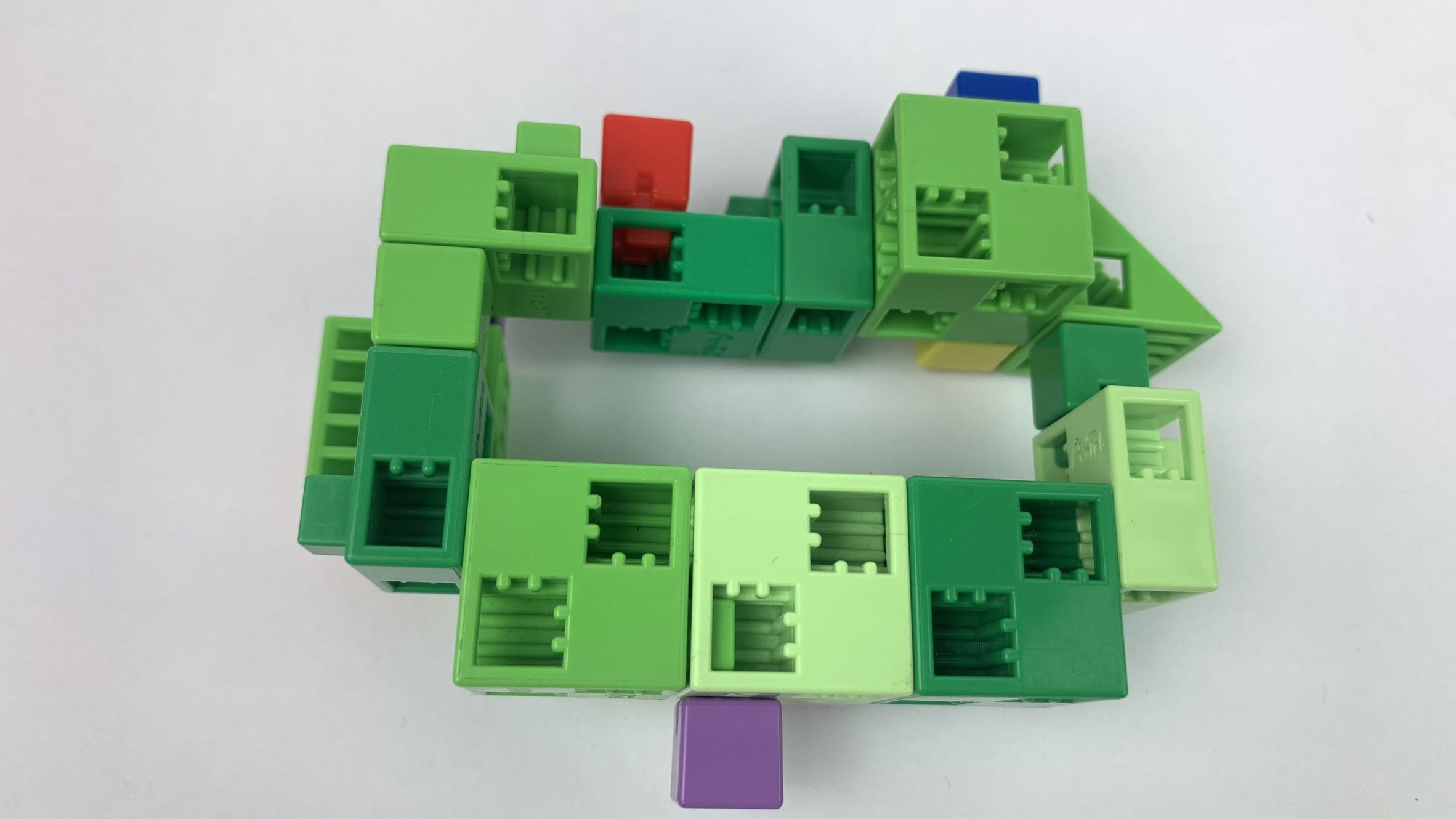

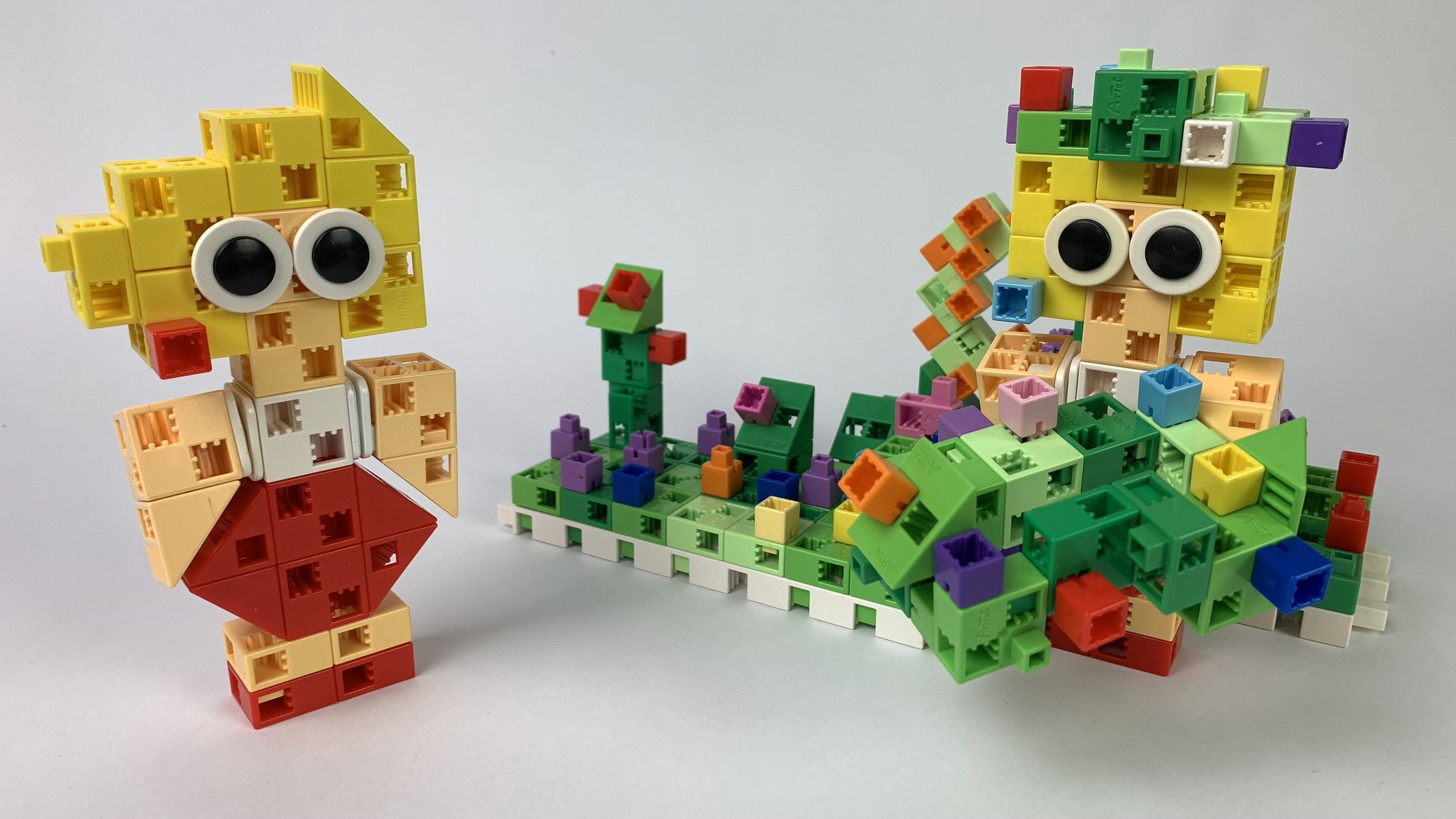

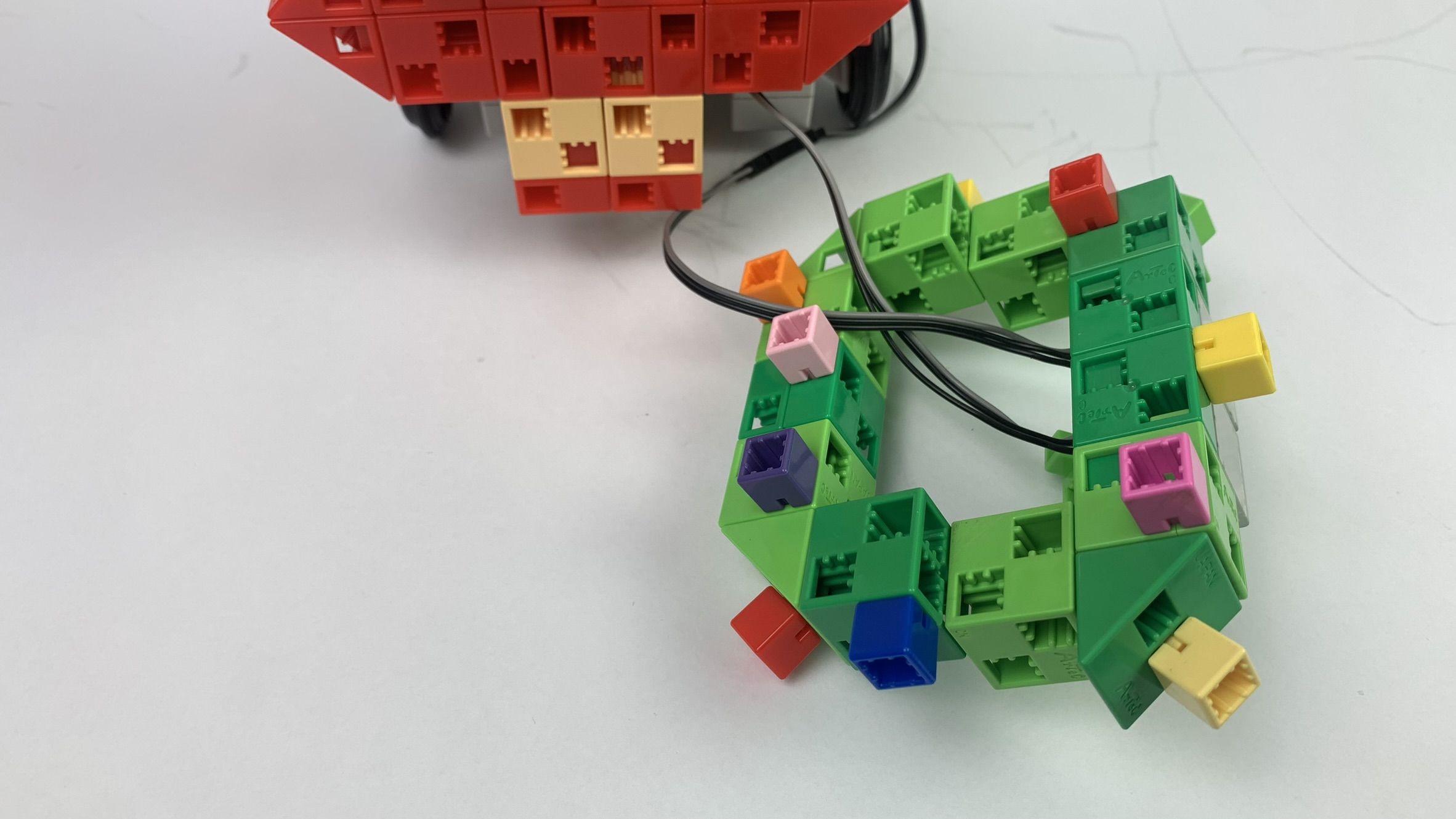

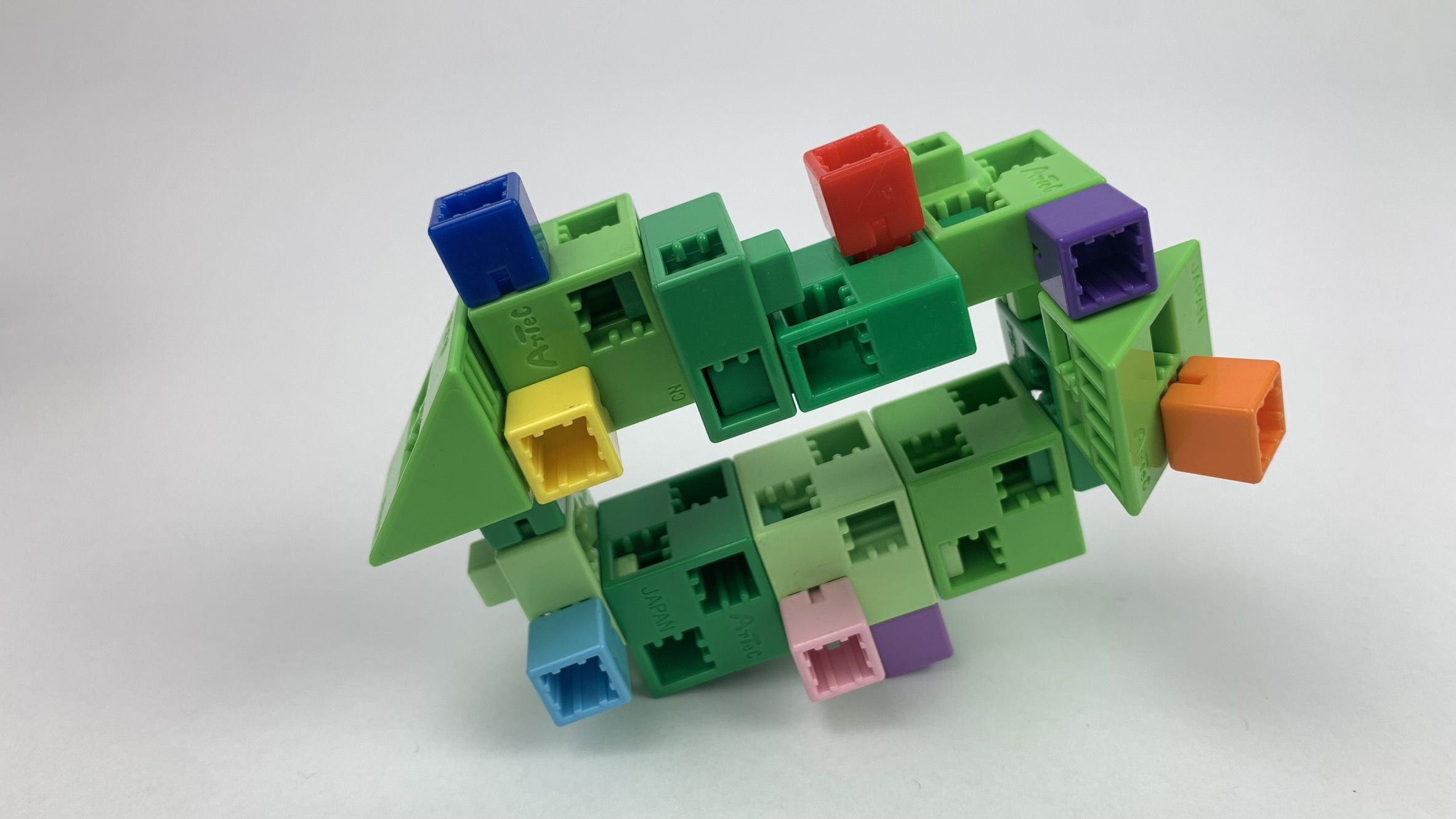

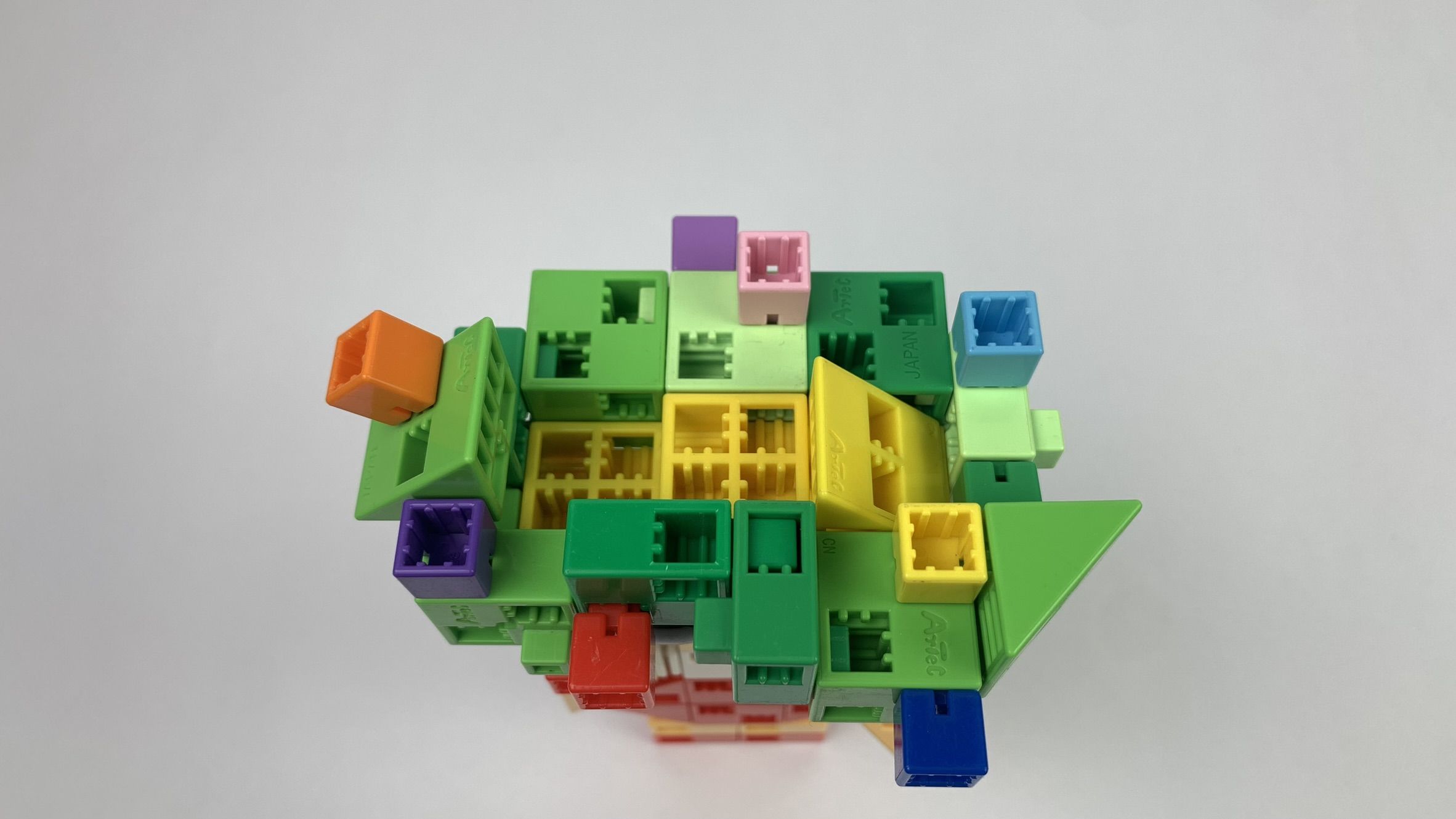

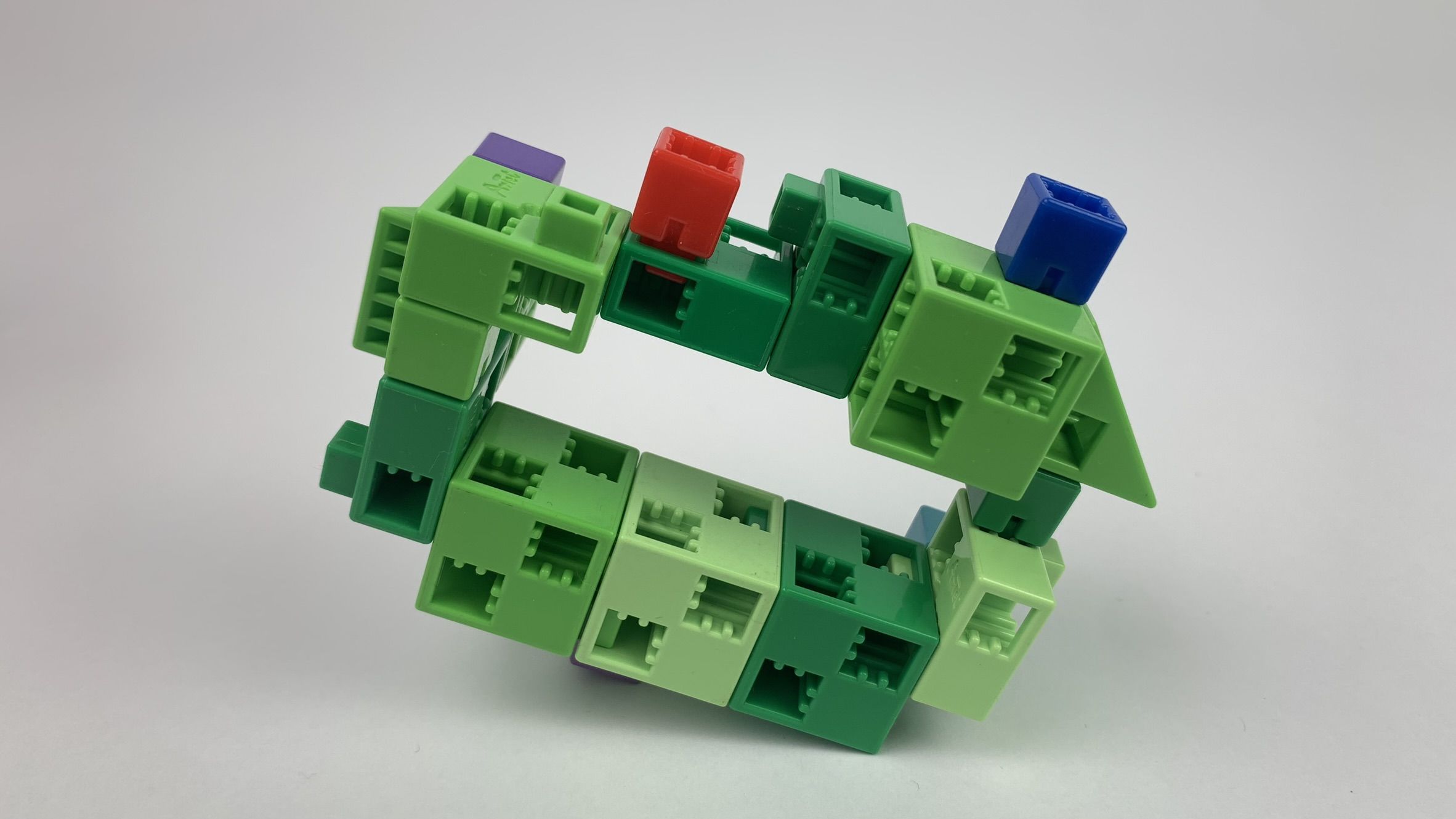

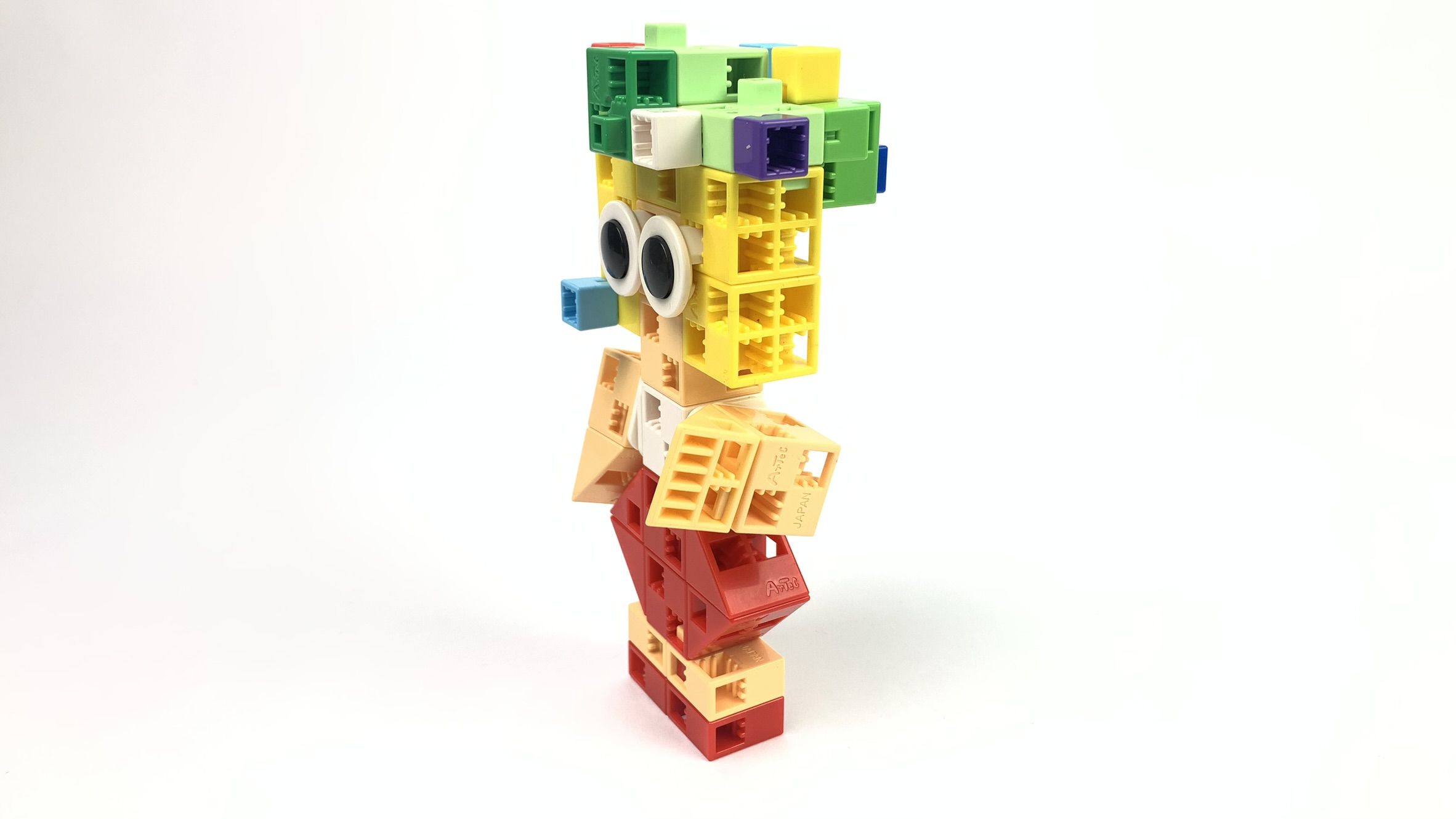

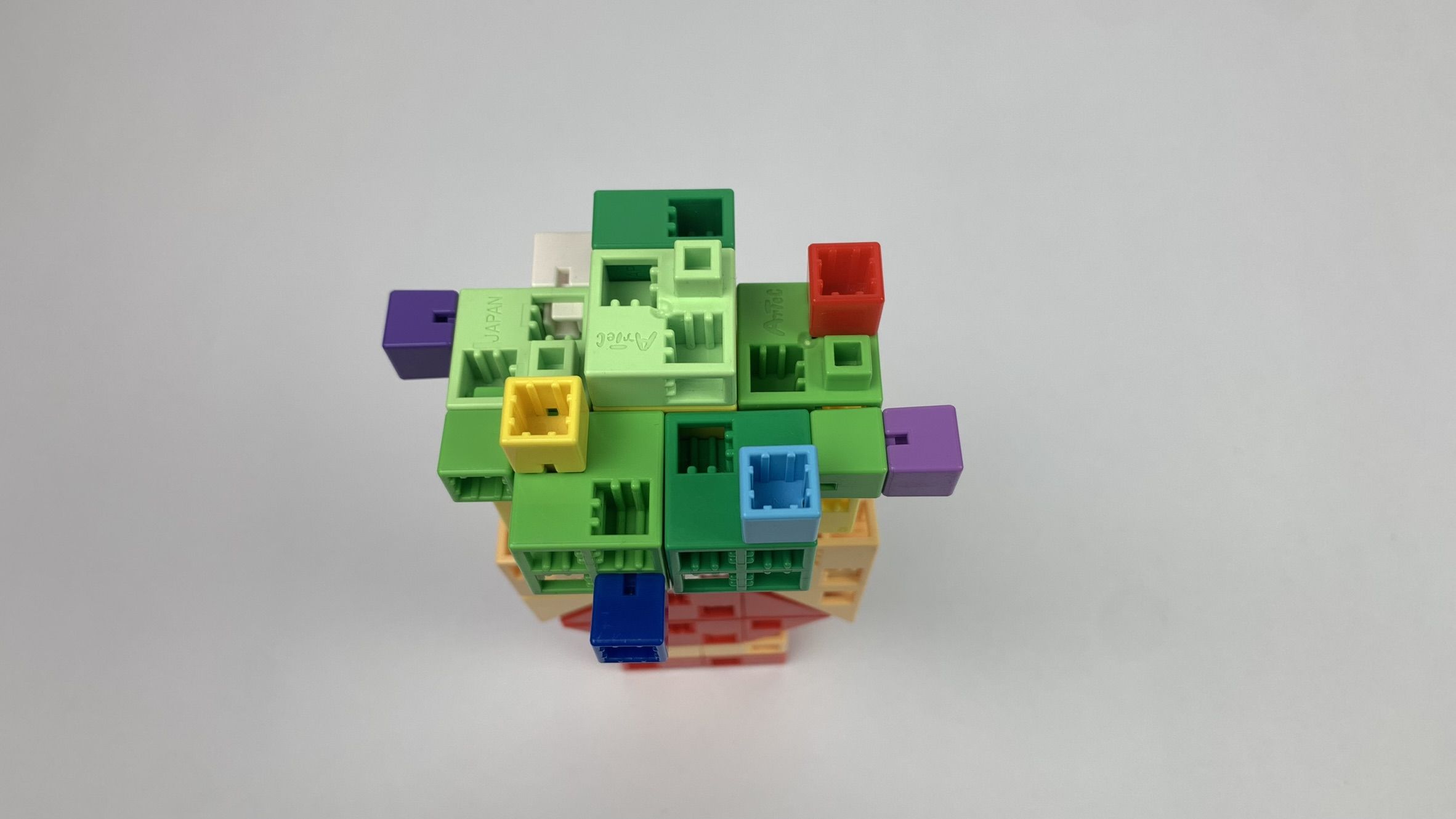

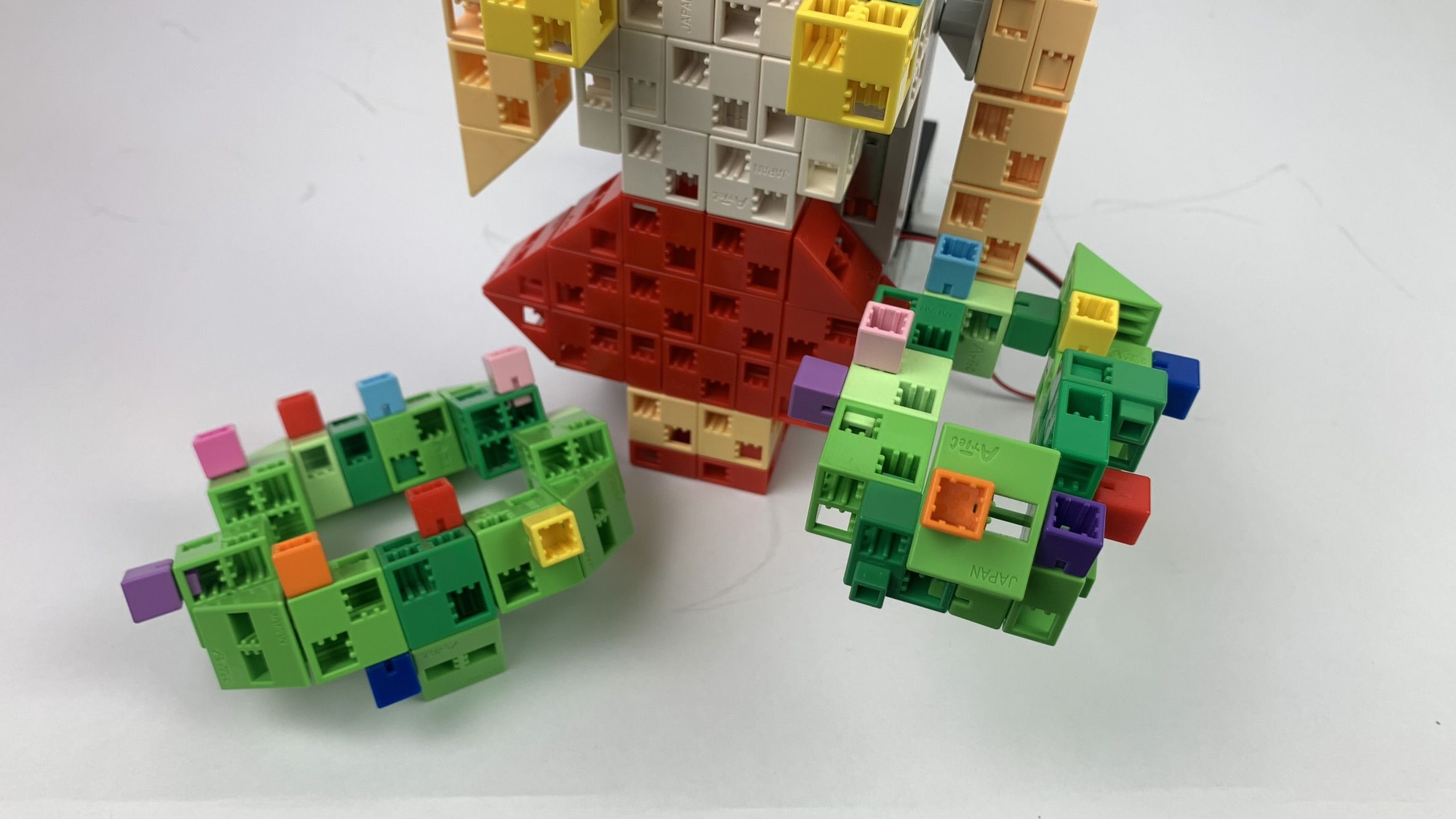

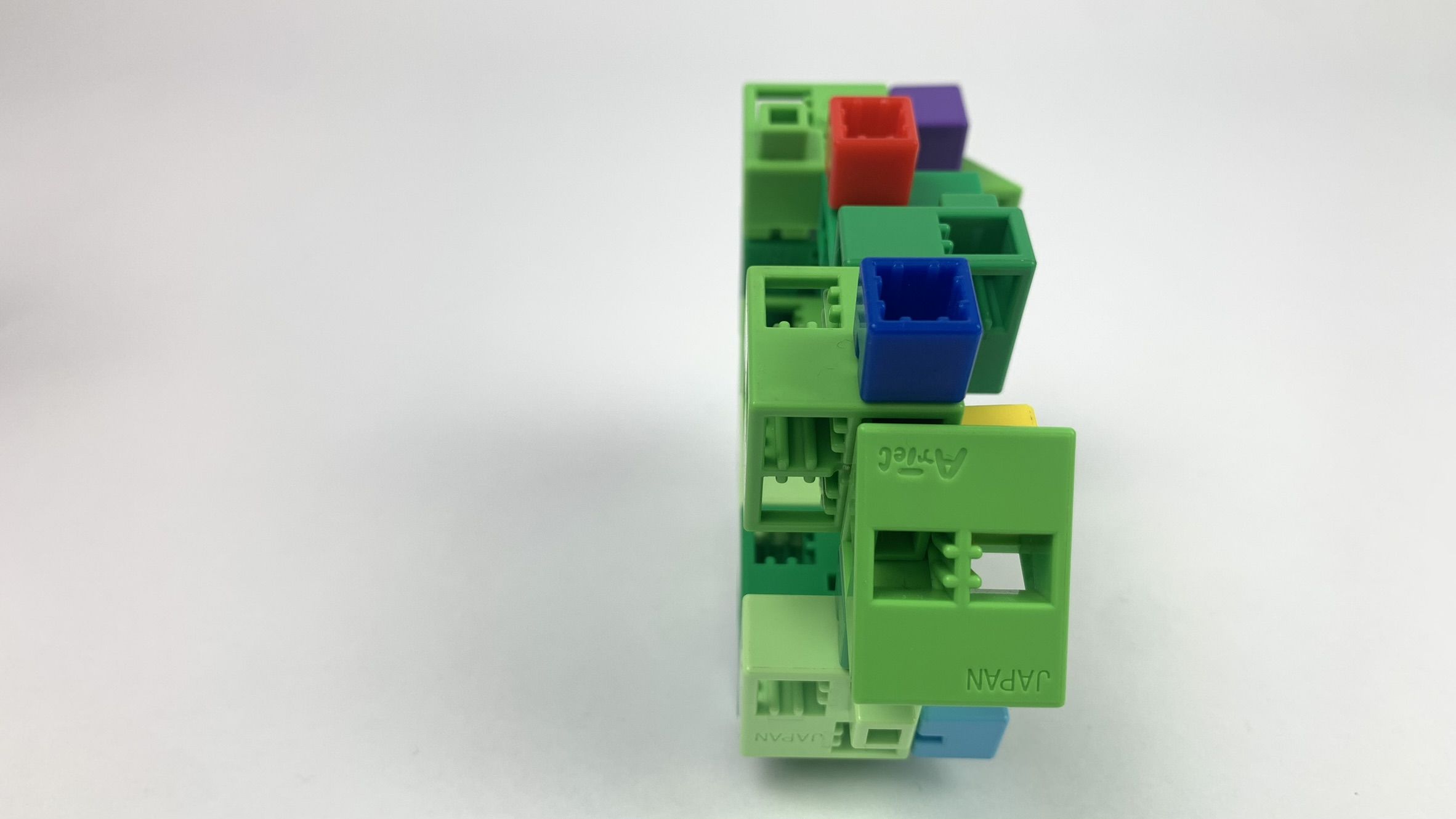

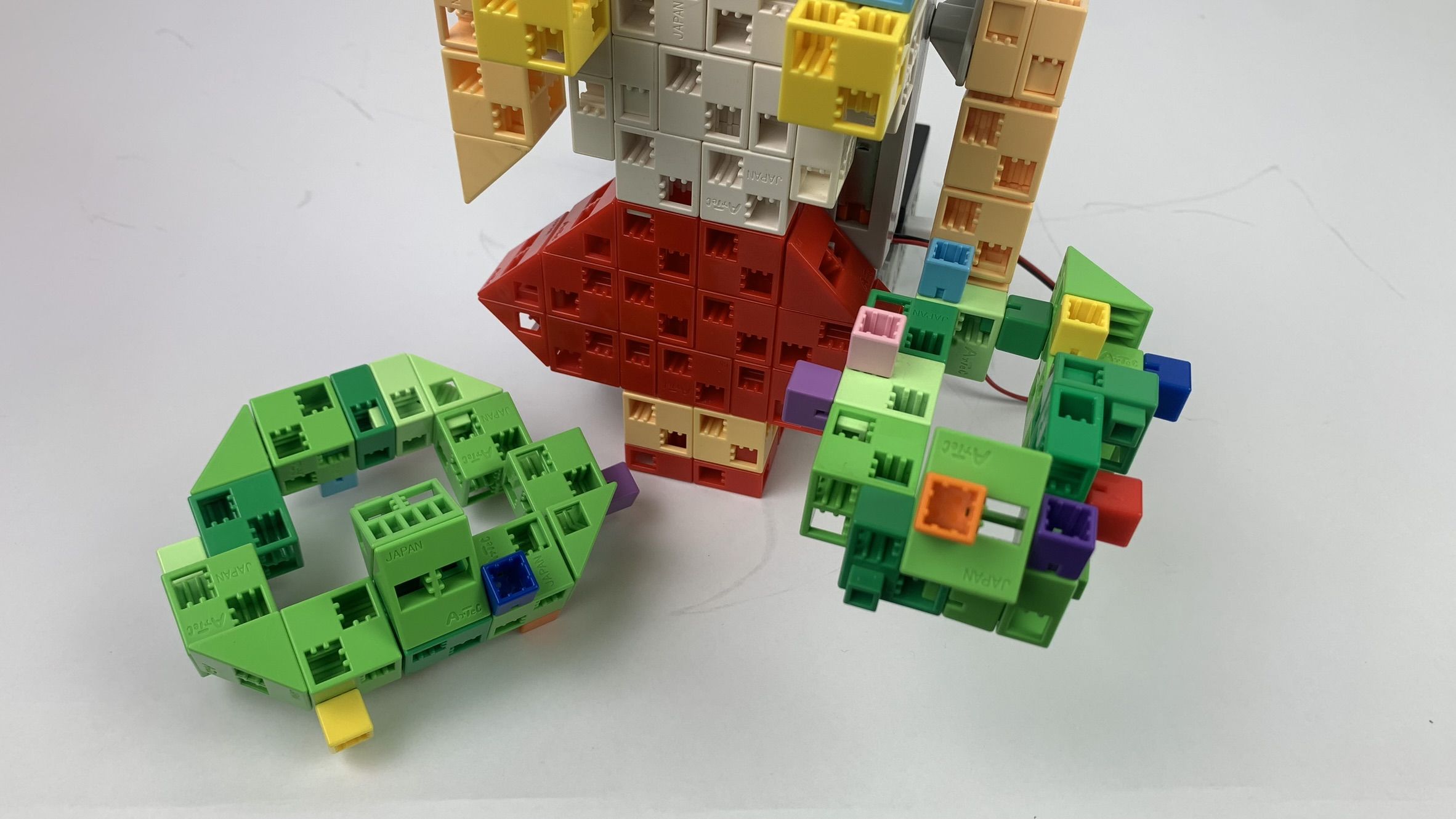

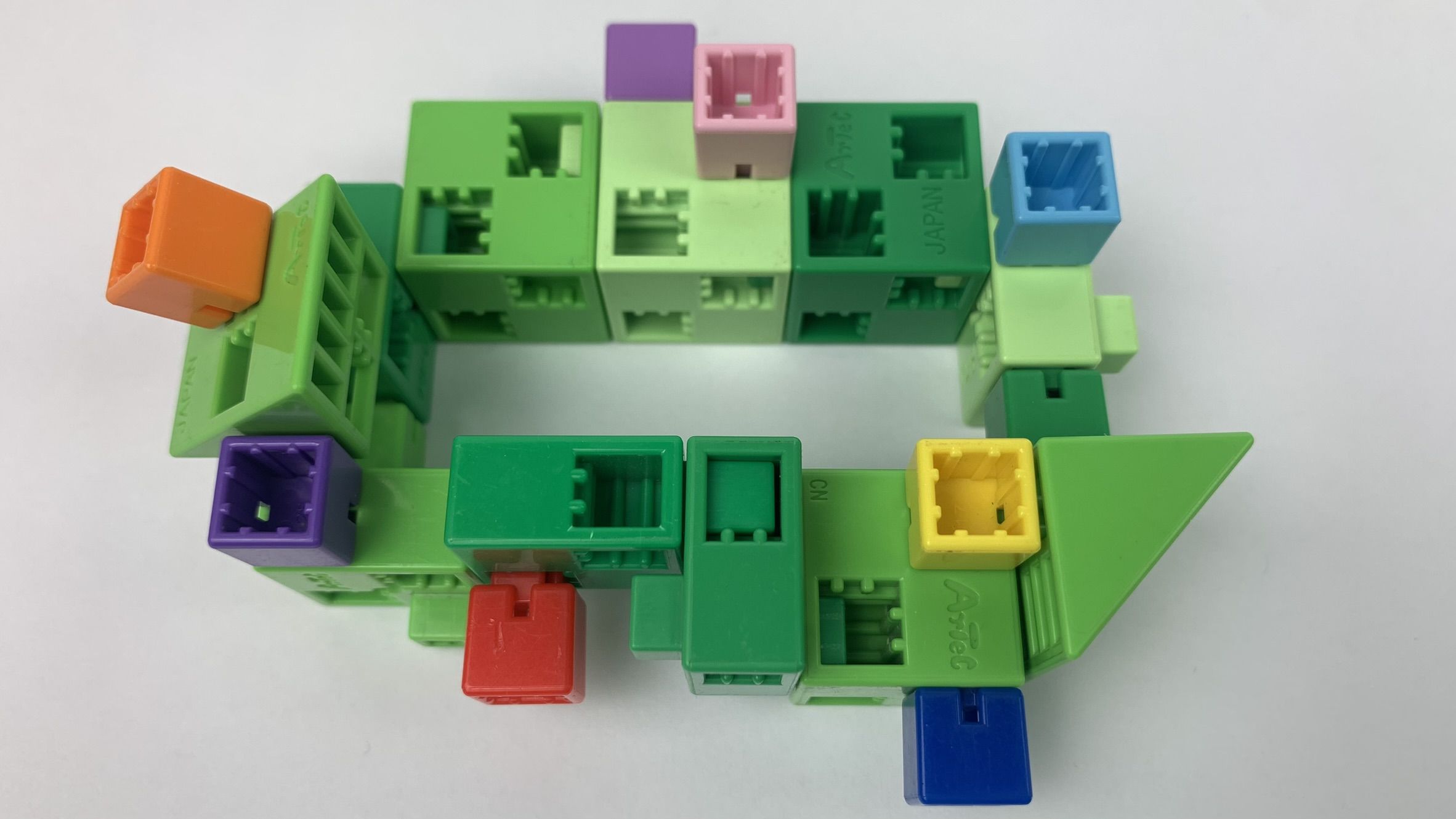

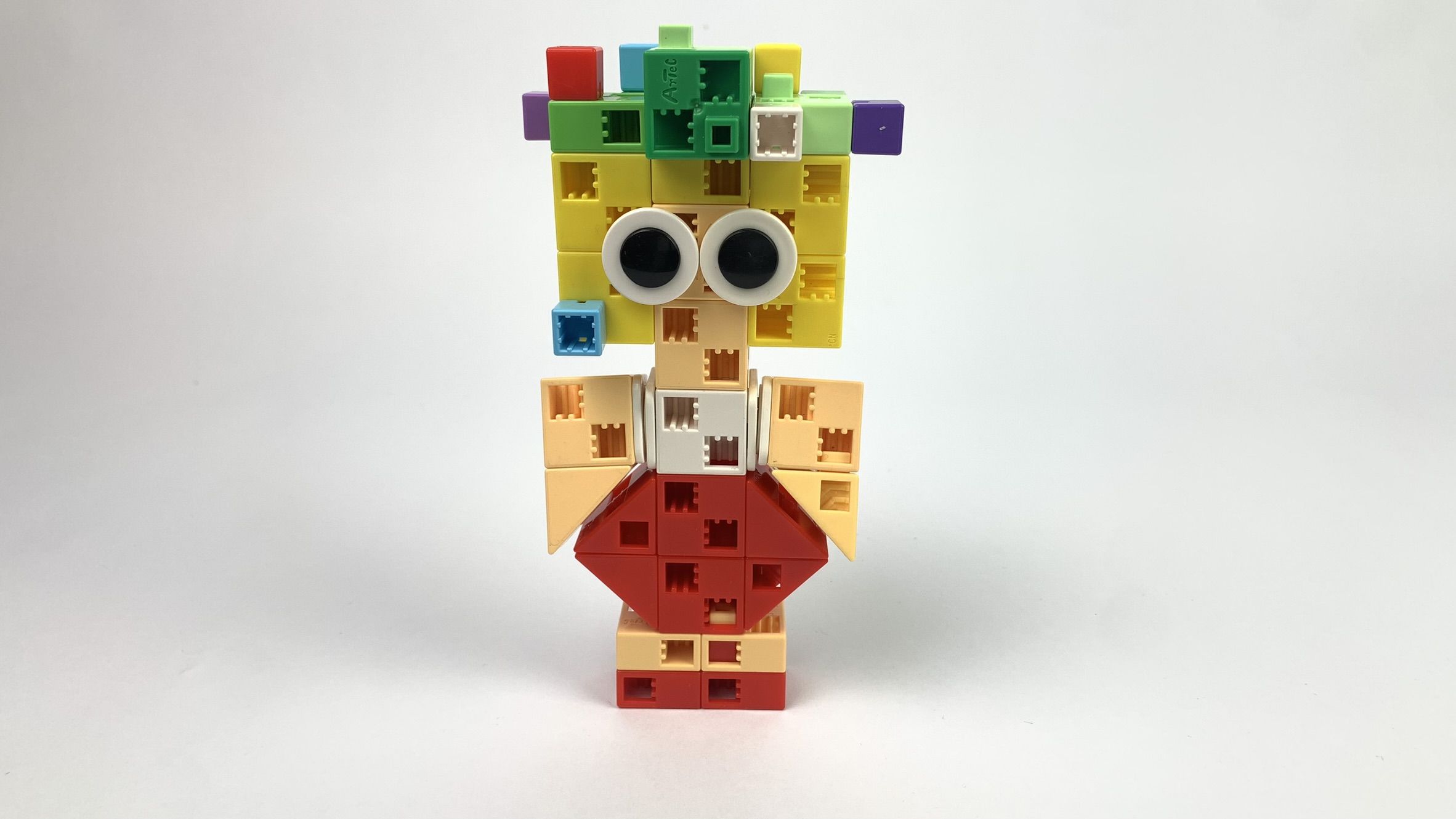

- We build the characters of the scene: Luise, Lotte and the wreath

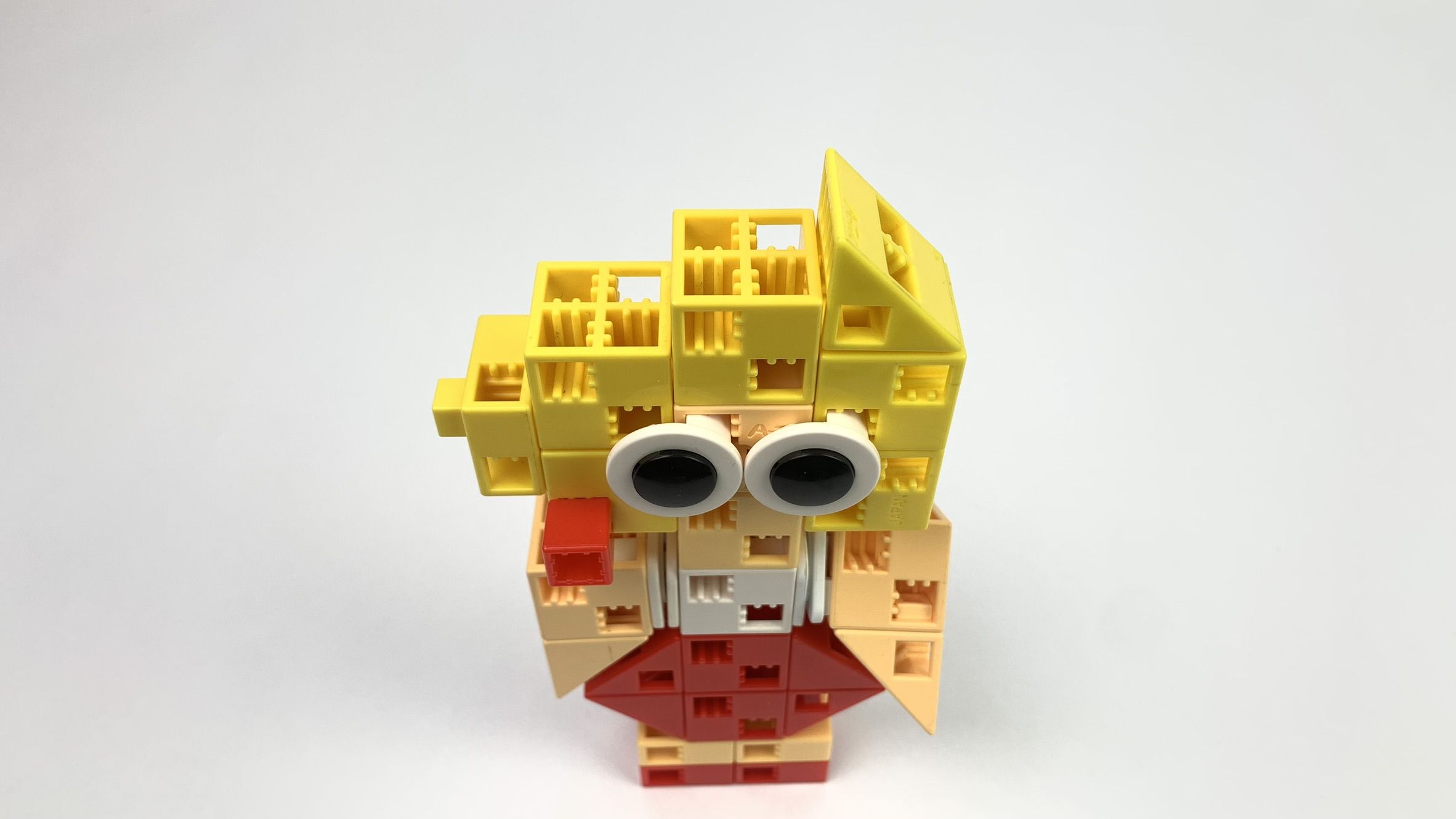

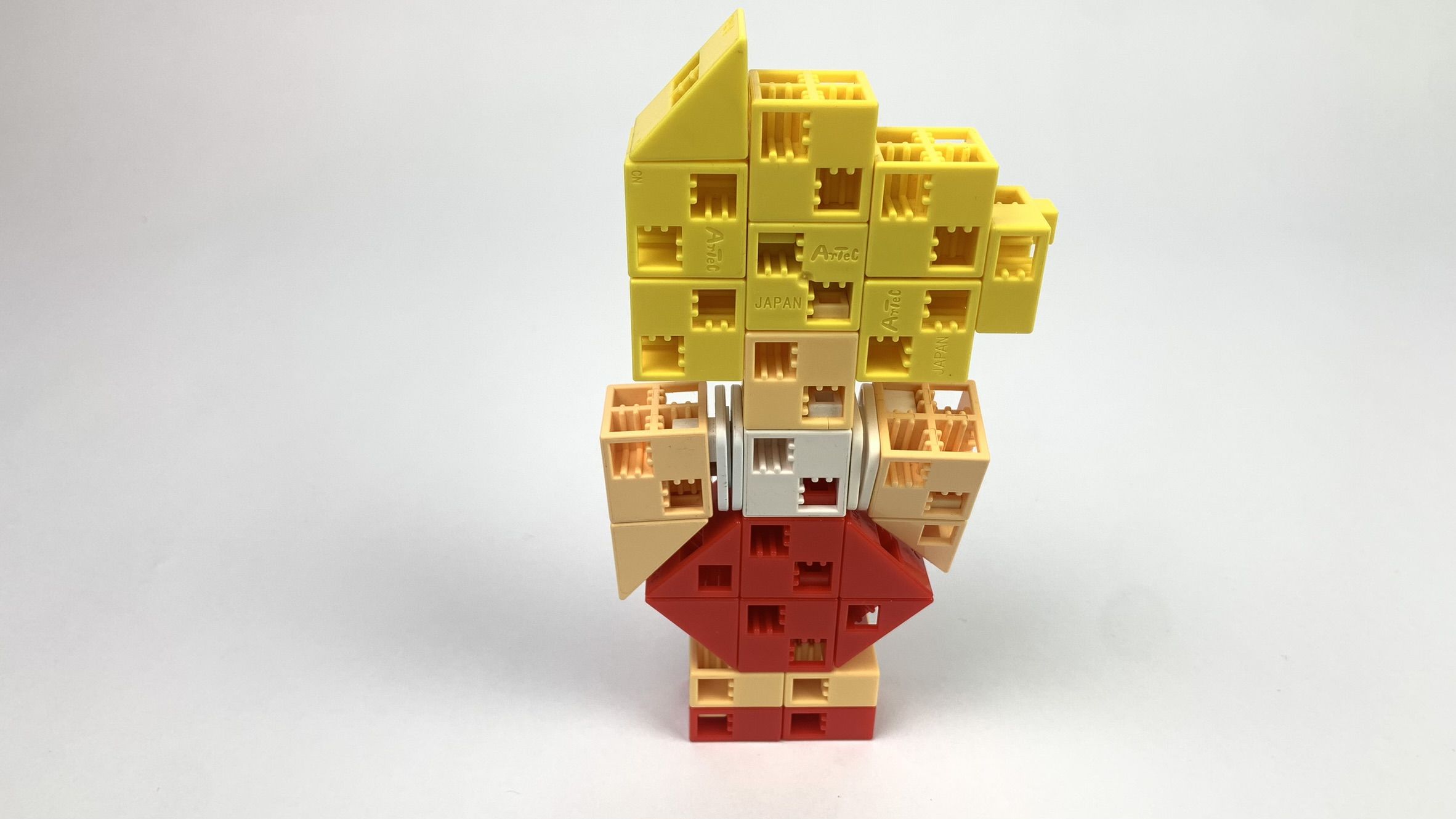

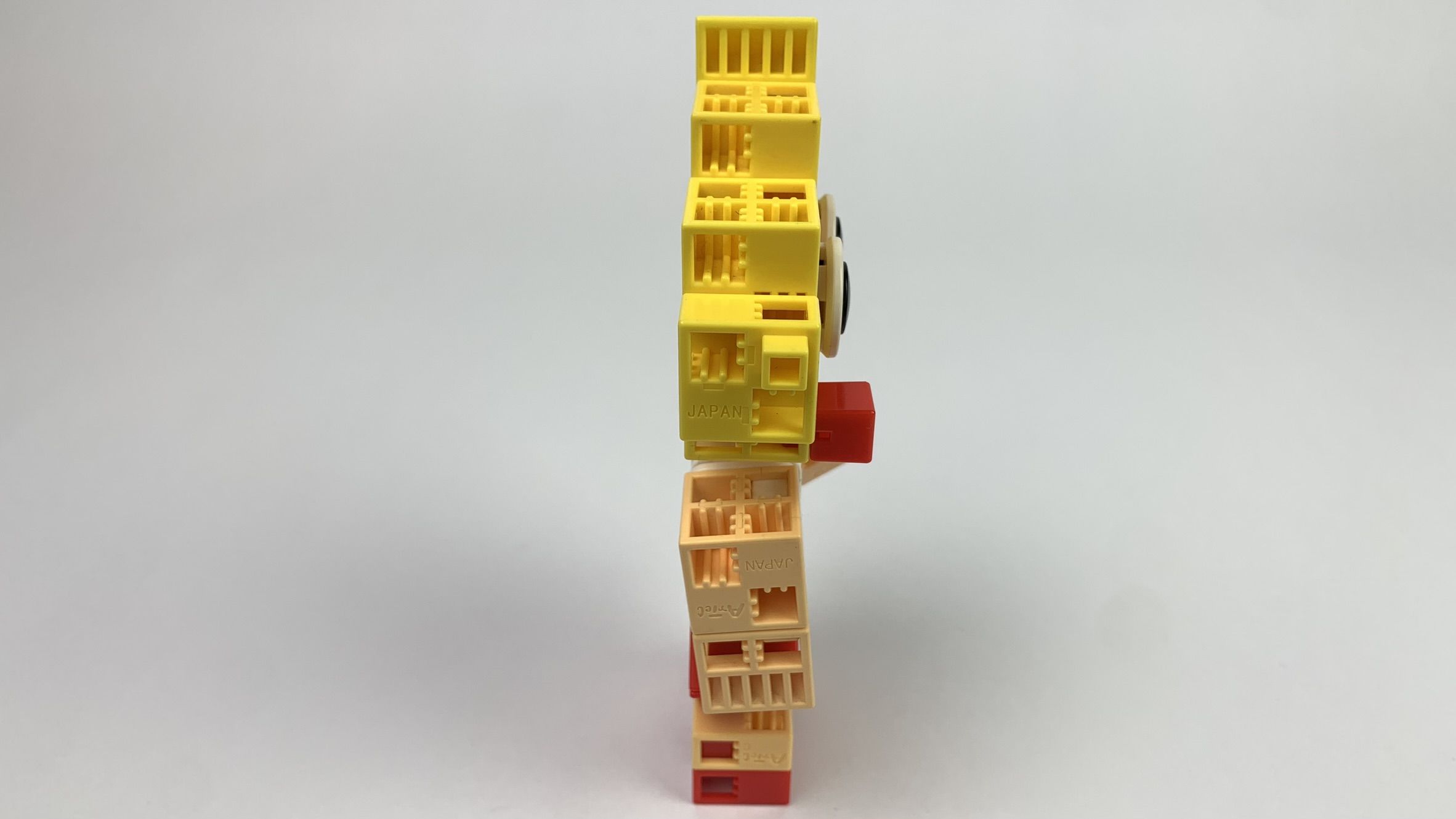

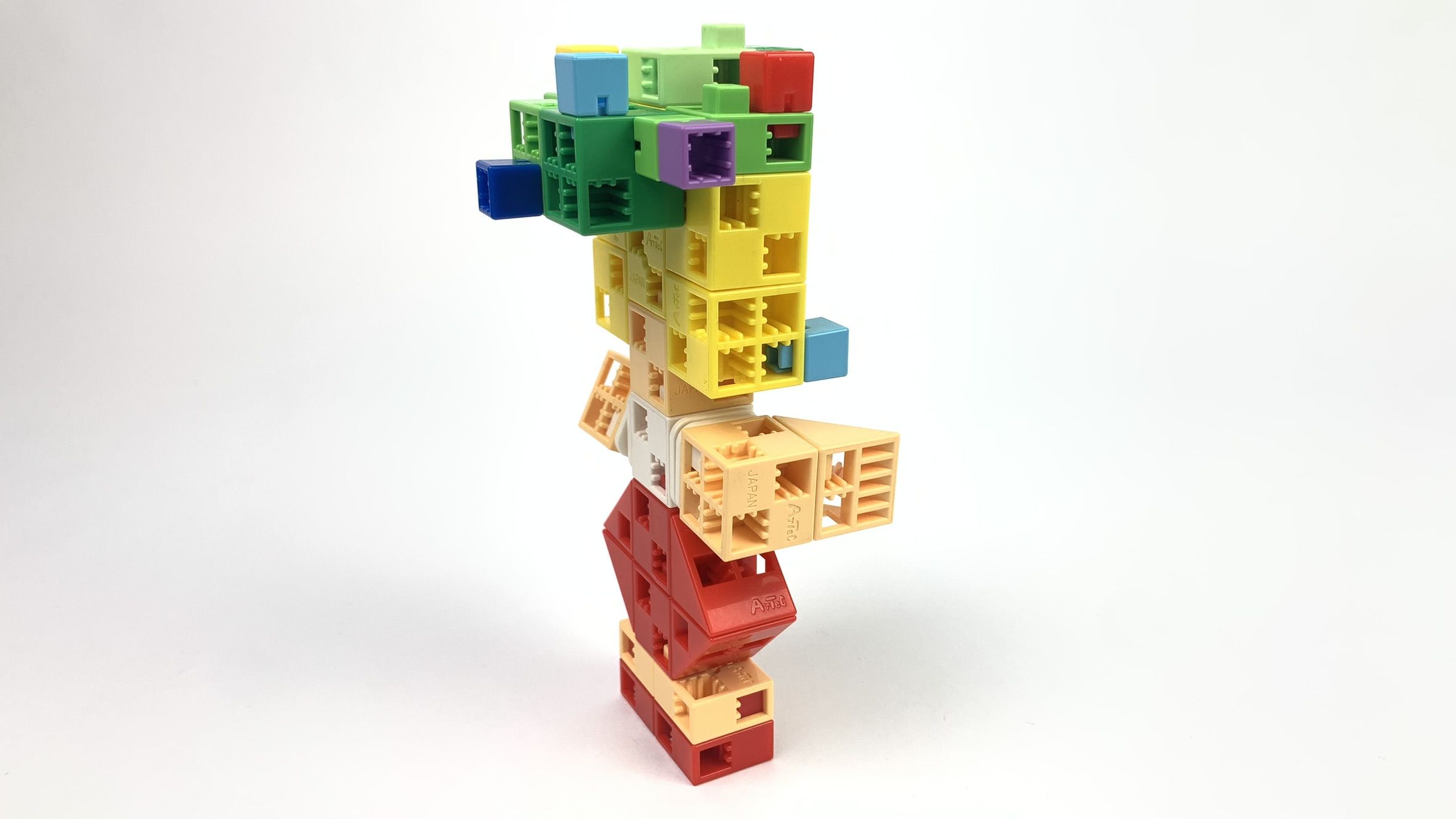

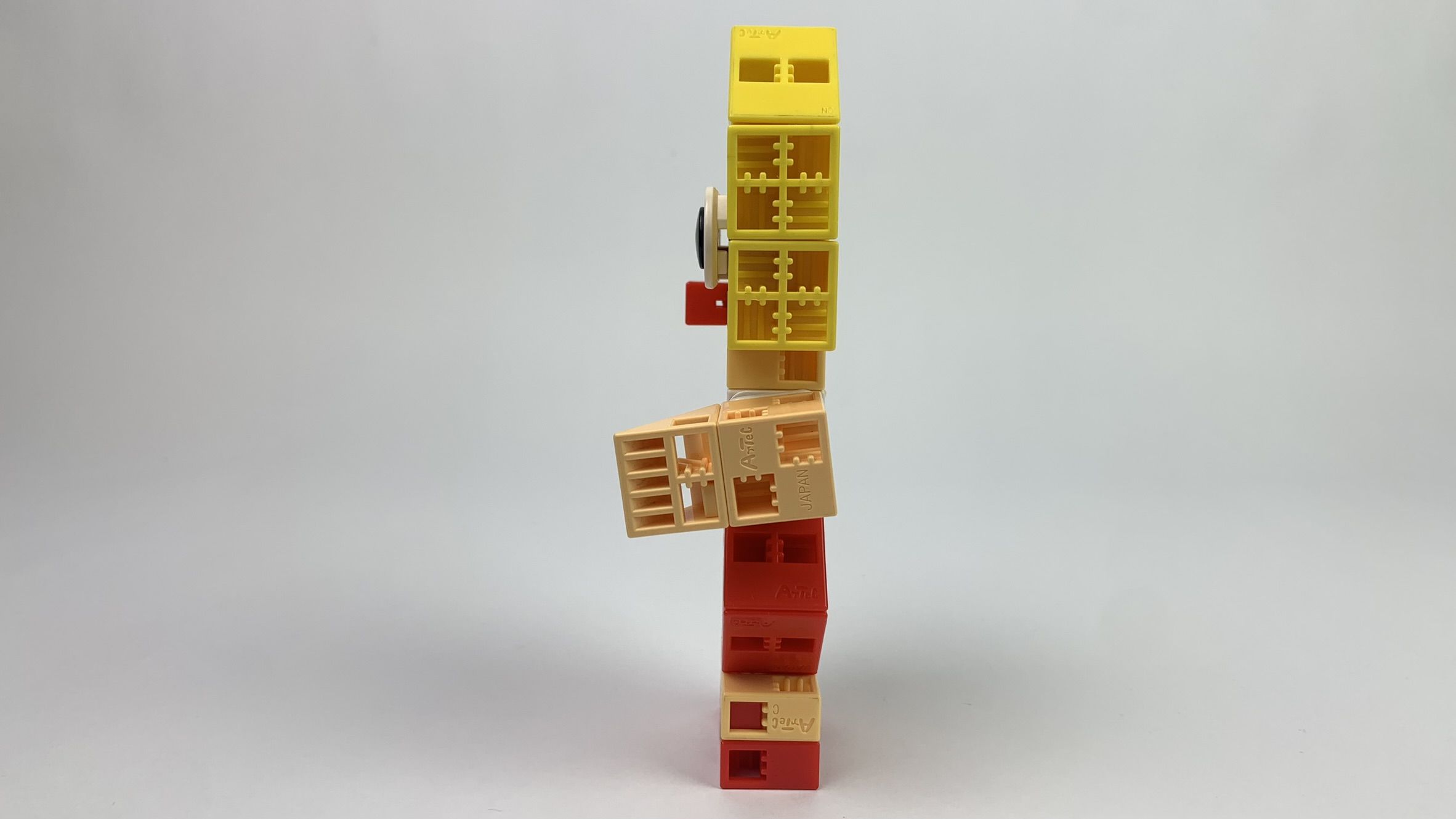

- The little girls can move their arms and legs on an axis
P1
Build the characters
P1
Programming level 2
Lisa and Lottie: Two separate robots
P2
How to build
Two separate robots

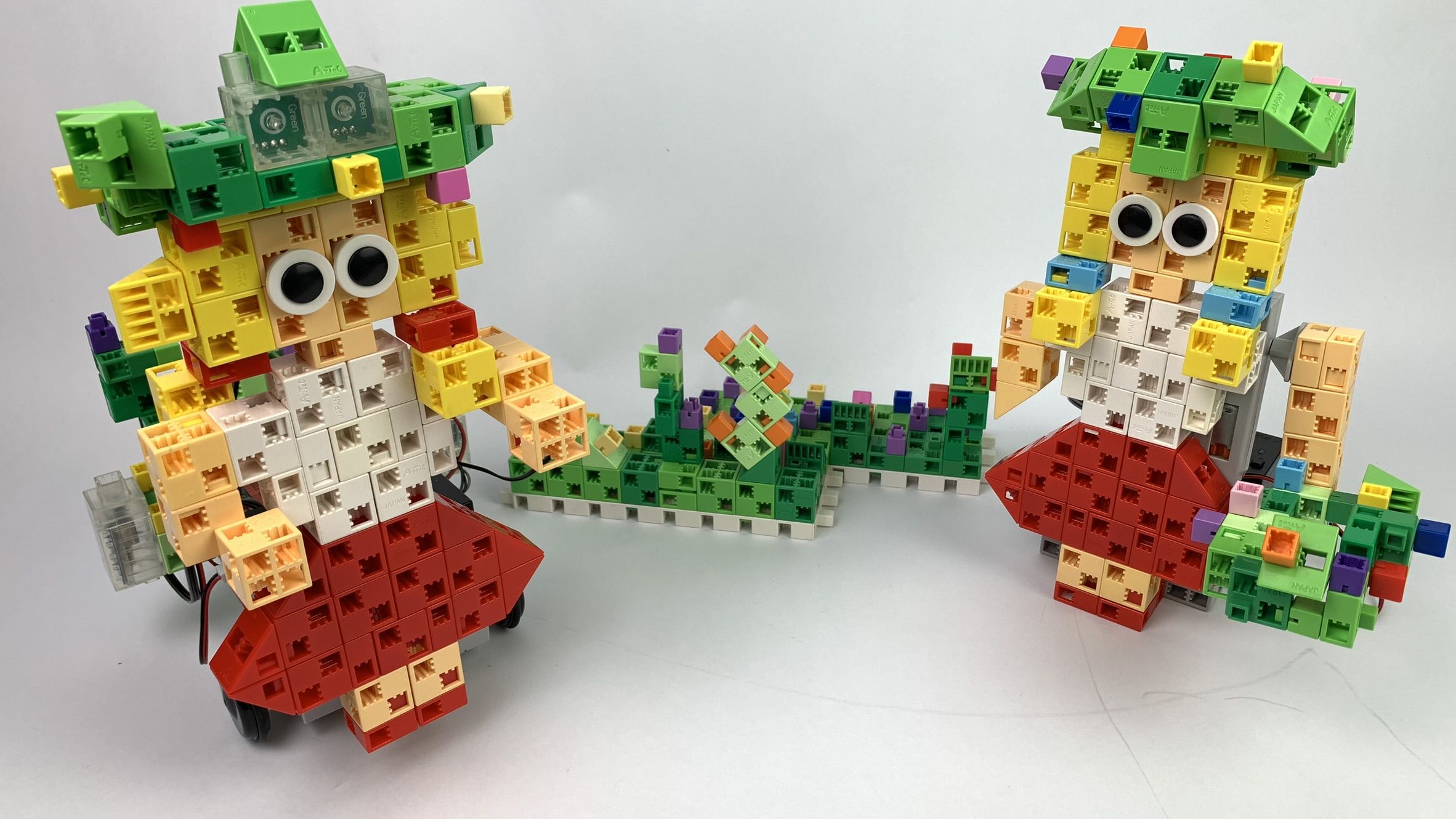

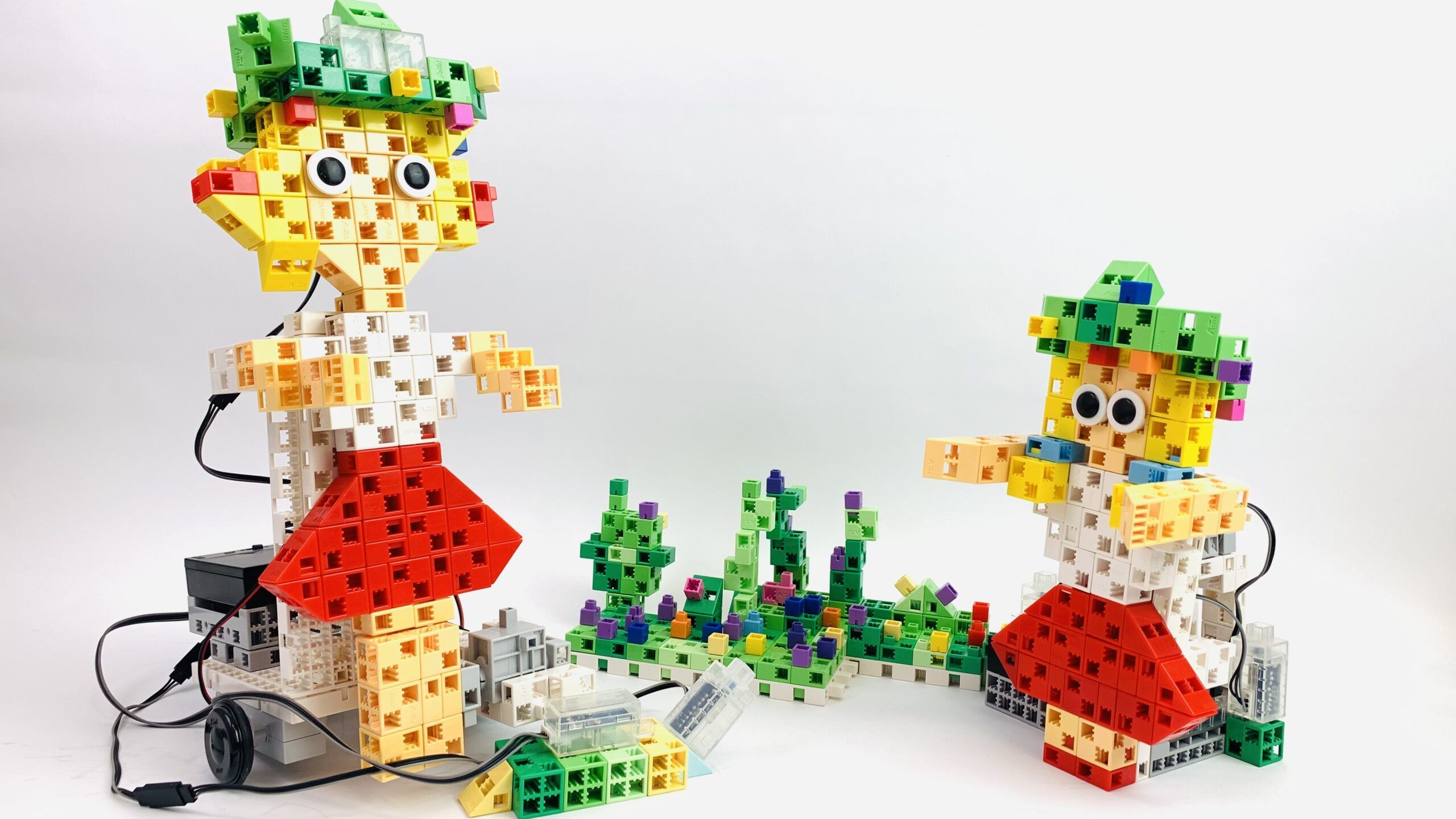

- The two little girls are built on two separate robots.

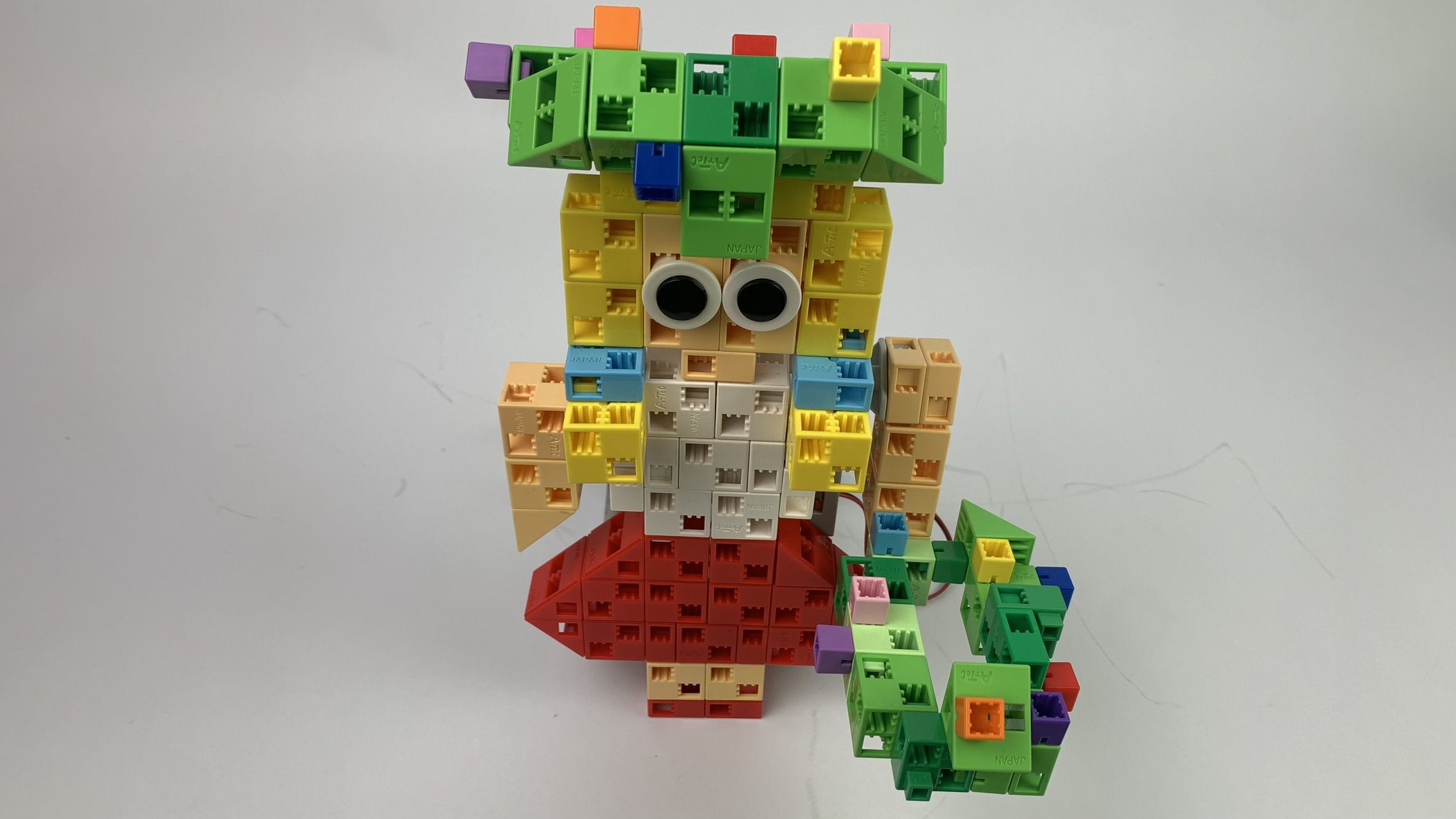

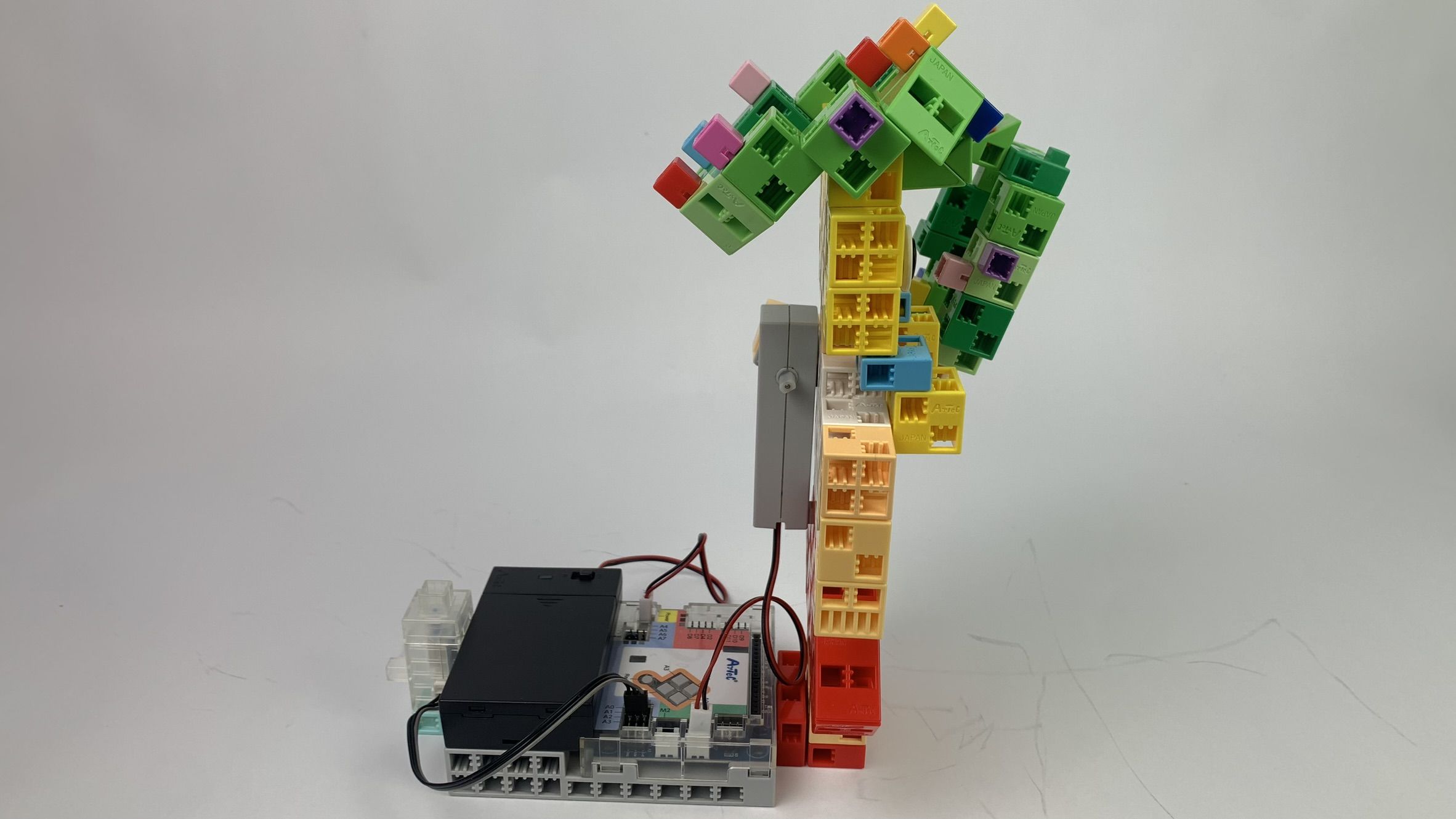

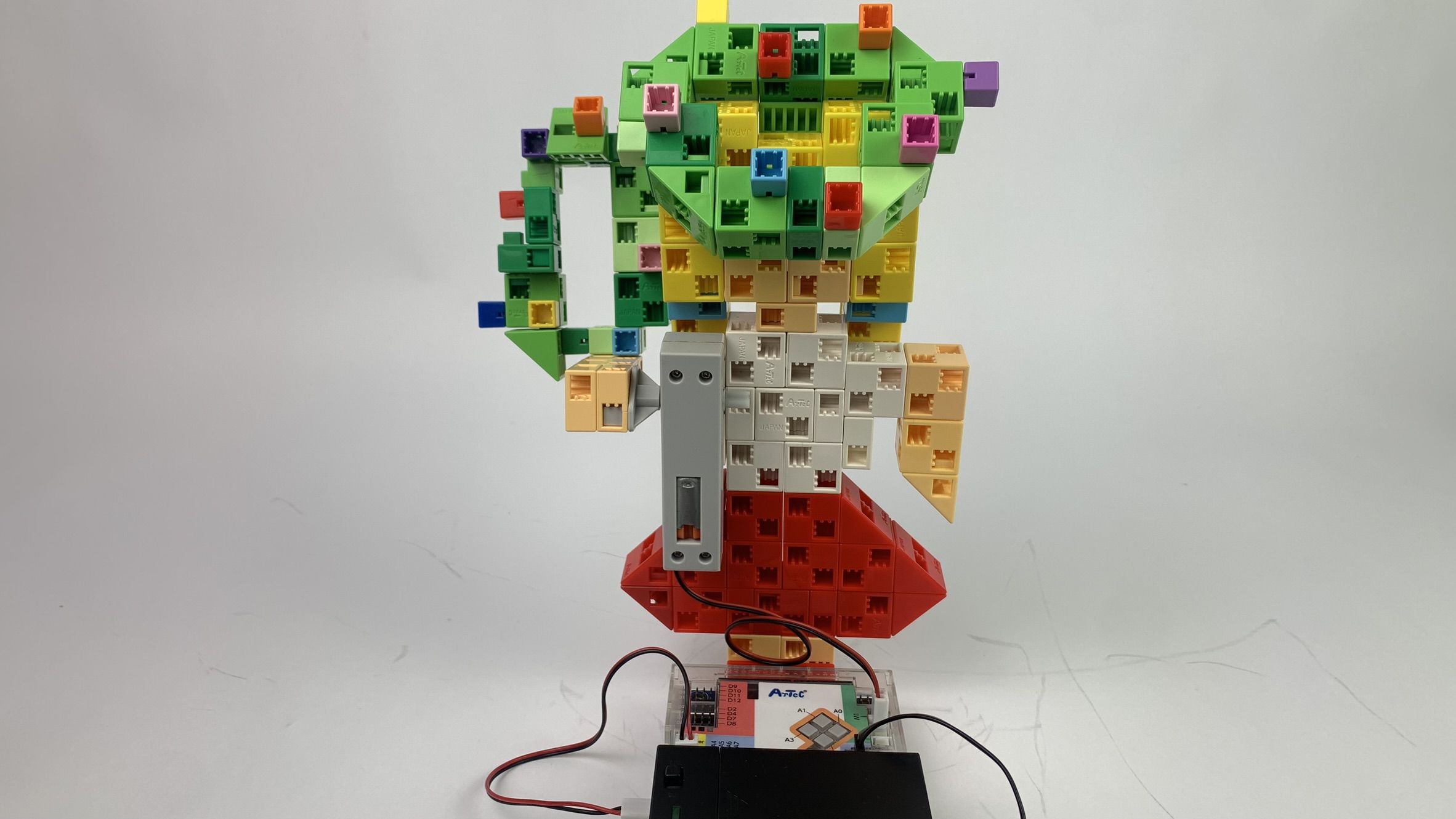

- Lotte is standing in one place, her arm is attached to a DC motor, she has a wreath in her hand, 1 push button is attached to the robot.

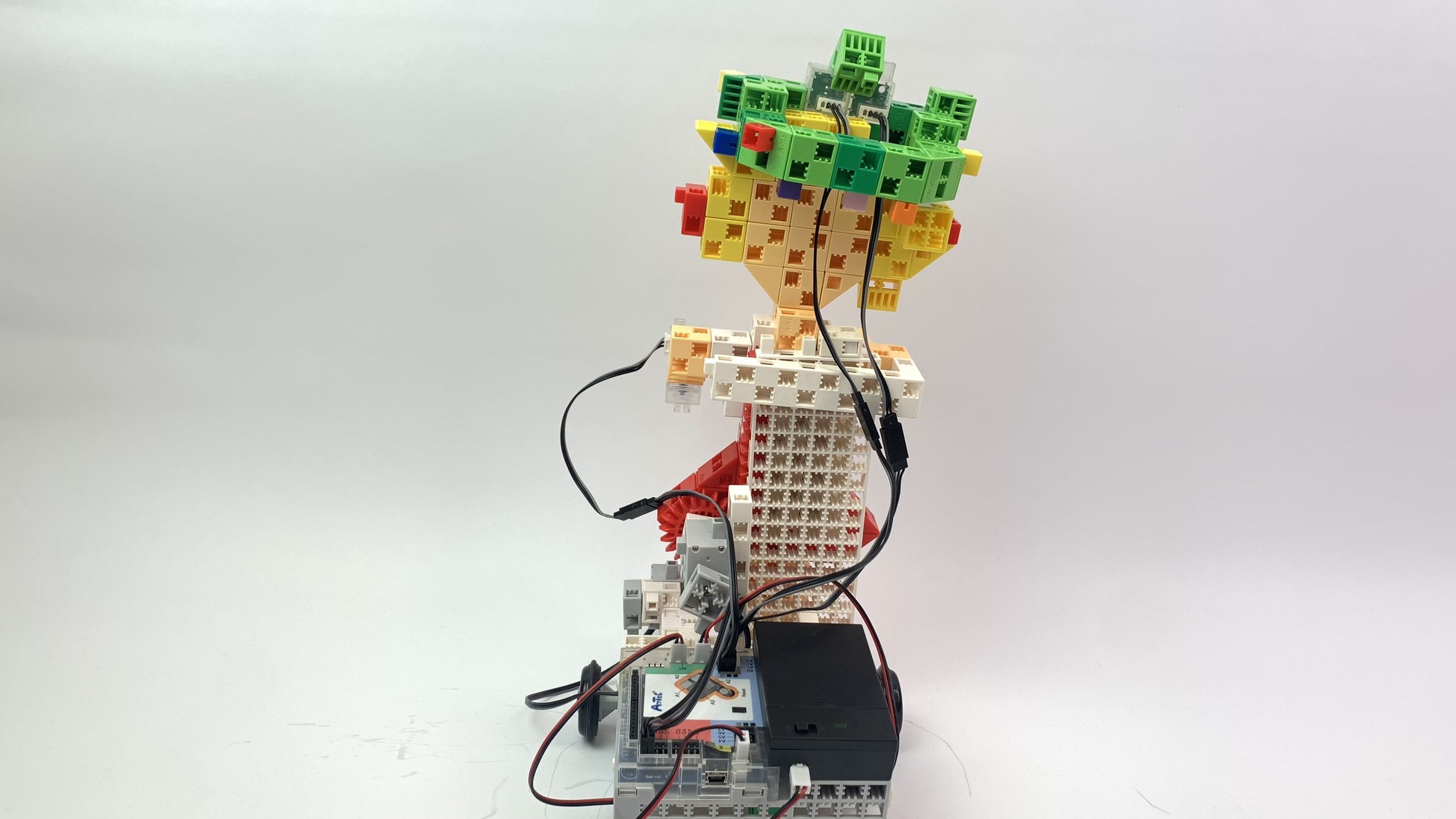

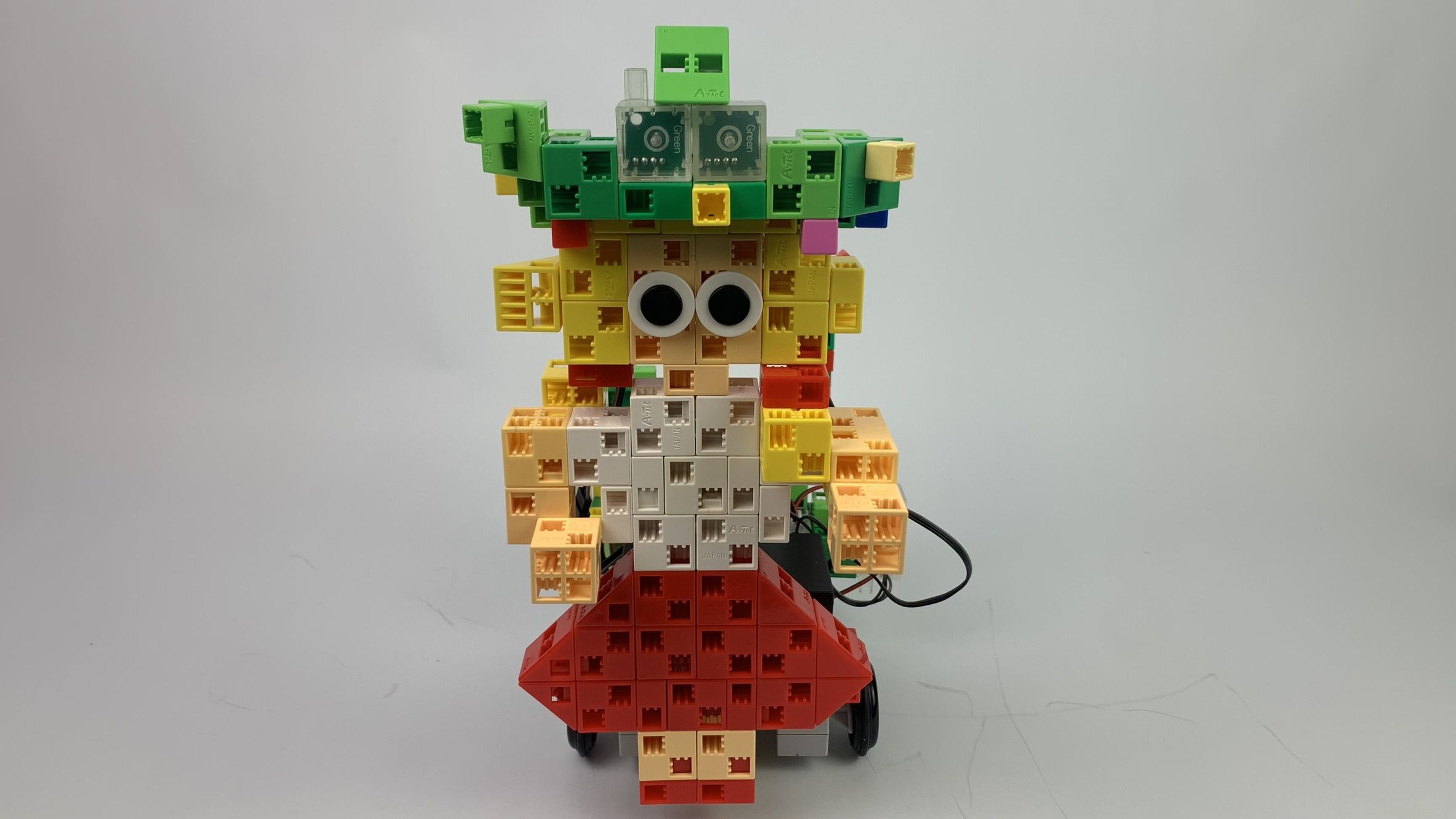

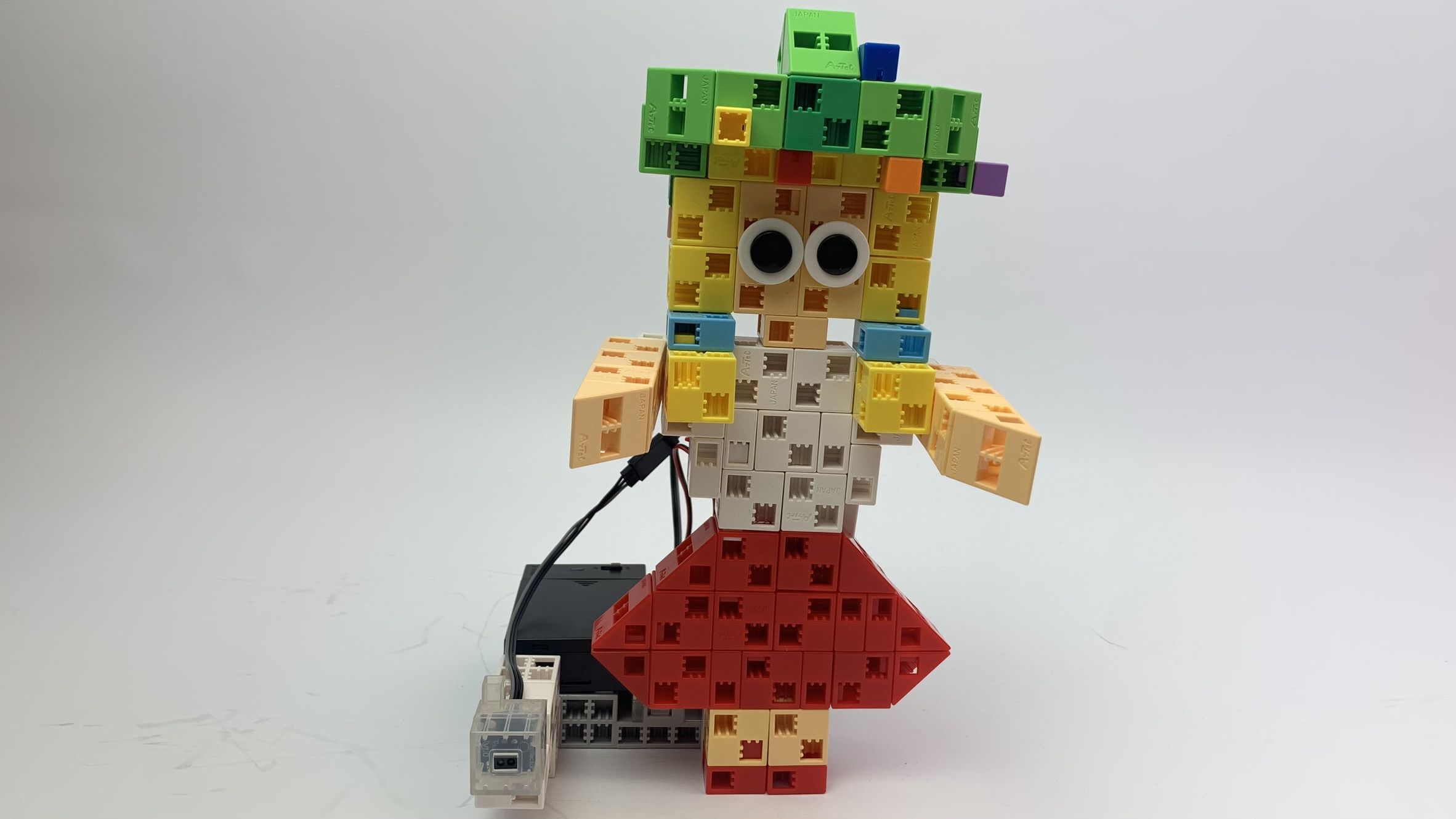

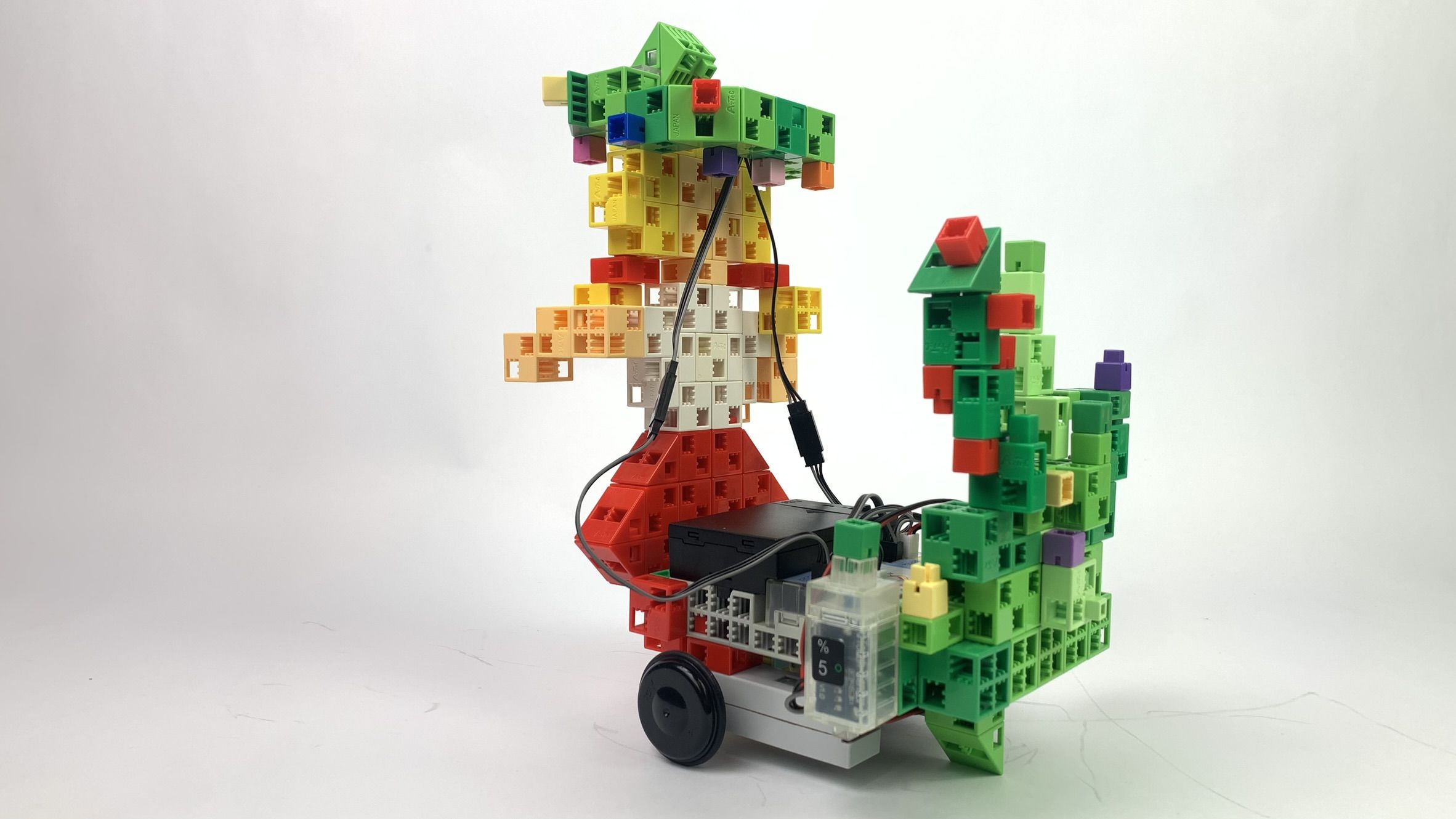

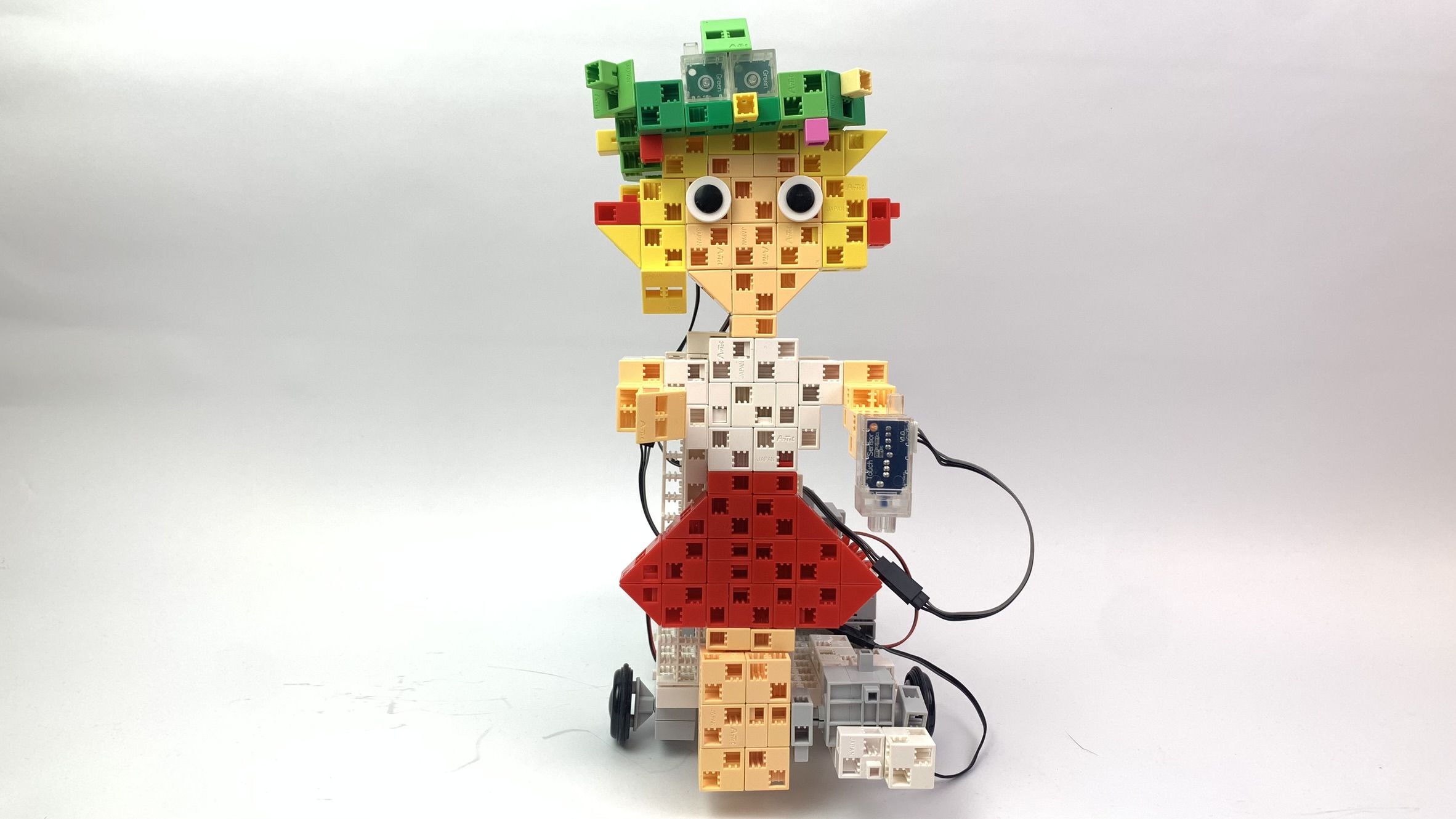

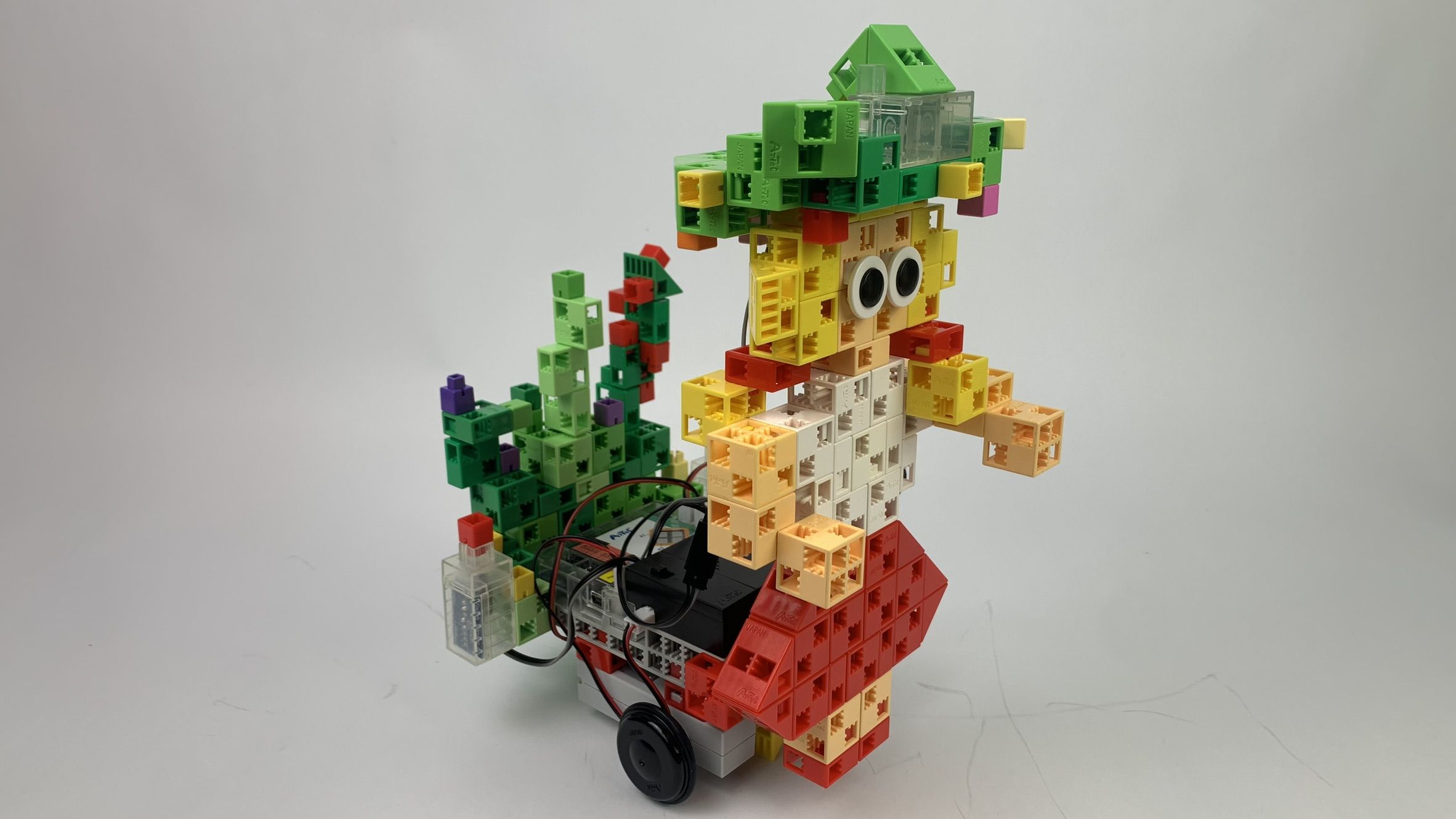

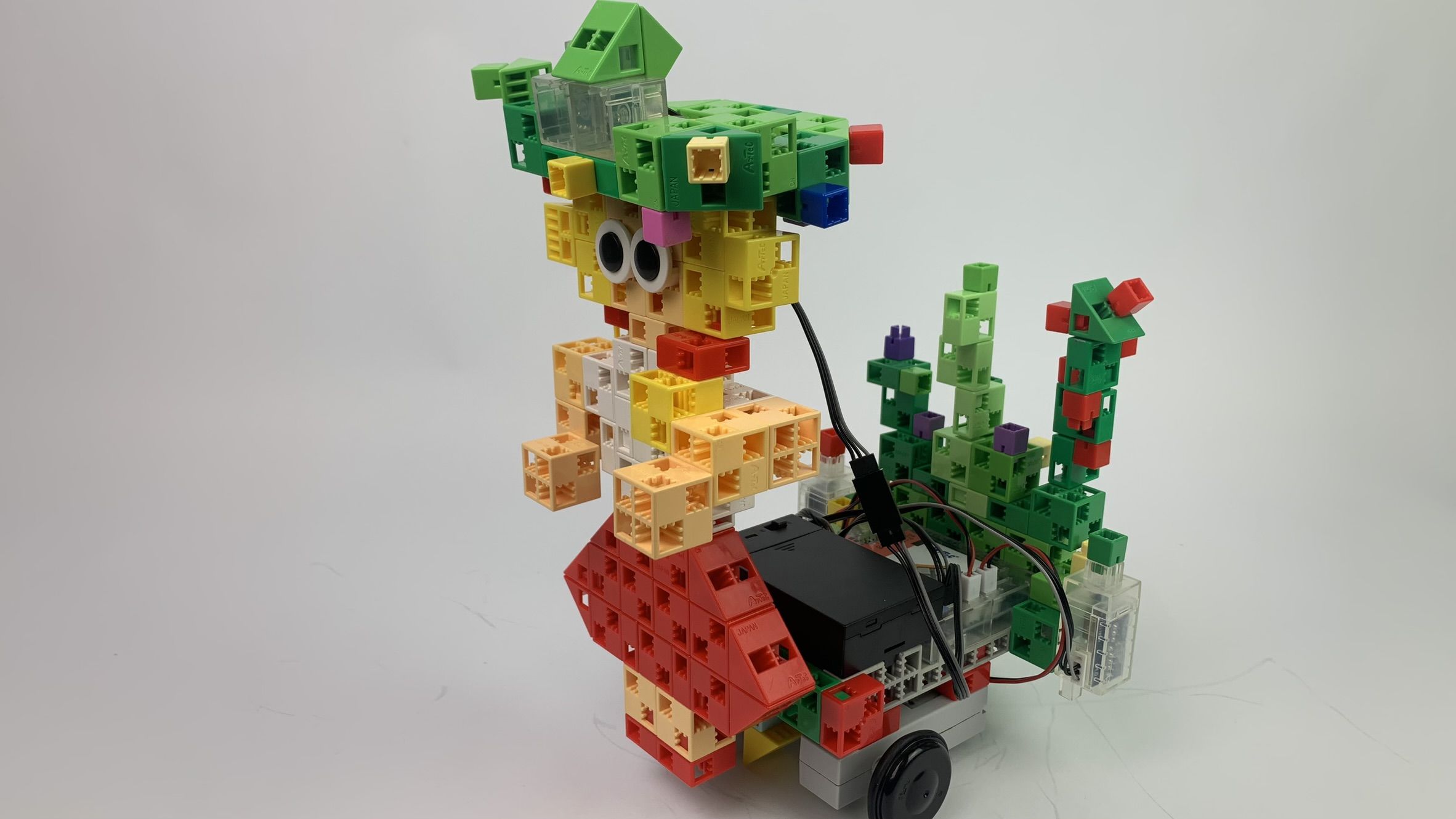

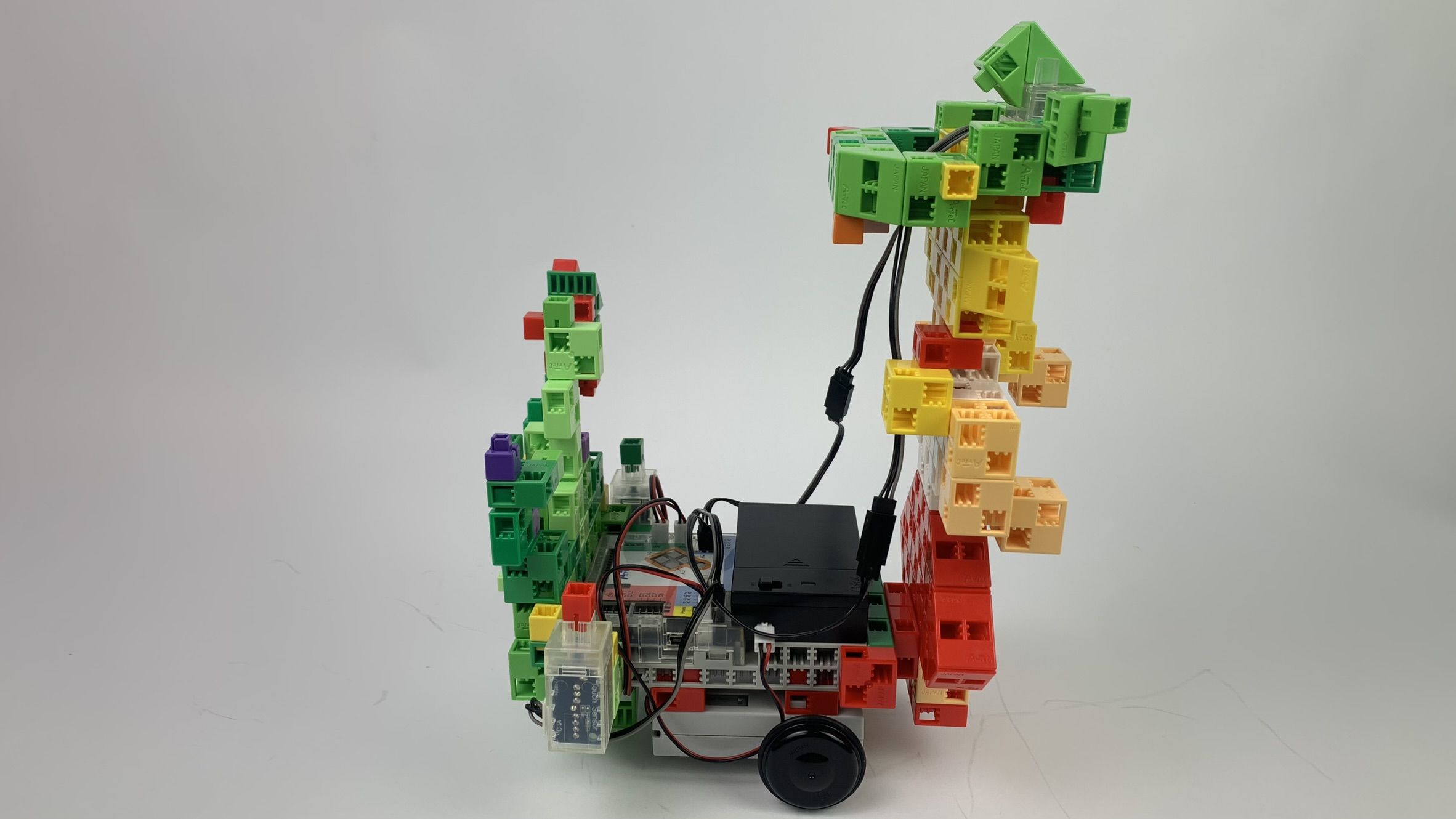

- Luise is standing on a trolley with 2 DC motors, her head is covered with a wreath with LEDs, 2 push buttons are connected to the robot.
- Luise will start when the push button is pressed and will roll towards Lotte.
- Lotte raises her hand with the wreath when the push button is pressed, then the wreath on Luise’s head lights up when the other push button is pressed.
P2
a) Build programmable Bus
P2
P2
Programming level 3
Luise kneels down
P3
How to build
Build the two girls

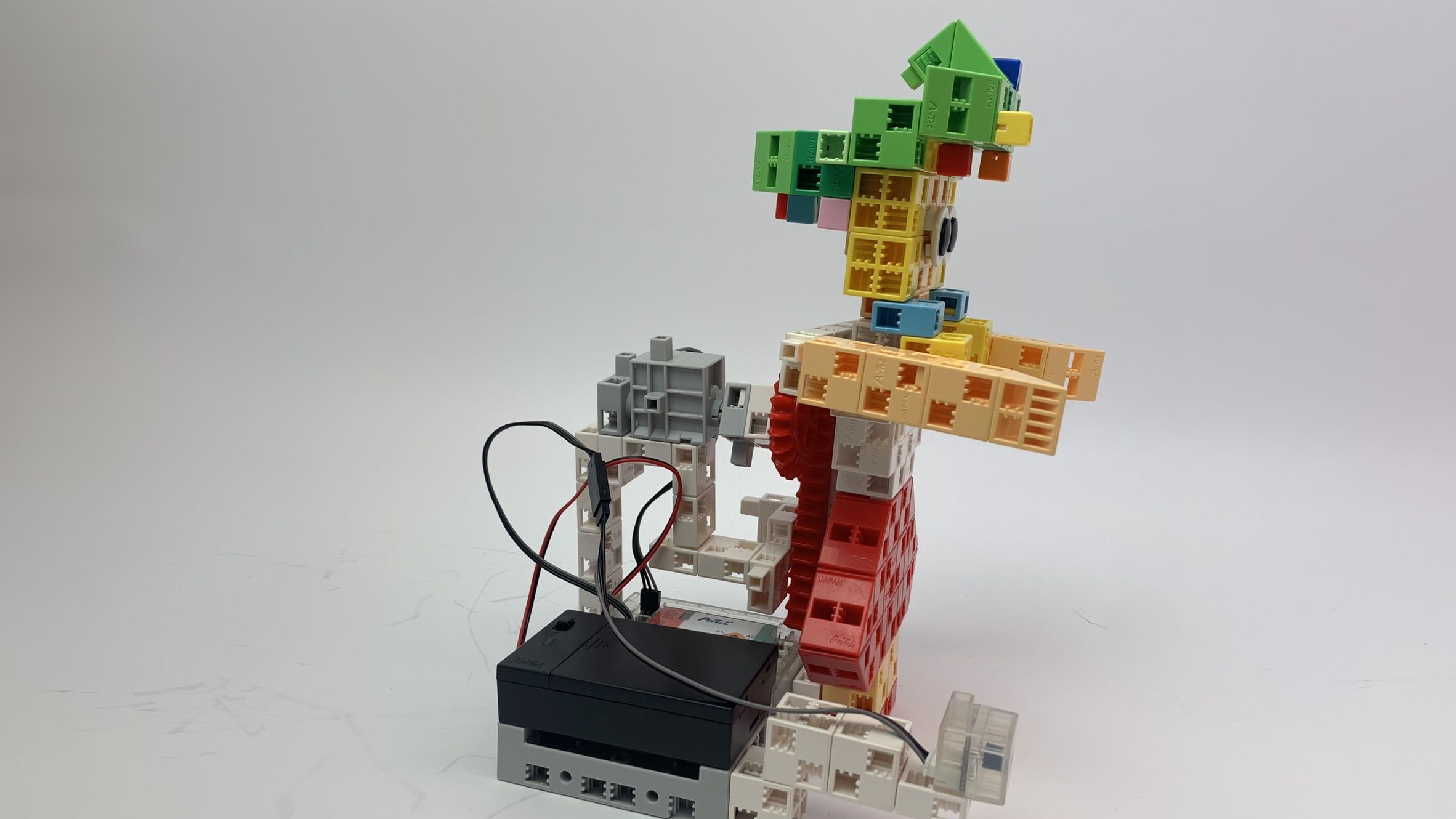

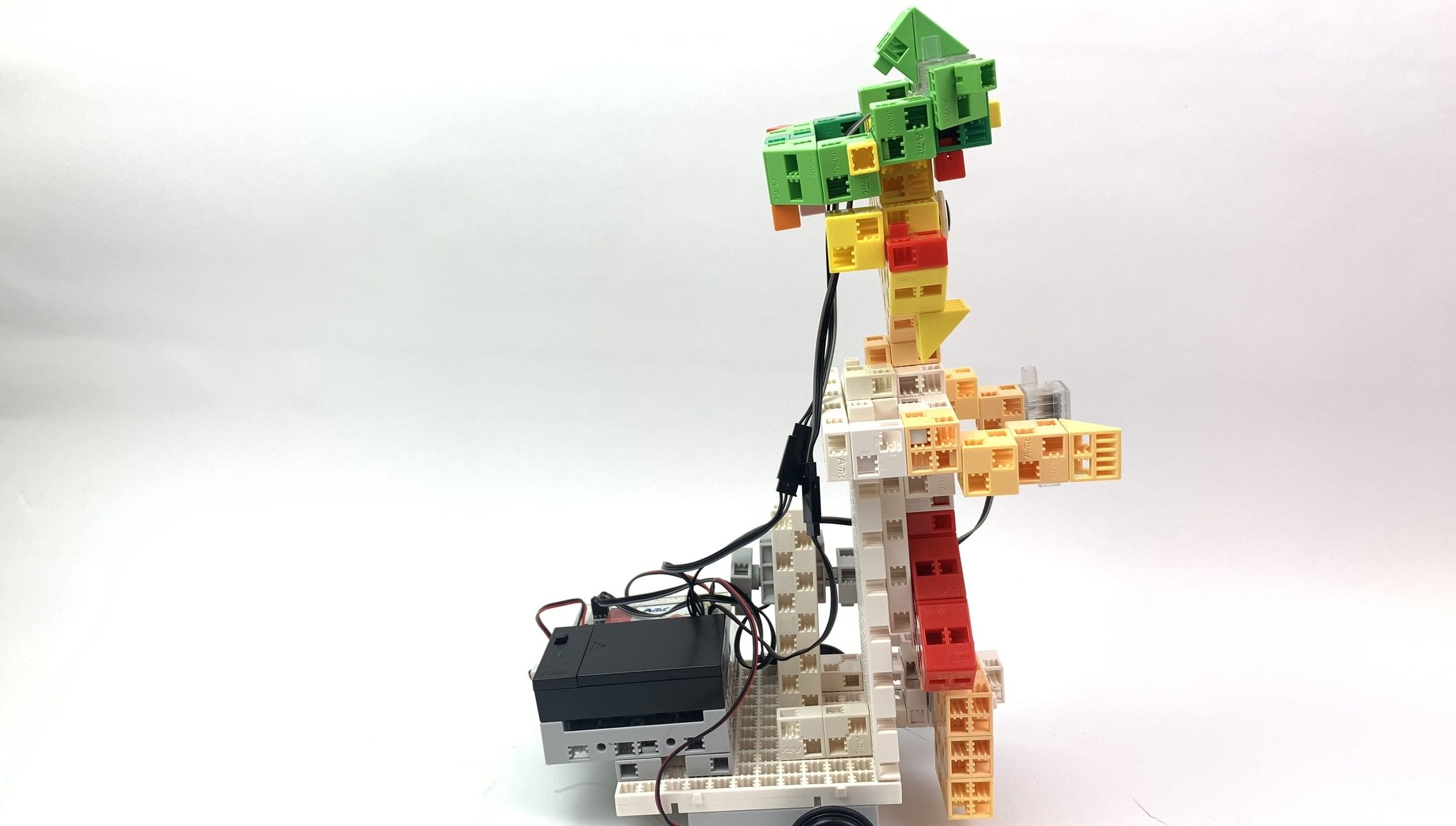

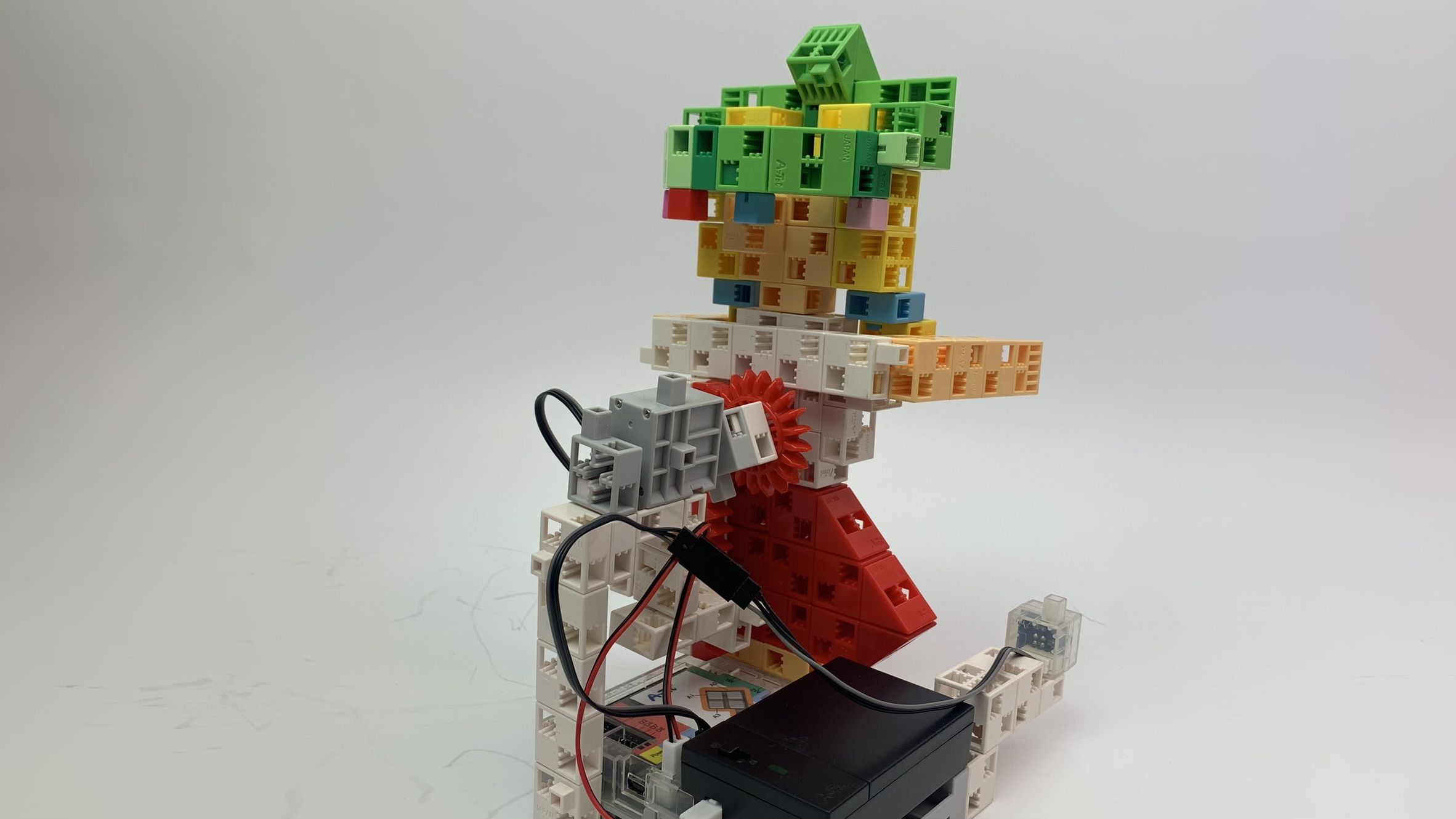

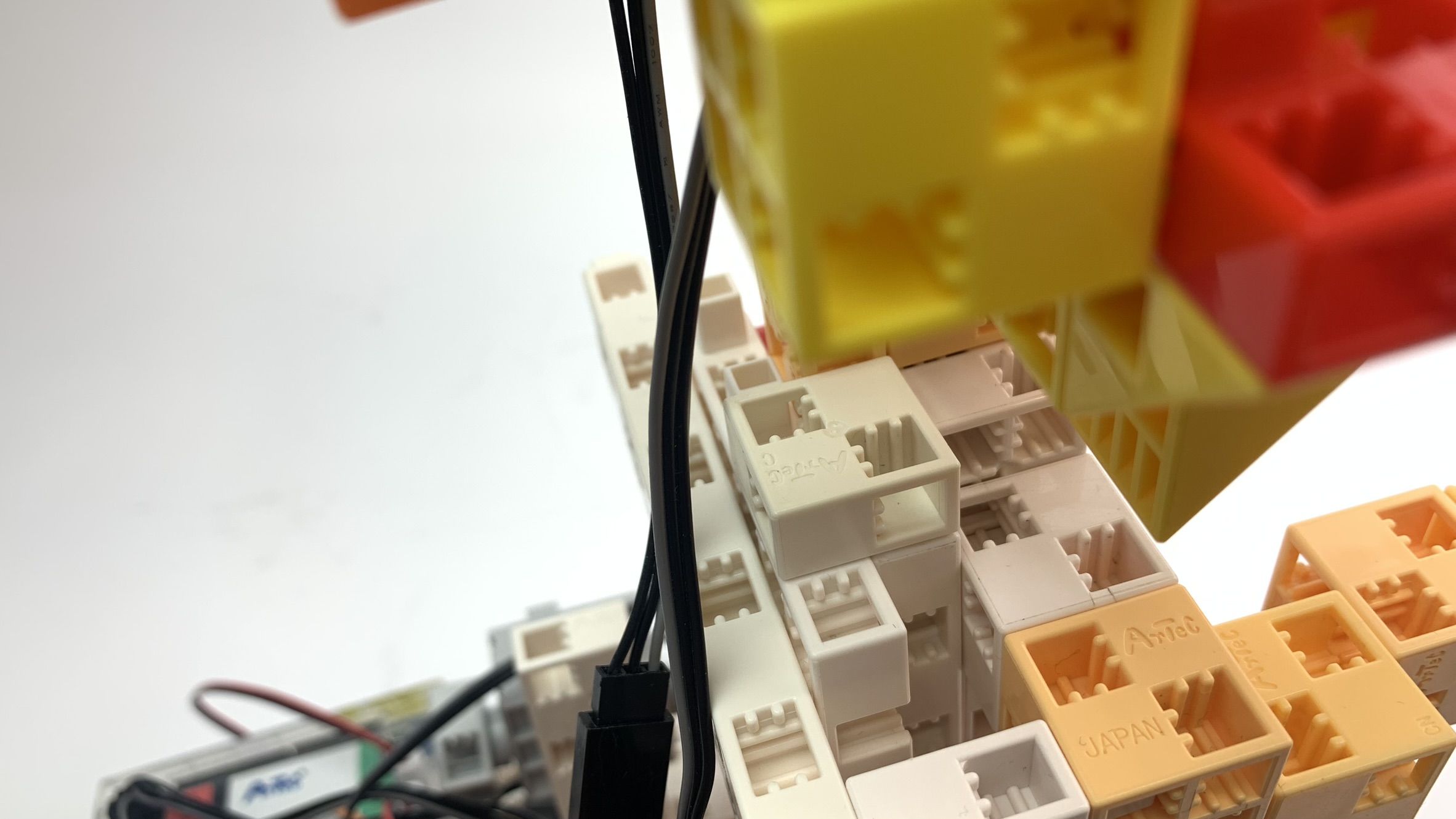

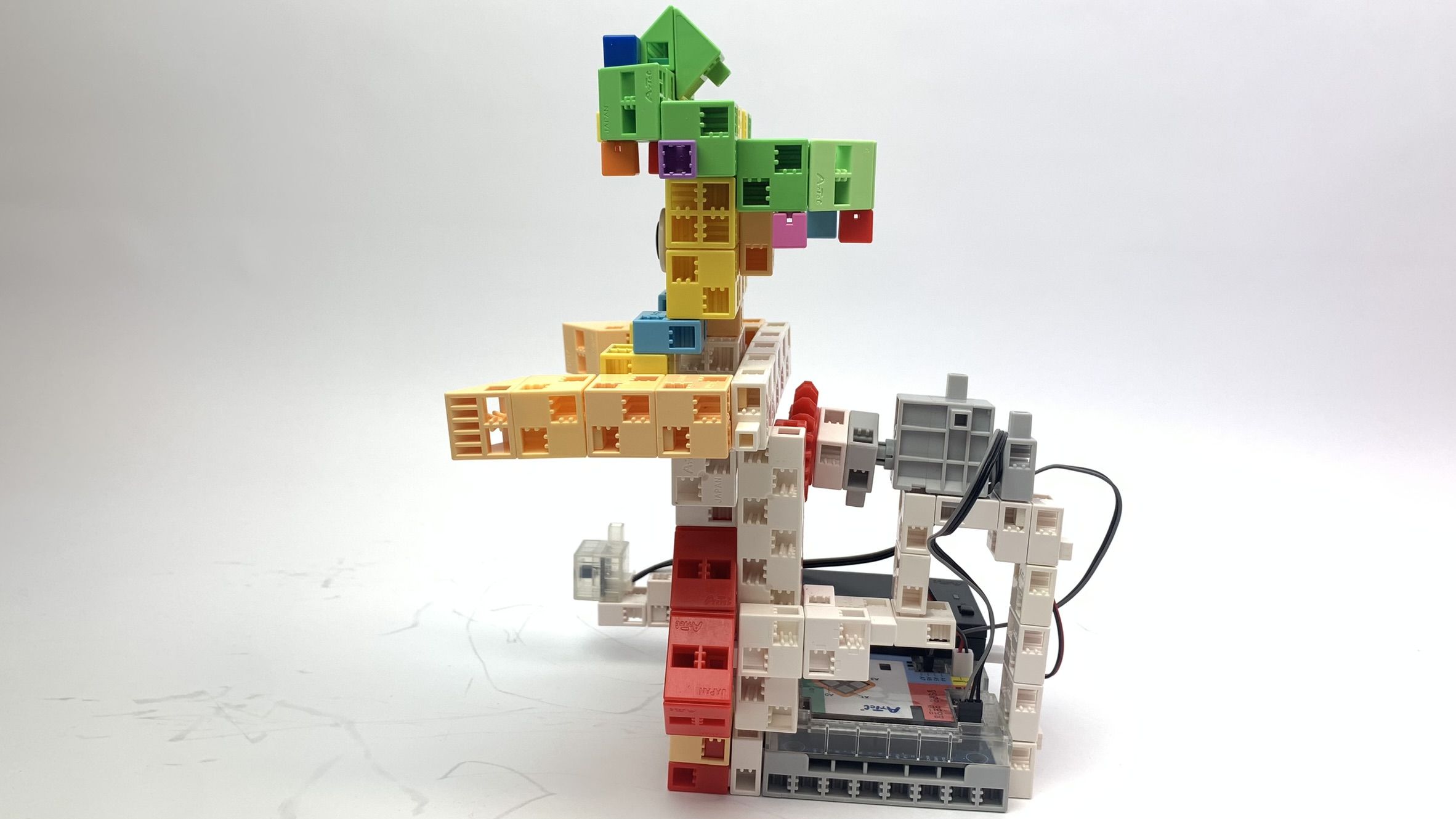

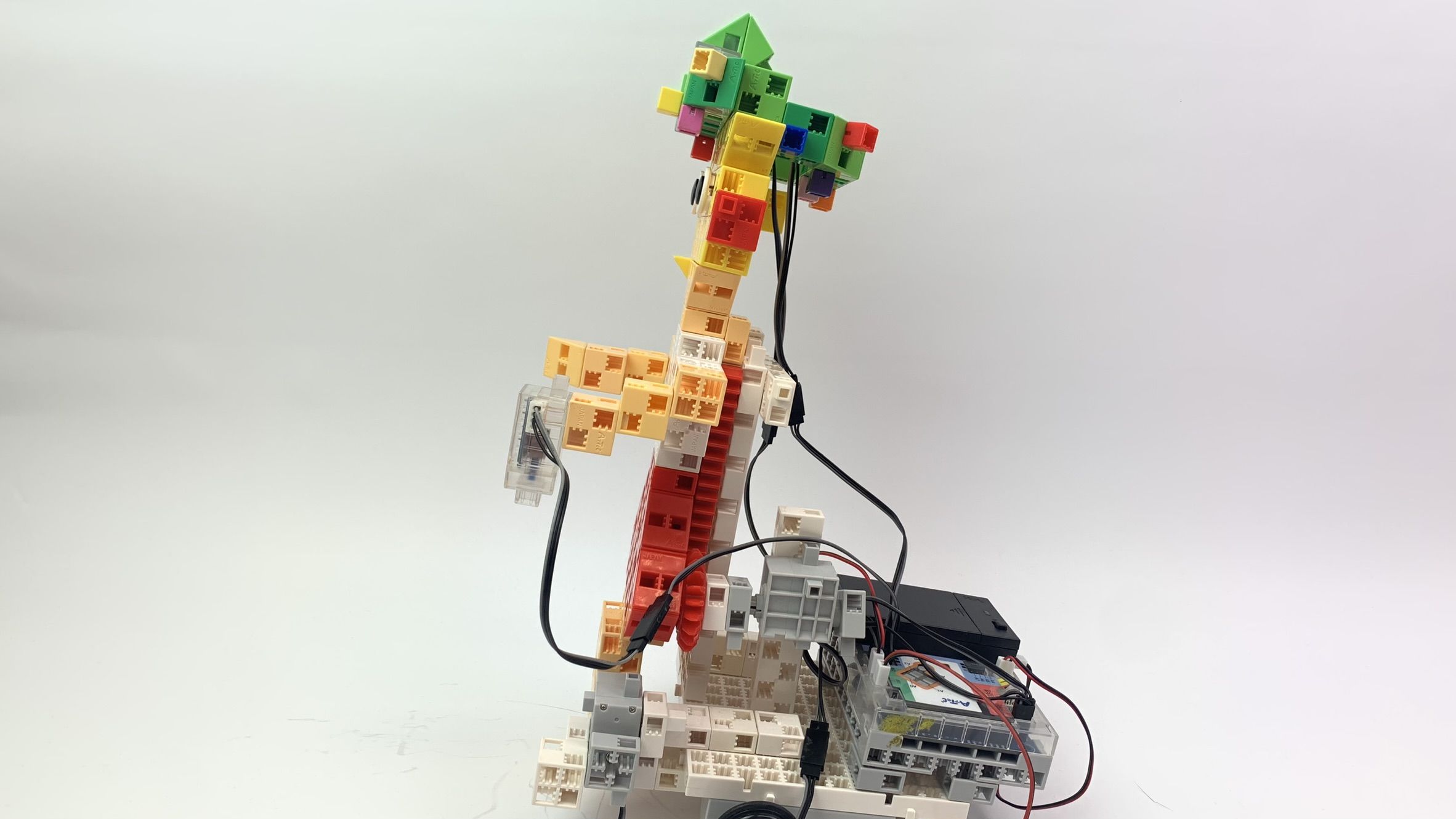

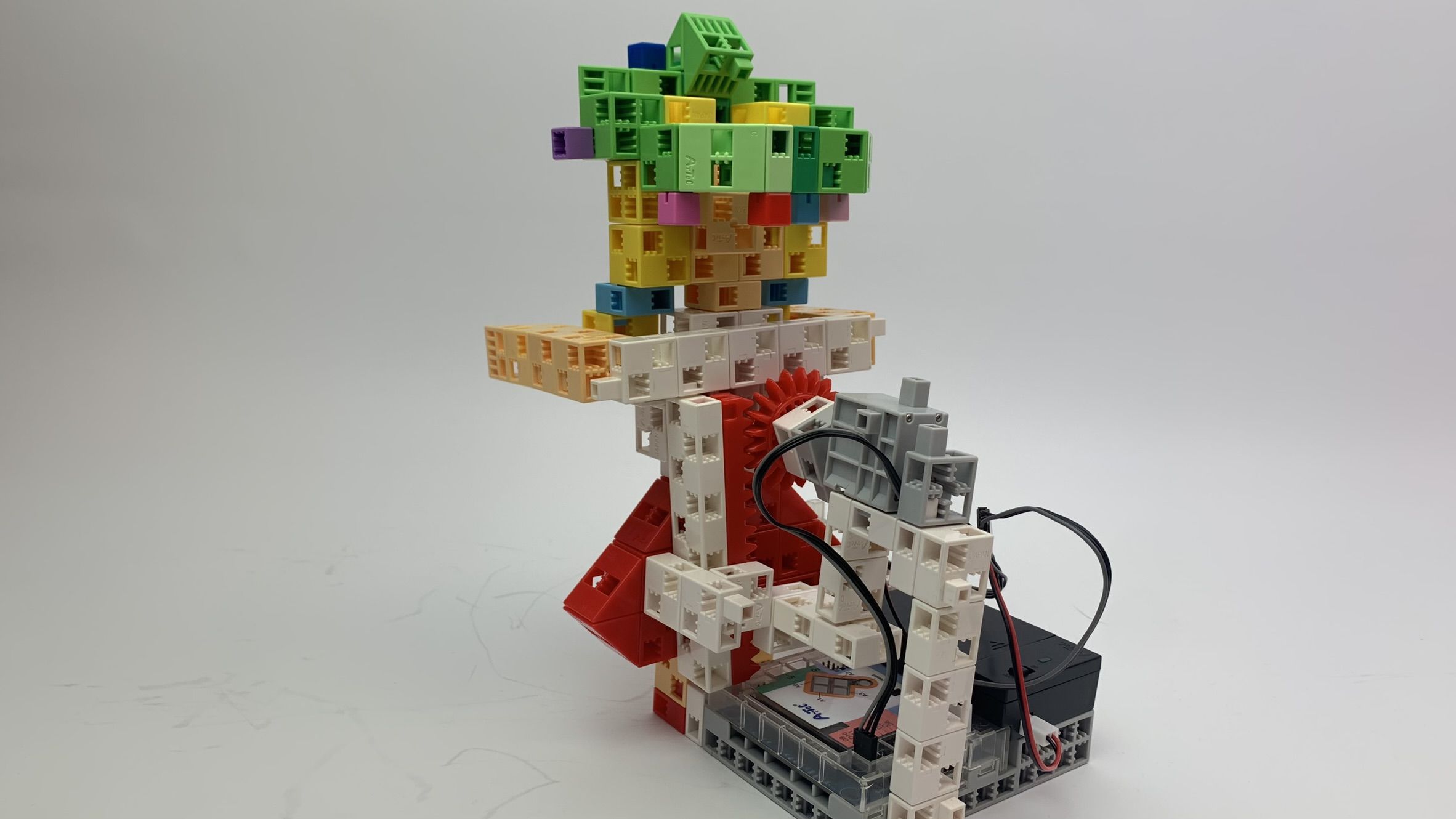

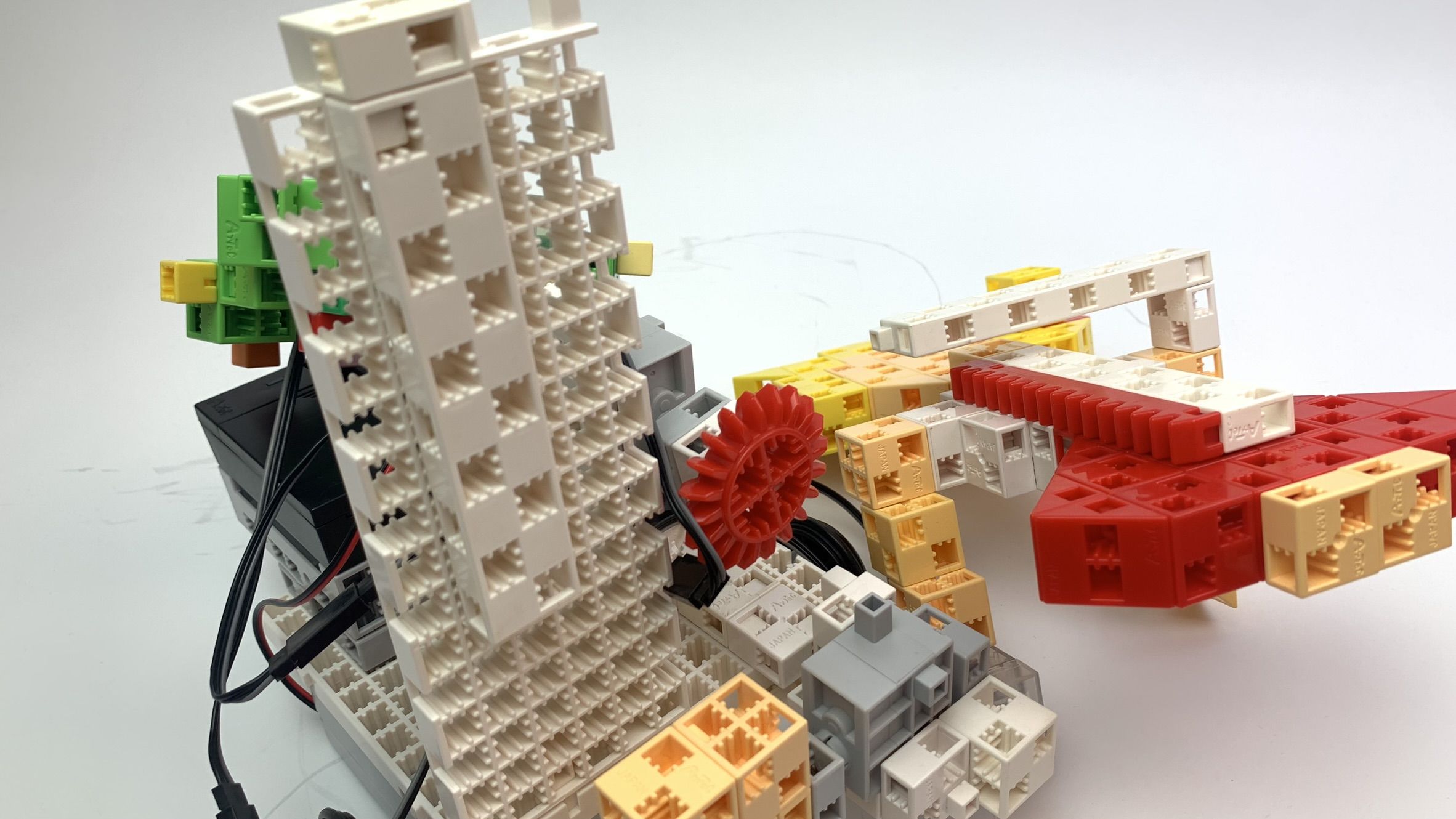

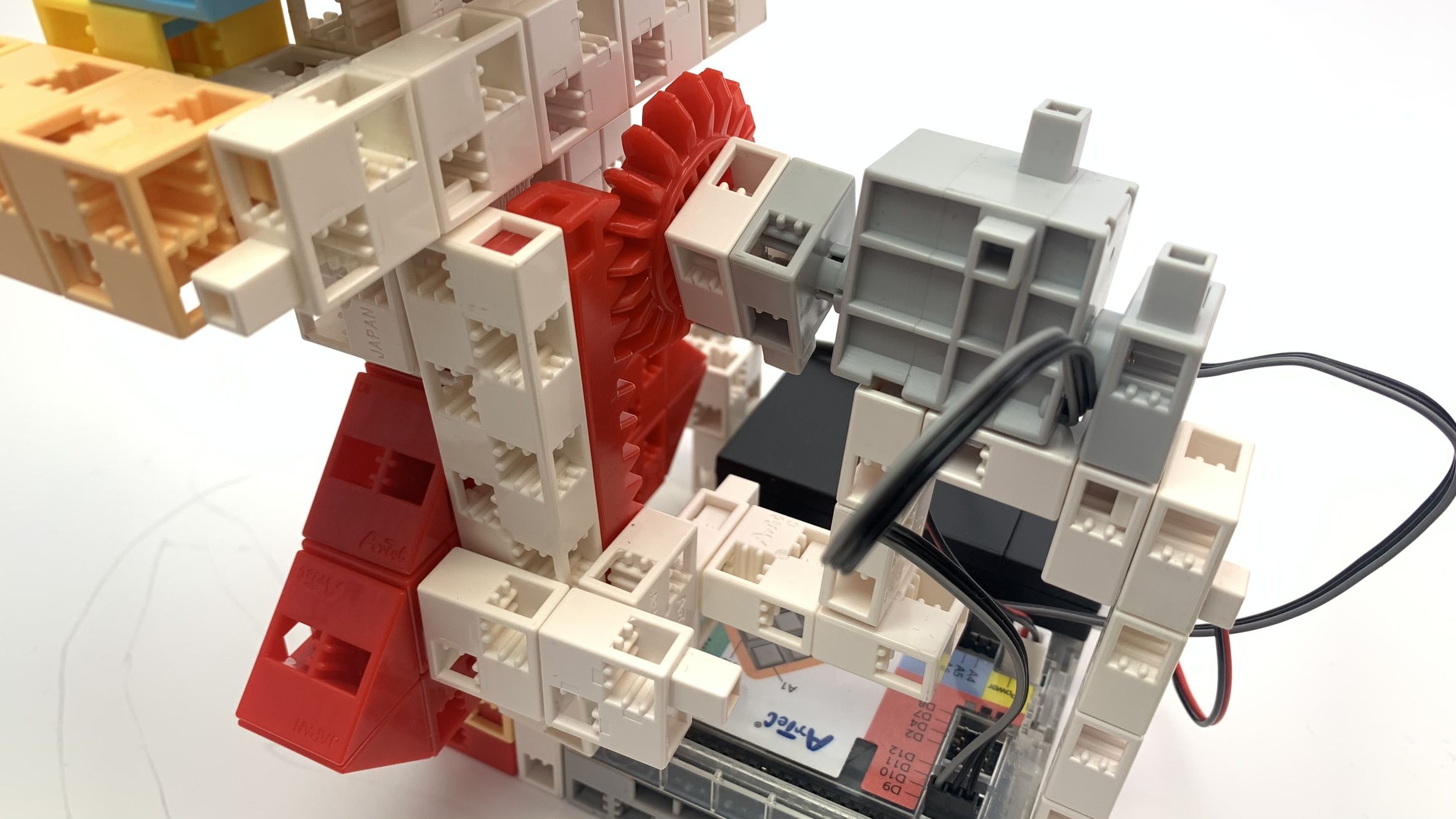

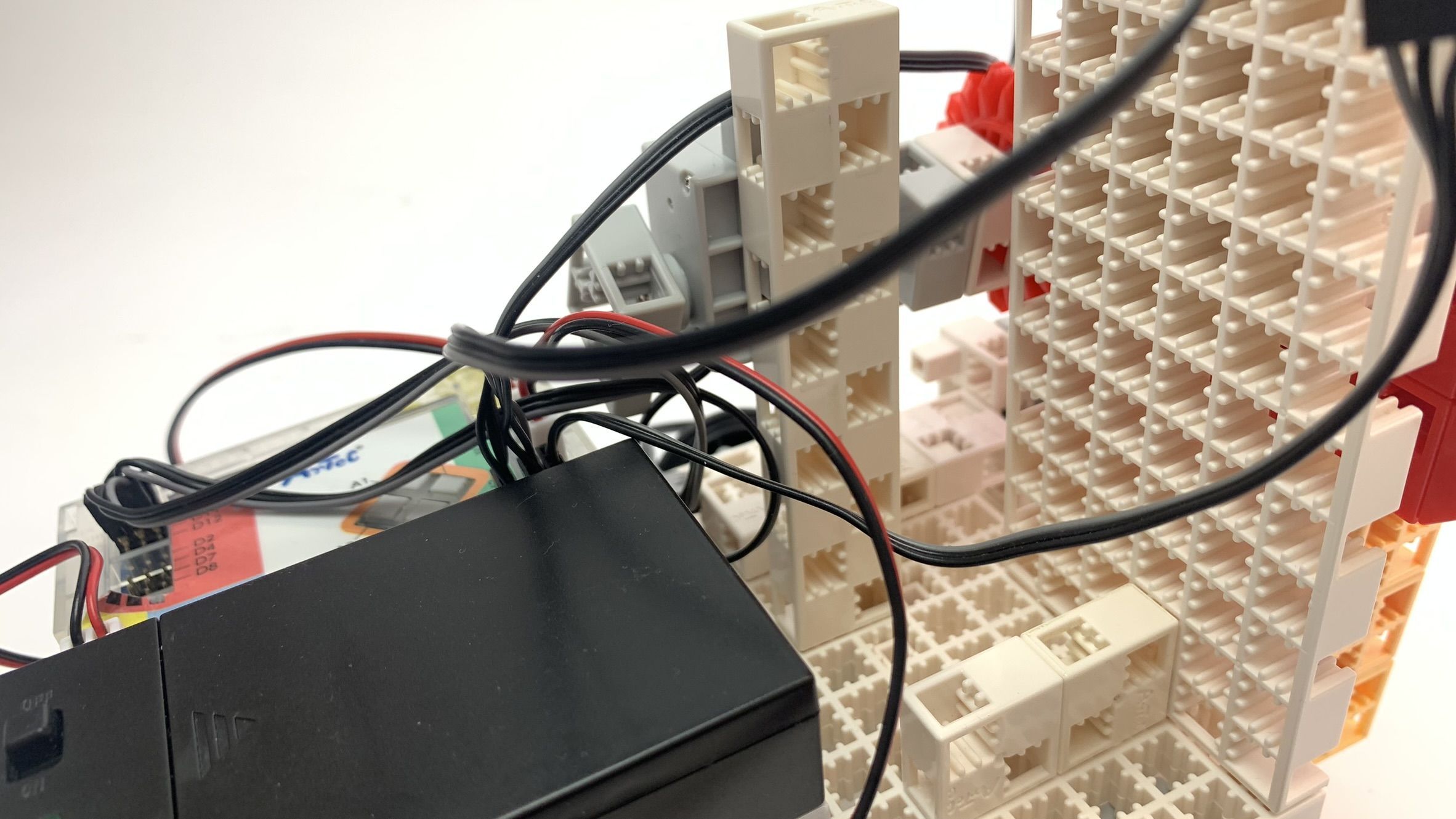

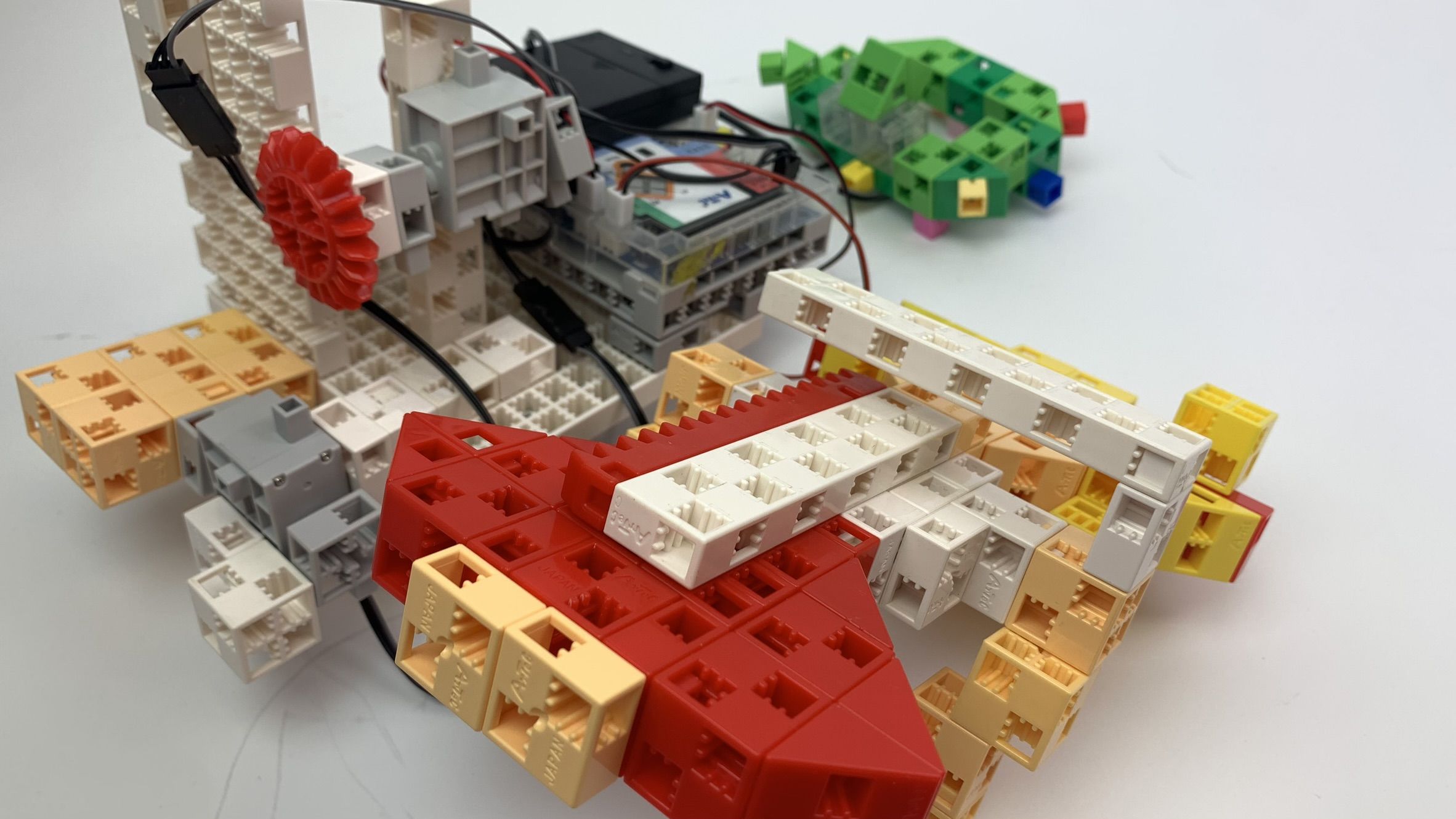

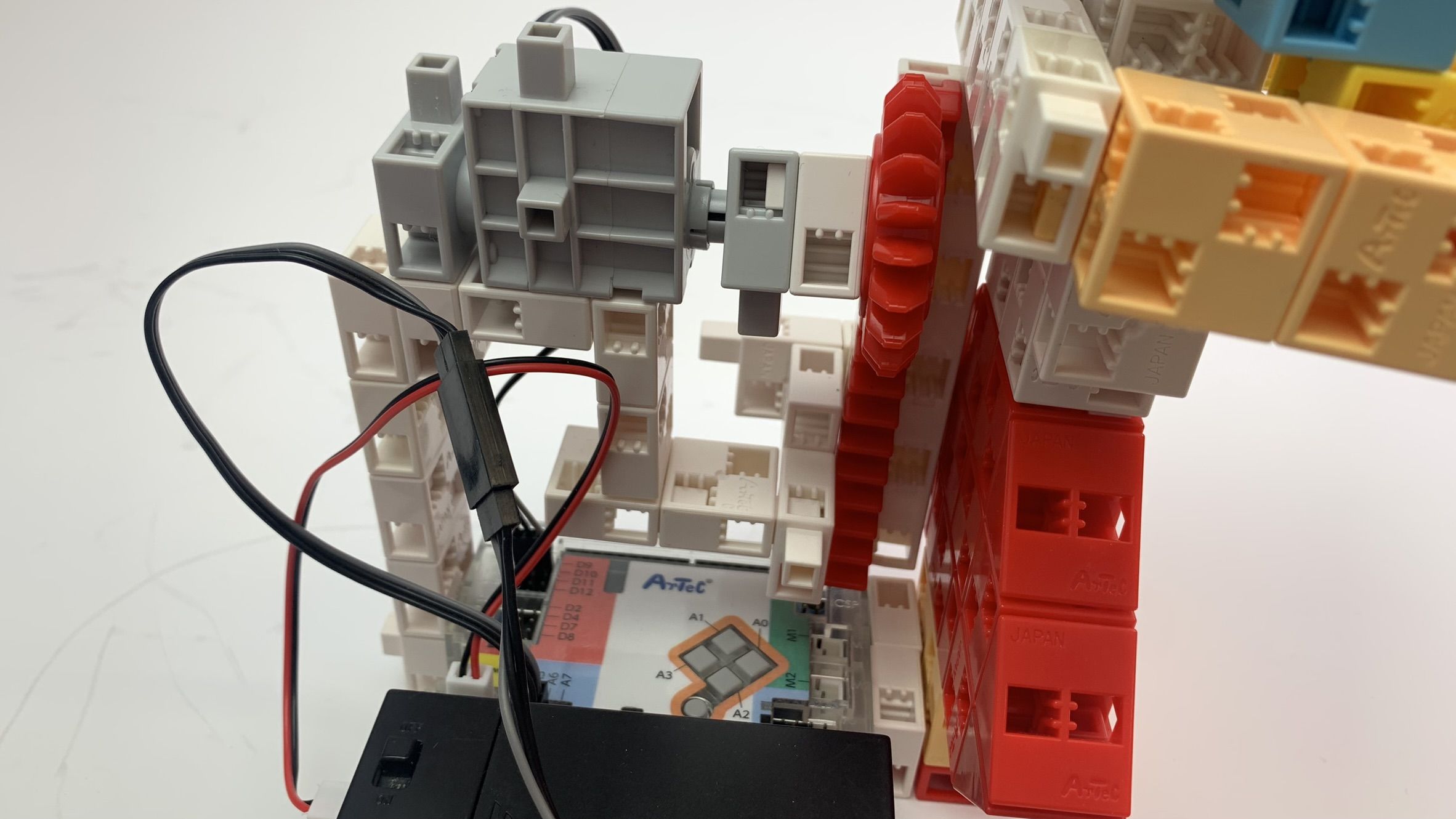

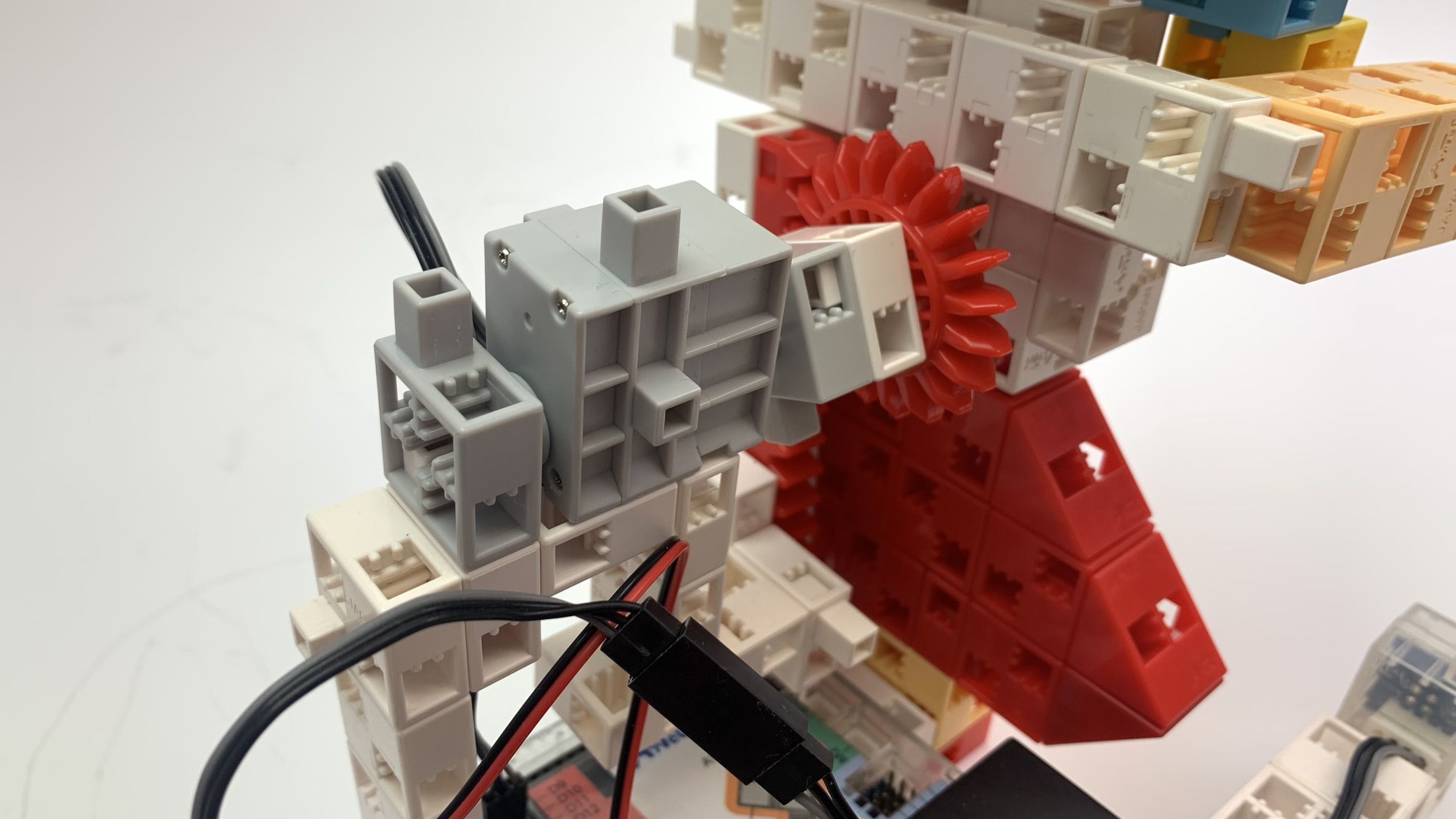

- The two girls are constructed in a similar way as in P2. We mount 1 servo motor in Lotti’s arm, 1 in Luise’s knee and 1 in her back, and 1 IR photoreflector is attached to Lotti.
- Luise is guided by accelerometer to Lotti. Lotti pushes the button and raises her hand with 1 servo motor.

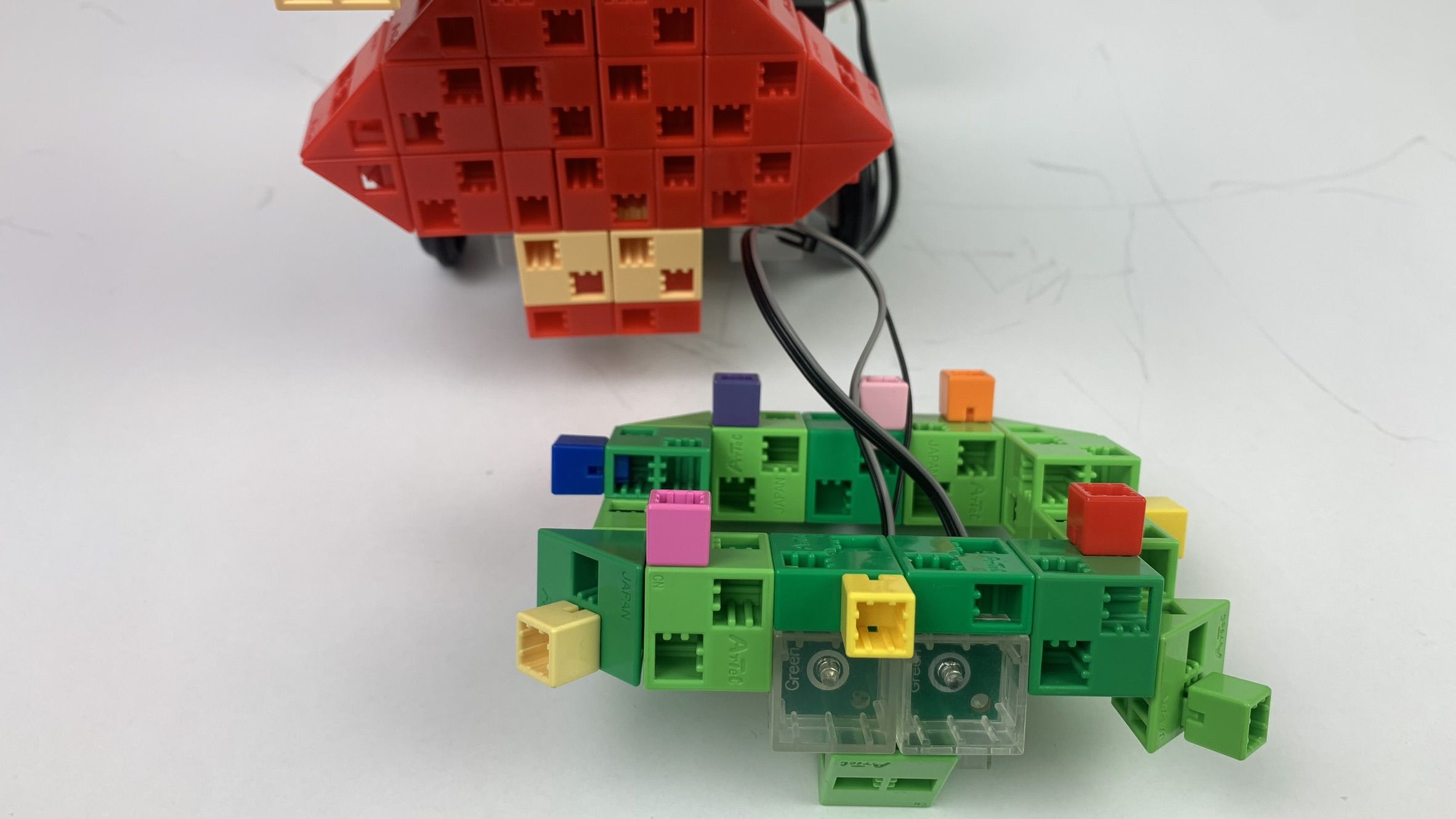

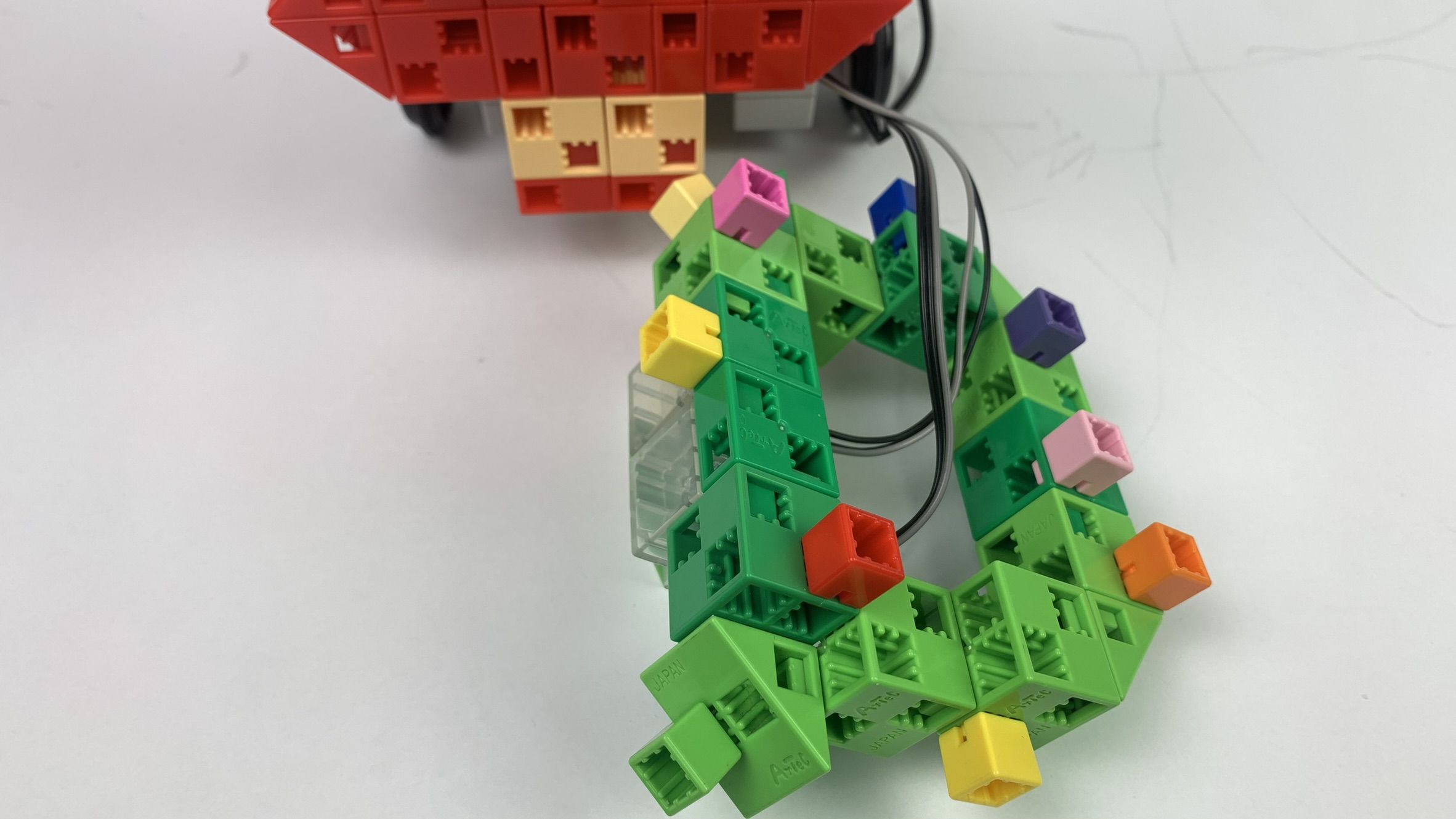

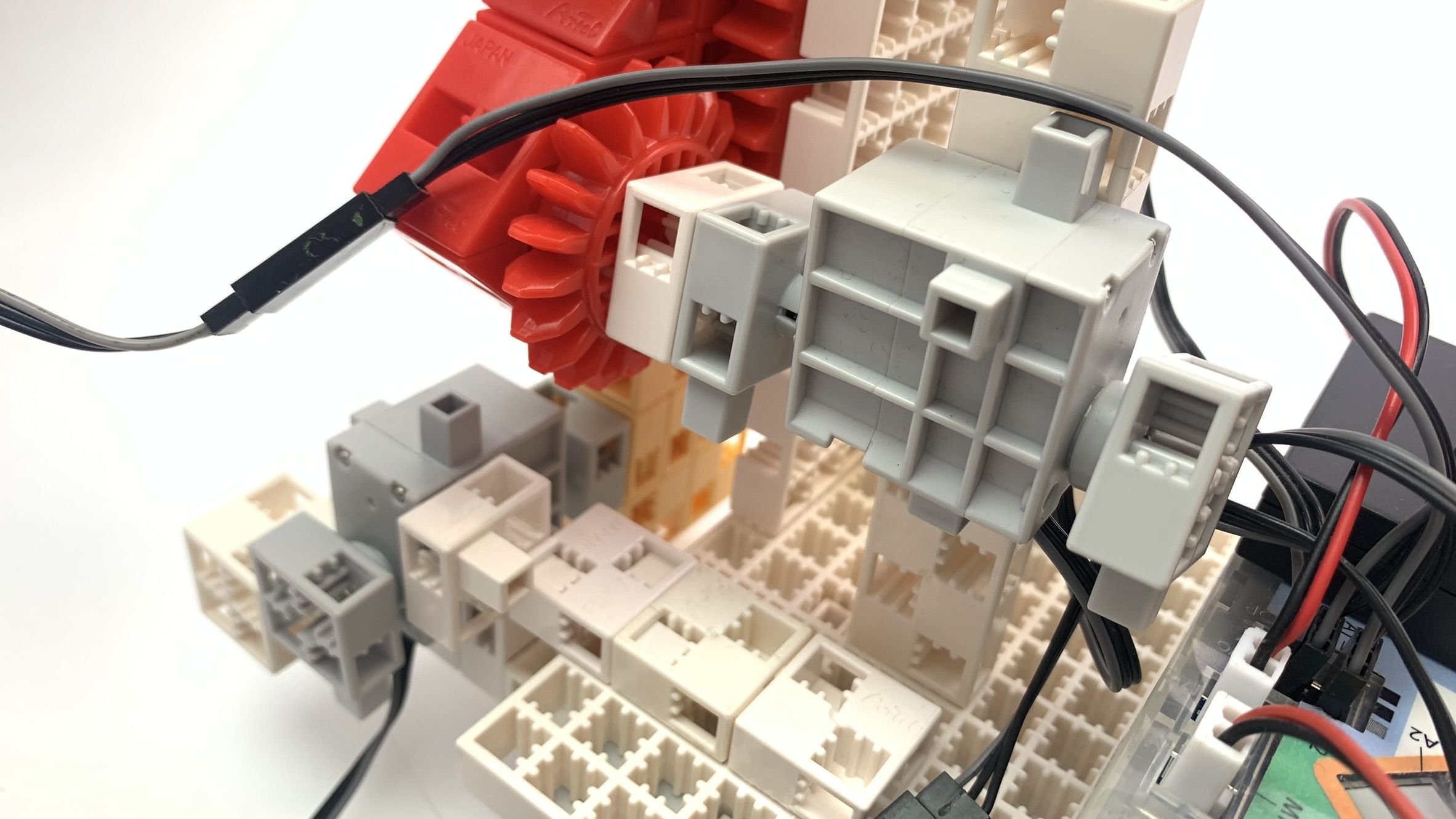

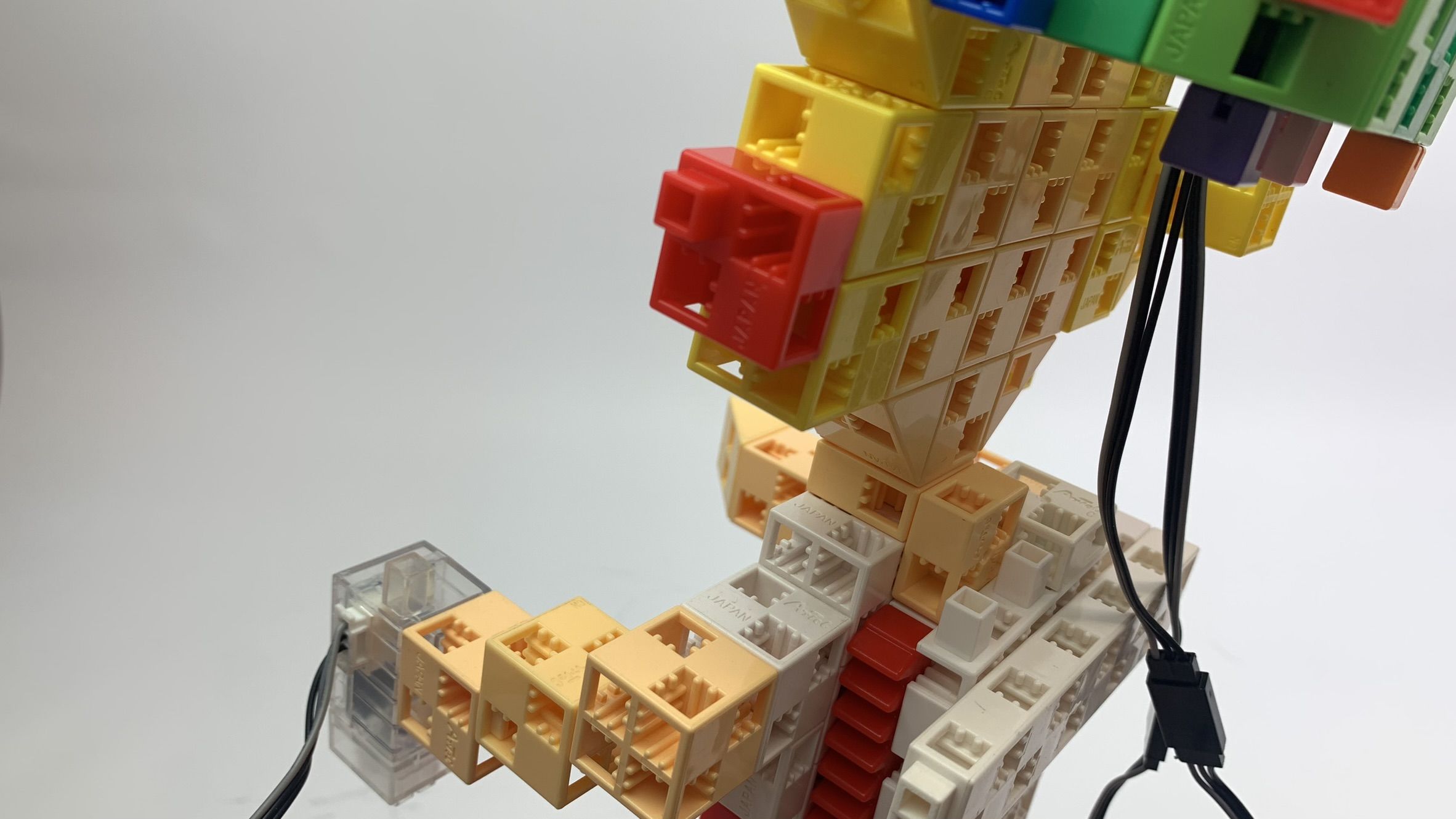

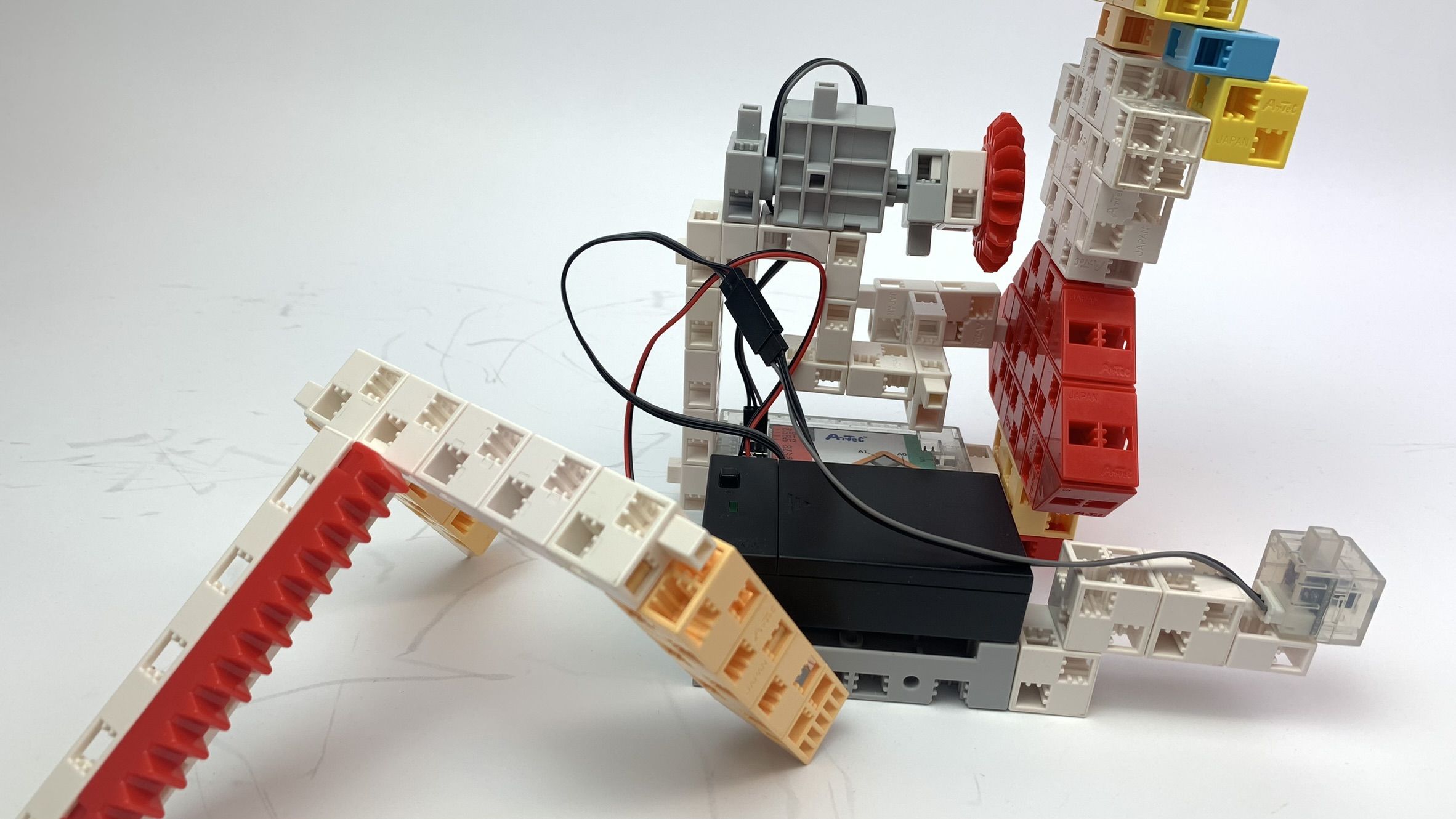

- Luise bends her knees with the servo motor and descends with a servo motor – geared device. The LED in the wreath lights up on her head.
P3
Two Girls
P3
P3
Programming level 4
Lotte places the wreath on Luise's head
P4
How to build
Two girls

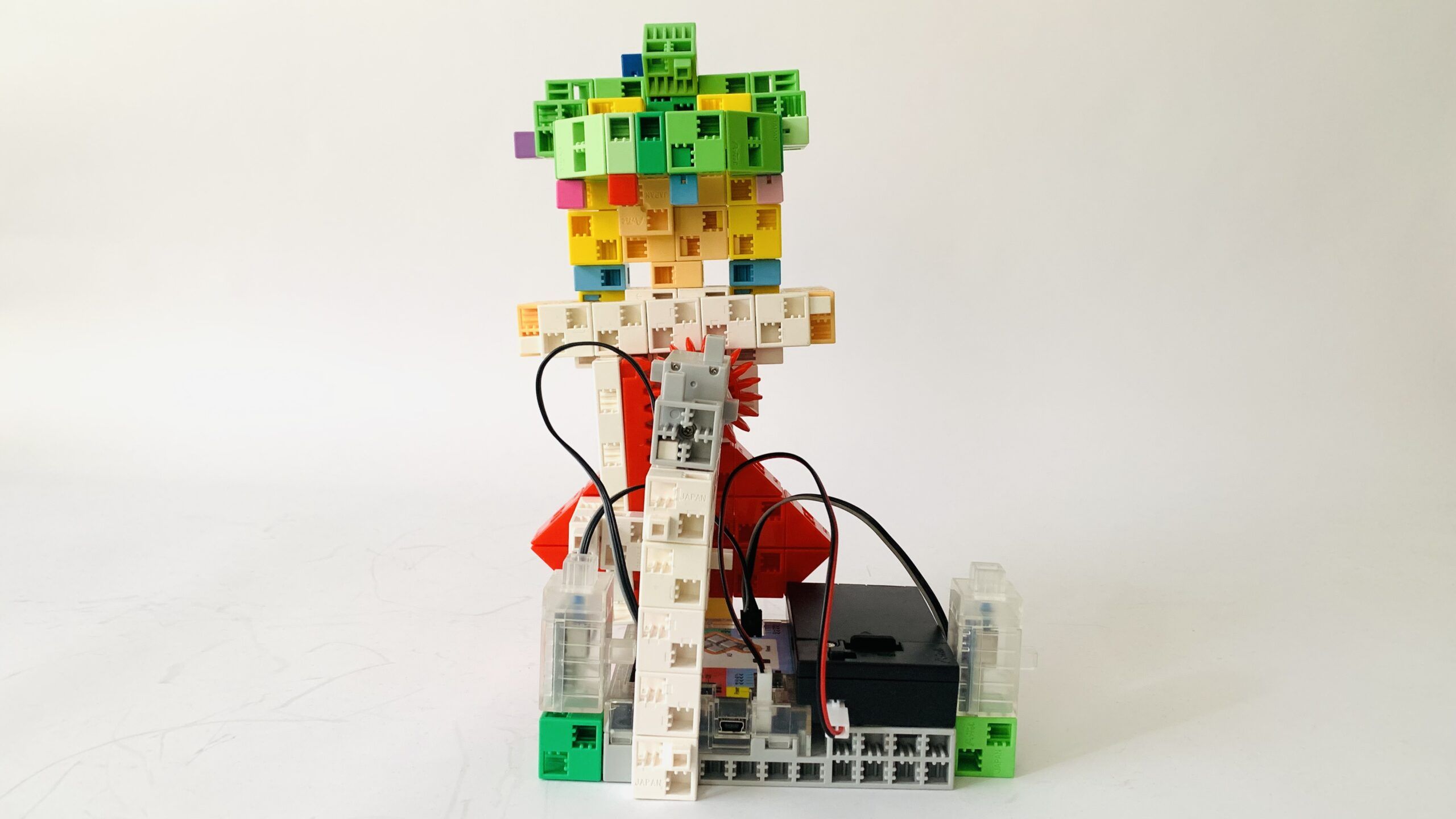

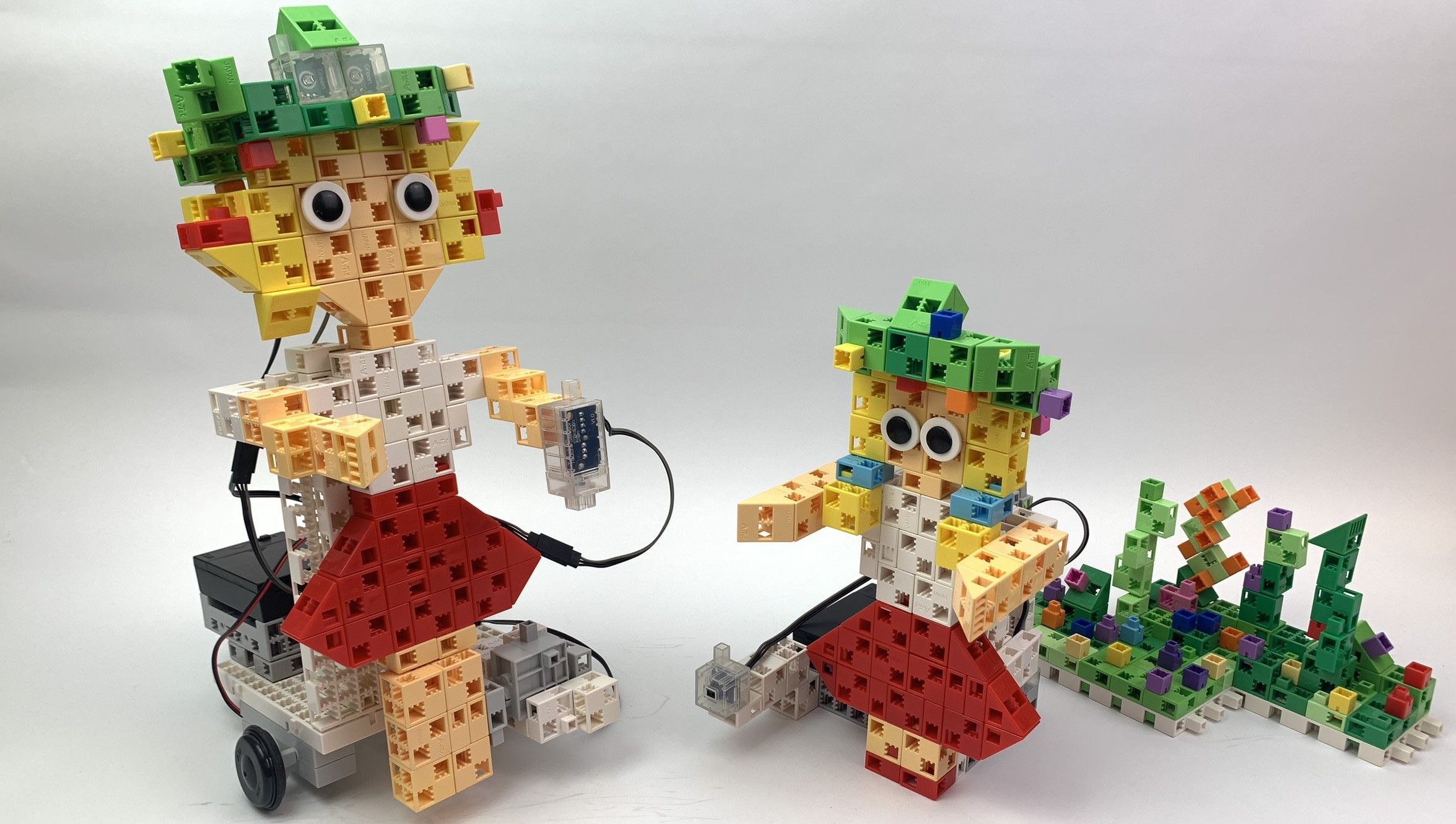

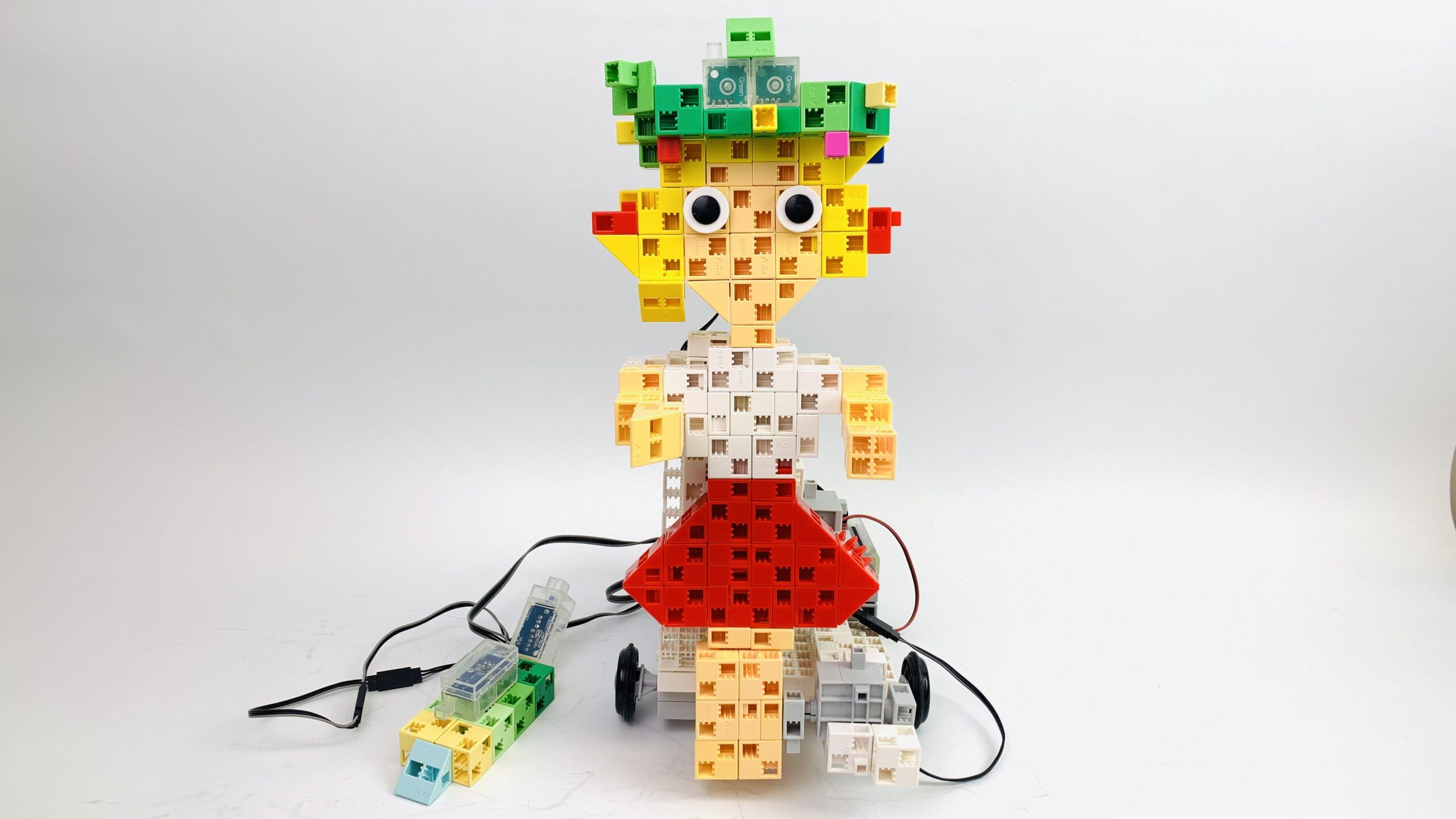

- The two girls are constructed in a similar way as in P3. Lotti is connected to 1 IR photoreflector. We mount the push button on Luise’s hand.
- Luise rolls towards Lotti, which is detected by the IR photoreflector. Lotti then lifts up and presses the push button in Luise’s hand.
- Luise then kneels down, as in P3. The LED in the wreath lights up on her head.
P4
Bus
